How to Easily Create a Pie Chart in Google Sheets

A pie chart is a highly recognizable type of graphical display, shaped like a complete circle (or ‘pie’), which is segmented into proportional slices. Each slice represents a category’s contribution to the total sum. It is an indispensable tool in data visualization when the goal is to show the composition of a whole, specifically illustrating how different components are distributed relative to that whole. Effective use of a pie chart is usually limited to scenarios involving a small number of categories (ideally less than seven) where the percentages are distinct enough to be easily differentiated by the audience. Using this visualization technique ensures that the proportions, whether they represent market share, survey responses, or budget allocations, are immediately obvious and understandable.

The following expert step-by-step example demonstrates the entire workflow for efficiently generating and fine-tuning a compelling pie chart in Google Sheets, utilizing sales data for demonstration purposes. We will move from raw numbers to a polished final graphic, ensuring maximum clarity in data representation.

Step 1: Preparing and Structuring the Data Set

The foundation of any successful chart is well-organized source data. Before attempting to insert a visualization, it is critical that the data is structured logically, typically in two adjacent columns: one for the categorical labels and one for the corresponding numerical values. The pie chart specifically requires that the values represent parts of a single, meaningful total. If the data is not structured correctly, Sheets may default to an incorrect chart type or produce a confusing visualization.

In this specific example, we will structure our data set to track the total sales for six distinct product lines. Column A will contain the product names (the categories), and Column B will contain the corresponding sales figures (the values). It is helpful, though not strictly required, to include clear header rows (A1 and B1) to define what the data represents, which will later assist Google Sheets in automatically labeling the chart components.

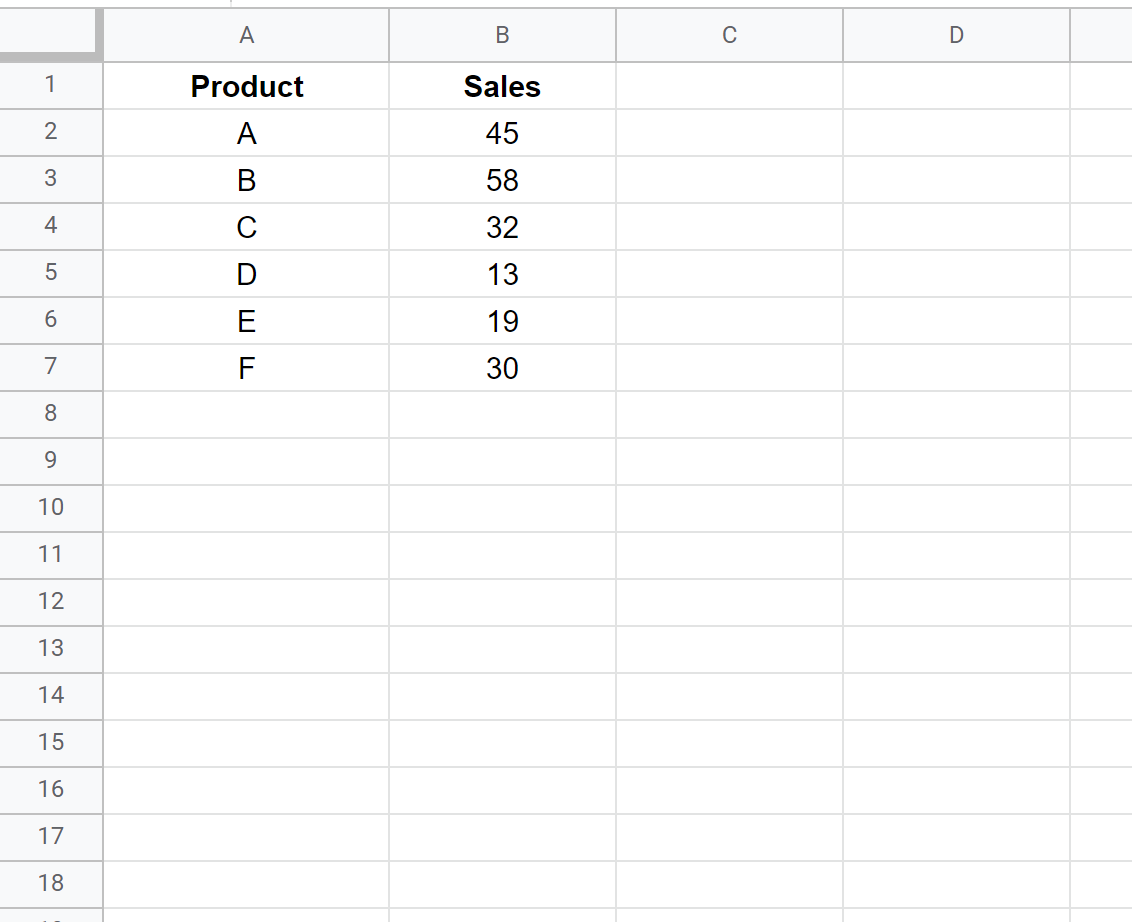

We must first enter this information precisely into the spreadsheet cells, ensuring numerical data is correctly formatted as numbers and not as text strings. This initial organization is perhaps the most important administrative step in the entire charting process, as errors here will propagate into the final graphic. Below illustrates the required data layout:

Step 2: Initiating Chart Creation via the Insert Menu

Once the source data is meticulously entered and formatted, the next step involves informing Google Sheets which range of cells should be used for the visualization. The best practice is to include both the header row and all relevant data rows in the selection. In our example, this means highlighting the entire range from A1 (Product) down to B7 (the last sales figure). Accurate selection is crucial; selecting too many rows or columns can skew the results or prevent the automatic recognition of the chart type.

With the required cells highlighted, navigate to the main menu bar at the top of the Google Sheets window. Click the Insert tab, which contains all options for adding non-text elements to the spreadsheet. Within the dropdown menu that appears, select the Chart option. This action signals to the program that you intend to convert the selected numerical data set into a graphical format.

Upon clicking Chart, the application automatically launches the Chart editor panel on the right side of the screen. Crucially, the system often attempts to guess the most appropriate chart type based on the structure of your selected data. Even if it initially defaults to a bar chart or column chart, the subsequent steps in the Chart editor allow us to specify the desired pie chart format. This interface also provides immediate access to the necessary configuration settings.

Step 3: Selecting and Configuring the Pie Chart Type

After the Chart command is executed, the newly generated, though potentially still unformatted, chart is embedded directly onto the spreadsheet canvas. Simultaneously, the dedicated Chart editor panel opens, displaying two main tabs: Setup and Customize. Our immediate focus is the Setup tab, where we define the fundamental properties of the visualization, including the specific chart type and the data ranges used.

Within the Setup tab, locate the “Chart type” dropdown menu. Scroll through the available options until you find the Pie chart selection. Clicking this selection immediately transforms the inserted graphic into the desired circular visualization. Google Sheets is typically effective at auto-assigning the label column (Product) to the categories and the numerical column (Sales) to the slice sizes, resulting in the foundational pie chart shown below.

Reviewing the automatically generated chart is essential at this stage. Ensure that the slices correctly represent the proportions indicated in the data table (A1:B7). This initial chart insertion completes the transformation of the tabular data set into a basic graphical form, ready for aesthetic enhancement and detailed labeling in the subsequent steps.

Step 4: Mastering the Chart Editor for Basic Appearance

To initiate the customization phase, if the Chart editor panel has closed, simply click anywhere on the embedded chart graphic. A small menu icon (represented by three vertical dots) will appear in the top right corner of the chart container. Click this icon and select Edit chart from the context menu. This action instantly reopens the configuration panel, allowing access to the wide range of visual modifications available under the Customize tab.

The Customize tab is segmented into several sections designed to control various aspects of the chart’s appearance, starting with overall style and layout. It is highly recommended to explore the Chart style section first, where you can adjust parameters like background color, border style, and font selection. Ensuring the chart adheres to brand guidelines or presentation standards regarding color palette and typography enhances its professional appeal and readability.

A crucial area for pie charts is the dedicated Pie chart subsection within the Customize tab. Here, users can adjust the visual attributes of the entire “pie.” This includes options to change the Doughnut hole size (transforming it into a donut chart if desired), modify the border color of the slices, and, most importantly, control the display of slice labels. The default label is often the category name, but for a data visualization focused on comparison, displaying the actual percentage is far more effective.

To enhance comprehension, locate the Slice label option within the Pie chart settings and change the selection from the default (often ‘None’ or ‘Value’) to Percentage. This immediate change overlays the calculated percentage contribution directly onto each segment, providing instant context to the viewer without requiring them to reference the separate legend or data table. This is a vital step for maximizing the impact of the chart.

Step 5: Advanced Customization Techniques (Slices, Titles, and Legend)

Moving deeper into aesthetic control, the Pie slice section within the Chart editor offers granular control over the appearance of individual segments. This is particularly useful when highlighting a specific category or when standardizing colors across multiple charts for consistency. By default, Google Sheets assigns a standard color palette, but manual intervention allows for greater control over the visual narrative.

Users can select each category name (e.g., Product A, Product B, etc.) from the dropdown menu in the Pie slice section and then assign a unique color using the color picker tool. Furthermore, this section allows for ‘exploding’ a specific slice—pulling it slightly away from the center of the pie—to draw extra attention to a dominant or particularly significant category, such as the highest-selling product in our data set. This visual emphasis is a powerful technique in data visualization storytelling.

Next, addressing the context of the visualization is handled in the Chart & axis titles section. While pie charts typically lack traditional axes, the chart title is vital. A descriptive, precise title informs the audience immediately what the chart represents (e.g., “Q4 Product Sales Distribution 2023”). Click this section, select Chart title, and enter the appropriate text. You can also customize the font, size, and color of the title here to ensure it is prominent and legible. Vague or missing titles severely diminish a chart’s utility.

Step 6: Optimizing Legend Placement and Final Review

The Legend is essential for mapping the colors used in the slices back to the categorical labels (Product A, Product B, etc.). While placing percentage labels directly on the slices reduces reliance on the legend, a well-placed legend remains necessary for identification. Within the Customize tab of the Chart editor, navigate to the Legend section.

Here, you can adjust the Position of the legend. Options typically include Right, Top, Bottom, Left, or Auto. Selecting a position that minimizes visual obstruction of the main chart area while maintaining proximity to the visualization is key. For instance, placing the legend at the ‘Right’ or ‘Bottom’ often works well for standard pie charts. Additionally, font styles and size can be adjusted to ensure legibility, especially if the category names are lengthy.

Once all customization parameters have been applied—including labels, titles, colors, and legend placement—the resulting data visualization should be a professional, highly readable representation of the initial sales data set. The final step is a critical review to ensure all elements are correctly aligned and that the chart tells an accurate, compelling story about the underlying data.

After following all steps for data entry, chart insertion, and customization within the Chart editor, the finalized pie chart, clearly displaying the proportional sales breakdown by product, appears as follows:
