How to Create a Stacked Bar Chart in Google Sheets: A Step-by-Step Guide

A stacked bar chart is defined as a type of bar graph that utilizes segmented bars to visualize the values of multiple distinct variables concurrently. Each segment, or sub-bar, represents a specific data series, and the combined length of the segments within a single bar represents the total value for the primary category.

The subsequent sections provide a detailed, step-by-step methodology on how to create, configure, and refine a robust stacked bar chart using the functionalities available within Google Sheets.

Understanding the Utility of Stacked Bar Charts

A Stacked Bar Chart is a powerful tool used extensively in data visualization. Unlike standard bar charts which compare independent totals, the stacked variant shows how different components contribute to a larger whole. Each bar represents a total category, and that bar is divided into segments (sub-bars) that represent the individual series or variables being measured. This allows analysts to quickly grasp both the overall magnitude of the categories and the proportional breakdown within those categories simultaneously.

The primary advantage of using a stacked visualization within applications like Google Sheets lies in its efficiency when comparing relative data. For instance, if you are tracking product sales across different regions, a stacked chart instantly shows which region performs best overall (bar height) and the breakdown of product types contributing to that total within each region (segment colors). This methodology is particularly useful for presenting survey results, demographic analyses, or financial breakdowns where the composition of a total is as important as the total itself.

Creating this specialized visualization in Google Sheets involves a straightforward, three-step process: proper data entry, chart insertion and type selection, and finally, detailed customization. This guide provides a comprehensive walkthrough, ensuring that you can generate clean, informative, and visually appealing stacked bar charts from your raw data.

Step 1: Structuring Data for Stacked Visualization

The success of any chart relies heavily on how the underlying data is organized. For a stacked bar chart in Google Sheets, the data must be arranged in a format where the categories (which become the vertical axis labels) occupy one column, and the series (which determine the stacking within the bars) occupy adjacent columns. Crucially, the first row should contain the headers for the category and the respective series names, as these headers are automatically interpreted by the software as the legend labels.

Consider a practical example involving survey analysis: we conducted a survey asking 100 males and 100 females to identify their favorite sport among baseball, football, soccer, and basketball. The goal is to visualize the distribution of preferences broken down by gender. In this scenario, the sports will serve as the primary categories displayed on the vertical axis, and the genders (Male and Female) will serve as the stacked series that define the bar segments.

To prepare this data for chart insertion, we enter the results into a contiguous range of cells. The sports (categories) should occupy column A, while the frequency counts for ‘Male’ and ‘Female’ should occupy columns B and C, respectively. It is critical to ensure that column headers clearly define the data, as Google Sheets automatically uses these headers as the legend labels for the chart series, providing necessary context for the data visualization.

The resulting data table should maintain the following structure, ensuring all data points are properly categorized and quantified:

Step 2: Inserting the Initial Chart Object

Once the data set is meticulously organized (in our example, covering the range A1:C5), the next crucial step is to instruct Google Sheets to generate a graphical representation. Begin by highlighting the entire data range, including the header row and category column (e.g., highlighting cells A1 through C5). This selection defines all the variables and values that the chart will attempt to visualize and ensures that all necessary data points are included in the initial rendering.

With the required data highlighted, navigate to the main menu bar located at the top of the spreadsheet interface. Click on the Insert tab, and then select the Chart option from the dropdown menu. This action triggers the automatic generation of a chart object, which is placed directly onto the sheet, and simultaneously opens the specialized Chart editor panel on the right side of the screen.

It is important to note that Google Sheets often defaults to a standard chart type based on the data structure, such as a clustered column or bar chart. Do not be concerned if the initial output is not yet a stacked bar chart; this is the expected behavior. The default visualization must now be manually configured to adopt the stacked layout, which is the focus of the subsequent steps.

The steps performed up to this point are clearly summarized below, emphasizing the selection and the menu path necessary for initiating the charting process:

Step 3: Transforming to a Stacked Bar Layout

If the Chart Editor panel did not automatically open, or if it was closed, you can easily re-access the configuration settings. Simply click once on the generated chart to select it, then look for the three vertical dots (the ‘More’ menu icon) located in the top-right corner of the chart boundary. Clicking these dots reveals an options menu; select Edit chart to reopen the configuration panel. This panel is the central hub for all subsequent chart modifications.

Within the Chart Editor, ensure you are on the Setup tab. Since we aim for a horizontal representation, the Chart type should be set to “Bar chart.” If it is set to a “Column chart,” simply change it using the dropdown menu. The critical setting for transforming a standard bar visualization into a stacked one is the Stacking option.

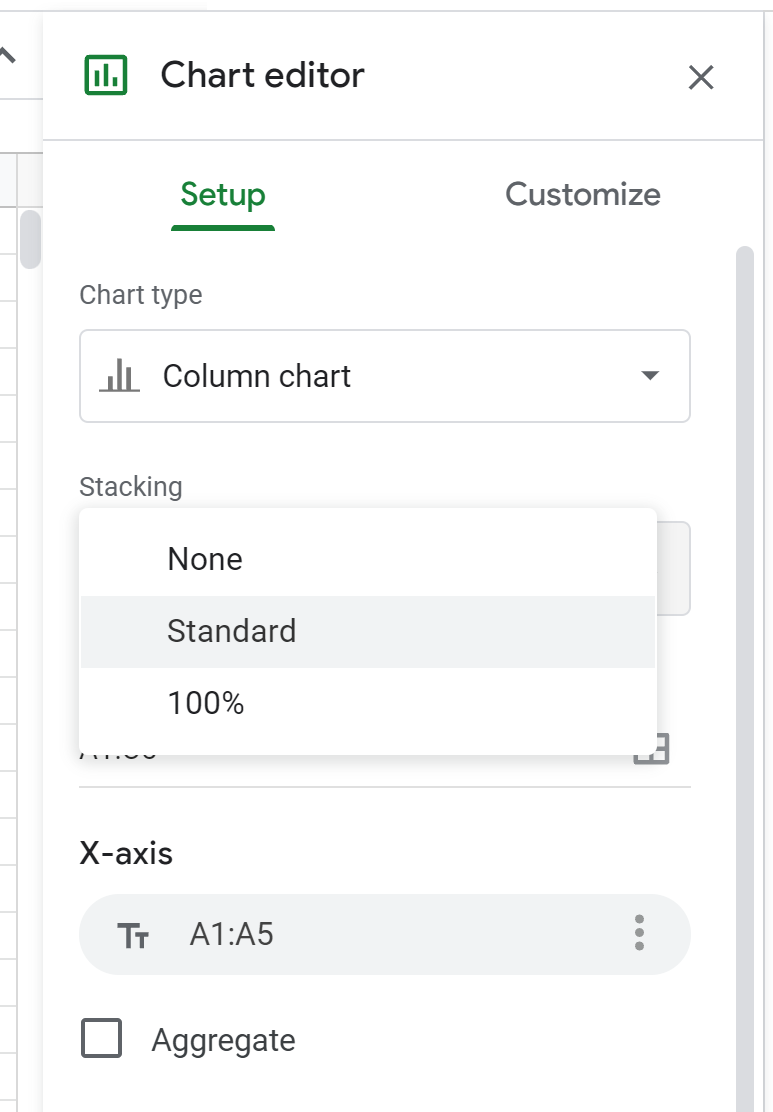

Locate the Stacking dropdown menu, usually found directly beneath the Data range and Chart type options. This menu presents three primary choices that dictate how data series are displayed relative to one another:

• None: This results in a standard clustered chart, where series bars are placed side-by-side, making category comparison difficult.
• Standard: This combines the series values additively within a single bar, showing the absolute contribution of each series to the category total. This is suitable for count data.
• 100%: This converts the absolute values into percentages, making every bar equal in length (100%) and emphasizing the proportional distribution of the series within the category, regardless of the overall total.

For our initial visualization, which focuses on absolute counts from the survey, select the Standard option. This action immediately updates the visualization, converting the clustered bars into a proper Stacked Bar Chart where the segment lengths correspond directly to the counts.

The key interface elements for accessing and modifying the stacking setting are demonstrated below, leading to the desired stacked output:

Choosing Between Standard and 100% Stacking

Understanding the analytical implications of the Standard versus the 100% stacking options is paramount for effective data visualization. The Standard stacked chart is utilized when the overall absolute total of each category holds significant meaning. For example, if comparing total production units across shifts, the bar height represents the absolute total units produced, and the segments show which machine lines contributed to that output. This is the default choice when both the sum and the components’ absolute values are critical.

Conversely, selecting the 100% stacking option fundamentally alters the display’s focus. When this setting is applied, the visualization focuses entirely on proportions, normalizing every category bar to a maximum length representing 100%. This is highly effective when comparing the compositional makeup across categories, particularly when the absolute totals of those categories vary widely. For instance, if comparing budget allocation between a large department and a small department, the 100% stacked chart allows for an immediate comparison of the percentage breakdown of spending categories, irrespective of the difference in total expenditure.

Therefore, before finalizing the chart configuration, analysts must critically determine the primary message the visualization is intended to convey. If the total quantity is the priority, choose Standard stacking. If the relative makeup or proportional distribution is the priority, select 100% stacking. This subtle yet critical distinction ensures the chart accurately reflects the statistical intent of the data presentation.

Step 4: Refining Appearance Using the Customize Tab

Once the chart type and stacking method are correctly configured, the next stage involves enhancing its visual clarity, professional polish, and interpretive speed. All aesthetic adjustments and stylistic modifications are efficiently managed within the Chart editor panel under the dedicated Customize tab. This tab provides extensive, granular control over virtually every visible element of the chart.

Key areas to focus on when customizing a Stacked Bar Chart include optimizing the following crucial elements for maximum impact and readability:

1. Chart & Axis Titles: Navigate to the ‘Chart and axis titles’ section. A compelling and descriptive chart title is essential for providing immediate context and summarizing the chart’s purpose (e.g., “Favorite Sports by Gender Distribution”). Ensure the horizontal and vertical axis titles are clearly labeled (e.g., ‘Sport Preference’ for the Y-axis and ‘Respondent Counts’ for the X-axis) and include appropriate font styling.
2. Series Customization: The ‘Series’ section allows for meticulous control over the colors assigned to each segment (e.g., Male and Female data sets). It is vital to choose colors that are easily distinguishable, adhere to accessibility standards, and maintain good contrast. Furthermore, this section allows you to add data labels, which place the exact numerical value directly on top of or inside each bar segment, significantly improving the precision of the visualization.
3. Legend: The ‘Legend’ section controls the position, font, and formatting of the series key. While placing the legend at the ‘Right’ or ‘Top’ is common for horizontal bar charts, ensure its placement does not interfere with critical data points or axis labels. The legend must clearly map the segment colors to the corresponding series names for accurate interpretation.
4. Gridlines and Ticks: Adjusting the ‘Gridlines and ticks’ on the numerical axis (X-axis) can help viewers estimate values more easily. For stacked bar charts, it is often beneficial to keep the major gridlines clean and minimal to avoid visual clutter, perhaps using only primary interval lines.

By judiciously applying these customization options, you successfully transition the chart from a basic data representation to a refined, ready-to-present visualization that effectively communicates complex relationships. The final product should look polished and optimized for presentation:

Best Practices for Effective Stacked Bar Charts

While the mechanical creation process in Google Sheets is straightforward, effective data visualization requires adherence to certain design principles. When deploying a stacked bar chart, careful consideration should be given to how the data is ordered and colored to maximize viewer comprehension and analytical accuracy.

Firstly, the ordering of categories (the sports, in our example, displayed on the vertical axis) should be logical and deliberate. If there is a natural sequence (e.g., chronological progression or alphabetical order), use it. If no natural sequence exists, a highly effective technique is to order the categories based on the overall bar total (either ascending or descending). This allows the audience to quickly identify the largest or smallest contributors across all series.

Secondly, the internal stacking order of the series (the segments within each bar) is equally important. It is critical to maintain the exact same stacking order across all bars. Additionally, if there is a conceptual sequence to the series—for instance, measuring satisfaction levels from ‘Very Negative’ to ‘Very Positive’—place the series that represents the most critical or stable data closest to the axis baseline (the zero point). This is because it is easiest for the human eye to compare the lengths of segments that share a common, fixed starting point.

Finally, color selection must be strategic and purposeful. Use color palettes that are consistent with any organizational branding and are accessible to all viewers, avoiding combinations that are problematic for color blindness. If the series represent related concepts (e.g., various age groups), use varying shades of the same hue to imply connection. If they represent highly distinct, separate concepts (like different genders or geographic regions), use highly contrasting colors. Always avoid using too many series; charts with more than five or six segments become visually overwhelming and mathematically difficult to interpret effectively.

Troubleshooting and Advanced Features

Users may occasionally encounter minor issues during the chart creation process, often related to data interpretation by the software. The most common problem is that the axis data appears inverted, meaning the categories are on the X-axis and the counts are on the Y-axis, or the chart defaults to a stacked column chart instead of the desired stacked bar chart. If this occurs, immediately return to the Setup tab in the Chart Editor.

Within the Setup tab, look for the options labeled Switch rows/columns and settings related to header detection, such as Use row [X] as headers or Use column [A] as labels. Toggling the Switch rows/columns option often resolves issues related to inverted axes or misidentified chart types. If the chart is still a column chart, manually select “Bar chart” from the Chart type dropdown menu.

The Chart Editor also facilitates advanced post-creation adjustments. If you realize you included extraneous data or missed a row after insertion, you can adjust the Data range directly in the Setup tab without having to recreate the chart (e.g., changing the range A1:C5 to A1:C6). Furthermore, clicking the ‘More’ menu (three dots) on the chart provides essential options like Duplicate chart for creating variations or Download (as PNG, SVG, or PDF) for seamlessly exporting the final visualization into other documents or presentations.
