How to Create a t-Distribution Graph in Excel: A Step-by-Step Guide

Introduction to Visualizing the t-Distribution in Excel

Generating a t-Distribution graph in Microsoft Excel is a fundamental skill for researchers, students, and data analysts who need to visualize probability distributions. The t-distribution, often referred to as Student’s t-distribution, is a cornerstone of inferential statistics. It provides a mathematical framework for estimating population parameters when the sample size is relatively small or when the population standard deviation is unknown. By creating a visual representation of this curve, analysts can better understand the likelihood of specific outcomes and the impact of degrees of freedom on the shape of the data.

In a professional setting, a graph is far more than just a picture; it is a tool for data analysis and decision-making. Excel makes this process accessible by providing built-in functions that calculate the probability density function values automatically. This allows users to focus on the interpretation of the results rather than the underlying calculus. Whether you are conducting hypothesis testing or building confidence intervals, a clear t-distribution graph ensures that your statistical findings are communicated effectively to stakeholders.

The following guide provides a comprehensive, step-by-step walkthrough for constructing these graphs. We will explore the mathematical properties that define the t-distribution, the specific Excel functions required for accurate calculations, and advanced formatting techniques to enhance the aesthetic quality of your charts. By the end of this tutorial, you will be able to generate professional-grade statistical visualizations that adhere to industry standards.

Fundamental Properties of the t-Distribution

Before diving into the technical steps in Excel, it is crucial to understand the unique characteristics of the t-distribution. Unlike the normal distribution, which is defined by its mean and standard deviation, the t-distribution is defined by a single parameter known as degrees of freedom. This parameter is typically calculated based on the sample size (n – 1). The distribution is continuous, meaning it can take any value along the x-axis, and it maintains a perfectly symmetric, bell-shaped profile centered around a mean of zero.

One of the most defining features of the t-distribution is its “heavy tails.” In statistical terms, this means that there is a higher probability of observing extreme values—those located far from the mean—compared to a standard normal distribution. This makes the t-distribution a more conservative tool for hypothesis testing when working with small datasets, as it accounts for the increased uncertainty inherent in smaller samples. As the sample size increases, the uncertainty diminishes, and the distribution begins to change its shape.

A key concept to remember is convergence. As the degrees of freedom approach infinity, the t-distribution converges to the standard normal distribution. This transition is a vital aspect of the central limit theorem, illustrating how larger datasets provide more precise estimates of population characteristics. Understanding this relationship is essential for choosing the correct statistical model for your specific research question.

• It is a continuous probability distribution.
• The curve is bell-shaped and symmetric around zero.
• The shape is determined entirely by the degrees of freedom.
• It is the preferred model for sample sizes where n < 30.
• It converges to a normal distribution as data volume increases.

The T.DIST Function: Syntax and Logic

To calculate the coordinates for our graph, we rely on the T.DIST() function in Excel. This function is designed to return the Student’s t-distribution for a given value of x. Understanding the arguments within this function is paramount for ensuring the accuracy of your data analysis. The function requires three specific inputs: the value for the random variable, the degrees of freedom, and a logical value for the cumulative nature of the result.

The first argument, x, represents the numeric value at which you want to evaluate the distribution. In the context of a graph, these are the points along the horizontal axis. The second argument, deg_freedom, is an integer that dictates the specific shape of the curve. It is important to ensure this value is a positive integer, as fractional or negative degrees of freedom are mathematically invalid in this context. Excel will truncate any decimal values provided for this argument.

The final argument is cumulative, which is a Boolean (TRUE or FALSE) value. If you set this to TRUE, Excel returns the cumulative distribution function (CDF), which represents the area under the curve to the left of x. However, for the purpose of creating a standard bell-curve graph, we must set this to FALSE. This instructs the software to return the probability density function (PDF), which provides the height of the curve at each specific point on the x-axis.

T.DIST(x, deg_freedom, cumulative)

• x: The value of the random variable for which the distribution is evaluated.
• deg_freedom: An integer representing the degrees of freedom.
• cumulative: Use FALSE for the probability density function and TRUE for the cumulative distribution function.

Step 1: Setting Up the Excel Environment

The first practical step in creating your graph involves organizing your spreadsheet. Begin by defining your degrees of freedom. Choose a specific cell, such as A2, and input the value you wish to model. For this example, we will use a value of 12. Using a dedicated cell for this parameter is a best practice in data analysis because it allows you to update the entire graph instantly simply by changing one number, rather than editing every formula in your sheet.

Next, you must establish a range of x-values. Because the t-distribution is centered at zero and typically spans from -4 to 4 for most visualizations, we will create a sequence of numbers in column B. Start at cell B2 with the value -4. In cell B3, you can use a formula to increment the previous value by a small amount, such as 0.2. Dragging this formula down to cell B42 will give you a smooth set of 41 data points. This high granularity ensures that the resulting curve in Excel appears smooth and professional rather than jagged or angular.

Once the x-axis values are established, you need to calculate the corresponding y-axis values using the probability density function. In cell C2, enter the formula =T.DIST(B2, $A$2, FALSE). Note the use of absolute cell referencing (the dollar signs) for cell $A$2; this ensures that as you copy the formula down, Excel always looks at the same degrees of freedom value. Double-click the fill handle in the bottom-right corner of cell C2 to automatically populate the rest of the column. You now have a complete dataset ready for plotting.

Step 2: Generating the Initial Scatter Plot

With your data columns fully prepared, you are ready to insert the visual component. Highlight the range containing your x and y values (B2:C42). Navigate to the “Insert” tab on the Excel ribbon. Within the “Charts” group, locate the scatter plot icon. It is vital to select “Scatter with Smooth Lines” for a t-distribution graph. This specific chart type connects your discrete data points with a continuous, curved line, accurately reflecting the nature of a probability distribution.

Immediately after clicking the chart type, a basic graph will appear on your worksheet. At this stage, the graph may look a bit raw. The axes might not be positioned optimally, and the default Excel styling might include gridlines that distract from the curve itself. However, the core mathematical representation is now visible. You should see a symmetric bell curve that peaks at zero, with the height of the peak corresponding to the probability density at that point.

Observe the shape of the curve to ensure it matches your expectations based on the degrees of freedom you entered. If the curve looks flattened or skewed, double-check your formulas in column C to ensure the “cumulative” argument was set to FALSE and that the x-values in column B are sequenced correctly. This initial visualization is the foundation upon which all subsequent aesthetic refinements will be built.

Step 3: Refining Axis Formatting and Alignment

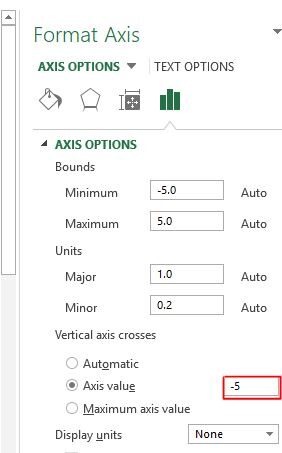

A common issue with default scatter plots in Excel is that the vertical axis often intersects the horizontal axis at zero, which can cut through the middle of your t-distribution curve. To create a more professional look, you should move the vertical axis to the far left. Right-click on the x-axis (the horizontal line) and select “Format Axis.” In the settings pane that appears, look for the “Vertical axis crosses” section. Select “Axis Value” and enter a number lower than your minimum x-value, such as -5. This cleanly moves the y-axis out of the way of the data visualization.

While in the “Format Axis” menu, you can also adjust the “Bounds” of your axes. If your data ranges from -4 to 4, setting the axis bounds slightly wider, such as -5 to 5, provides some “breathing room” at the edges of the graph. This makes the probability distribution easier to read. Additionally, you may want to adjust the “Major Units” to control how many numbers appear along the bottom of the graph. A major unit of 1.0 is typically appropriate for a t-distribution spanning from -4 to 4.

Proper alignment of axes is not just about aesthetics; it improves the readability of the data analysis. When the axes are properly positioned, the viewer can immediately identify the mean and the spread of the distribution without being distracted by overlapping lines. This step is a hallmark of high-quality statistical reporting and ensures that your work meets academic or professional standards for data presentation.

Step 4: Enhancing Chart Aesthetics and Labels

Once the layout is established, the next phase is to clean up the visual elements. Click anywhere inside the chart area to reveal the “Chart Elements” button (the green plus sign in the top-right corner). From here, you should uncheck the “Gridlines” option. Removing gridlines creates a cleaner, more modern appearance that allows the t-distribution curve to stand out. You should also check the “Axis Titles” box to add descriptive labels to your graph. Label the horizontal axis as “t” and the vertical axis as “f(t)” to follow standard statistical notation.

The “Chart Title” can also be modified or removed entirely depending on your needs. If the graph is being embedded into a report that already has a figure caption, removing the title within the graph area itself can save space. If you choose to keep it, ensure it is clear and descriptive, such as “t-Distribution with 12 Degrees of Freedom.” You can further customize the font size, color, and style by using the “Home” tab on the Excel ribbon while the text is selected.

Finally, consider the style of the line itself. Clicking on the curve and navigating to the “Format Data Series” pane allows you to change the color and width of the line. A thicker, bold color like royal blue or dark grey often looks better than the default thin line. You can also add “Markers” if you want to highlight specific data points, though for a continuous probability density function, a smooth line without markers is generally preferred for its elegance and clarity.

Visualizing Multiple t-Distribution Curves

In many cases, a single curve is not enough to convey the full story. You may want to demonstrate how the t-distribution changes as the degrees of freedom increase. To do this, create additional columns in your spreadsheet for different degrees of freedom, such as df = 6 and df = 60. Use the same T.DIST formula in these new columns, but point them to the new degrees of freedom values. This allows you to overlay multiple curves on a single scatter plot, providing a powerful visual comparison.

To add these new datasets to your existing graph, right-click on the chart and select “Select Data.” In the dialog box that appears, click “Add” under the Legend Entries section. You will be prompted to select the series name, the X values (which will be the same column B you used before), and the Y values (the new column containing the PDF values for the different df). Repeat this process for each additional curve you wish to display. This technique is particularly useful for educational purposes or for explaining statistical inference concepts to an audience.

By displaying multiple curves, you can visually confirm the convergence property. The curve with df = 60 will appear much taller and narrower, closely resembling a normal distribution, while the curve with df = 6 will appear flatter with thicker tails. To ensure the viewer can distinguish between the curves, use different colors for each line and add a “Legend” to the chart via the Chart Elements menu. This makes the data analysis intuitive and easy to follow at a glance.

Interpreting the Graphical Results

The final step in any data analysis process is interpretation. Looking at your completed t-distribution graph, you should notice specific patterns related to the degrees of freedom. As discussed, higher degrees of freedom lead to a higher peak and narrower tails. This signifies that as your sample size grows, your estimates become more precise and the “uncertainty” represented by the tails of the distribution is reduced.

This visualization is also a great way to understand p-values and critical values. In hypothesis testing, the area under these tails represents the probability of observing a result as extreme as the one obtained, assuming the null hypothesis is true. By seeing how “fat” the tails are on your graph, you can gain a qualitative sense of how difficult it might be to achieve statistical significance with a very small sample size.

Ultimately, the ability to create and modify these graphs in Excel empowers you to perform more robust statistical work. You can quickly simulate different scenarios, adjust your parameters, and see the results in real-time. This dynamic approach to statistics not only improves the accuracy of your findings but also enhances your ability to explain complex mathematical concepts to others in a clear, visual, and compelling manner.
