Foundations of Statistical Computing and Visualization in R

The R programming language has established itself as the premier environment for statistical analysis and high-fidelity data visualization. Originally developed as an open-source implementation of the S language, R provides an extensive ecosystem of built-in functions and external packages designed to handle complex data structures with ease. For researchers and data scientists, R is more than just a programming language; it is a comprehensive software environment that facilitates the exploration of theoretical probability models and empirical datasets alike.

One of the core strengths of R lies in its ability to generate sophisticated graphical representations of mathematical concepts. Whether a user is performing a simple linear regression or simulating high-dimensional stochastic processes, R offers the tools necessary to translate abstract numerical data into clear, interpretable visuals. This is particularly relevant when dealing with discrete probability distributions, where the visual structure of the data can provide immediate insights into the underlying likelihood of specific outcomes. By leveraging the base graphics system or advanced libraries like ggplot2, users can achieve a high degree of precision in their statistical modeling workflows.

In the context of probability theory, the ability to plot a binomial distribution is a fundamental skill. This process allows analysts to observe how changes in experimental parameters affect the overall shape and spread of the distribution. R simplifies this task by providing standardized functions that calculate probabilities based on the binomial formula, removing the need for manual, error-prone calculations. Through the following exploration, we will detail the precise methodologies required to construct, customize, and interpret binomial plots using the native capabilities of the R environment.

Theoretical Mechanics of the Binomial Distribution

The binomial distribution is a discrete probability distribution that summarizes the likelihood that a value will take one of two independent values under a given set of parameters or assumptions. It is fundamentally built upon the concept of Bernoulli trials, which are experiments where exactly two outcomes are possible—typically classified as “success” and “failure.” For a distribution to be considered binomial, the experiment must consist of a fixed number of trials, each trial must be independent of the others, and the probability of success must remain constant across all trials.

Mathematically, the binomial distribution is defined by two primary parameters: the number of trials, often denoted as n, and the probability of success in a single trial, denoted as p. The probability mass function (PMF) provides the probability of achieving exactly k successes in n trials. Understanding this function is critical for any statistical analysis involving binary outcomes, such as quality control in manufacturing, clinical trial results, or even simple games of chance like coin flipping.

When visualizing this distribution, we are essentially plotting the PMF across all possible values of k, ranging from zero successes to n successes. The resulting shape of the distribution provides a visual cue regarding its skewness and variance. For instance, when p is equal to 0.5, the distribution appears perfectly symmetrical, resembling a normal distribution as n increases. Conversely, when p is low or high, the distribution becomes skewed. R allows us to programmatically explore these variations by manipulating the arguments within its core statistical functions.

Implementing the dbinom Function for Probability Calculations

To plot the probability mass function for a binomial distribution in R, we rely on a suite of specialized functions designed for this purpose. The most critical of these is the dbinom() function. This function is part of R’s “d-p-q-r” family of probability functions, where “d” stands for “density” (or mass in the case of discrete variables). The dbinom() function calculates the exact probability of a specific number of successes occurring within a defined number of trials given a set success rate.

The dbinom() function requires three primary arguments to operate effectively: x, size, and prob. The x argument represents the vector of outcomes (the number of successes) for which we want to calculate the probability. The size argument specifies the total number of Bernoulli trials being conducted. Finally, the prob argument defines the probability of success on each individual trial. By passing a sequence of numbers to the x argument, R can calculate the probability for every possible outcome simultaneously, which is the first step in generating a comprehensive plot.

In addition to dbinom(), R provides the plot() function to transform these calculated probabilities into a visual format. When plotting a discrete distribution, it is standard practice to use a specific plot type that emphasizes the individual nature of the outcomes. The following functions are used to achieve this:

• dbinom(x, size, prob): This is used to create the probability mass function by calculating the likelihood for each point in the sample space.
• plot(x, y, type = ‘h’): This command generates the visual output. Specifying type = ‘h’ is essential as it instructs R to create a histogram-like vertical line plot, which accurately represents the discrete nature of the data.

To initiate the plotting process, the user simply needs to define the size (the total number of trials) and the prob (the probability of success) within the dbinom() function. This results in a set of y-values that correspond to the probabilities of the x-values. For example, the following code block demonstrates the fundamental syntax for plotting a binomial distribution where the number of trials is 20 and the probability of success is 30%:

success <- 0:20

plot(success, dbinom(success, size=20, prob=.3),type='h')

Interpreting the Basic Binomial Plot

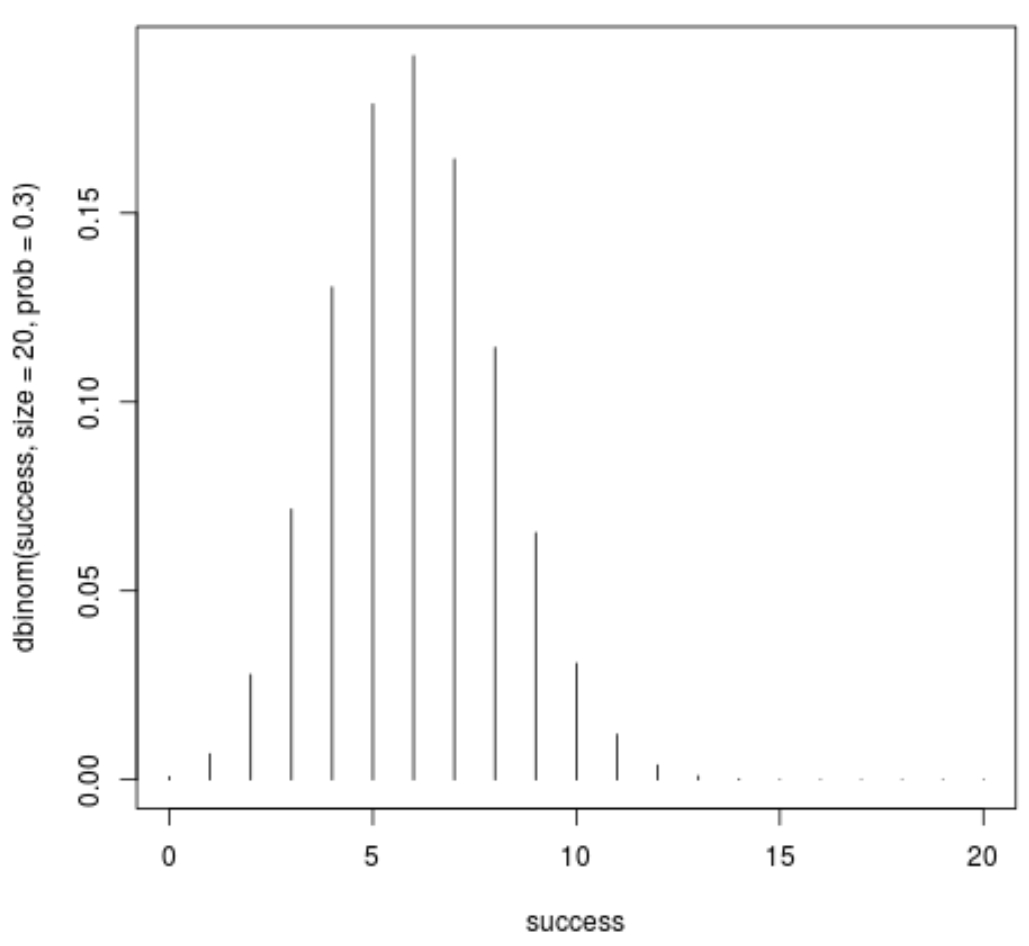

Upon executing the basic plotting command, R generates a window containing the graphical representation of the distribution. In this visualization, the x-axis represents the discrete number of successes, ranging from zero (no successes in all trials) to the total number of trials (in this case, 20). The y-axis represents the probability associated with each of those specific outcomes. Each vertical line corresponds to a single point in the sample space, and the height of the line indicates how likely that particular outcome is to occur.

In our specific example where n=20 and p=0.3, the peak of the distribution—also known as the mode—occurs around the expected value. The expected value of a binomial distribution is calculated as n multiplied by p. For these parameters, 20 * 0.3 equals 6. Looking at the plot, we can see that the highest vertical lines are clustered around 6, which confirms our theoretical expectations. As we move away from the expected value toward 0 or 20, the height of the lines decreases significantly, indicating that extreme outcomes are highly improbable.

While the basic plot is functional for a quick statistical analysis, it often lacks the clarity required for formal reports or presentations. The default labels are often the variable names used in the code, and the lines may be too thin to see clearly. However, this initial visualization serves as a crucial diagnostic tool, allowing the user to verify that the probability mass function has been calculated correctly before proceeding to more advanced customization and aesthetic refinement.

Advanced Customization for Enhanced Visual Communication

To make a data visualization truly effective, one must consider the audience and the context in which the data is being presented. R provides an extensive array of graphical parameters that can be modified within the plot() function to improve readability and aesthetic appeal. By adding descriptive titles, clear axis labels, and adjusting line weights, we can transform a simple diagnostic plot into a professional-grade graphic suitable for academic or corporate environments.

The main argument is used to add a primary title to the plot, while xlab and ylab allow the user to define custom labels for the horizontal and vertical axes, respectively. Furthermore, the lwd (line width) argument is particularly useful when using type=’h’, as it thickens the vertical bars, making the distribution easier to perceive. Color can also be added using the col argument to differentiate the plot from the background or to highlight specific data points. These enhancements ensure that the statistical analysis is not only accurate but also visually compelling.

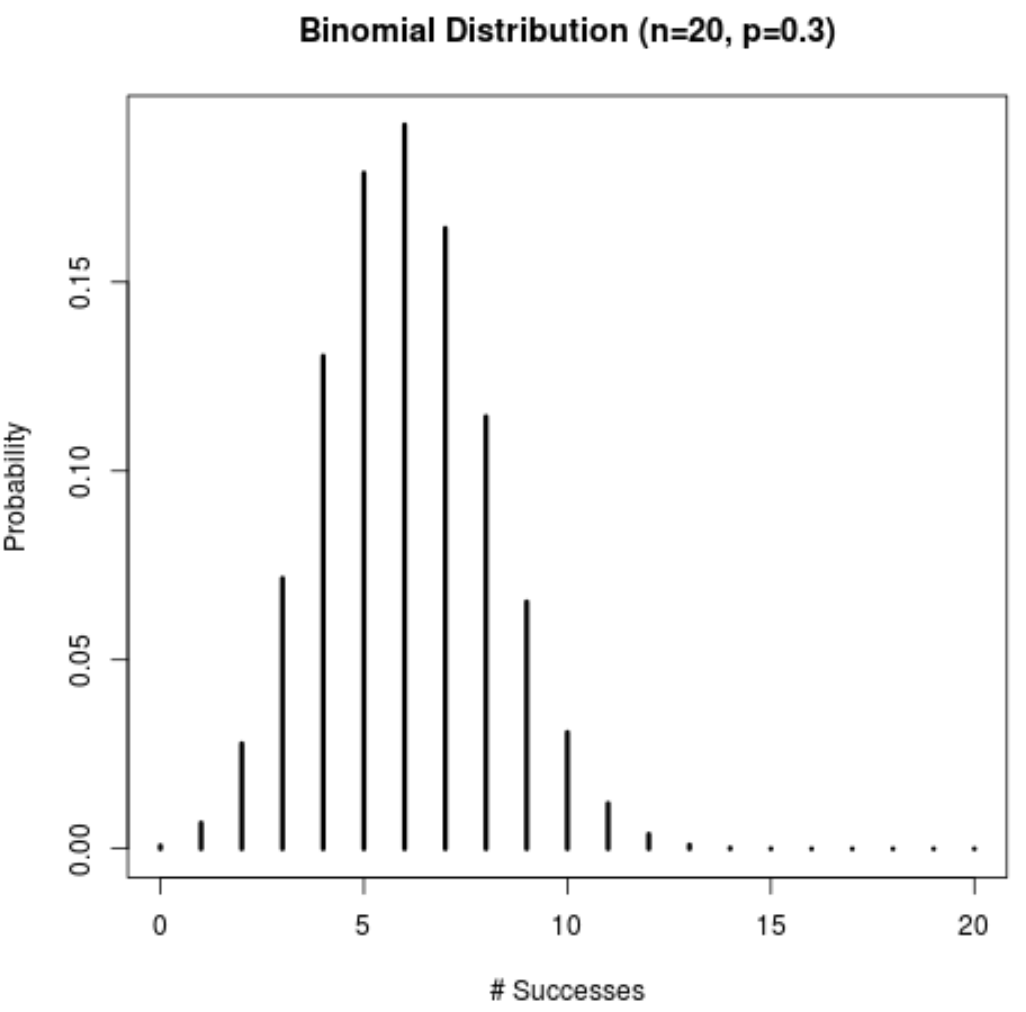

The following code block demonstrates how to apply these enhancements to our previous binomial distribution example. Notice how the addition of these arguments makes the resulting graph much more informative at a single glance:

success <- 0:20

plot(success,dbinom(success,size=20,prob=.3),
     type='h',
     main='Binomial Distribution (n=20, p=0.3)',
     ylab='Probability',
     xlab ='# Successes',
     lwd=3)

Managing Numerical Precision and Scientific Notation

When working with probability functions like dbinom(), R often encounters very small numbers, especially when calculating the likelihood of extreme outliers. By default, R may display these values using scientific notation (e.g., 1e-05) to save space and maintain numerical accuracy. While this is efficient for calculations, it can be difficult for human readers to interpret when they are looking for a straightforward probability value. Fortunately, R provides global options to control this behavior and force the display of fixed-point decimals.

The options(scipen=999) command is a common “trick” used by R users to disable scientific notation. The scipen (scientific penalty) option tells R how much it should “penalize” the use of scientific notation; by setting it to a very high number like 999, we effectively ensure that R will almost always prefer standard decimal formatting. This is particularly helpful when printing the results of a dbinom() calculation to the console, as it allows for a more direct comparison of the probabilities across different numbers of trials.

Once the scipen option is adjusted, we can view the raw probabilities that correspond to our visual plot. This step is essential for validating the data visualization. By examining the numerical output, we can verify that the sum of all probabilities equals exactly one, which is a fundamental requirement for any valid probability mass function. The code below illustrates how to define the range, adjust the display options, and output the probability values for our distribution:

#prevent R from displaying numbers in scientific notation
options(scipen=999)

#define range of successes
success <- 0:20

#display probability of success for each number of trials
dbinom(success, size=20, prob=.3)

[1] 0.00079792266297612 0.00683933711122388 0.02784587252426865
[4] 0.07160367220526231 0.13042097437387065 0.17886305056987975
[7] 0.19163898275344257 0.16426198521723651 0.11439673970486122
[10] 0.06536956554563482 0.03081708090008504 0.01200665489613703
[13] 0.00385928193090119 0.00101783259716075 0.00021810698510587
[16] 0.00003738976887529 0.00000500755833151 0.00000050496386536
[19] 0.00000003606884753 0.00000000162716605 0.00000000003486784

Analyzing the Practical Implications of the Data

Analyzing the numerical output provided by R allows for a deeper understanding of the binomial distribution. In the output above, index [1] corresponds to zero successes, index [2] to one success, and so on. We can observe that the probability of having exactly zero successes out of 20 trials (where each trial has a 30% success rate) is quite low—approximately 0.00079. Conversely, the probability of having 6 or 7 successes is quite high, peaking at approximately 0.1916 for 6 successes. This numerical data provides the precision that a visual histogram can only approximate.

Furthermore, these probabilities can be used to calculate cumulative probabilities using the pbinom() function, which is another critical component of statistical analysis in R. While dbinom() gives the probability of an exact value, pbinom() gives the probability of obtaining a value less than or equal to a certain number. This is vital for hypothesis testing and determining p-values. By mastering the dbinom() function and its visualization, users build a foundation for more complex statistical operations, such as power analysis and experimental design.

The versatility of R means that this same workflow can be applied to any discrete probability distribution, including the Poisson or Geometric distributions. The consistency in R’s syntax—using “d” for density and a standard plot() interface—makes it an incredibly efficient tool for students and professionals. By combining visual plots with raw numerical data, analysts can ensure their conclusions are backed by both intuitive graphical evidence and rigorous mathematical calculation.

Conclusion and Further Learning Resources

In summary, R provides a robust and user-friendly framework for calculating and visualizing the binomial distribution. By utilizing the dbinom() function to generate a probability mass function and the plot() function to create histogram-like visuals, users can effectively communicate the likelihood of various outcomes in a series of independent Bernoulli trials. The ability to customize these plots with labels, titles, and improved line widths further enhances the clarity of the data visualization, making it a powerful tool for any statistical endeavor.

As you continue to develop your skills in statistical analysis using R, it is helpful to explore how different parameters change the behavior of your distributions. Experimenting with larger trial sizes or varying success probabilities will help you gain an intuitive feel for the mathematics of chance. Additionally, learning to handle scientific notation and numerical output ensures that your data remains accessible and interpretable to all stakeholders.

For those interested in deepening their understanding of these concepts, there are many authoritative resources available online. Understanding the theoretical underpinnings of these distributions is just as important as knowing the code to plot them. To expand your knowledge, consider exploring the following introductory guides and specialized topics regarding binomial distributions and their applications in the field of statistics:
