How to Plot Multiple Data Series in One Chart with R

The Significance of Comparative Data Visualization in R

In the modern era of data science, the ability to represent complex relationships through visual media is an indispensable skill. The R programming language has long been recognized as a powerhouse for statistical computing and graphics, offering researchers and analysts a vast array of tools to transform raw numbers into meaningful insights. One of the most common requirements in exploratory data analysis is the comparison of multiple data series within a single visual frame. By plotting several lines or data points on one chart, an analyst can quickly identify correlations, divergences, and trends that would be otherwise obscured if the data were presented in separate panels.

Effective data visualization requires more than just technical execution; it demands a structured approach to how information is layered. When we plot multiple series, we are essentially asking the viewer to compare the behavior of different variables across a shared independent variable, typically represented on the x-axis. In the R environment, this can be achieved through various paradigms, ranging from the traditional base R graphics system to the more modern and flexible ggplot2 package. Each method has its own logic and syntax, but they all share the common goal of enhancing the interpretability of multi-dimensional datasets.

To successfully integrate multiple data series into one chart, one must carefully consider the data structures being utilized. Whether the data is stored in a matrix, a data frame, or a series of independent vectors, R provides specific functions designed to handle these formats efficiently. By assigning each dataset to a specific variable and passing those variables into a plotting function, you can create a comprehensive chart that facilitates deep analysis. Furthermore, the inclusion of metadata such as titles, axis labels, and legends is crucial for ensuring that the final output is accessible to stakeholders who may not be familiar with the underlying raw data.

The following sections will detail the specific methodologies used to achieve these results. We will explore the matplot function for rapid matrix-based plotting, the sequential layering of points and lines for granular control, and the grammar of graphics approach provided by ggplot2. By mastering these techniques, you will be able to produce professional-grade visualizations that meet the rigorous standards of academic publishing and industrial reporting alike.

Employing the Matplot Function for Matrix-Based Data

When dealing with datasets that are organized in a column-wise format within a matrix, the matplot function in base R is often the most efficient tool for the job. This function is specifically designed to plot the columns of one matrix against the columns of another, or against a common vector. It is particularly useful when all your data series share the same length and are measured at the same intervals, allowing for a vectorized approach to plotting that saves both time and lines of code. This method is highly favored in simulations and time series analysis where multiple iterations of a process need to be viewed simultaneously.

The primary advantage of using matplot is its simplicity in handling multiple colors and line types automatically. By passing a matrix to the function, R interprets each column as a separate series and applies a distinct graphical parameter to each. This behavior can be further customized by specifying arguments such as “type,” “pch,” and “col.” For instance, setting the type to “b” (both) ensures that both points and lines are drawn, which is often helpful for emphasizing specific data observations while still showing the overall trend. This multivariate approach to plotting ensures that the relationship between different stochastic processes is immediately apparent.

Furthermore, the matplot function integrates seamlessly with other base R graphical functions like legend. Because matplot assigns colors and line types in a predictable sequence (usually 1, 2, 3…), creating a legend to identify each series is straightforward. It is essential, however, to ensure that the matrix object is correctly structured before calling the function. If the data is currently in a data frame format, it may need to be converted using the as.matrix() function to ensure compatibility with the matplot logic. This preparation step is a common aspect of data wrangling in R, ensuring that the inputs match the expected API requirements.

Implementation of Example 1: Visualizing Uniform Distributions

In this first example, we demonstrate how to visualize a synthetic dataset generated from a uniform distribution. By using the runif() function, we can create a series of random numbers within a specified range, which serves as an excellent proxy for real-world experimental data. In this scenario, we create a matrix with 30 observations divided into 3 columns, representing three distinct data series that we wish to compare. This approach is common in Monte Carlo simulations where multiple paths of a random variable are analyzed for convergence or variance.

#Create a fake dataset with 3 columns (ncol=3) composed of randomly generated
#numbers from a uniform distribution with minimum = 1 and maximum = 10
data <- matrix(runif(30,1,10), ncol=3)
data
        [,1]     [,2]     [,3]
#[1,] 5.371653 3.490919 3.953603
#[2,] 9.551883 2.681054 9.506765
#[3,] 3.525686 1.027758 8.059011
#[4,] 9.923080 1.337935 1.112361
#[5,] 7.273972 7.627546 1.174340
#[6,] 8.859109 3.778144 9.384526
#[7,] 9.614542 3.866029 7.301729
#[8,] 9.288085 5.804041 8.347907
#[9,] 1.696849 4.650687 7.220209
#[10,] 5.820941 4.799682 5.243663

#plot the three columns of the dataset as three lines and add a legend in#the top right corner of the chart
matplot(data, type = "b",pch=1,col = 1:3)
legend("topright", legend = 1:3, col=1:3, pch=1)

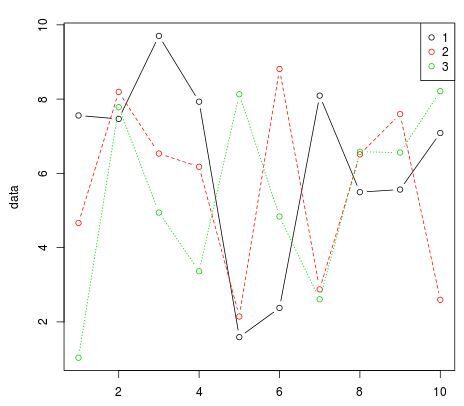

The resulting visualization provides a clear view of how these three random series fluctuate over the ten observations. By using the type = “b” argument, we have successfully included both markers and connecting lines, which aids in tracking the sequential nature of the data points. The legend function is placed in the “topright” position to avoid overlapping with the data, a critical consideration for aesthetic clarity. This method is highly effective for rapid data exploration, allowing the user to see global patterns across multiple columns with minimal syntactical overhead.

As seen in the chart above, the base R system provides a reliable and fast way to generate charts directly from mathematical objects. While the default styling is functional rather than beautiful, it remains the standard for quick-and-dirty analysis where speed is prioritized over graphic design. For researchers working in bioinformatics or econometrics, the ability to generate these plots on the fly is essential for verifying data quality and checking the results of statistical models before proceeding to more complex visualization stages.

Sequential Layering Using Points and Lines Functions

While matplot is efficient for matrices, there are many situations where data series are stored in separate vectors or have different lengths and scales. In these cases, a more modular approach is required. The second method involves creating a base plot with the plot() function and then incrementally adding additional data layers using the points() and lines() functions. This technique offers the ultimate granular control over every element of the chart, allowing the user to specify unique colors, point characters (pch), and line types (lty) for each individual series.

This incremental approach is representative of the imperative programming style found in base R graphics. You first define the canvas and the initial series, which sets the coordinate system (the x and y limits). It is important to note that the initial plot() call determines the extent of the axes; if subsequent data series fall outside these bounds, they will be clipped and not visible. To prevent this, one must often calculate the global minimum and maximum across all series and pass these values to the “xlim” and “ylim” arguments of the first function call, ensuring all data is captured within the viewbox.

Once the foundation is laid, the points() function adds scatter markers to the existing plot, and the lines() function connects them. This separation of markers and lines allows for creative visualization strategies, such as using different markers for different categories or using dashed lines to represent forecasted values versus solid lines for observed data. This method is particularly useful in scientific communication where specific data points need to be highlighted or where error bars and confidence intervals must be manually added to the chart to demonstrate statistical significance.

Implementation of Example 2: Granular Control with Base R

In this example, we define three distinct y-vectors representing different trends and a shared x-vector representing time or sequence. By calling the plot() function for the first series and then layering the others, we can build a complex multi-series chart. We also demonstrate the use of more descriptive hex codes or color names and various point shapes to maximize the visual contrast between the lines. This ensures that the chart remains legible even when printed in grayscale, a common requirement for journal submissions.

#generate an x-axis along with three data series
x  <- c(1,2,3,4,5,6)
y1 <- c(2,4,7,9,12,19)
y2 <- c(1,5,9,8,9,13)
y3 <- c(3,6,12,14,17,15)
#plot the first data series using plot()
plot(x, y1, type="o", col="blue", pch="o", ylab="y", lty=1)

#add second data series to the same chart using points() and lines()
points(x, y2, col="red", pch="*")
lines(x, y2, col="red",lty=2)

#add third data series to the same chart using points() and lines()
points(x, y3, col="dark red",pch="+")
lines(x, y3, col="dark red", lty=3)

#add a legend in top left corner of chart at (x, y) coordinates = (1, 19)
legend(1,19,legend=c("y1","y2","y3"), col=c("blue","red","black"),
                                   pch=c("o","*","+"),lty=c(1,2,3), ncol=1)

This code block illustrates the procedural nature of base plotting. Note how the legend() function requires explicit coordinates or keywords (like “topleft”) to be positioned. In this case, we used the coordinates (1, 19) to place the legend precisely where it wouldn’t interfere with the data trends. This level of manual positioning is both a strength and a weakness; while it allows for perfect placement, it can be tedious when dealing with dynamic data that might change the optimal location for annotations.

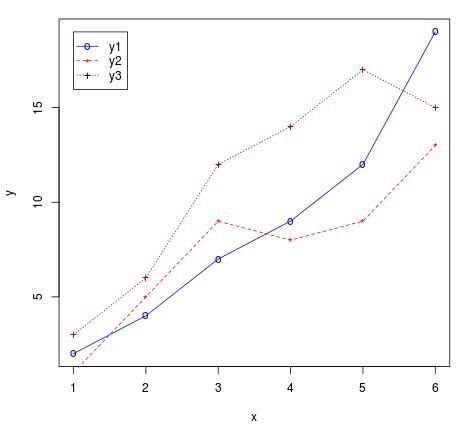

The resulting chart clearly distinguishes the three series through a combination of color theory and symbolic representation. By using different line types (lty 1, 2, and 3), we provide the viewer with multiple visual cues to differentiate the data. This is a best practice in accessible design, ensuring that individuals with color vision deficiency can still interpret the results. This method is the “gold standard” for those who want full control over their graphical output without relying on external libraries.

Leveraging the Grammar of Graphics with ggplot2

For those seeking a more modern, declarative approach to data visualization, ggplot2 is the definitive solution. Based on the Grammar of Graphics by Leland Wilkinson, ggplot2 allows users to build plots by mapping variables in the data to visual aesthetics (color, size, shape) and adding geometric layers (lines, points, bars). This system is highly intuitive for complex datasets because it handles much of the underlying rendering logic—such as scaling, legend generation, and color palettes—automatically based on the data types provided.

To use ggplot2 for multiple data series, the data should ideally be in a “long” format, where one column represents the independent variable, another represents the dependent values, and a third identifies which series or category the value belongs to. This tidy data structure is a cornerstone of the tidyverse ecosystem. Once the data is reshaped, a single line of code using geom_line() with a “colour” aesthetic mapped to the category variable is enough to generate a professional, multi-series plot with an automatically generated and labeled legend.

Beyond its ease of use, ggplot2 is prized for its theming engine. Users can easily switch between different visual styles, such as theme_minimal(), theme_classic(), or even custom themes designed for specific corporate branding. The package also handles facetting, which allows for the creation of small multiples—a series of related charts displayed in a grid. This is particularly useful when comparing a large number of series that would become cluttered if plotted on a single set of axes, providing a scalable solution for high-dimensional data visualization.

Implementation of Example 3: Modern Plotting with ggplot2

In this final example, we demonstrate the ggplot2 workflow. We first ensure the package is installed and loaded using a conditional check. We then construct a data frame in the “long” format, which is the preferred input for this library. By using the rep() and paste0() functions, we create a structured dataset where each observation is associated with a specific series name (series1, series2, or series3). This structure allows ggplot2 to recognize the grouping structure of the data immediately.

#install (if not already installed) and load ggplot2 package
if(!require(ggplot2)){install.packages('ggplot2')}

#generate fake dataset with three columns 'x', 'value', and 'variable'
data <- data.frame(x=rep(1:5, 3),
                   value=sample(1:100, 15),
                   variable=rep(paste0('series', 1:3), each=5))

#view dataset
head(data)
  x value variable
1 1 93    series1
2 2 64    series1
3 3 36    series1
4 4 17    series1
5 5 95    series1
6 1 80    series2

#plot all three series on the same chart using geom_line()
ggplot(data = data, aes(x=x, y=value)) + geom_line(aes(colour=variable))

The ggplot() function initializes the plot object, defining the global aesthetics (x and y). The geom_line() function then adds the actual lines to the plot. Crucially, by placing aes(colour=variable) inside the geom, we instruct R to assign a different color to each unique string in the “variable” column. This mapping is what makes ggplot2 so powerful, as it eliminates the need to manually manage colors or line types for each individual series, reducing the risk of human error in large-scale projects.

The output is a high-fidelity chart with a clean background and a perfectly formatted legend. For data scientists working in industry, this approach is often preferred due to its reproducibility and the ease with which it can be integrated into R Markdown reports or Shiny applications. Whether you choose base R for its speed or ggplot2 for its elegance, the ability to visualize multiple data series in one chart remains a fundamental pillar of quantitative analysis and storytelling with data.
