To create a stacked bar chart in Matplotlib, one must first import the necessary libraries and datasets. Then, using the “bar” function, the data can be plotted onto a graph with each bar representing a different category. By using the “bottom” parameter and setting it to the previous bar’s height, the bars can be stacked on top of each other. Additional customization such as labeling and color options can also be applied. The resulting graph will show the total value of each category, as well as the relative contribution of each subcategory to the overall value.
Create Stacked Bar Charts in Matplotlib (With Examples)
A stacked bar chart is a type of chart that uses bars to display the frequencies of different categories.
We can create this type of chart in Matplotlib by using the matplotlib.pyplot.bar() function.
This tutorial shows how to use this function in practice.

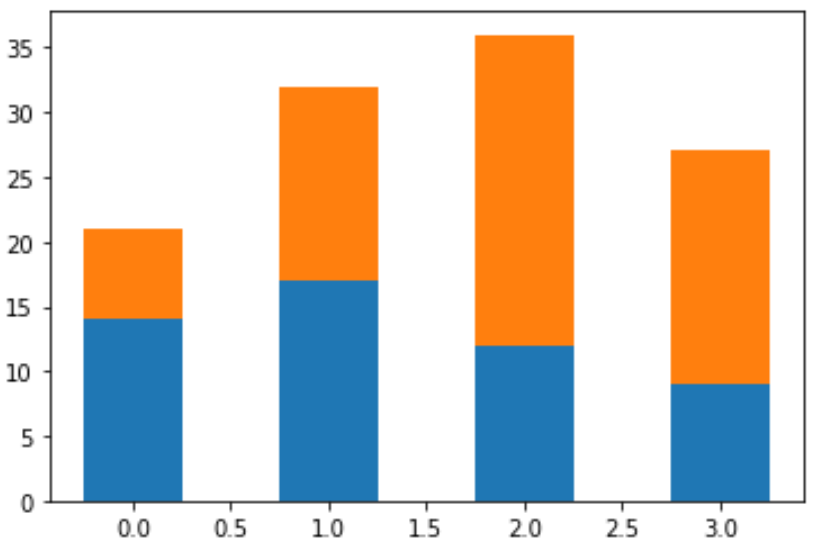

Create a Basic Stacked Bar Chart
The following code shows how to create a stacked bar chart to display the total sales of two products during four different sales quarters:
import numpy as np import matplotlib.pyplot as plt #create data quarter = ['Q1', 'Q2', 'Q3', 'Q4'] product_A = [14, 17, 12, 9] product_B = [7, 15, 24, 18] #define chart parameters N = 4 barWidth = .5 xloc = np.arange(N) #display stacked bar chart p1 = plt.bar(xloc, product_A, width=barWidth) p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth) plt.show()

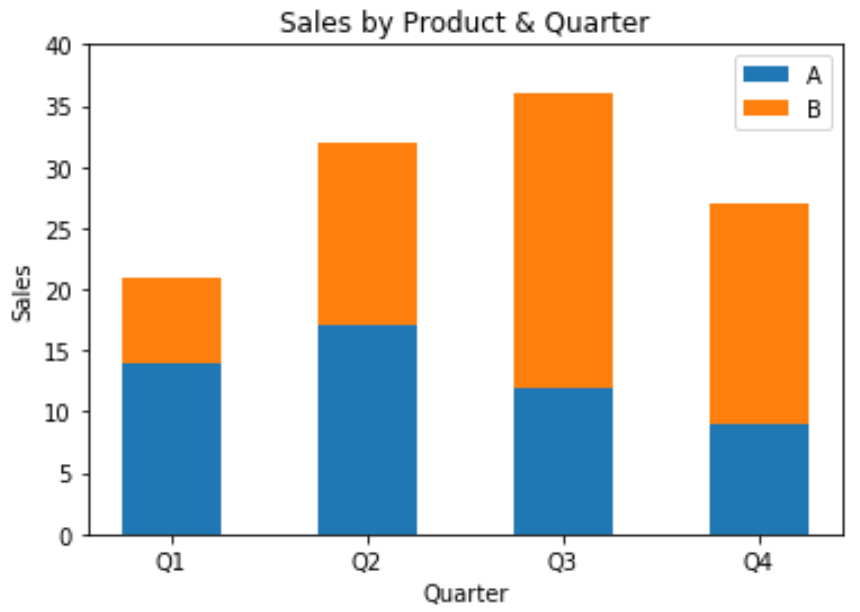

Add a Title, Labels, and Legend
We can also add a title, labels, tick marks, and a legend to make the chart easier to read:
import numpy as np import matplotlib.pyplot as plt #create data for two teams quarter = ['Q1', 'Q2', 'Q3', 'Q4'] product_A = [14, 17, 12, 9] product_B = [7, 15, 24, 18] #define chart parameters N = 4 barWidth = .5 xloc = np.arange(N) #create stacked bar chart p1 = plt.bar(xloc, product_A, width=barWidth) p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth) #add labels, title, tick marks, and legend plt.ylabel('Sales') plt.xlabel('Quarter') plt.title('Sales by Product & Quarter') plt.xticks(xloc, ('Q1', 'Q2', 'Q3', 'Q4')) plt.yticks(np.arange(0, 41, 5)) plt.legend((p1[0], p2[0]), ('A', 'B')) #display chart plt.show()
Customize Chart Colors
Lastly, we can customize the colors used in the chart with the colors() argument within plt.bar():
import numpy as np import matplotlib.pyplot as plt #create data for two teams quarter = ['Q1', 'Q2', 'Q3', 'Q4'] product_A = [14, 17, 12, 9] product_B = [7, 15, 24, 18] #define chart parameters N = 4 barWidth = .5 xloc = np.arange(N) #create stacked bar chart p1 = plt.bar(xloc, product_A, width=barWidth, color='springgreen') p2 = plt.bar(xloc, product_B, bottom=product_A, width=barWidth, color='coral') #add labels, title, tick marks, and legend plt.ylabel('Sales') plt.xlabel('Quarter') plt.title('Sales by Product & Quarter') plt.xticks(xloc, ('Q1', 'Q2', 'Q3', 'Q4')) plt.yticks(np.arange(0, 41, 5)) plt.legend((p1[0], p2[0]), ('A', 'B')) #display chart plt.show()
You can find a complete list of available colors within the Matplotlib documentation.
