A Stacked Bar Chart in Pandas can be created by first creating a dataframe, then assigning the data values to the x and y axes, and then using the .plot.bar() function with the parameter stacked=True to create a Stacked Bar Chart. This will display the data, with each column representing the y-axis values for the corresponding x-axis values. The resulting chart will show the relative contribution of each category to the total.
You can use the following basic syntax to create a stacked bar chart in pandas:
df.groupby(['var1', 'var2']).size().unstack().plot(kind='bar', stacked=True)
The following example shows how to use this syntax in practice.
Example: Create Stacked Bar Chart in Pandas
Suppose we have the following pandas DataFrame that contains information about various basketball players:
import pandas as pd #create DataFrame df = pd.DataFrame({'team': ['A', 'A', 'A', 'A', 'B', 'B', 'B', 'B'], 'position': ['G', 'G', 'F', 'F', 'G', 'F', 'F', 'F'], 'points': [5, 7, 7, 9, 12, 9, 9, 4]}) #view DataFrame print(df) team position points 0 A G 5 1 A G 7 2 A F 7 3 A F 9 4 B G 12 5 B F 9 6 B F 9 7 B F 4
We can use the following code to create a stacked bar chart that displays the total count of position, grouped by team:
df.groupby(['team', 'position']).size().unstack().plot(kind='bar', stacked=True)

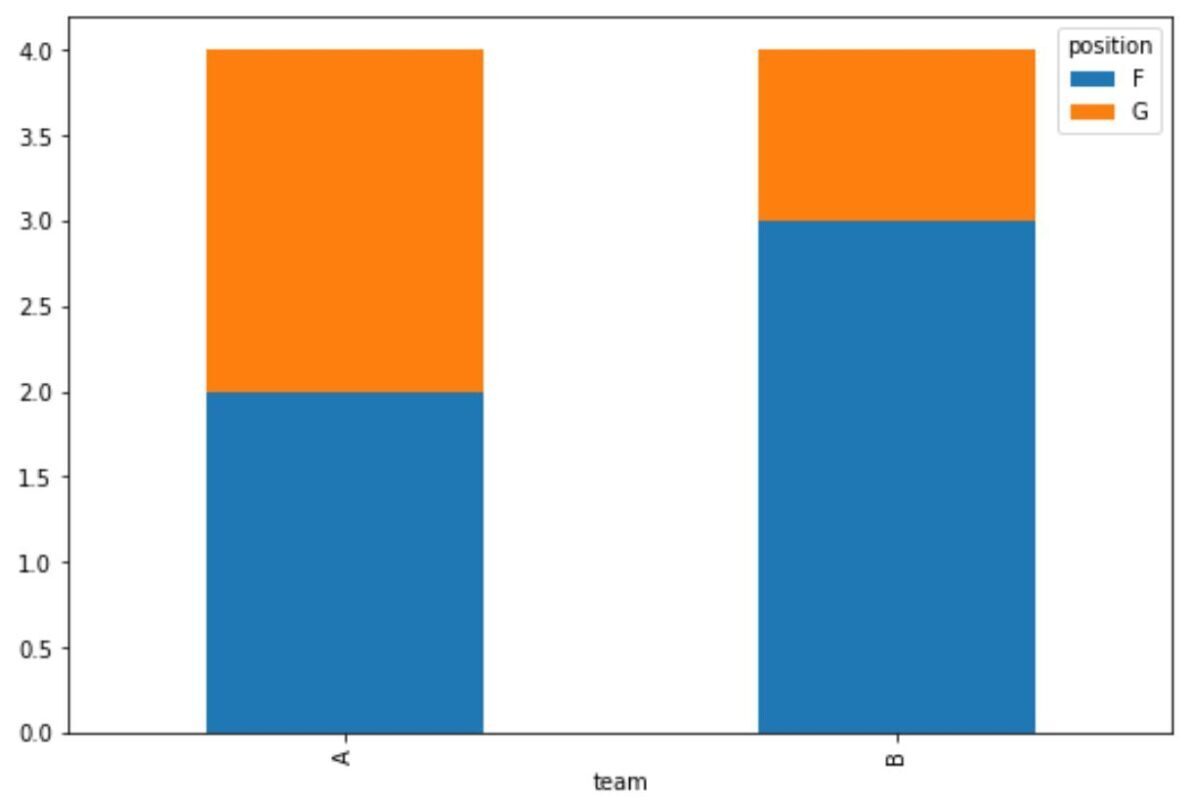

The x-axis shows the team name and the y-axis shows the total count of position for each team.
From the chart we can see that team A has 2 guards (G) and 2 forwards (F) while team B has 1 guard and 3 forwards.
We can also use the color and title arguments to modify the color of the bars and add a title to the chart:
df.groupby(['team', 'position']).size().unstack().plot(kind='bar', stacked=True,
color=['steelblue','pink'], title='Position Count by Team')
A title has been added to the top of the plot and the colors of the bars have been changed to steelblue and pink, just as we specified.
