Defining the 100% Stacked Bar Chart

The core utility of the 100% stacked bar chart lies in its ability to focus solely on proportions. Each distinct bar represents a whole (100%), and the colored segments within that bar show how various sub-categories contribute to that whole. This means that even if the underlying totals for two categories are vastly different, the visual comparison remains focused strictly on the relative share of each component. This makes it ideal for scenarios like market share comparison, budget allocation breakdown, or, as demonstrated in our example, the distribution of scoring across various time periods.

By compelling the segments to fit within a fixed 100% scale, 100% stacked bar charts prevent the viewer from being misled by absolute volume differences. They provide an immediate visual answer to the question: “What proportion does this category represent relative to its total?” This emphasis on relative contribution is crucial in many fields, particularly in business intelligence and academic research, where compositional shifts are often more telling than raw numbers.

Prerequisites: Structuring Your Source Data

Before initiating the chart creation process in Excel, it is paramount that your data is structured correctly. Excel charts require data to be organized in a rectangular table format where the rows typically represent the primary categories (which will become the bars on the chart) and the columns represent the proportional series (the segments within the bars). The very first column should contain your row labels (e.g., Team Names), and the very first row should contain your column headings (e.g., Quarters).

Ensuring clean column headers and accurate row labels minimizes potential charting errors and provides meaningful context for the eventual data visualization. If your data is messy, contains merged cells, or includes calculated totals (sums) within the range you plan to select, the resulting chart will likely be distorted or incorrect. Therefore, always verify that the selected data range only includes the raw values intended for proportional comparison, along with their respective labels.

Step 1: Inputting the Sample Dataset

To illustrate the process clearly, we will use a practical example detailing basketball scores. This example involves tracking the points scored by several different teams across four distinct quarters. This structure naturally sets up the proportional data analysis: we want to see what percentage of each team’s total score was achieved in Quarter 1, Quarter 2, and so forth.

The first action is to accurately input this dataset into an Excel worksheet, starting typically from cell A1. Ensure the labels (Teams) are in column A and the series labels (Quarters) are in row 1, as shown below:

This structured table, encompassing the range from A1 to E9, serves as the foundation for the entire proportional visualization. Note that we do not manually calculate the row totals; Excel’s 100% stacked chart feature handles the necessary scaling automatically based on the raw values provided for each quarter. This careful input process ensures the accuracy needed for the subsequent steps.

Step 2: Selecting Data and Initiating Chart Creation

Once the data is accurately entered, the next critical step is selecting the precise range required for charting. You must highlight the entire dataset, which includes both the row labels (Team Names) and the column headings (Quarter labels), along with all the numerical data points. In our specific example, this corresponds to highlighting the cell range A1:E9.

After selecting the range, navigate to the Insert tab located along the top ribbon interface of Excel. The ‘Insert’ tab is the central hub for adding various objects, including text boxes, pivot tables, and, most importantly here, charts. Locating the ‘Charts’ group within this tab is the specific pathway to selecting the desired visualization type.

Step 3: Inserting the 100% Stacked Bar Chart

Within the ‘Charts’ group on the Insert tab, look for the icons related to bar and column charts. Since we are creating a horizontal bar chart, click on the dropdown menu associated with the Bar charts. Among the options presented—which usually include Clustered Bar, Stacked Bar, and 3-D variations—you must specifically choose the 100% Stacked Bar option.

Selecting this option immediately generates the default 100% stacked bar chart based on the highlighted range. Excel automatically interprets the structure, placing the row labels (Teams) on the vertical axis (y-axis) and representing the column data (Quarters) as segments within each bar. The horizontal axis (x-axis) is automatically scaled from 0% to 100%.

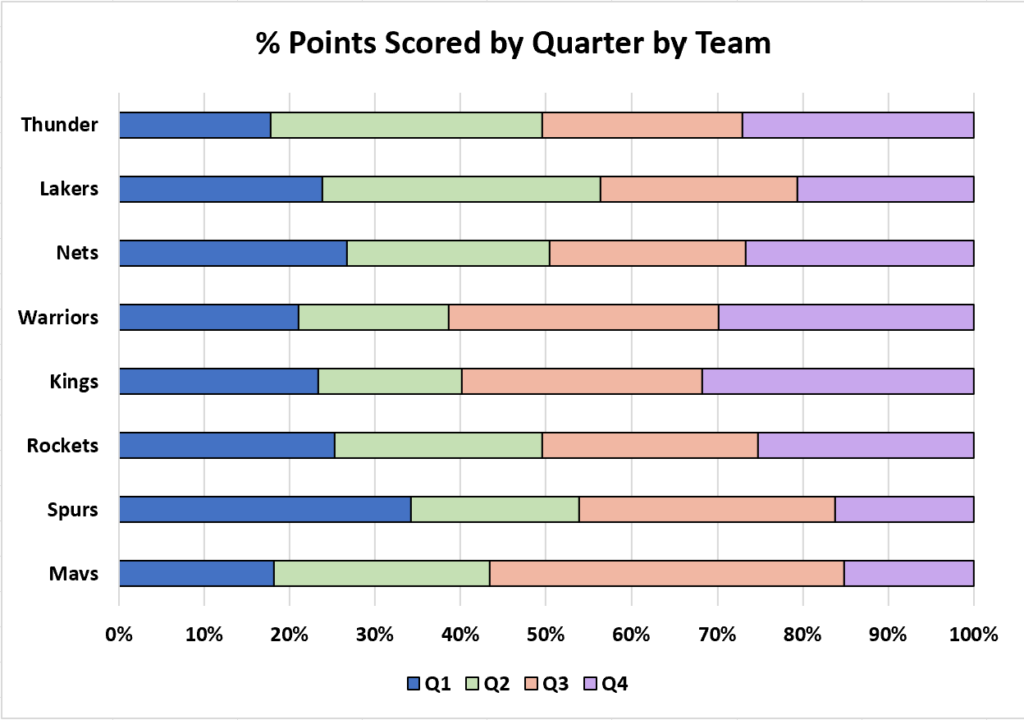

The resulting visualization provides an instant overview of the proportional contribution of each quarter to the total score of every team:

Interpreting the Visual Output

The newly generated chart is a powerful tool for comparative data analysis. The y-axis clearly lists each team name, while the x-axis represents the percentage scale. Each colored segment within a team’s bar corresponds to the contribution of a specific quarter relative to that team’s overall accumulated points. Because the scale is fixed at 100%, it is simple to identify which teams had a higher concentration of scoring in specific quarters.

For instance, if we examine the bar for the Thunder, the chart shows that the first quarter (represented by the blue segment) constitutes a specific proportion of their total bar length. To confirm the calculation underlying this segment, we can reference the raw data: the Thunder scored 19 points in the first quarter and a total of 107 points overall (19 + 25 + 28 + 35). This leads to a relative contribution calculated as 19 / 107, which is approximately 17.8%. The chart visually represents this exact proportional share.

This visualization technique is highly effective for spotting trends and anomalies. A long segment of a single color indicates a high proportion of activity occurring during that period or category, while a balanced bar suggests an even distribution of contribution across all segments.

Step 4: Enhancing Chart Presentation and Data Labels

While the chart is functionally correct upon insertion, customization is necessary to maximize its clarity and utility as a professional data visualization. Key elements requiring immediate attention include the chart title, axis labels, and the integration of numerical percentage values.

Customization Steps Checklist:

1. Chart Title: Click directly on the default title (e.g., “Chart Title”) and rename it to something descriptive, such as “Proportional Scoring Breakdown by Team and Quarter.”
2. Axis Labels: Ensure that the axes are labeled correctly, even though the x-axis is inherently percentages. Adding context, such as labeling the x-axis “Percentage Contribution” or “Relative Share,” enhances understanding.
3. Legend: Verify that the legend clearly identifies which color corresponds to which quarter (series).
4. Colors and Fonts: Adjust the design elements—font sizes, colors, and background—to match corporate standards or presentation themes, ensuring high contrast for readability.

Crucially, to see the exact percentage values derived by Excel, you must add data labels. Right-click on any bar segment within the chart and select Add Data Labels. By default, Excel may display the raw source values. To change this to percentages, right-click the newly added labels, select Format Data Labels, and ensure the setting is configured to display the relevant percentage calculation, often accompanied by turning off the raw value display.

This final step, particularly the inclusion of data labels, transforms the visualization from a general overview into a precise analytical tool, ensuring that the audience can immediately grasp both the visual proportion and the numerical precision of the data.

Advanced Customization Techniques

Beyond basic labeling and formatting, Excel offers advanced options for fine-tuning your proportional charts. These techniques are vital for creating presentations that are not only informative but also aesthetically impactful.

• Sorting Categories: By default, the teams (categories) might be listed in the order they appeared in the dataset. For better comparative analysis, you may want to sort the bars based on the value of a specific segment (e.g., sort by highest percentage scored in Quarter 4). This usually requires sorting the source data table itself before re-inserting the chart, as sorting the chart directly can be complex.
• Adjusting Gaps: You can adjust the gap width between the bars to make them thicker or thinner, improving the visual density and focus. This setting is usually found under the ‘Format Data Series’ pane.
• Color Palettes: Utilize the ‘Design’ tab to apply pre-set color schemes or manually assign custom colors. For segments representing a sequential order (like quarters), consider using a gradient of a single color, while for independent categories, contrasting colors are more appropriate.

Mastering these customization tools ensures that the 100% stacked bar chart effectively communicates the intended message, transitioning from raw output to a polished component of a professional report or presentation. The 100% stacked bar chart is now complete and ready for deployment in your analysis.

Further Visualization Resources

For users looking to expand their knowledge of data visualization using Excel, the software offers a rich array of alternative chart types suited for different analytical requirements. Understanding which chart best fits your data relationship is key to effective communication. We encourage you to explore the following related tutorials:

• Understanding Standard Stacked Bar Charts (for absolute comparisons).
• Creating Combination Charts (for combining bars and lines).
• Generating Waterfall Charts (for financial analysis and variance tracking).
