Graph ANOVA Results in Excel

Understanding the One-Way ANOVA Framework

A One-Way ANOVA is specifically employed when the objective is to determine whether a statistically significant difference exists between the means of three or more separate, independent groups. This method is fundamental in experimental design, where a single categorical factor (the independent variable) is manipulated across multiple levels, and the resulting effect on a continuous dependent variable is measured. It provides a formal test against the assumption that all treatment means are equal.

While the core output of an ANOVA is a numerical summary—the ANOVA table—interpreting these results becomes significantly easier and more intuitive when supplemented with visual aids. A graph created from the calculated data provides a clear visualization of the dispersion and central tendencies of each group, allowing observers to quickly grasp the magnitude and direction of differences between the group means identified by the statistical test.

The following comprehensive example will walk through the entire process: performing a one-way ANOVA test and subsequently generating an informative graph to visualize these results directly within Microsoft Excel. This approach ensures both analytical soundness and effective data communication.

Detailed Example: Comparing Studying Methods

Consider a scenario where a university professor is conducting an experiment to assess the efficacy of different studying methodologies. The professor randomly assigns 30 students in her introductory statistics class to use one of three distinct studying methods—Method 1 (Self-Study), Method 2 (Group Review), and Method 3 (Flashcards/Quizzing)—to prepare for an upcoming high-stakes exam. The objective is to determine if the mean exam scores differ significantly based on the assigned method.

The initial step involves meticulously recording the resulting exam scores for each student, categorized by the specific studying method they employed. Proper data organization, with each column representing a distinct group, is crucial for seamless processing using Excel’s statistical tools. This structure ensures that the software correctly identifies the independent treatment levels for the calculation of variance components.

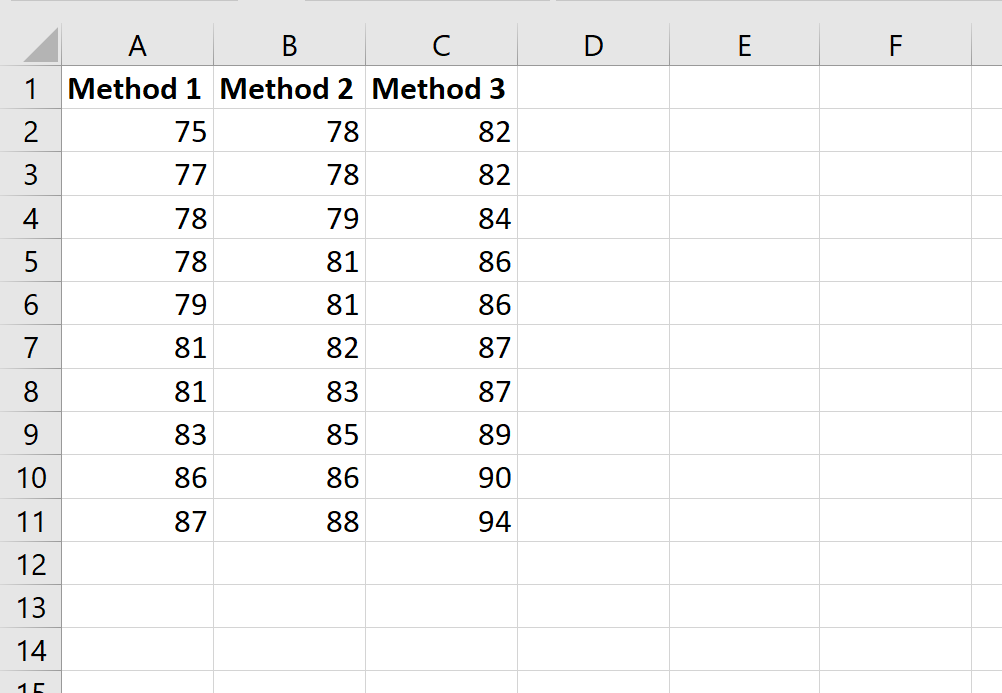

The data collected, representing the scores of the students organized according to the method they utilized, is structured as shown in the visual below. We aim to statistically compare the average scores across these three distinct columns to conclude whether the studying method significantly influences the final grade.

Executing the ANOVA Test in Excel

Assuming the professor wants to formally perform a one-way ANOVA to rigorously test the hypothesis that the population mean scores are identical across all three groups, the following steps must be taken within the Excel environment. This process requires accessing Excel’s specialized statistical functions, which are bundled within an optional add-in.

To initiate the statistical analysis, navigate to the Data tab located along the top ribbon menu. Once activated, locate and click the Data Analysis option, which is typically found within the Analyze group, usually positioned on the far right of the ribbon. This action opens the dialog box containing Excel’s advanced statistical tools.

It is important to note that if the Data Analysis option is not visible in the Analyze group, it indicates that the free Analysis ToolPak add-in has not yet been loaded. Users must first enable this feature through Excel’s Options menu before proceeding with any statistical tests. Once the tool is activated, select Anova: Single Factor from the list of analysis tools presented in the new panel, and confirm the selection by clicking OK.

Configuring and Running the Analysis

Upon clicking OK, a new configuration window will appear, prompting the user to specify the parameters for the analysis. Accurate input is essential for generating valid results. The input range must encompass all data columns corresponding to the groups being compared, including the column headers if they are to be included in the output summary. For our example, the input range spans the scores for all three studying methods.

Within this new window, ensure the following critical information is accurately entered: set the Input Range to include all data (e.g., $A$2:$C$11); specify that the data is Grouped By Columns, as each studying method is a distinct column; check the box for Labels in First Row, which ensures the headers (Method 1, Method 2, Method 3) are used correctly in the output summary; set the Alpha (significance level) typically to 0.05, which is the standard threshold for determining statistical significance; and finally, define an appropriate Output Range where the ANOVA summary table will be placed.

After verifying these settings and clicking OK, Excel will immediately process the data and generate the output, which includes both a Summary table detailing descriptive statistics for each group and the crucial ANOVA table itself. The resulting numerical breakdown provides the foundation necessary to test the research hypothesis concerning the equality of group means.

Interpreting the Numerical ANOVA Results

Once the calculation is complete, the results of the one-way ANOVA will be displayed in the designated output area. This table contains several key metrics, including Sum of Squares, Degrees of Freedom, Mean Squares, the F-statistic, and, most critically, the p-value. The F-statistic tests the ratio of variance between the groups to the variance within the groups, but the p-value ultimately determines the statistical conclusion.

The most pivotal value for drawing a conclusion is the p-value, derived from the F-test. In this example, the resulting p-value is calculated to be 0.002266. This value must be compared against the predetermined significance level, α (alpha), which we set at 0.05. The comparison determines whether we accept or reject the null hypothesis.

The hypothesis testing framework for the ANOVA is defined as follows:

• H₀: The Null hypothesis asserts that all group means (M1, M2, M3) are statistically equal.
• H_A: The Alternative hypothesis posits that at least one of the group means is not equal to the others.

Since the calculated p-value (0.002266) is substantially less than the chosen alpha level (α = 0.05), the correct statistical decision is to reject the null hypothesis. This powerful rejection leads to the conclusion that not all of the population group means are equal, providing statistically significant evidence that the three studying methods do not all result in the same average exam scores. This establishes that a difference exists, but the graphical visualization is needed to determine where that difference lies.

Visualizing Results with Grouped Boxplots

To effectively complement the numerical findings and illustrate the distinct differences in performance, we proceed to visualize these ANOVA results by creating grouped boxplots. Boxplots are ideal for displaying the distribution, spread, and central tendency (median and mean) of numerical data across different categories. They offer a much richer visual insight than simple bar charts of means.

To generate these comparative boxplots in Excel, the first step is to highlight the entire cell range containing the raw data for all groups—in this case, cells A2:C11. With the data selected, click the Insert tab positioned along the top ribbon. Within the Charts group, locate and click the statistical chart icon, selecting the Box and Whisker chart type.

Upon selection, Excel will automatically generate the preliminary visualization, displaying the distribution of scores side-by-side for each studying method. This raw chart already begins to reveal the distributional characteristics and potential differences in the score ranges.

Refining the Boxplot for Clarity

While the initial chart provides the necessary structure, effective data visualization often requires refinement to ensure maximum readability and clarity. Users should adjust visual elements such as the Y-axis range to focus on the meaningful span of scores and add a comprehensive legend to clearly identify which boxplot corresponds to which studying method. Customizing colors, titles, and axis labels further enhances the graph’s interpretability.

Each of these finalized boxplots meticulously displays the full distribution of exam scores achieved by students using the corresponding studying method. Interpreting the elements of the boxplot is key to understanding the visual evidence: the box itself represents the interquartile range (IQR), while the whiskers extend to the minimum and maximum observed scores (excluding outliers).

Crucially, the horizontal line situated in the middle of each boxplot represents the median exam score for that specific studying method. In addition, Excel typically marks the calculated average (mean) exam score with a small “x.” By comparing the positions of these central markers across the three plots, we gain immediate insight into the comparative performance of the groups.

Drawing Conclusions from the Graph

The graphical representation provides compelling visual evidence that powerfully reinforces the numerical results derived from the ANOVA table. By visually inspecting the boxplots, one can immediately discern that the average exam score, represented by the ‘x’ marker, for Studying Method 3 is conspicuously higher and its distribution shifted upward compared to the results from the other two studying methods.

This visual separation clearly explains why the p-value calculated in the ANOVA table was determined to be statistically significant (p < 0.05). The graphic evidence confirms that the three studying methods do not share the same central tendency or average value, providing undeniable support for the rejection of the null hypothesis. Method 3 appears to be the most effective intervention.

By meticulously creating these three comparative boxplots, we are able to move beyond a simple statistical conclusion and achieve a deeper, more actionable understanding of the results produced by our one-way ANOVA. The combination of numerical testing and clear visualization is the hallmark of effective, rigorous statistical reporting.
