How to Easily Create a Semi-Log Graph in Excel

Understanding the Semi-Log Graph

A semi-log graph, often referred to as a semi-log plot, is a critical visualization tool used extensively across scientific and engineering disciplines. It is fundamentally defined by its axis structure: one axis employs a standard linear scale, where increments are based on arithmetic progression (equal spacing represents equal absolute change), while the other utilizes a logarithmic scale (where equal spacing represents equal proportional change). Typically, in most applications, the independent variable (X-axis) remains linear, and the dependent variable (Y-axis) is transformed logarithmically.

The core purpose of using a logarithmic transformation on one axis is to manage data where values span multiple orders of magnitude. When analyzing phenomena characterized by exponential growth or decay, standard linear plotting can compress the lower values near zero, making subtle but important variations indistinguishable, while the higher values dominate the entire plot area. The semi-log approach remedies this by compressing the larger range of values logarithmically, thereby revealing the underlying linear relationship that exists when the data is truly exponential.

Understanding the geometry of a semi-log plot is key to interpretation. If a dataset that is plotted logarithmically on the Y-axis and linearly on the X-axis yields a straight line, this indicates that the relationship between the variables is exponential, not linear. In contrast, a pure linear relationship would appear as a curve on this type of graph. This distinction allows researchers to quickly diagnose the nature of the quantitative relationship they are studying, differentiating constant growth from proportional growth rates.

Why Use a Semi-Logarithmic Scale?

The necessity for a logarithmic scale arises predominantly when dealing with datasets that exhibit vast disparities in magnitude. For instance, if the values for the Y variable range from 1 to 100,000, plotting this on a standard linear axis would render the values below 10,000 almost invisible relative to the maximum values. This massive difference in magnitude—often seen when analyzing growth factors, rates of reaction, or price increases—makes comparative analysis extremely challenging without transformation.

This visualization strategy is especially pervasive in fields such as finance, where stock market returns or inflation rates are often analyzed based on proportional changes rather than absolute dollar values; in biology, particularly when tracking population growth or microbial culture replication; and in astronomy, when comparing the luminosity of stars. In these contexts, the semi-log plot provides clarity by ensuring that a 10% increase, whether it occurs at a base value of 10 or a base value of 10,000, occupies the same vertical distance on the logarithmic axis.

By converting the Y-axis to a logarithmic measure, we effectively transform the multiplicative relationships inherent in exponential growth into additive relationships, which are much easier for the human eye and brain to process visually. This transformation allows us to accurately estimate rates of change and identify periods of rapid acceleration or deceleration that would otherwise be obscured by the sheer size of the dependent variable’s range. Therefore, mastering the creation of a semi-log graph in powerful tools like Excel is an essential skill for data analysis.

Step 1: Preparing Your Data in Excel

The foundation of any successful visualization is correctly structured data. Before creating the graph, ensure your dataset is arranged in columnar format, with the independent variable (X-axis data, which will remain linear) in the first column and the dependent variable (Y-axis data, destined for the logarithmic transformation) in the adjacent column. For semi-log graphs, the Y values must always be positive, as the logarithm of zero or a negative number is undefined.

For this step-by-step tutorial, we will use a hypothetical dataset where the X values increase linearly (representing time or sequential trials), and the corresponding Y values increase dramatically, simulating an exponential growth pattern typically found in scientific experiments or long-term investment tracking. The clarity of the final graph depends entirely on the accuracy and order of this initial data entry.

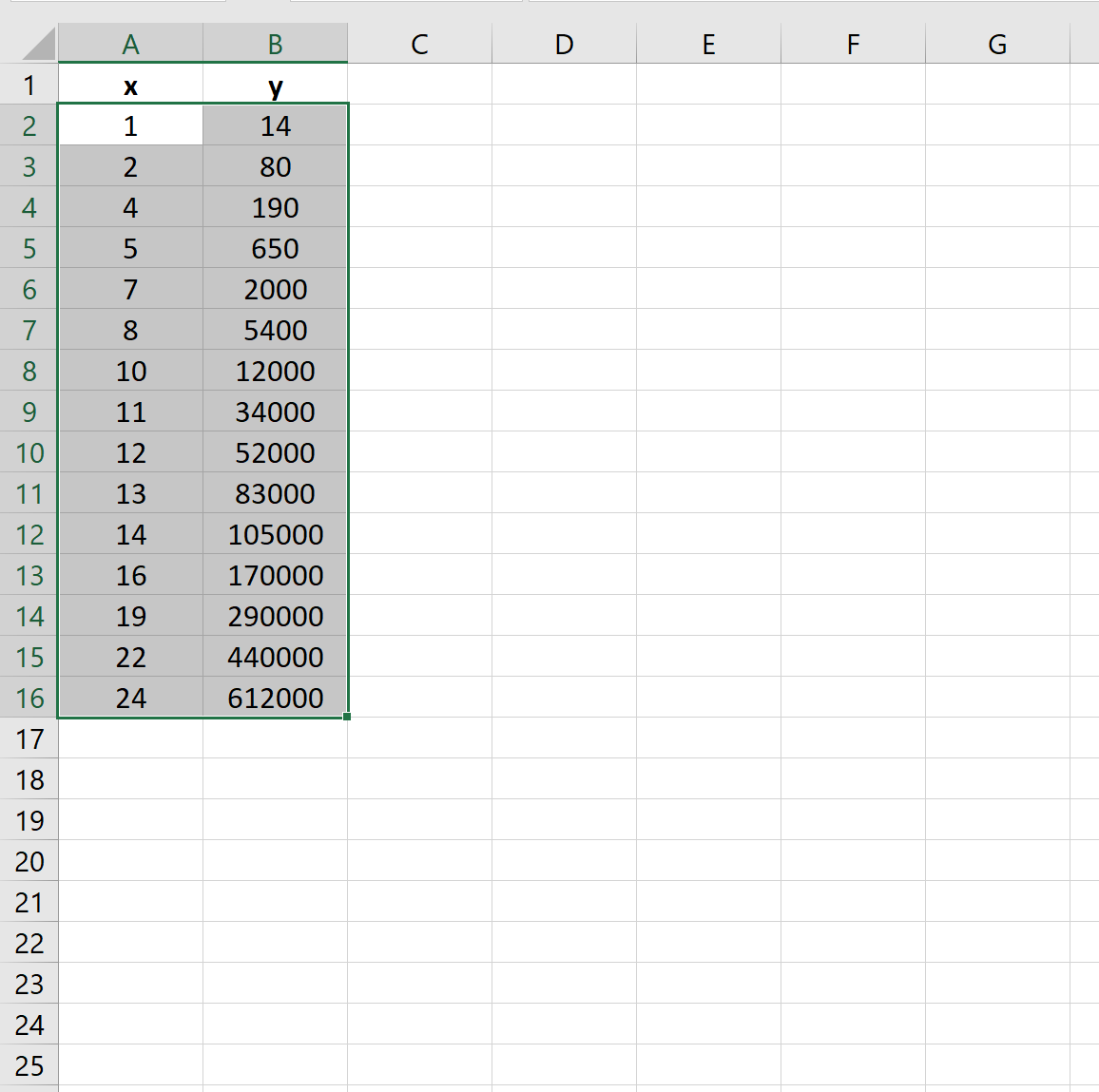

First, we begin by organizing our raw data within a Microsoft Excel spreadsheet. For this demonstration, we will input a simulated dataset where the Y values exhibit significant exponential growth or massive variability compared to the standard X progression, highlighting the need for a logarithmic scale transformation.

Step 2: Generating the Initial Scatterplot

Once the data is correctly entered into adjacent columns, the next crucial step is generating a baseline visualization using the standard charting tools within Excel. While we ultimately seek a semi-log plot, we must first create a standard plot that uses two linear scales. This initial visualization serves two purposes: confirming the selection of the data range and demonstrating why the logarithmic transformation is necessary.

To begin, highlight the entire range of cells containing both the X and Y variables, including any column headers if you wish Excel to automatically label the series. Ensure both columns are selected precisely, as this defines the input range for the initial visualization.

Navigate to the top ribbon and click the Insert tab. Within the Charts group, locate the Scatter chart options. Click this option and select the basic marker-only scatterplot option. This type of graph is always preferred for scientific and technical data where two numerical variables are being compared, as it treats both axes as continuous variables rather than categories.

The resulting scatterplot will be automatically displayed on your sheet. Observe the shape of the data curve; due to the vast range of Y values, the data points corresponding to small X values appear clustered near the bottom of the graph, making it difficult to discern their progression. The data points corresponding to the largest Y values dictate the majority of the visual space, which confirms that the Y variable has much higher variability than the X variable, justifying our move to a logarithmic transformation.

Step 3: Assessing Data Variability and Visualization Needs

Analyzing the initial, linearly scaled scatterplot is a critical diagnostic step. The objective is to visually confirm the need for the logarithmic transformation. In the plot generated in Step 2, the data points likely curve sharply upwards, hugging the X-axis before spiking vertically. This visual pattern is a hallmark of exponential or geometric growth plotted on an arithmetic scale. The compression of data points at the lower end of the Y-axis makes the small changes in those initial stages impossible to analyze accurately.

When the data visualization fails to effectively represent all data points across their entire range, the integrity of the analysis is compromised. If we were attempting to model a function or determine the constant growth rate based on this initial graph, the visual bias introduced by the linear scaling would lead to poor estimations, as the perceived slope is constantly changing. This reinforces the principle that while a linear scale is intuitive for additive changes, it is wholly inadequate for proportional changes that span orders of magnitude.

Based on the high variability observed in the dependent variable, we establish the definitive need to convert the vertical axis into a logarithmic scale. This conversion will distribute the data points more evenly along the Y-axis, transforming the exponential curve into a straight or near-straight line, thereby revealing the true underlying growth rate and allowing for far more robust interpretation of the data.

Step 4: Modifying the Y-Axis Scale

The process of creating the semi-log graph culminates in modifying the Y-axis properties. Excel provides straightforward tools to execute this transformation directly on the chart we just created, without needing to manipulate the source data itself. This modification is non-destructive and highly dynamic.

To initiate the conversion, double-click directly on the vertical (Y) axis of the chart. This action is the standard method in Excel for accessing the detailed formatting options. Once clicked, the Format Axis pane will automatically open on the right side of the Excel interface, providing granular control over the axis scale, bounds, and numbering.

Within the Format Axis settings, ensure you are viewing the ‘Axis Options’ section (represented by the chart icon). Scroll down until you locate the Scaling parameters. Find the option labeled Logarithmic scale and check the adjacent box. Excel uses base 10 logarithms by default, which is the standard convention for semi-log plots unless otherwise specified by the user in the ‘Base’ field immediately below the checkbox.

As soon as the box is checked, Excel immediately recalculates and redraws the chart. The vertical axis will now display non-uniformly spaced major gridlines, increasing by factors of ten (e.g., 1, 10, 100, 1000), rather than additive increments. This confirms the successful conversion from a linear scale to a logarithmic one.

Interpreting the Final Semi-Log Plot

The resultant graph is the completed semi-log graph. The horizontal (X) axis retains its linear scale, representing equal absolute increments, while the vertical (Y) axis has been converted into a logarithmic scale, compressing large values to expose the underlying trends in proportional change. The visual difference from the initial scatterplot is often dramatic, with the data points now forming a much more discernible pattern, frequently approximating a straight line.

The immediate benefit is the enhanced interpretability of the Y values. Where the initial graph clustered lower values, the semi-log plot clearly separates them, giving equal visual weight to proportional growth occurring at low magnitudes as it does at high magnitudes. If the data describes a perfect exponential relationship, the points on this graph will align perfectly on a straight line, making the slope of that line directly proportional to the growth rate constant. Any deviation from a straight line indicates variation in the growth rate over time.

This powerful visualization technique is essential in disciplines like economics, where variables often span several orders of magnitude, making absolute comparisons misleading. By successfully implementing the logarithmic transformation in Excel, you gain a deeper, more accurate understanding of the relationships within your data, specifically focusing on relative change and proportionality, rather than being distracted by the overwhelming size of the largest values. This process ensures that all data points, regardless of their magnitude, contribute meaningfully to the overall visual analysis.
