In the vast field of statistics, practitioners and students frequently encounter a specialized tool essential for understanding data distribution. When asked for the name of the specific table that begins with the letter Z, the answer is the Z Table. This mathematical reference is more formally known as the Standard Normal Distribution Table. It serves as a cornerstone for interpreting how individual data points relate to the average within a standardized set of observations. By providing a standardized framework, it allows for the comparison of data across different scales and units, making it an indispensable asset in both academic research and professional data analysis.

The primary function of the Z Table is to offer the probability values associated with the standard normal distribution. This specific distribution is a bell-shaped curve characterized by a mean of zero and a standard deviation of one. Because so many natural phenomena follow a normal distribution, the ability to map these occurrences onto a standardized curve using the Z Table is vital. It enables statisticians to determine the likelihood of a value falling within a certain range, which is the foundation of predictive modeling and risk assessment in various industries.

Beyond simple identification, the Z Table is heavily utilized in complex analytical processes such as hypothesis testing and the calculation of a confidence interval. Whether a researcher is testing a new pharmaceutical drug or an engineer is monitoring quality control on a production line, the Z Table provides the numerical evidence required to support or reject a specific claim. It transforms raw data into meaningful insights by quantifying the distance of a value from the mean in terms of standard deviations, allowing for objective decision-making based on mathematical certainty.

The Fundamental Principles of the Standard Normal Distribution

The normal distribution, often referred to as the Gaussian distribution, is a continuous probability distribution that is symmetrical on both sides of the mean. In a standard normal distribution, the center of the curve is precisely at zero, and the spread of the curve is defined by a standard deviation of one. This specific configuration is significant because it simplifies complex calculations, allowing any normal distribution to be converted into this standard form. The Z Table acts as a lookup reference for this standardized curve, eliminating the need for performing complex integration of the normal distribution’s probability density function manually.

The Z-score itself is a dimensionless quantity that represents the number of standard deviations an observation or datum is above or below the mean. If a Z-score is positive, the data point is higher than the average; if it is negative, it falls below the average. This standardization is critical when comparing datasets that have different units or means. For instance, one could compare a student’s performance on a math test with their performance on a verbal test by converting both scores into Z-scores, thereby determining which performance was truly more exceptional relative to the rest of the class.

Understanding the area under the curve is the key to utilizing the Z Table effectively. The total area under the standard normal curve is equal to 1.0, representing 100% of the possible outcomes within the probability space. The values within the Z Table represent the cumulative area to the left of a given Z-score. For example, a Z-score of 0.00 corresponds to an area of 0.5000, meaning that 50% of the data falls below the mean. As the Z-score increases or decreases, the table provides the precise percentile for that value, which is essential for determining statistical significance.

The standard normal curve is asymptotic, meaning the tails of the curve approach but never actually touch the horizontal axis. This implies that while the vast majority of data (99.7%) falls within three standard deviations of the mean, there is always a theoretical possibility of extreme outliers. The Z Table typically provides values ranging from -3.4 to +3.4, covering the most statistically relevant portions of the distribution. Analysts rely on these values to identify “rare” events, which are often defined as observations that fall in the extreme tails of the distribution where the probability of occurrence is very low.

Mathematical Construction and Calculation of Z-Scores

To use the Z Table, one must first calculate the Z-score for a specific raw data point. The mathematical formula for this calculation is straightforward: Z equals the difference between the observed value and the mean, divided by the standard deviation. This formula, often written as (x – μ) / σ, effectively rescales the data so that it fits onto the standard normal curve. This process of “standardizing” or “normalizing” the data is a prerequisite for any analysis involving the Z Table.

The mean (μ) represents the central tendency of the data, while the standard deviation (σ) measures the amount of variation or dispersion. If the data points are closely clustered around the mean, the standard deviation is small; if they are spread out, the standard deviation is large. By dividing the difference (x – μ) by the standard deviation, the Z-score provides a relative measure of distance. This allows a statistician to say that a value is “two standard deviations above the mean,” which carries much more information than simply stating the raw value itself.

In many real-world scenarios, the actual population parameters (the true mean and standard deviation) are unknown. In such cases, statistics practitioners use sample statistics—the sample mean and sample standard deviation—as estimates. However, the use of the Z Table is generally reserved for situations where the population standard deviation is known or the sample size is large (typically n > 30). For smaller samples with unknown variance, the Student’s t-distribution is often preferred, though the underlying logic remains largely the same.

Accuracy in calculating the Z-score is paramount, as even a small error can lead to an incorrect interpretation of the Z Table. Once the Z-score is determined, it is usually rounded to two decimal places to match the formatting of most standard tables. The first two digits (the integer and the first decimal) are located along the vertical axis of the table, while the third digit (the second decimal place) is located along the horizontal axis. This intersection point provides the cumulative probability, which is the final piece of information needed for the analysis.

Navigating the Structural Layout of the Z Table

The Z Table is organized with meticulous precision to facilitate quick lookups. It is typically presented as a grid where the rows represent the Z-score’s leading digits. For instance, if you are looking for a Z-score of 1.25, you would first locate the row labeled “1.2”. This row contains all the probability values for Z-scores starting with those two digits. This vertical navigation is the first step in pinpointing the exact area under the curve associated with your specific data point.

The columns of the Z Table represent the second decimal place of the Z-score. Continuing with the previous example of 1.25, after finding the row for “1.2”, you would move horizontally across that row until you reach the column labeled “.05”. The value found at this intersection is the cumulative probability for a Z-score of 1.25. This two-dimensional lookup system allows for high precision, usually up to four or five decimal places, which is necessary for rigorous statistics work.

There are two main types of Z Tables: the positive Z table and the negative Z table. The negative table provides areas for Z-scores below the mean, resulting in probabilities between 0 and 0.5000. The positive table provides areas for scores above the mean, resulting in probabilities between 0.5000 and 1.0000. Most comprehensive statistical texts provide both, as they are mirror images of each other due to the symmetry of the normal distribution.

Proper interpretation of the table’s values is critical. Most standard tables show the area “to the left” of the Z-score, meaning they provide the probability that a value will be less than or equal to the Z-score. If an analyst needs to find the probability of a value being “greater than” the Z-score, they must subtract the table value from 1.0. Similarly, to find the probability between two Z-scores, one would find the cumulative areas for both and subtract the smaller value from the larger one. This versatility makes the Z Table a powerful tool for various directional and non-directional tests.

Interpreting the Standard Normal Curve Areas

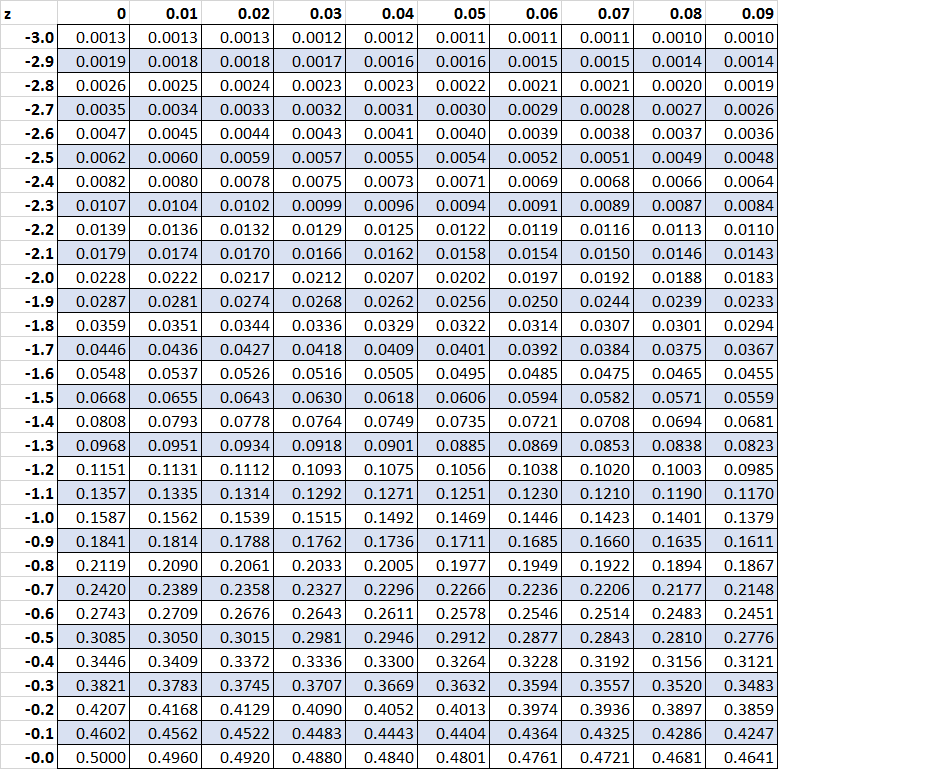

The table below shows the area under the standard normal curve to the left of z.

When looking at the visual representation of the Z Table, one can see how the probability values increase as the Z-score moves from negative to positive. This visual and numerical correlation helps in understanding the standard normal distribution. For instance, a Z-score of -2.00 has a very small area to its left, indicating that it is an outlier on the lower end of the spectrum. Conversely, a Z-score of +2.00 has a large cumulative area, indicating that most of the population falls below that value.

The symmetry of the curve is one of its most helpful features. Because the distribution is perfectly symmetrical, the area to the left of a negative Z-score is identical to the area to the right of the corresponding positive Z-score. This property allows statisticians to use the Z Table to find “tails” of the distribution easily. If you know that 2.5% of the data lies to the left of -1.96, you automatically know that 2.5% of the data lies to the right of +1.96. This is a fundamental concept in two-tailed hypothesis testing.

Furthermore, the Z Table allows for the determination of “critical values.” These are specific Z-scores that define the boundaries of acceptance or rejection regions in a statistical test. For example, in a test with a 95% confidence interval, the critical Z-scores are typically -1.96 and +1.96. These values “cut off” the outer 5% of the distribution (2.5% in each tail), providing a clear threshold for determining whether a result is statistically significant or merely the product of random chance.

Applications in Hypothesis Testing and Significance

In the world of empirical research, hypothesis testing is the method by which theories are validated. The process begins with a null hypothesis, which usually states that there is no effect or no difference. Researchers then collect data and use the Z Table to determine the probability of observing their results if the null hypothesis were true. This probability is known as the p-value. If the p-value is extremely low (typically less than 0.05), the researcher rejects the null hypothesis in favor of an alternative explanation.

The Z Table is specifically used for the Z-test, which is appropriate when the population parameters are known. In a Z-test, the calculated Z-statistic is compared against the critical value found in the table. If the absolute value of the calculated Z-score is greater than the critical value, the result is deemed statistically significant. This rigorous approach prevents researchers from making “Type I errors,” which involve incorrectly claiming a discovery when the results were actually due to probability and variance.

Applying the Z Table in this context requires a clear understanding of the alpha level, which is the threshold for significance. Common alpha levels include 0.10, 0.05, and 0.01. Each alpha level corresponds to a different set of critical values in the Z Table. For a one-tailed test at an alpha of 0.05, the critical Z-score might be 1.645. For a two-tailed test at the same alpha, the critical scores would be ±1.96. Selecting the correct table values is essential for the integrity of the scientific method.

Statistical significance does not always imply practical significance, but the Z Table provides the objective foundation needed to start the conversation. By quantifying the rarity of an event, the table helps distinguish between noise and signal in a dataset. This is particularly important in fields like medicine, where the difference between a successful treatment and a placebo must be clearly demonstrated using standard normal distribution models before a new therapy can be approved for public use.

Calculating Confidence Intervals with the Z Table

A confidence interval provides a range of values within which a population parameter is expected to fall. Unlike a single point estimate, which might be slightly off due to sampling error, an interval offers a degree of certainty. The Z Table is used to determine the “margin of error” for these intervals. By looking up the Z-score that corresponds to a desired level of confidence (such as 90%, 95%, or 99%), analysts can calculate exactly how wide the interval needs to be to capture the true mean of the population.

The formula for a confidence interval for a mean involves taking the sample mean and adding or subtracting the margin of error. The margin of error is calculated by multiplying the Z-score from the table by the standard error of the mean. This process ensures that if the study were repeated many times, the calculated intervals would contain the true population mean a specific percentage of the time. The Z Table ensures that these calculations are mathematically sound and standardized across the scientific community.

Using the Z Table for confidence intervals is most common when dealing with large sample sizes. According to the Central Limit Theorem, the sampling distribution of the mean will be approximately normal regardless of the shape of the underlying population distribution, provided the sample is large enough. This powerful theorem justifies the widespread use of the Z Table in various fields, from polling in political science to estimating average expenditures in economics.

Precision in selecting the Z-score is vital for the accuracy of the confidence interval. For a 95% confidence level, the researcher looks for the Z-score that leaves 2.5% in each tail of the distribution. Looking at the Z Table, one finds that the value 0.9750 (the cumulative area for 97.5%) corresponds to a Z-score of 1.96. This is why 1.96 is one of the most famous numbers in statistics, as it serves as the multiplier for the most commonly used confidence level in research.

Comparing Z-Tests and T-Tests

While the Z Table is a primary tool, it is important to know when its use is appropriate compared to the T-table. The Z-test is generally used when the population variance is known and the sample size is large. Under these conditions, the standard normal distribution provides a highly accurate model of the data’s behavior. The Z Table is the “gold standard” for these scenarios, offering precise probability values that have been refined over decades of mathematical study.

In contrast, the T-test and its associated T-table are used when the population standard deviation is unknown and must be estimated from a small sample. The T-distribution is “flatter” than the standard normal distribution, with heavier tails to account for the increased uncertainty inherent in small samples. However, as the sample size increases (approaching infinity), the T-distribution actually converges into the standard normal distribution. This means that for very large samples, the values in a T-table and the Z Table become virtually identical.

The choice between these two tables often comes down to the amount of information available to the statistician. If a quality control manager has years of data and knows the exact variance of a machine’s output, they will reach for the Z Table. If a scientist is conducting a pilot study with only ten participants, they must use the T-table to avoid overestimating the significance of their findings. Knowing the limits and applications of the Z Table is a hallmark of a skilled data analyst.

Despite the prevalence of computers, understanding the relationship between these distributions remains critical. Most software packages will default to a T-test because it is more conservative, but the Z Table remains the theoretical foundation for much of frequentist statistics. Understanding how to use the Z Table manually ensures that an analyst can verify software outputs and understand the underlying logic of the normal distribution.

Real-World Examples of Z Table Usage

To illustrate the utility of the Z Table, consider the field of psychology and standardized testing. IQ tests are designed to have a mean of 100 and a standard deviation of 15. If an individual scores 130, their Z-score would be (130 – 100) / 15 = 2.00. By looking up 2.00 in the Z Table, we find a cumulative area of 0.9772. This tells us that the individual scored higher than approximately 97.7% of the population, placing them in the top 2.3% of test-takers.

In finance, the Z Table is used in risk management models, such as Value at Risk (VaR). Analysts use the table to determine the probability that the value of a portfolio will drop below a certain threshold within a given timeframe. By assuming that market returns follow a normal distribution, they can identify the “worst-case scenarios” at a 95% or 99% confidence level. This allows banks and investment firms to set aside enough capital to cover potential losses, ensuring financial stability.

Manufacturing and engineering also rely heavily on the Z Table for Six Sigma quality control. The goal of Six Sigma is to ensure that processes produce fewer than 3.4 defects per million opportunities. This level of quality corresponds to a process where the nearest specification limit is six standard deviations away from the mean. Engineers use the Z Table to monitor process capability and ensure that the variation in production remains within acceptable statistical limits, thereby maintaining high standards of reliability.

Finally, in the social sciences, the Z Table helps researchers interpret survey data. If a poll finds that 55% of voters support a certain policy with a confidence interval of ±3%, the Z Table was likely used to determine that margin of error. It provides the mathematical link between the sample collected and the broader population, allowing for generalizations that are backed by rigorous statistics rather than mere intuition.

Modern Computing and the Future of the Z Table

In the modern era, the Z Table is often embedded within statistics software, spreadsheets like Microsoft Excel, and programming languages like R or Python. Functions such as `NORM.S.DIST` in Excel or `pnorm()` in R have replaced the need for manual table lookups in most professional settings. These tools can provide probability values to an infinite number of decimal places, offering even greater precision than the traditional printed versions found in textbooks.

However, the transition to digital tools has not rendered the Z Table obsolete. It remains a vital educational tool, helping students visualize the mechanics of the normal distribution. By manually finding a Z-score and tracing it to a probability, learners gain a deeper, more intuitive understanding of how data works. This foundational knowledge is crucial for correctly setting up and interpreting automated statistical tests in more advanced software environments.

Furthermore, the Z Table serves as a reliable “sanity check” for complex analyses. If a software output seems counterintuitive, an analyst can quickly perform a manual calculation using the Z Table to verify the results. This practice ensures that errors in data entry or software parameters are caught before they lead to incorrect conclusions. The table represents a bridge between raw data and informed action, a bridge that remains as relevant today as it was when the normal distribution was first formalized.

As we move further into the age of Big Data and artificial intelligence, the principles summarized in the Z Table continue to underpin even the most advanced algorithms. Machine learning models often require data normalization or standardization as a preprocessing step, a process directly derived from Z-score calculations. Whether in a printed appendix or a line of code, the Z Table remains the essential guide for understanding the “standard” in our increasingly data-driven world.

Conclusion: The Essential Role of the Z Table

The Z Table, or Standard Normal Distribution Table, is more than just a list of numbers; it is a fundamental map of probability. By allowing us to translate any normal distribution into a single, standardized format, it provides a universal language for statistics. Its structured rows and columns offer a clear path from raw data to meaningful interpretation, enabling researchers and professionals to make decisions with confidence and scientific rigor.

From hypothesis testing to confidence interval estimation, the applications of the Z Table are vast and varied. It serves as the backbone of quality control, financial risk assessment, and psychological testing, proving its worth across countless disciplines. By quantifying the relationship between the mean and standard deviation, the Z Table turns abstract concepts into concrete, actionable insights.

Ultimately, mastering the use of the Z Table is a vital skill for anyone working with data. While technology has changed how we access these values, the underlying principles of the Z-score and the bell curve remain constant. As an essential tool for statistical analysis, the Z Table continues to be a fixture in textbooks and a cornerstone of the scientific method, ensuring that our understanding of the world is grounded in mathematical truth.
