The Fundamental Role of Normal Distribution in Statistical Analysis

In the realm of quantitative research and data science, the assumption of a normal distribution serves as a cornerstone for many of the most powerful statistical tests available to researchers. When a dataset follows a Gaussian or normal distribution, it allows for the application of parametric statistics, such as t-tests, ANOVA, and linear regression, which typically offer higher statistical power than their non-parametric counterparts. However, before these advanced analyses can be performed with confidence, one must rigorously verify that the data does indeed conform to the expected theoretical distribution. Failure to meet these underlying assumptions can lead to Type I errors or Type II errors, potentially invalidating the conclusions of a study and leading to erroneous decision-making in critical fields like medicine, engineering, and finance.

A primary tool for this verification is the Q-Q plot, or quantile-quantile plot, which provides a sophisticated graphical method for comparing two probability distributions by plotting their quantiles against each other. In a standard normality check, the observed data quantiles are plotted against the theoretical quantiles of a standard normal distribution. This visualization allows researchers to look beyond simple summary statistics like mean and median, offering a detailed view of how the data behaves across the entire range of values. By examining the alignment of data points along a reference line, analysts can quickly identify patterns of skewness, kurtosis, and the presence of outliers that might otherwise remain hidden in a traditional histogram or box plot.

In the context of IBM SPSS Statistics, generating and interpreting these plots is a streamlined process that integrates both visual evidence and mathematical rigor. This tutorial is designed to provide a comprehensive walkthrough of the procedures required to construct these plots, while also offering deep insights into how to read the resulting graphs effectively. By mastering the Q-Q plot, you will be equipped to handle complex datasets with a higher degree of precision, ensuring that your exploratory data analysis phase is both thorough and scientifically sound. Whether you are a student learning the ropes of biostatistics or a seasoned analyst performing quality control, understanding the nuances of distributional assessment is an essential skill in your analytical toolkit.

Theoretical Foundations of the Quantile-Quantile Plot

To fully appreciate the utility of the Q-Q plot, one must understand the mathematical concept of a quantile. A quantile is a point that divides the range of a probability distribution into contiguous intervals with equal probabilities. For instance, the median is the 0.5 quantile, representing the point below which 50% of the data falls. When we create a Q-Q plot for normality, we are essentially asking if the intervals of our observed data match the intervals we would expect to see if the data were perfectly normally distributed. If the two distributions being compared are identical, the resulting plot will show points falling exactly along a straight diagonal line, representing a perfect linear correlation between the empirical and theoretical values.

The diagonal line in a Q-Q plot, often referred to as the 45-degree line or the identity line, serves as the benchmark for a null hypothesis that the data is normally distributed. When the points deviate from this line, the specific nature of the deviation tells a story about the data’s probability density function. For example, if the points form a curve that bows upward or downward relative to the line, it indicates skewness, suggesting that the data is not symmetrical. If the points at the ends of the plot (the “tails”) curve away from the line, it suggests that the distribution has heavy tails or light tails compared to a normal distribution, a property known as kurtosis. Understanding these geometric cues is vital for data cleaning and determining whether a data transformation might be necessary before proceeding with further analysis.

Moreover, the Q-Q plot is often considered superior to the P-P plot (probability-probability plot) when the researcher is particularly interested in the behavior of the distribution’s tails. While P-P plots are excellent for comparing the middle range of distributions, Q-Q plots are more sensitive to deviations at the extremes. This sensitivity is crucial in fields like risk management or environmental science, where extreme values—often called black swan events or outliers—can have significant consequences. By utilizing IBM SPSS to generate these visualizations, researchers can leverage the software’s robust computational algorithms to ensure that the quantiles are calculated accurately, even in datasets with a large number of observations or complex weighting variables.

Preparing Your Dataset for Analysis in IBM SPSS

Before initiating any statistical procedure in SPSS, it is imperative to ensure that your data is correctly formatted and cleaned. For a Q-Q plot, the variable of interest must be quantitative and measured on an interval scale or ratio scale. Categorical or nominal data cannot be analyzed using this method, as the concept of quantiles requires a continuous range of numerical values. In this example, we will examine a dataset containing the points per game for 25 different basketball players. This represents a typical sample size for many pilot studies, where assessing the distribution is a critical first step in determining if the sample can represent a larger population.

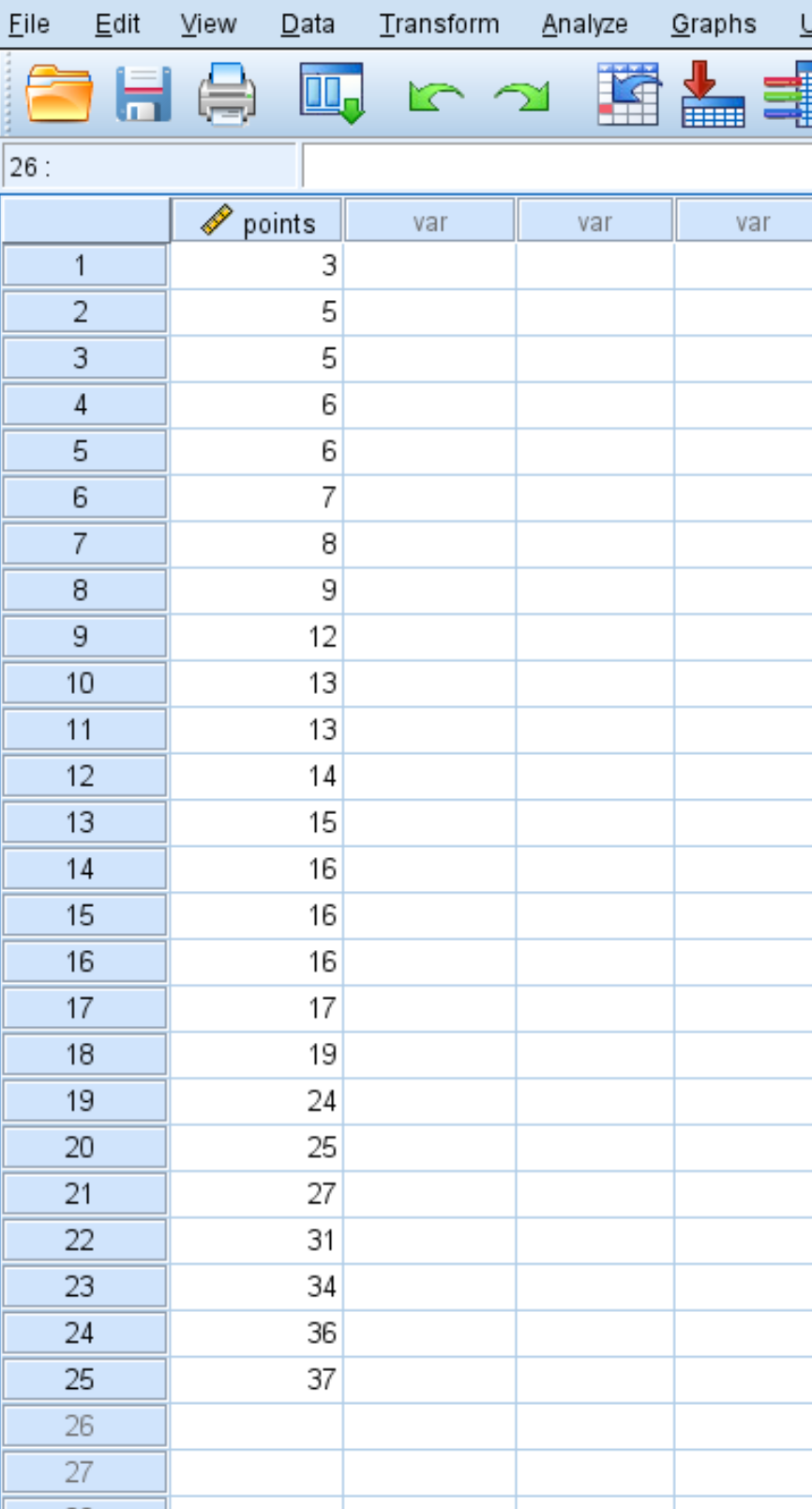

To begin the process, you must first import your data into the SPSS Data Editor. This can be achieved by navigating to the “File” menu, selecting “Open,” and then “Data.” SPSS supports a wide variety of file formats, including .sav, .csv, and Excel spreadsheets. Once the data is loaded, it is a best practice to review the “Variable View” tab to ensure that the “Measure” column is set to “Scale” for your continuous variables. This tells the software that the values represent meaningful numerical distances, which is essential for the calculation of descriptive statistics and normality plots. If the data contains missing values, you should also decide on a strategy for missing data handling, such as listwise deletion or imputation, to avoid biasing your results.

In our basketball player example, the variable “points” is recorded as continuous variables, which allows us to proceed with the exploratory data analysis. It is worth noting that while 25 observations is a relatively small sample size, the Q-Q plot remains a robust tool for identifying major departures from normality. In smaller samples, histograms can often be misleading due to the choice of bin width, whereas the Q-Q plot provides a more direct comparison of empirical distribution functions. Once you have confirmed that your dataset is clean and the variables are correctly defined, you are ready to navigate the SPSS menus to generate the visualization.

Step 1: Navigating the SPSS Interface for Normality Testing

The primary gateway for assessing distribution in IBM SPSS is the Explore procedure. Unlike the basic “Frequencies” or “Descriptives” commands, the Explore command provides a comprehensive suite of exploratory data analysis tools, including normality tests, stem-and-leaf plots, and box plots. To access this feature, click on the Analyze tab in the top menu bar. This will reveal a dropdown menu containing the various statistical techniques available in the software. From there, hover over Descriptive Statistics and select Explore from the secondary list. This path is the industry standard for conducting a detailed pre-analysis of your variables.

Upon selecting Explore, a new dialog box will appear. This interface is designed to help you organize your variables for batch processing. The Explore dialog is particularly useful because it allows you to analyze multiple dependent variables simultaneously and even split the analysis by factor variables (such as gender or treatment group) if you need to check normality within specific subgroups. For the purpose of our basketball dataset, we are interested in the overall distribution of the “points” variable, so we will treat it as our primary focus within the analysis setup.

Navigating the user interface of SPSS requires a systematic approach to ensure that no critical options are overlooked. The Explore dialog box is divided into several sections: the variable list on the left, and the “Dependent List,” “Factor List,” and “Label Cases by” boxes on the right. To move variables between these sections, you can simply click and drag or use the arrow buttons provided. Mastering this interface is a fundamental skill for any data analyst working with SPSS, as it serves as the foundation for more complex multivariate analyses later in the research process.

Step 2: Configuring the Explore Procedure for Q-Q Visualization

Once you are within the Explore dialog box, the next step is to specify which variable you wish to analyze. Locate the points variable in the left-hand list and move it into the box labeled Dependent List. This designates “points” as the variable for which SPSS will calculate distributional statistics and generate plots. If you were comparing different groups of players, you might place a categorical variable like “Position” into the Factor List, but for a general check of normality, leaving the Factor List empty is the correct approach.

After selecting your variable, you must configure the output options by clicking the Plots button located on the right side of the dialog box. This will open the Explore: Plots sub-dialog. To generate the Q-Q plot, you must ensure that the checkbox labeled Normality plots with tests is selected. This is a critical step; without checking this box, SPSS will only provide standard descriptive statistics and perhaps a basic boxplot, omitting the sophisticated normality tests and the Q-Q plot itself. Once this is checked, click Continue to return to the main dialog.

Finally, ensure that the “Display” radio button at the bottom of the Explore box is set to “Both” or “Plots.” Selecting “Both” is generally recommended as it provides both the visual Q-Q plot and the statistical tables containing the Kolmogorov-Smirnov and Shapiro-Wilk test results. After verifying these settings, click OK. SPSS will then process the data through its analytical engine and present the results in the SPSS Output Viewer window. This configuration ensures that you have all the necessary evidence—both graphical and numerical—to make an informed judgment about the distribution of your data.

Step 3: Interpreting the Visual Output of the Q-Q Plot

The SPSS Output Viewer will generate several tables and charts, but the centerpiece of your analysis is the Normal Q-Q Plot. In this graph, the y-axis represents the observed values for the “points” variable, while the x-axis represents the expected values if the data followed a perfect normal distribution. A straight diagonal line is drawn across the plot to serve as a reference. If your data points (represented by small circles) cluster tightly along this line, it provides strong visual evidence that your variable is normally distributed.

In our basketball player example, a careful examination of the plot reveals that the points do not perfectly adhere to the 45-degree reference line. Specifically, we can observe that the data points tend to deviate or “drift” away from the line at the tails of the distribution. This pattern suggests that the residuals—the differences between the observed and expected values—are not consistent with a normal distribution. Such deviations in a Q-Q plot often indicate outliers or a distribution that is either leptokurtic (peaked) or platykurtic (flat). In this case, the non-linear trend is a visual warning that the assumption of normality may be violated.

Interpreting a Q-Q plot is as much an art as it is a science. While minor deviations are expected in any real-world dataset due to sampling error, significant and systematic departures from the line—such as an “S” shape or a “C” shape—indicate specific types of non-normality. An “S” shape often suggests that the distribution has heavy tails (more extreme values than expected), while a “C” shape might indicate skewness in the data. By identifying these patterns in IBM SPSS, you can determine whether you need to apply a log transformation, a square root transformation, or perhaps switch to non-parametric tests like the Mann-Whitney U test or the Kruskal-Wallis test.

Analyzing Formal Normality Tests: Kolmogorov-Smirnov and Shapiro-Wilk

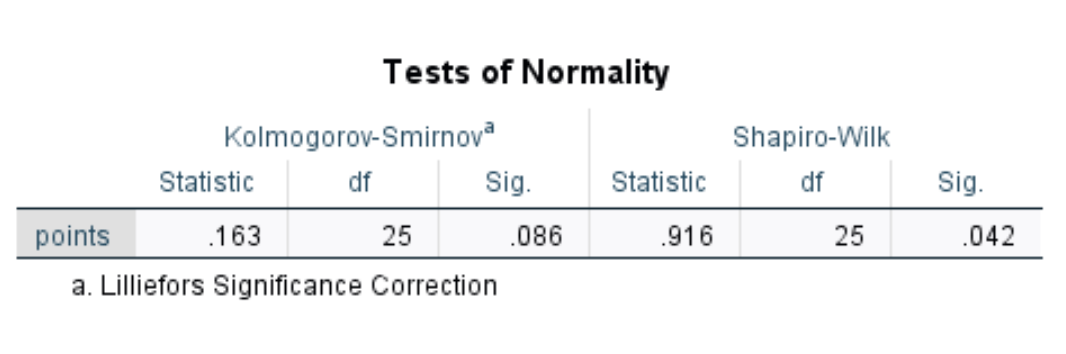

While visual inspection of a Q-Q plot is incredibly valuable, it is often necessary to back up your observations with formal statistical significance tests. SPSS provides two primary tests for this purpose: the Kolmogorov-Smirnov test (with Lilliefors correction) and the Shapiro-Wilk test. These tests calculate the probability that the sample was drawn from a normally distributed population. The null hypothesis for both tests is that the data is normally distributed. Therefore, a p-value less than the chosen alpha level (usually 0.05) indicates that the null hypothesis should be rejected, suggesting the data is not normal.

• The p-value for the Kolmogorov-Smirnov Normality Test in our example is .086.
• The p-value for the Shapiro-Wilk Normality Test in our example is .042.

The discrepancy between these two p-values highlights an important nuance in statistical analysis. The Shapiro-Wilk test is generally considered more powerful and reliable, especially for smaller sample sizes like our n=25 dataset. Since the Shapiro-Wilk p-value of .042 is below the traditional threshold of .05, we have evidence to reject the null hypothesis of normality. The Kolmogorov-Smirnov test, with a p-value of .086, fails to reject the null at the 5% level but is still quite close to the threshold. When these formal tests are combined with the visual evidence from the Q-Q plot, the conclusion becomes clearer: the “points” variable likely deviates from a normal distribution.

When faced with non-normal data, researchers must decide on the best course of action. In some cases, if the sample size is large enough (e.g., n > 30 or 50), the Central Limit Theorem may allow for the use of parametric tests anyway, as the sampling distribution of the mean will tend toward normality. However, for smaller samples like this basketball dataset, the violation of normality is more concerning. You might consider using robust statistics or performing a data transformation to achieve a more normal distribution. Regardless of the path chosen, the Q-Q plot and the accompanying tests in SPSS provide the essential data needed to justify your methodological decisions to peer reviewers or stakeholders.

Practical Applications and Decision-Making Based on Q-Q Plots

The ability to create and interpret Q-Q plots in SPSS has wide-ranging applications across numerous professional and academic fields. In finance, for example, asset returns are often assumed to be normal for models like Black-Scholes or Value at Risk (VaR). However, empirical evidence often shows “fat tails,” which can be identified via Q-Q plots, warning analysts that extreme market crashes are more likely than a normal model would predict. Similarly, in manufacturing and quality control, engineers use these plots to ensure that product dimensions or tolerances follow a normal distribution, which is a prerequisite for calculating process capability indices like Cp and Cpk.

In the social sciences and psychology, researchers often deal with survey data or psychometric scores. Before performing a regression analysis to determine the factors that influence human behavior, a Q-Q plot is used to check the normality of residuals. If the residuals are not normal, it may indicate that the model is missing an important predictor variable or that the relationship between variables is non-linear. By identifying these issues early in the exploratory data analysis phase, researchers can refine their theoretical models and produce more accurate and reproducible results. The Q-Q plot thus serves as a critical diagnostic tool that bridges the gap between raw data and meaningful insight.

Ultimately, the Q-Q plot in SPSS is more than just a graph; it is a gateway to statistical integrity. By following the structured steps of loading data, selecting the Explore procedure, and carefully interpreting both the visual and numerical output, you can ensure that your data analysis is built on a solid foundation. As you become more comfortable with these tools, you will find that the Q-Q plot becomes an indispensable part of your workflow, providing clarity in the face of complex data and empowering you to make data-driven decisions with confidence. Whether you are validating a scientific hypothesis or optimizing a business process, the insights gained from distributional assessment are vital for success in the modern data-rich landscape.
