How to Create Histograms in SPSS: A Step-by-Step Guide

The Significance of Histograms in Statistical Data Analysis

In the realm of quantitative research and data science, the histogram stands as a foundational instrument for exploring the underlying characteristics of a dataset. Unlike simple bar charts that compare discrete categories, a histogram is specifically designed to represent the frequency distribution of continuous, numerical data. By grouping data points into contiguous ranges, or bins, researchers can quickly discern the shape, center, and spread of their observations. This visual representation is crucial for identifying whether a variable follows a normal distribution or if it suffers from significant skewness, both of which are vital considerations before performing parametric statistical tests.

When utilizing SPSS (Statistical Package for the Social Sciences), creating a histogram is a streamlined process that bridges the gap between raw numbers and actionable insights. Whether you are analyzing test scores, physical measurements, or financial figures, the histogram allows you to see where the majority of values lie and identify any potential outliers that might skew your results. Understanding how to generate and refine these charts is a core competency for any analyst working within the IBM SPSS environment, as it provides the primary visual evidence needed to support data-driven conclusions.

This comprehensive guide will walk you through the precise methodology for generating histograms in SPSS, from the initial data entry phase to the advanced customization of graphical outputs. By following these structured steps, you will ensure that your data visualization is not only accurate but also formatted to meet professional and academic standards. We will explore the nuances of the Chart Builder interface and the subsequent modifications required to optimize the clarity of your statistical findings.

Preparing Your Dataset for Histogram Generation in SPSS

Before initiating the graphical commands in SPSS, it is imperative to ensure that your dataset is correctly structured and that the variable of interest is measured on an interval or ratio scale. SPSS requires clean data input where each row represents an individual observation and each column represents a specific attribute. For the purposes of this tutorial, consider a scenario involving athletic performance metrics. Suppose we have collected data on the average number of points scored per game by a cohort of 20 basketball players. This continuous variable is ideal for histogram analysis because it allows us to visualize the scoring density across the team.

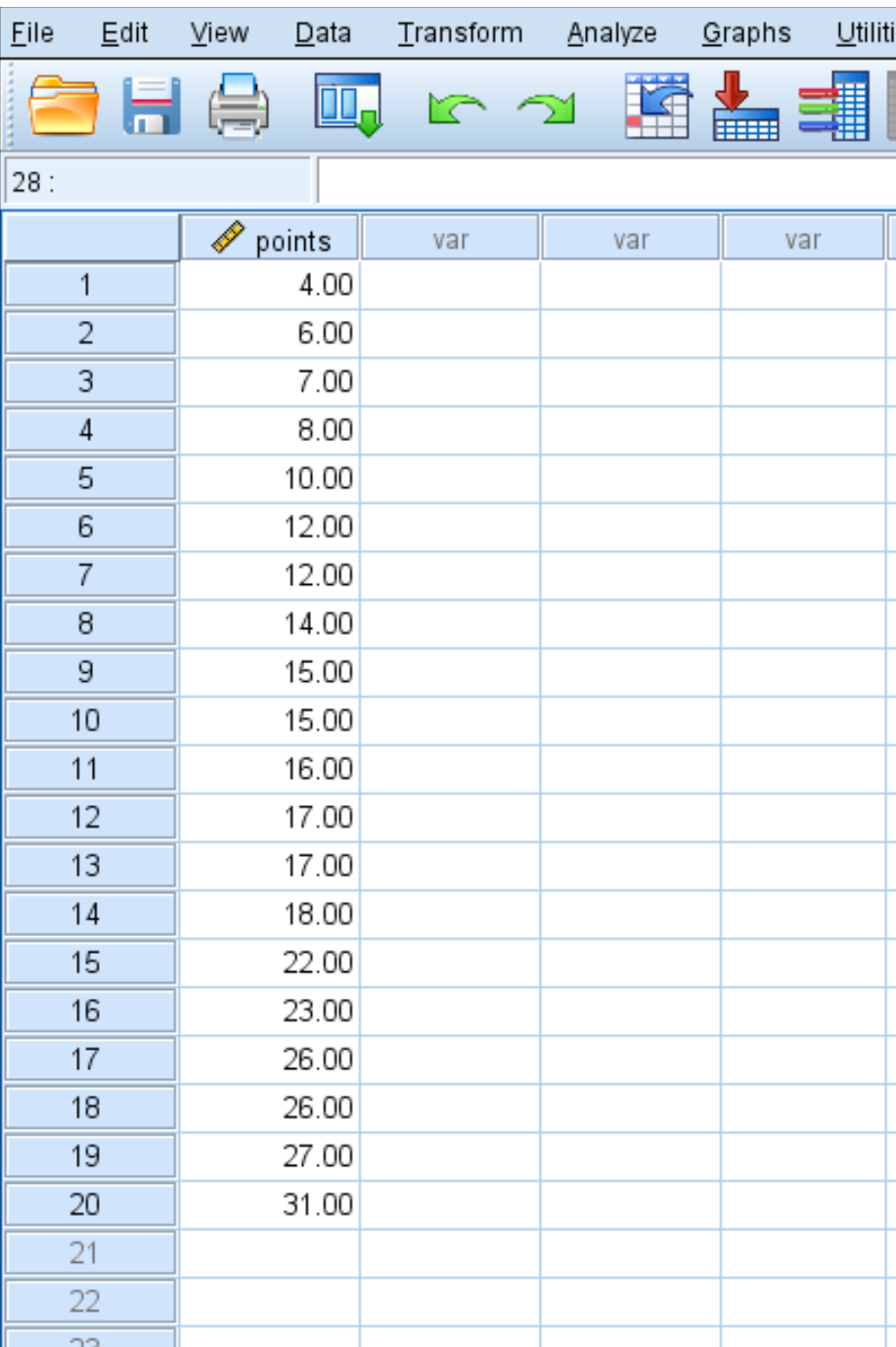

To begin the process, open your data file within the SPSS Data Editor. It is a best practice to verify the “Variable View” tab to ensure the “Measure” column is set to “Scale” for your target variable. If the variable is incorrectly labeled as “Nominal” or “Ordinal,” the Chart Builder may restrict certain histogram functionalities. Once your data is verified and organized, you are ready to proceed to the visualization tools. The following image illustrates the typical layout of a scoring dataset in the SPSS environment:

Transitioning from data entry to visualization requires a clear understanding of the “Graphs” menu. This menu serves as the gateway to the sophisticated graphics engine of SPSS, capable of producing publication-quality charts. By centralizing your workflow within the Chart Builder, you maintain consistency across your analytical project, ensuring that every histogram you create adheres to the same structural logic and aesthetic parameters.

Navigating the SPSS Chart Builder Interface

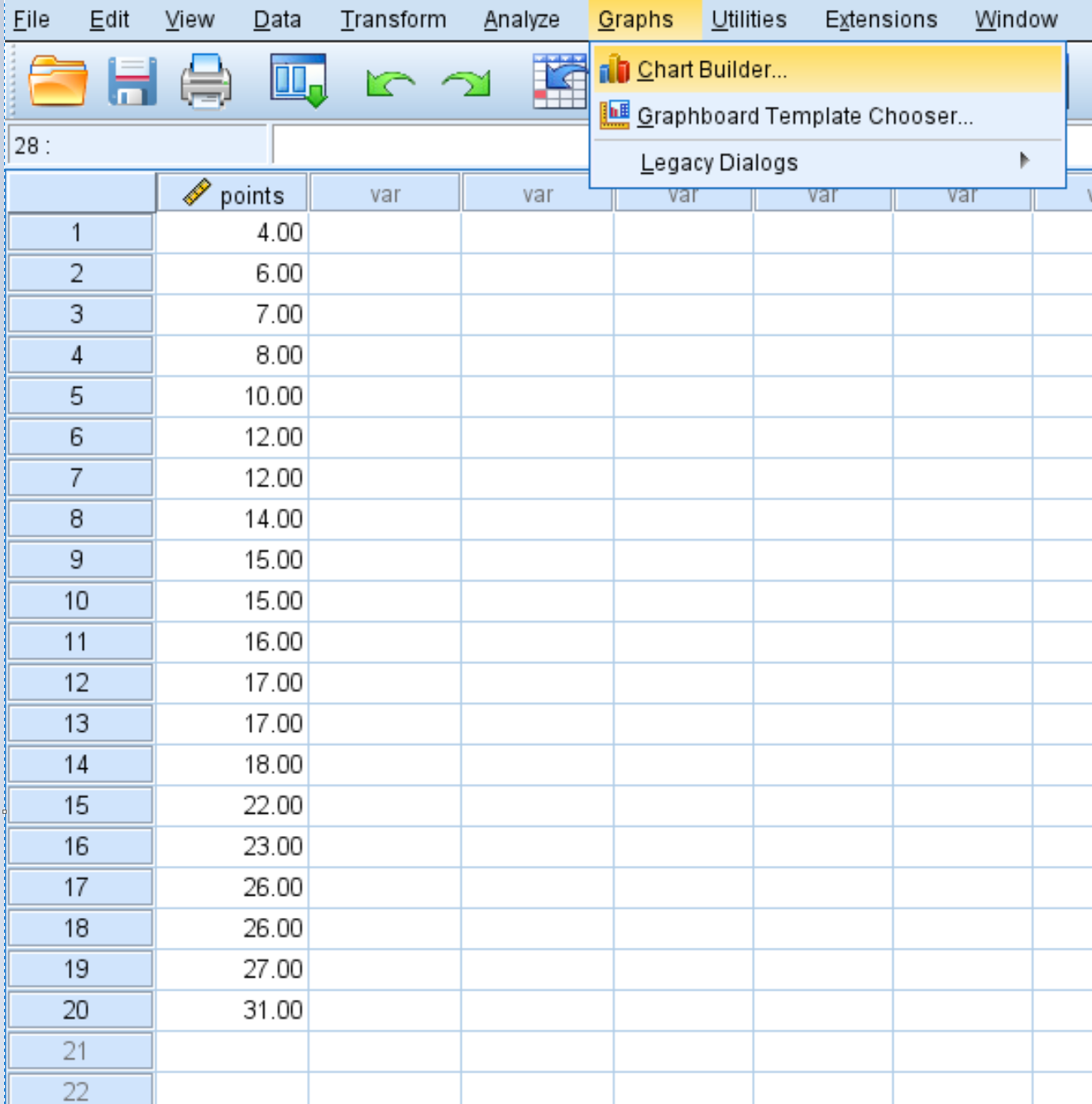

The Chart Builder is the most versatile tool within SPSS for generating data visualizations. To access this feature, navigate to the top menu bar, click on the Graphs tab, and select Chart Builder from the drop-down list. If a dialog box appears regarding variable level settings, click “OK” to proceed, provided you have already verified your scales in the Variable View. The Chart Builder provides a drag-and-drop interface that allows for real-time previews of your histogram before it is finalized in the output viewer.

Within the Chart Builder window, you will find several key areas: the “Gallery,” which contains templates for various chart types; the “Canvas,” where you build the chart; and the “Variables” list, which displays the fields available in your dataset. This modular design is intended to simplify complex graphing tasks, allowing users to layer different elements such as normal curves or reference lines onto their histograms. The following image shows the initial selection process within the Graphs menu:

Understanding the “Choose from” list is essential for selecting the correct graphical format. For a histogram, you must locate the “Histogram” category in the gallery. You will typically see several variations, including the simple histogram, the stacked histogram, and the population pyramid. For most standard frequency distribution analyses, the first icon, representing the simple histogram, is the most appropriate choice. This selection sets the foundation for your data visualization, defining the primary axes and the binning logic used by the software.

Step-by-Step Procedure for Creating a Basic Histogram

Once the Chart Builder is open and the histogram category is selected, follow these specific steps to generate your graph:

1. Locate the Simple Histogram icon in the Gallery and drag it into the main canvas area.
2. From the Variables list on the left, identify the continuous variable you wish to analyze (e.g., “points”).
3. Click and drag this variable into the X-Axis drop zone on the canvas. SPSS will automatically assign the Y-axis to represent the Frequency or count of observations.
4. Review the Element Properties window on the right side of the screen if you wish to add a normal curve over the bars to check for distribution symmetry.
5. Click OK at the bottom of the dialog box to execute the command and generate the chart in the SPSS Output window.

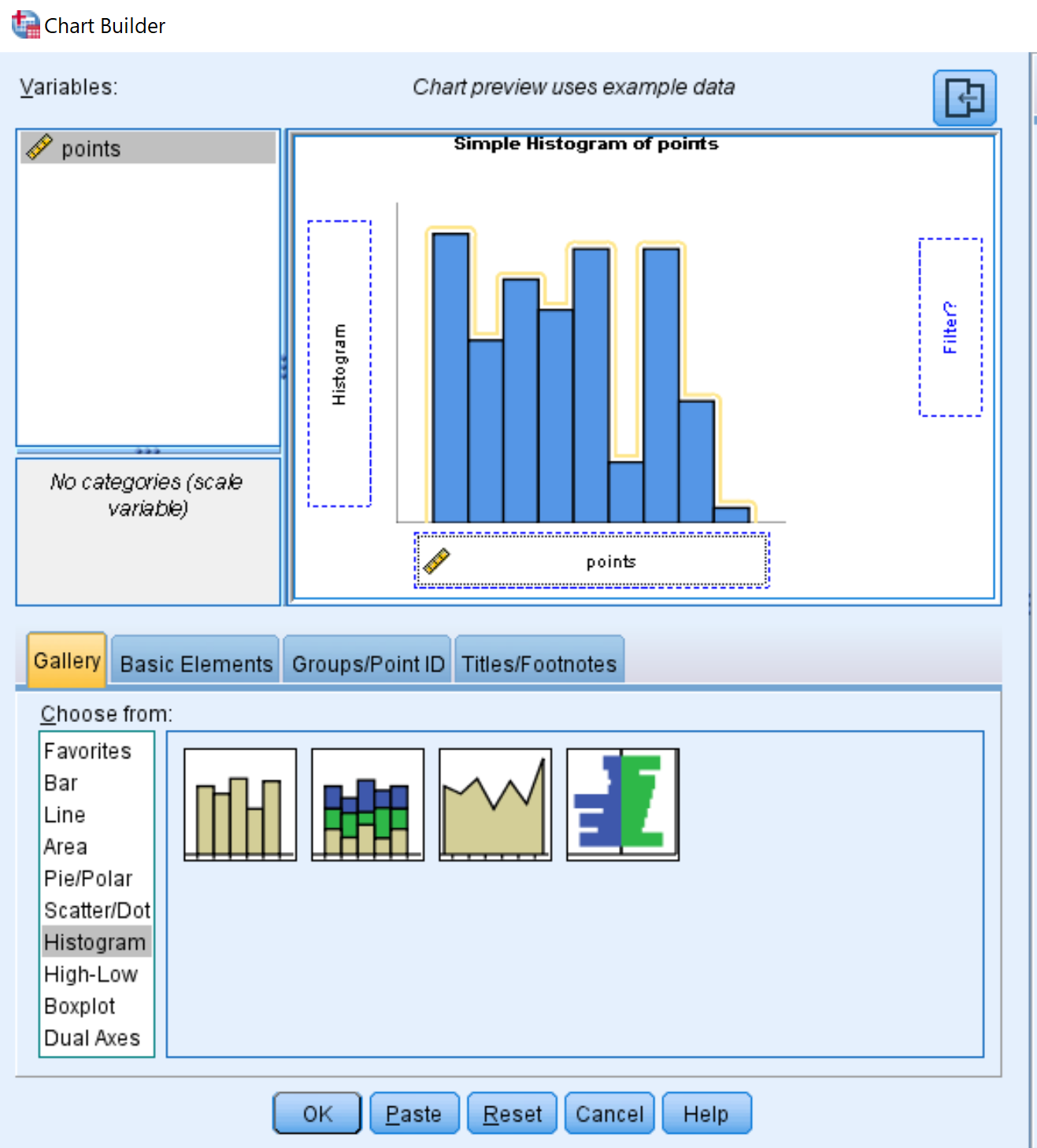

The visual configuration of these steps is displayed in the Chart Builder screenshot below, highlighting the placement of the “points” variable onto the horizontal axis:

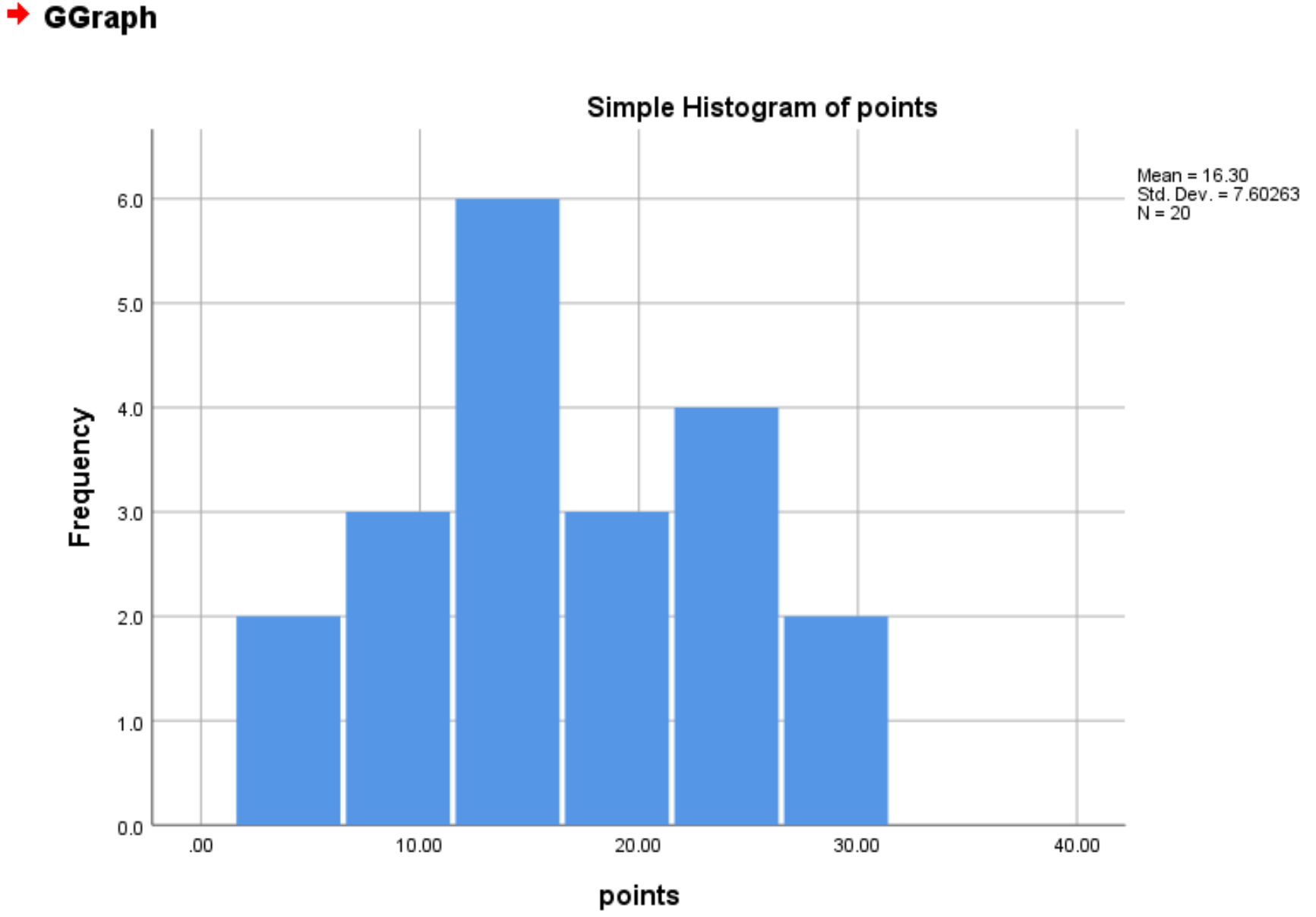

After clicking “OK,” SPSS processes the raw data and produces a visual summary. The resulting histogram provides an immediate overview of the basketball players’ performance. You can now observe the central tendency of the scores and identify the range within which most players fall. This initial output is the starting point for more detailed statistical analysis and serves as a primary diagnostic tool for your data. The default output will look similar to the following:

Advanced Customization: Modifying Bin Sizes and Intervals

By default, SPSS employs an automated algorithm to determine the bin width and the number of intervals for the histogram. While this is often sufficient for a cursory glance, professional analysis frequently requires manual adjustments to these settings to reveal more granular patterns within the frequency distribution. Changing the interval width can significantly alter the appearance of the chart, potentially highlighting multimodal distributions that were previously hidden by overly wide bins.

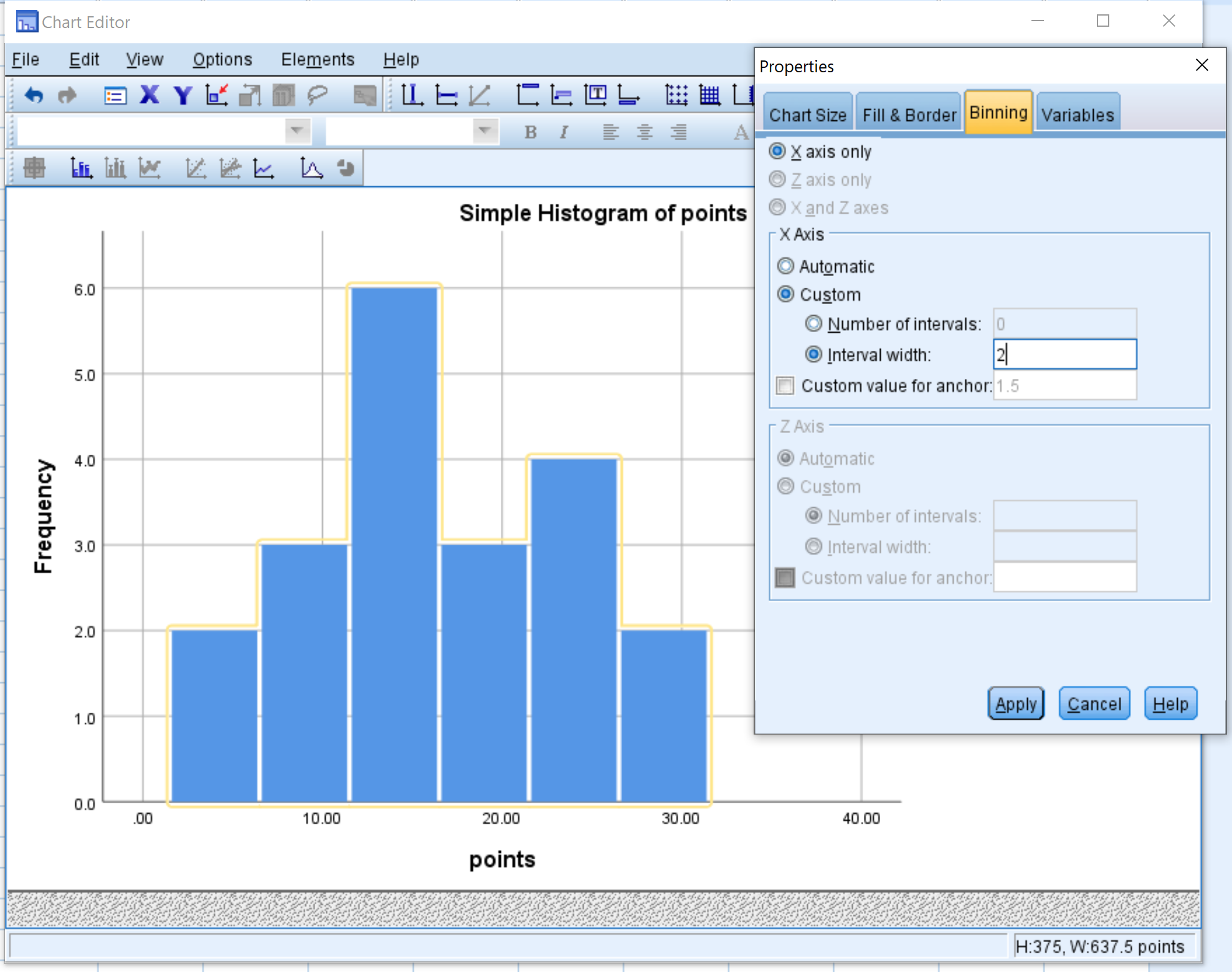

To modify the binning parameters, you must first enter the Chart Editor by double-clicking on the generated histogram in the Output Viewer. Once the editor window is active, right-click on any of the vertical bars and select Edit Content > In Separate Window if necessary, or simply double-click the bars to open the Properties dialog. Within the Properties window, navigate to the Binning tab. Here, you can switch from “Automatic” to “Custom” settings, allowing you to define the exact interval width or the total number of bins you desire. For example, setting an interval width of “2” provides a more detailed look at the scoring variations among the basketball players, as shown here:

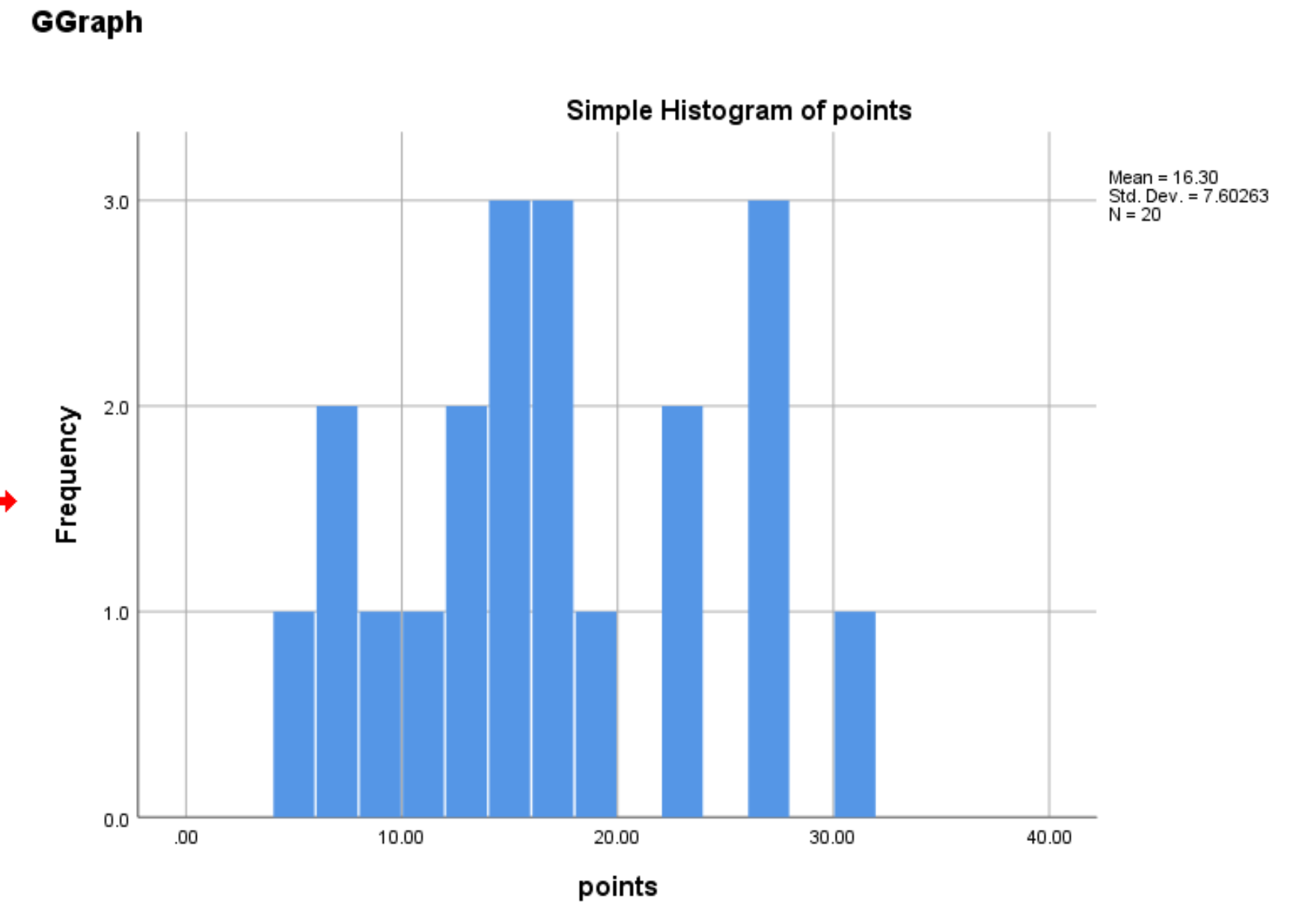

The choice of bin size involves a trade-off between smoothing and detail. An interval that is too large may “oversmooth” the data, masking important nuances and outliers. Conversely, an interval that is too small may introduce “noise,” making it difficult to discern the general distribution shape. By experimenting with different widths in the SPSS Chart Editor, you can find the optimal balance that accurately represents the underlying statistics of your sample. After applying a smaller interval width, the histogram will update to provide a more refined visual narrative:

Enhancing Visual Clarity through the SPSS Chart Editor

Beyond binning, the Chart Editor in SPSS offers a robust suite of tools for enhancing the aesthetic and communicative quality of your histogram. Clarity is paramount when presenting data visualizations to stakeholders or in academic journals. You can modify the color palette of the bars, adjust the transparency, and change the font sizes of the axis labels to ensure maximum readability. Furthermore, adding a “Normal Curve” via the “Elements” menu in the Chart Editor allows you to visually compare your data against a theoretical normal distribution, which is a common requirement in hypothesis testing.

Another powerful feature is the ability to add reference lines. If there is a specific benchmark or mean score that is relevant to your study, you can insert a vertical line on the X-axis to denote this value. This provides immediate context for the viewer, allowing them to see how many players scored above or below the average. You can also edit the scales of the axes, ensuring that the increments are logical and that the maximum value on the Y-axis comfortably accommodates the highest frequency count without leaving excessive empty space.

Consistency in formatting is also achievable through the use of SPSS Chart Templates. If you are generating multiple histograms for a single report, you can save your customized settings—including colors, fonts, and binning rules—as a template file (.sgt). Applying this template to future charts ensures a uniform appearance across your entire data analysis project. This professional approach not only saves time but also reinforces the credibility of your visual graphics by adhering to a standardized design language.

Interpreting Distribution Patterns and Statistical Insights

Creating the histogram is only the first step; the true value lies in the interpretation of the resulting pattern. When looking at your SPSS output, you should first identify the mode, or the most frequent interval. In our basketball player example, the peak of the histogram indicates the most common scoring range. If the bars are clustered tightly around the center, the standard deviation is likely low, suggesting consistent performance across the team. Conversely, a wider spread indicates higher variability in the players’ scoring abilities.

The skewness of the histogram is another critical diagnostic. If the “tail” of the histogram extends further to the right, the data is positively skewed, suggesting that while most players score at a lower level, a few high-performers are pulling the mean upward. A left-skewed distribution would indicate the opposite. Identifying these patterns is essential for selecting the appropriate statistical parameters for further analysis. For instance, if your data is highly skewed, you might choose to report the median rather than the mean as a more accurate measure of central tendency.

Finally, look for outliers—bars that are isolated from the main body of the histogram. An outlier in basketball scoring might represent an exceptionally talented player or perhaps a data entry error. In SPSS, these visual cues prompt the researcher to return to the dataset and investigate the specific case. Understanding the “why” behind the shape of your histogram is what transforms a simple chart into a powerful piece of evidence in your research narrative.

Exporting and Formatting Histograms for Professional Reports

Once you have finalized the appearance and binning of your histogram, the final stage is exporting the graphic for inclusion in your document, presentation, or thesis. SPSS provides several export options to ensure compatibility with various software applications. By right-clicking on the chart in the Output Viewer and selecting “Export,” you can choose from high-resolution formats such as PNG, JPEG, or PDF. For academic publishing, a high-resolution TIFF or EPS file is often preferred for its scalability and print quality.

When exporting, pay close attention to the dimensions and resolution (DPI) settings. A histogram intended for a PowerPoint presentation may only require 96 DPI, whereas a chart for a printed journal should ideally be 300 DPI or higher. SPSS also allows you to copy and paste the chart directly into Microsoft Word. However, using the “Paste Special” function and selecting “Picture (Enhanced Metafile)” often yields the best results, as it preserves the vector-like quality of the axes and text labels, preventing pixelation when the image is resized.

In conclusion, the ability to create and customize histograms in SPSS is an indispensable skill for any data analyst. By moving beyond default settings and utilizing the Chart Builder and Chart Editor to their full potential, you can create visualizations that are not only statistically accurate but also visually compelling. This disciplined approach to descriptive statistics ensures that your findings are communicated clearly and professionally, providing a solid foundation for any subsequent inferential analysis you may perform on your dataset.
