How to Create and Interpret Scatterplots in SPSS: A Step-by-Step Guide

The Fundamental Role of Scatterplots in Statistical Analysis

In the realm of quantitative research and data visualization, the scatterplot stands as one of the most essential tools for exploratory data analysis. Primarily used to examine the relationship between two continuous variables, a scatterplot provides a mathematical diagram using Cartesian coordinates to display values for typically two variables for a set of data. By plotting individual data points on a two-dimensional plane, researchers can quickly discern whether a relationship exists between the independent and dependent variables, and if so, what the nature of that relationship might be.

Utilizing a sophisticated statistical software package like SPSS (Statistical Package for the Social Sciences) allows for the seamless generation of these visual representations. SPSS is particularly favored in academic and professional settings due to its robust handling of complex datasets and its intuitive interface for generating high-quality graphics. When we look at a scatterplot, we are not merely looking at dots on a page; we are observing the correlation, variance, and potential outliers that define the underlying story of the data. This visualization serves as a prerequisite for more advanced inferential statistics, such as linear regression or correlation analysis.

The interpretation of a scatterplot involves assessing the direction, form, and strength of the relationship. A positive direction indicates that as one variable increases, the other tends to increase as well, whereas a negative direction suggests an inverse relationship. The form refers to whether the points follow a linear path or a more complex nonlinear curve. Finally, the strength is determined by how closely the data points cluster around a central trend. SPSS provides the necessary tools to quantify these observations, turning visual impressions into verifiable statistical facts.

Data Preparation and Dataset Structure in SPSS

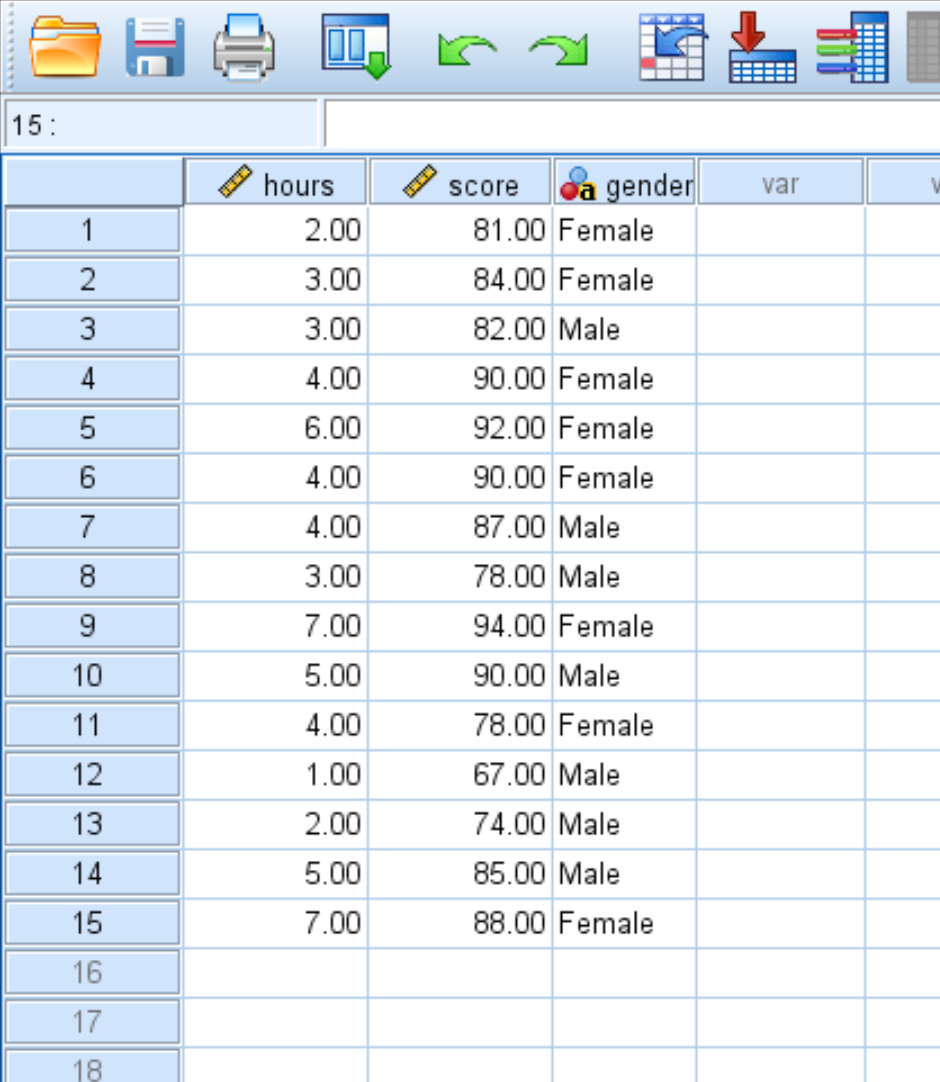

Before one can generate a visual output in SPSS, the data must be correctly structured and cleaned. This involves importing raw data from sources such as Excel or CSV files into the SPSS Data Editor. Each row in the SPSS environment represents a single case or observation, while each column represents a specific variable. For a scatterplot, it is imperative that both variables of interest are measured at the scale level (interval or ratio), as scatterplots are designed for continuous numerical data rather than nominal or ordinal categories.

Consider a hypothetical research scenario where we aim to investigate the impact of academic effort on student performance. In this dataset, we track the number of hours studied by 15 individual students alongside the final exam scores they achieved. Ensuring that the data is free from entry errors is critical; an incorrectly entered value could appear as a misleading outlier, skewing the interpretation of the entire dataset. The following image illustrates how such a dataset is organized within the SPSS Data View window, with “hours” and “score” clearly defined as the primary variables.

Once the dataset is properly formatted, the researcher must decide which variable will occupy the horizontal x-axis and which will occupy the vertical y-axis. In most experimental designs, the independent variable (the predictor) is placed on the x-axis, while the dependent variable (the outcome) is placed on the y-axis. In our example, “hours studied” serves as the predictor, while “exam score” is the outcome we wish to observe. This logical structuring is the foundation for creating a meaningful and interpretable scatterplot.

Utilizing the Chart Builder to Generate a Basic Scatterplot

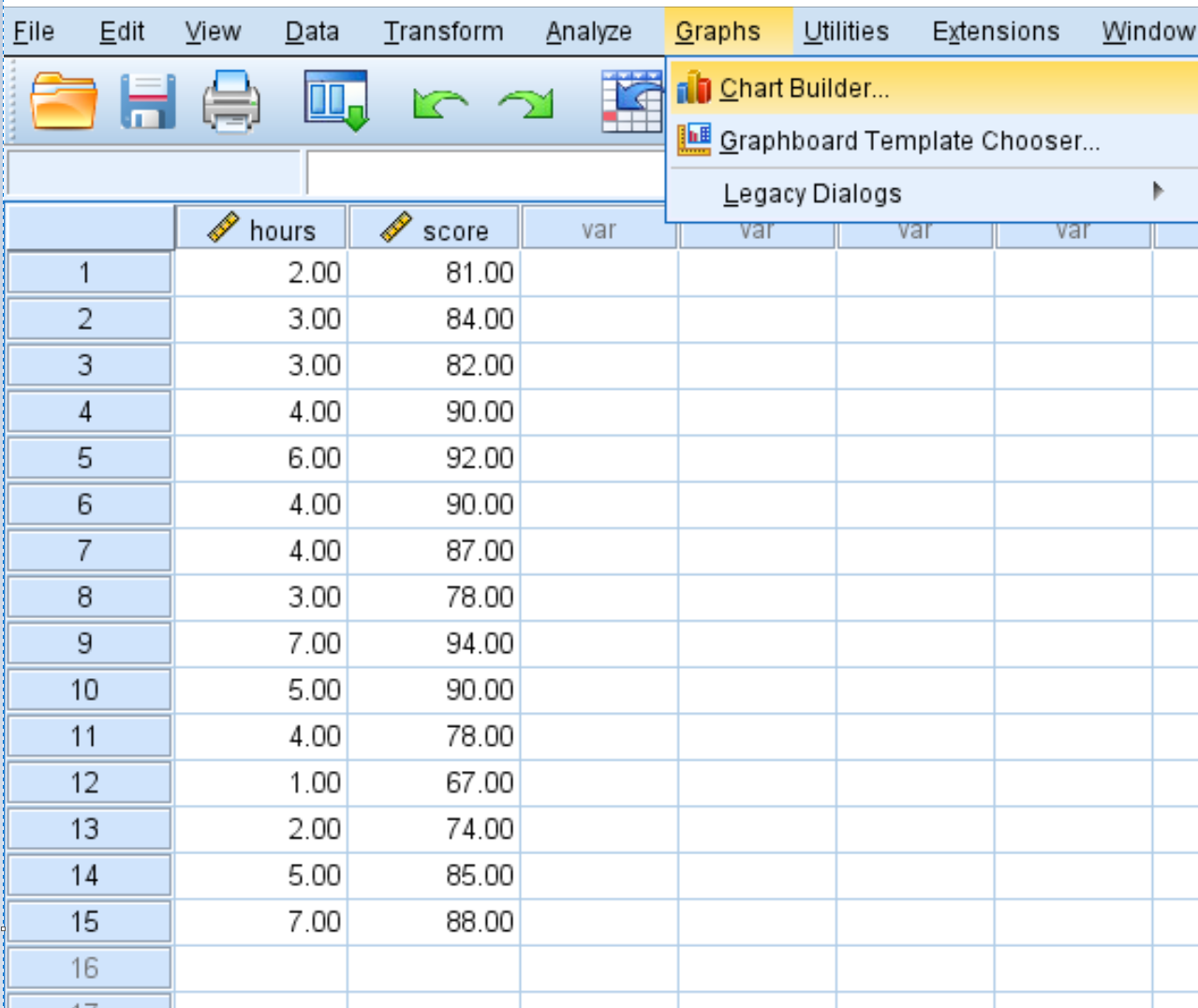

To begin the visualization process, SPSS offers a versatile tool known as the Chart Builder. This interface is designed to provide a “what-you-see-is-what-you-get” experience, allowing users to drag and drop variables into various graph templates. To access this feature, the user must navigate to the Graphs menu in the top toolbar and select Chart Builder. This action opens a comprehensive dialog box where different chart types—ranging from bar charts to complex histograms—can be selected and customized.

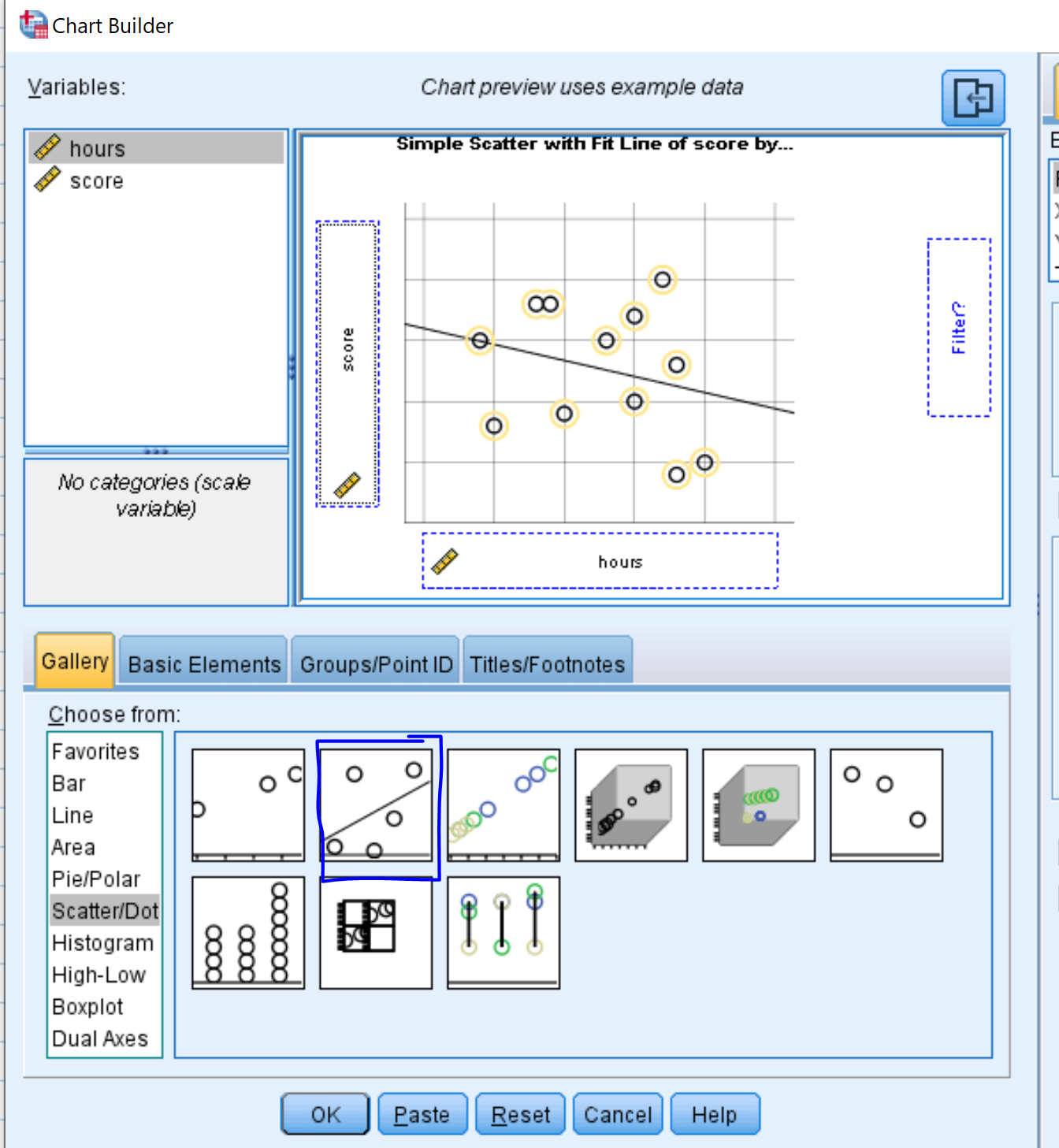

Within the Chart Builder, the user should select the Scatter/Dot category from the “Choose from” list. This reveals several variations of scatterplots, including simple, grouped, and 3D versions. For a standard analysis of two variables, the Simple Scatter option is the most appropriate. By dragging this icon into the main canvas area, the user prepares the software to receive specific data inputs. The next crucial step is assigning the variables: the “hours” variable should be dragged to the X-Axis box, and the “score” variable should be dragged to the Y-Axis box.

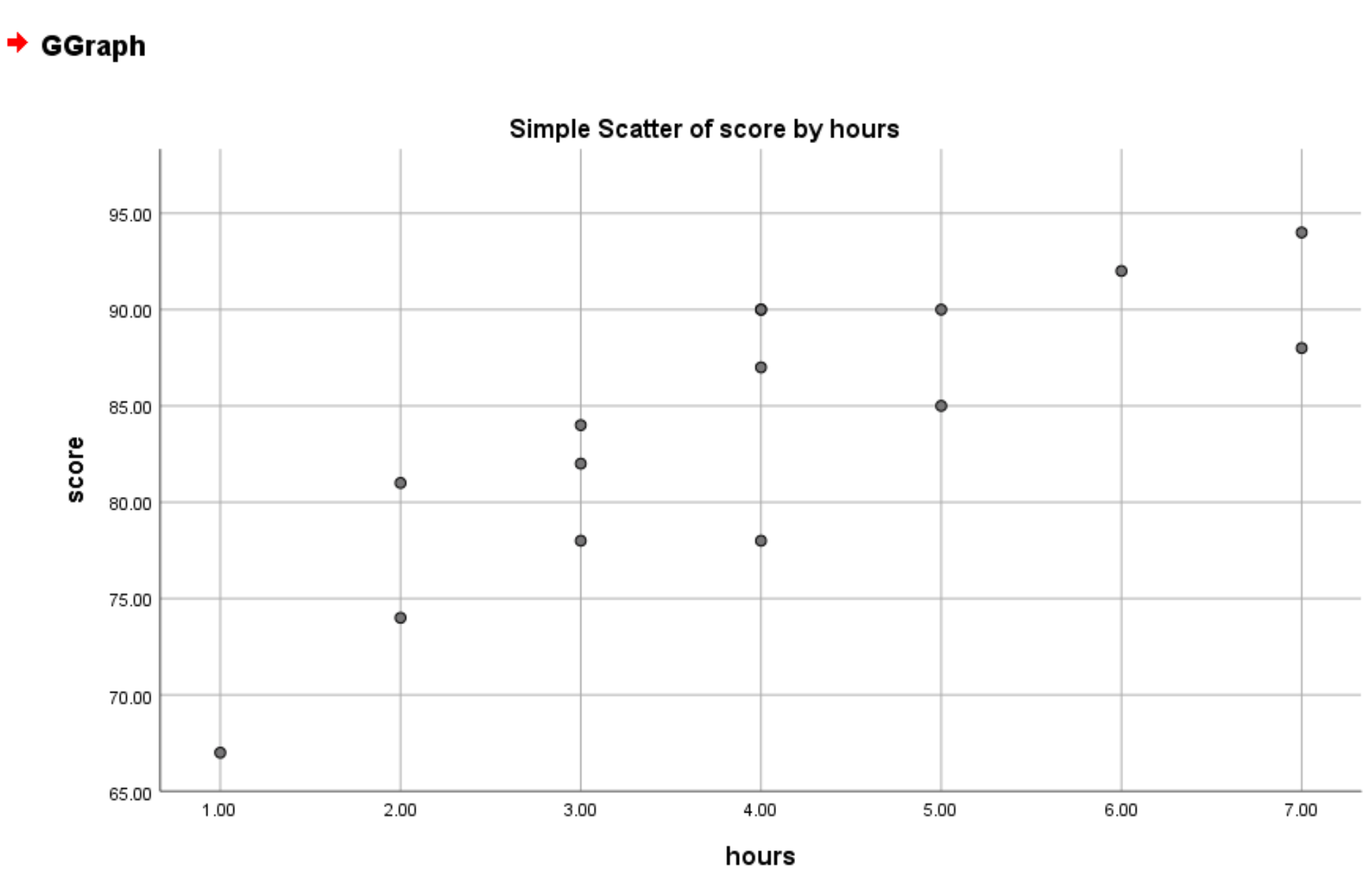

After clicking the OK button, SPSS processes the request and generates the output in a new window called the Output Viewer. This window displays the scatterplot, providing an immediate visual representation of the data points. Each dot on the graph corresponds to a specific student from the dataset, positioned according to their study hours and exam performance. This initial view allows the researcher to spot general trends, such as whether higher study hours generally correspond to higher scores, which would indicate a positive correlation.

Refining Axis Scales for Enhanced Clarity

One common issue with default SPSS charts is the automatic scaling of the axes. By default, SPSS often truncates the axes to fit the range of the data, which can sometimes distort the viewer’s perception of the relationship’s magnitude. For instance, if exam scores range from 65 to 95, the y-axis might start at 60 instead of 0. While this highlights the internal variation of the data, it may be necessary for professional or academic presentations to adjust the axis to include a zero-point for better context or to follow specific formatting guidelines.

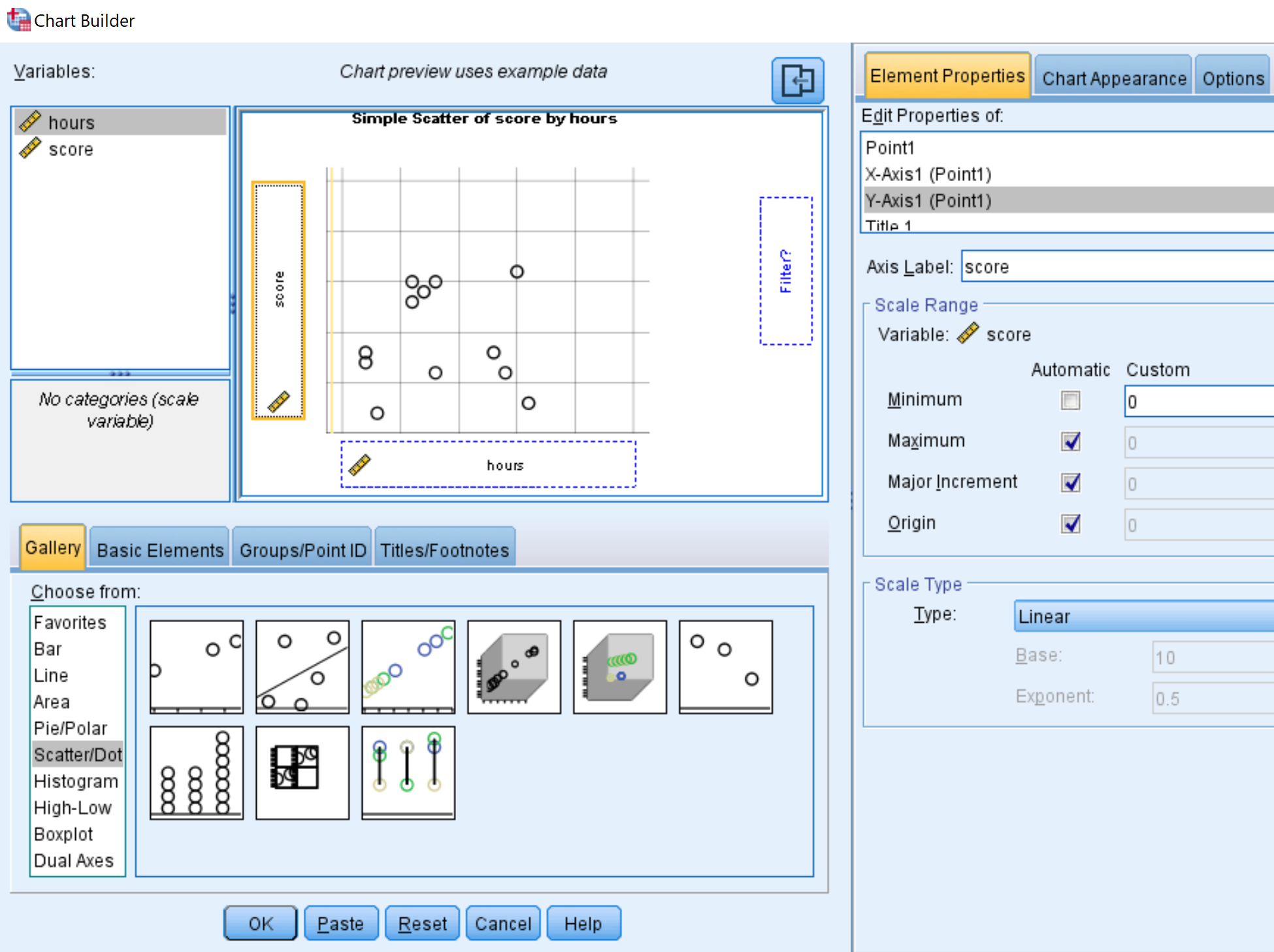

To modify the axis scales, the user must double-click the chart in the Output Viewer to open the Chart Editor. Within this editor, selecting the y-axis and opening the Element Properties dialog box allows for precise control over the minimum and maximum values, as well as the increments of the grid lines. Setting the Minimum value to 0 ensures that the entire possible range of the dependent variable is represented, which can provide a more “honest” visual representation of how the data points are distributed relative to the baseline.

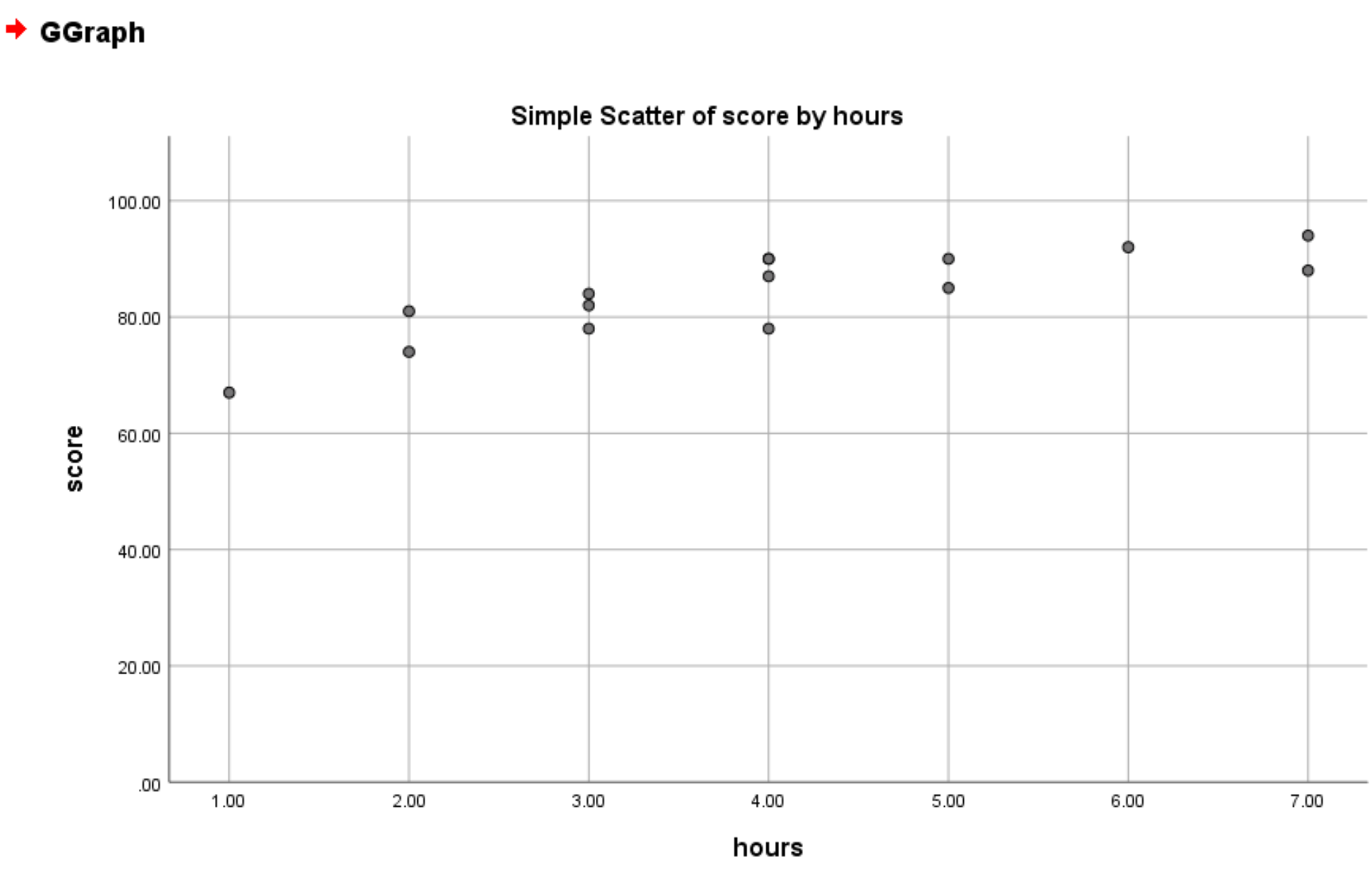

Once these adjustments are applied, the resulting graph provides a different perspective on the data. By extending the y-axis to zero, the viewer can see the relative “height” of the scores more clearly. While the correlation remains the same, the visual impact of the data distribution changes. This level of customization is vital for ensuring that the scatterplot is not only accurate but also tailored to the specific needs of the audience or the requirements of a particular scientific journal.

Incorporating Regression Lines and Statistical Coefficients

While a scatterplot of raw data points is informative, adding a line of best fit (also known as a regression line) significantly enhances the analytical value of the graph. A regression line is a straight line that best represents the data on a scatterplot, minimizing the distance between the line and all data points. This line acts as a visual summary of the linear relationship between the variables, making it much easier to predict the value of the dependent variable based on the independent variable.

In SPSS, adding this line is a straightforward process within the Chart Editor. By selecting the “Add Fit Line at Total” option, the software automatically calculates the ordinary least squares regression and draws the corresponding line over the data points. This process not only provides a visual trend but also allows SPSS to display the R-squared (R²) value directly on the chart. The R-squared value is a statistical measure that represents the proportion of the variance for a dependent variable that is explained by an independent variable.

Interpreting the R-squared value is essential for understanding the model’s predictive power. For example, an R² value of 0.662 indicates that approximately 66.2% of the variation in exam scores can be explained by the number of hours studied. The remaining 33.8% would be attributed to other factors not included in the model, such as prior knowledge, test anxiety, or sleep quality. This quantifiable insight transforms a simple image into a powerful mathematical model that can be used to support research hypotheses and draw evidence-based conclusions.

Analyzing Subgroups with Grouped Scatterplots

In many research scenarios, the relationship between two continuous variables may be influenced by a third, categorical variable. For instance, the relationship between study hours and exam scores might differ between male and female students. To explore this, SPSS allows for the creation of grouped scatterplots. A grouped scatterplot uses different colors or symbols to represent different levels of a categorical variable, enabling the researcher to see if the overall trend holds true across all subgroups.

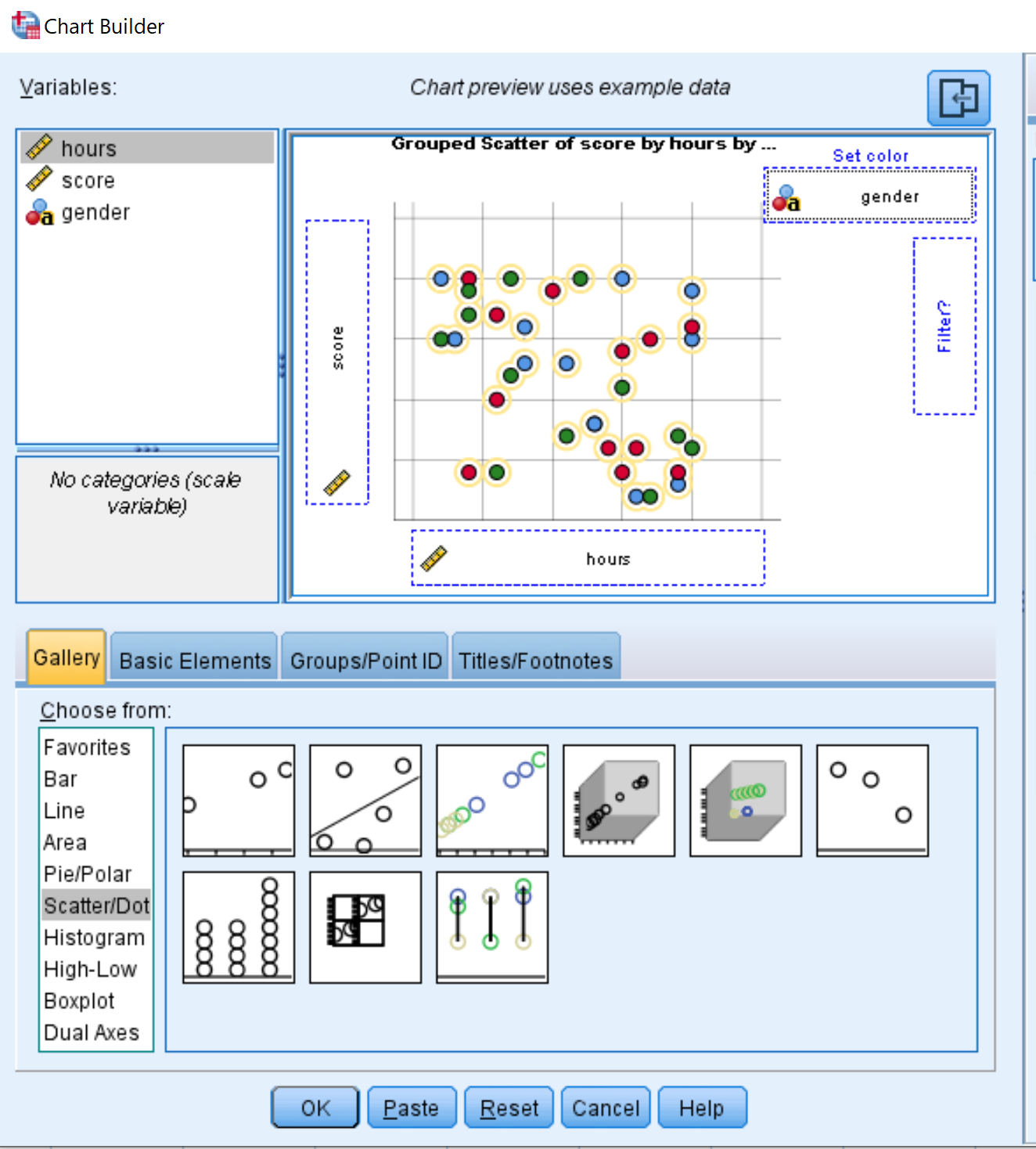

To implement this, the dataset must include a categorical variable, such as “gender,” which is coded numerically (e.g., 1 for male, 2 for female) but labeled appropriately in the SPSS Variable View. When using the Chart Builder, the user should select the Grouped Scatter template. In addition to placing the continuous variables on the x and y axes, the categorical variable is dragged into the Set Color or Grouping box. This informs the software to distinguish the data points based on the categories within that variable.

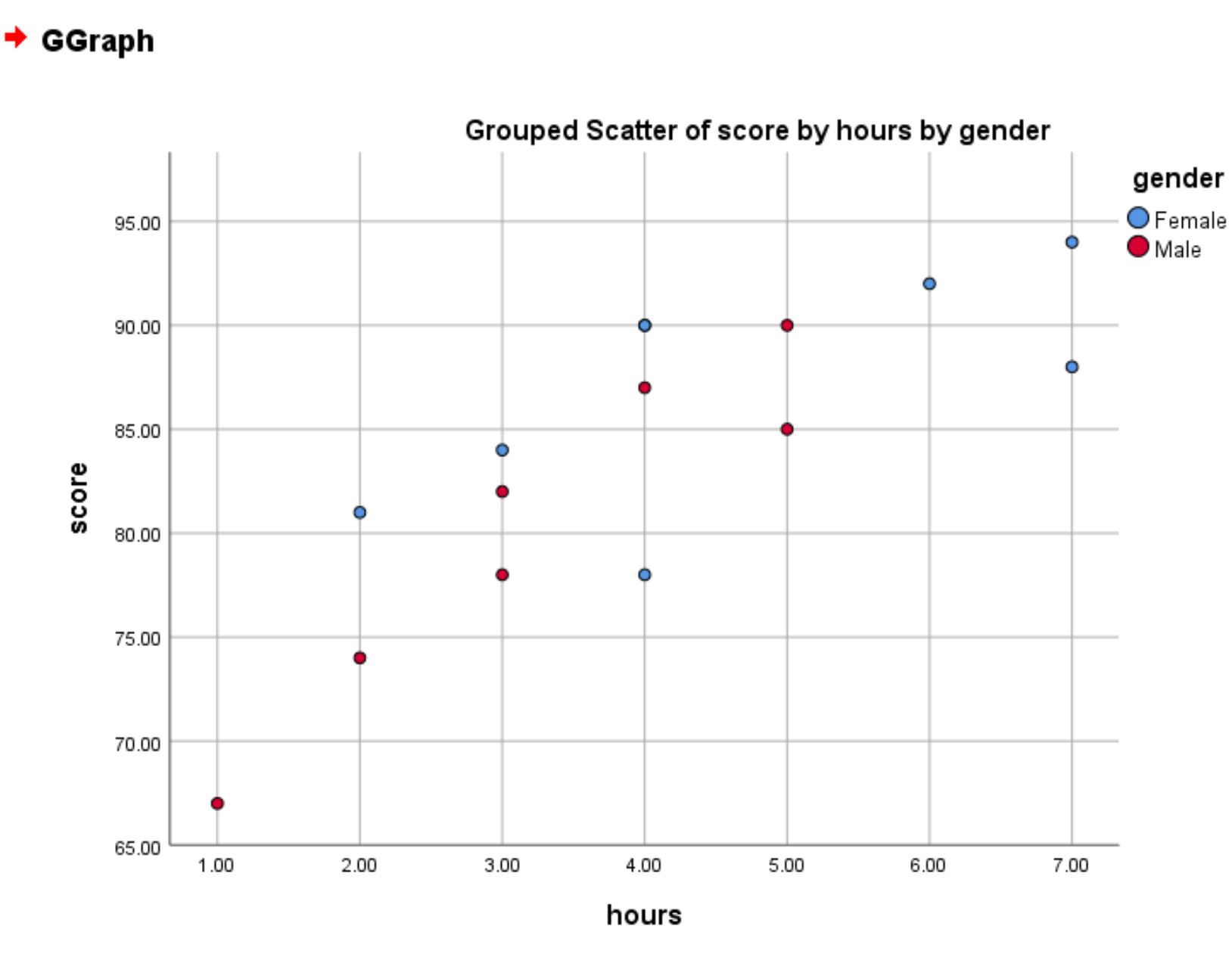

The resulting visualization provides a much deeper layer of analysis. By observing the different colors—for example, blue for females and red for males—the researcher can determine if one group tends to study more or if the impact of studying on scores is more pronounced in one group than the other. If the dots for both groups follow the same upward trajectory, it suggests that the relationship is consistent across genders. If the trajectories diverge, it might indicate an interaction effect, necessitating further statistical investigation through ANOVA or multiple regression.

Identifying Patterns, Outliers, and Homoscedasticity

Interpretation of a scatterplot goes beyond identifying a simple upward or downward trend. A critical aspect of visual analysis is identifying outliers, which are data points that deviate significantly from the rest of the observations. Outliers can be the result of measurement errors, but they can also represent genuine, unique cases that warrant further qualitative study. In SPSS, outliers are easily spotted as dots that sit far away from the main cluster or the regression line.

Another important concept to evaluate is homoscedasticity. This refers to a situation where the variance of the residuals (the vertical distance between the data points and the regression line) is constant across all levels of the independent variable. In a scatterplot, homoscedasticity appears as a consistent “cloud” or “envelope” of points around the regression line. If the points fan out or narrow significantly at different points along the x-axis, this indicates heteroscedasticity, which can violate the assumptions of many parametric statistical tests.

Furthermore, the researcher should look for curvilinear relationships. Not all relationships are linear; some may follow a U-shape or an exponential curve. A scatterplot is the best way to detect these patterns before performing a correlation test like Pearson’s r, which only measures linear associations. If a curve is observed, a non-parametric test or a non-linear regression model may be more appropriate for the analysis.

Conclusion and Practical Application in Research

Mastering the creation and interpretation of scatterplots in SPSS is a fundamental skill for any data analyst or researcher. These graphs provide a visual summary that is often more intuitive and impactful than tables of raw numbers or complex statistical output. By following the structured approach of using the Chart Builder, adjusting axis scales, and incorporating regression lines, researchers can present their findings with clarity and precision. The scatterplot serves as the bridge between raw data and meaningful scientific insight.

Moreover, the ability to generate grouped scatterplots allows for a nuanced understanding of how different populations behave within a dataset. This is particularly useful in the social sciences, where demographic factors often play a significant role in the outcomes being studied. Whether one is evaluating the efficacy of a new medical treatment, analyzing economic trends, or assessing educational outcomes, the scatterplot remains a versatile and indispensable component of the statistical toolkit.

In summary, SPSS provides a powerful platform for both the creation and the deep-dive interpretation of scatterplots. By paying close attention to the correlation, R-squared values, and potential outliers, researchers can ensure their data analysis is both rigorous and visually compelling. As the first step in many analytical workflows, the scatterplot sets the stage for all subsequent statistical testing and remains a cornerstone of exploratory data analysis.
