How to Plot Multiple Columns as a Bar Chart in pandas

Mastering Multi-Column Bar Charts with Pandas

The ability to quickly visualize complex data is paramount in modern data analysis. When working with tabular data structured within a pandas DataFrame, analysts frequently need to compare the values of several distinct variables against a common categorical or time-based axis. Generating a bar chart that incorporates multiple columns is an extremely efficient technique for achieving this comparative visualization. This process leverages the built-in plotting capabilities of the pandas library, which itself acts as a high-level interface to the powerful Matplotlib library, allowing for concise and highly effective code. Understanding the core syntax and parameters involved is the first step toward creating clear and informative graphics that drive data-driven decision-making.

The standard approach for plotting multiple columns relies on careful selection of the columns before invoking the `.plot()` method. By passing a list of column names to the DataFrame, we subset the data precisely to include the key identifier column (which will serve as the x-axis) and the variables intended for comparison (which will form the y-axis segments of the bars). This targeted selection ensures that the resulting visualization is focused and avoids unnecessary noise from irrelevant data fields. The efficiency of pandas allows this operation to be executed in a single, fluid line of code, showcasing the library’s design philosophy centered on intuitive data manipulation.

To plot several variables side-by-side on a single chart, we utilize a very specific indexing method followed by the `.plot()` function. This method requires specifying which column holds the categorical identifiers (the x-axis) and explicitly setting the chart type to ‘bar’. The general structure for this powerful operation is highly standardized, making it easy to remember and implement across various data science projects regardless of the specific column names used. This foundational syntax is the key to unlocking robust multi-variable visualization within the pandas environment.

The fundamental syntax used to plot multiple columns of a pandas DataFrame on a single bar chart is demonstrated below. Note how the column names are enclosed within double brackets, which is standard pandas practice for selecting multiple columns, ensuring the resulting object remains a DataFrame suitable for plotting:

df[['x', 'var1', 'var2', 'var3']].plot(x='x', kind='bar')

In this structure, the column labeled x is designated to provide the labels for the horizontal axis, functioning as the primary grouping variable. Conversely, var1, var2, and var3 are the columns whose quantitative values will be represented by the heights of the bars, thereby constituting the vertical axis variables. This clear separation of roles is crucial: one column defines the groups or categories, and the remaining selected columns define the measurements or observations being compared across those groups.

Understanding the Pandas Plotting Ecosystem

While the initial code snippet appears simple, utilizing the `.plot()` function on a DataFrame invokes a sophisticated underlying system. Pandas plotting capabilities are not built from scratch; rather, they are convenient wrappers around the widely-used Matplotlib library. This integration is highly beneficial, as it allows data scientists to use simple pandas commands for routine tasks, while retaining the full power and customization options of Matplotlib for complex or highly tailored visualizations. Understanding this relationship helps in troubleshooting and fine-tuning plots beyond the basic parameters provided by pandas.

The `kind=’bar’` argument within the `.plot()` method instructs the pandas visualization engine to render the data as a collection of vertical bars. Pandas supports a wide range of visualization types through this `kind` parameter, including ‘line’, ‘hist’, ‘box’, and ‘scatter’, among others. For comparative analysis across discrete categories, the bar chart remains the default choice due to its clarity and direct representation of magnitude. When multiple columns are specified, pandas automatically groups the bars for each variable side-by-side at each x-axis category, facilitating easy comparison between the variables themselves.

A critical consideration when preparing data for multi-column bar charts is the structure of the input DataFrame. The data must be in a “wide” format, meaning that each measured variable (A, B, C, etc.) occupies its own column. This contrasts with “long” format data, which would typically require a melting or pivoting step before effective multi-column plotting. Since pandas is designed for wide data analysis, its pandas plotting utilities handle this structure natively, assuming the user wishes to plot all non-x-axis columns specified in the selection. This inherent support for wide data makes generating comparative bar charts exceptionally efficient.

Example 1: Basic Multi-Column Bar Chart Generation

To demonstrate the fundamental method for visualizing multiple columns, we will first construct a sample DataFrame. This DataFrame simulates tracking three distinct performance metrics, labeled ‘A’, ‘B’, and ‘C’, over eight sequential observation periods. The critical steps involve importing the necessary libraries—primarily pandas for data handling and matplotlib.pyplot, often aliased as `plt`, which is necessary for displaying the plot output outside of interactive environments like Jupyter notebooks. Although pandas handles the core plotting function, `pyplot` ensures the visualization is properly rendered and managed.

The creation of synthetic data allows us to control the variables and clearly demonstrate how the plotting function interprets the input. Each column (‘A’, ‘B’, ‘C’) represents a variable of interest, and the ‘period’ column acts as the unifying categorical element against which all other variables are measured. When executing the plot command, we specifically select the ‘period’ column along with all three metric columns. This selection subset must be performed before calling `.plot()`, guaranteeing that only the relevant data subset is passed to the visualization function.

The following comprehensive code block details the initialization of the data and the execution of the initial multi-column plot. Note the crucial role of the `x=’period’` parameter, which explicitly maps the ‘period’ column onto the horizontal axis, thereby dictating the grouping structure of the resulting bars. The `kind=’bar’` parameter confirms the desired visualization type, resulting in clustered bars that allow for easy visual comparison of metrics A, B, and C within each corresponding period.

import pandas as pd
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'A': [9, 12, 15, 14, 19, 23, 25, 29],
                   'B': [5, 7, 7, 9, 12, 9, 9, 14],
                   'C': [5, 4, 7, 13, 15, 15, 18, 31]})

#plot columns on bar chart
df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar')

The output of this code generates a cluster of three bars (A, B, and C) for each of the eight periods, visually distinguishing the magnitude of each metric over time, as shown in the visualization below.

A key advantage of this method is the flexibility afforded by the initial column selection. Should the analysis require focusing on a subset of the metrics, such as comparing only A and B, the modification is trivial. The user simply adjusts the list of columns passed to the DataFrame indexer, excluding the variable ‘C’. This targeted approach is often essential when initial exploratory data visualization reveals that certain variables are less relevant to the current narrative, or if one wishes to simplify the chart for presentation purposes. The ability to dynamically select variables for plotting, without altering the underlying data structure, streamlines the analytical workflow immensely.

By removing ‘C’ from the selection, the plotting function now only processes the ‘period’ column and the two variables ‘A’ and ‘B’. The resulting visualization will be cleaner, providing a more direct comparison between these two specific metrics across the defined time periods. This iterative refinement is a crucial aspect of effective visualization design, focusing the audience’s attention precisely where the analytical insight lies.

df[['period', 'A', 'B']].plot(x='period', kind='bar')

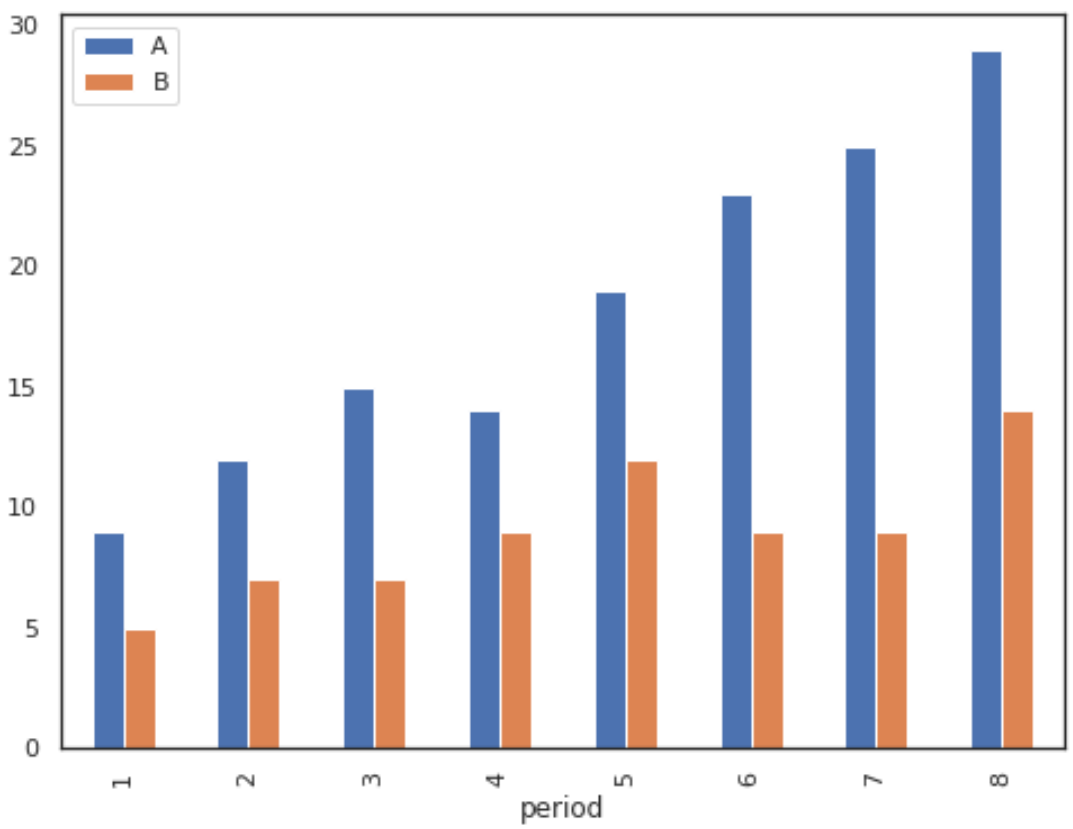

The revised chart, based on the selection of only ‘A’ and ‘B’, illustrates how easily the visual focus can be shifted by modifying the column list in the pandas selector. This simplified view often enhances clarity, especially when presenting results to stakeholders who require concise summaries.

Customizing the X and Y Axes in Pandas Plots

While the default settings of the pandas `.plot()` function are robust, professional data visualization often necessitates meticulous control over chart elements, particularly the axes and their respective labels. By default, pandas derives axis labels directly from the DataFrame column names, but these names may not be suitable for presentation. Customizing the labels improves the readability and interpretability of the graph, ensuring that the audience immediately grasps the context of the data being presented. Since pandas plotting leverages Matplotlib, we can access the Matplotlib API directly after calling `.plot()` to apply these customizations.

Specific functions within the Matplotlib API, such as `plt.xlabel()`, `plt.ylabel()`, and `plt.title()`, are essential for enhancing the clarity of the bar chart. For example, if the ‘period’ column actually represents quarters of a fiscal year, changing the x-axis label from the generic ‘period’ to ‘Fiscal Quarter’ provides immediate context. Similarly, the y-axis, which represents the metrics (A, B, C), should be labeled with its unit of measure, whether it is ‘Sales Volume (Units)’, ‘Revenue (USD)’, or ‘Count’. This level of detail transforms a basic plot into a compelling narrative tool.

To implement these customizations, the standard procedure involves assigning the output of the `.plot()` method to an axis object (conventionally named `ax`). This `ax` object is the gateway to Matplotlib’s vast array of configuration options. After the plot is generated, methods like `ax.set_xlabel(‘New X Label’)` and `ax.set_ylabel(‘New Y Label’)` can be called. Furthermore, controlling the ticks on the x-axis can be important, especially if the ‘period’ labels are dense or complex. We can use Matplotlib functions to rotate the x-tick labels for better display or to select specific tick locations for emphasis. This combination of high-level pandas commands and detailed Matplotlib adjustments provides maximum flexibility for producing publication-quality graphics.

Advanced Visualization: Creating Stacked Bar Charts

While standard grouped bar charts excel at comparing individual variable magnitudes side-by-side, there are instances where the analyst needs to visualize the contribution of each variable to a total sum. This is the precise use case for a stacked bar chart. A stacked bar chart aggregates the values of all selected metric columns into a single bar for each category on the x-axis, allowing for an immediate visual assessment of the total value and the relative proportion of each component within that total. This technique is particularly valuable in financial reporting, resource allocation studies, or tracking cumulative progress.

The transition from a standard grouped bar chart to a stacked one in pandas is remarkably straightforward, requiring only the addition of a single parameter to the `.plot()` function call. By setting the parameter stacked equal to True, the pandas backend automatically restructures the visualization logic. Instead of placing the bars adjacent to each other for each period, the values of ‘A’, ‘B’, and ‘C’ are placed sequentially on top of one another. The height of the resulting single bar for any given period therefore represents the sum of A + B + C for that period, providing powerful insight into the overall trend alongside component performance.

The following code snippet illustrates how this modification is applied, utilizing the same DataFrame structure established in Example 1. It is important to remember that when creating stacked charts, the data must represent positive, additive quantities for the visualization to be meaningful. If variables contain negative values, stacked charts can become visually confusing and less informative, in which case a grouped bar chart would be a better choice.

import pandas as pd
import matplotlib.pyplot as plt

#create fake data
df = pd.DataFrame({'period': [1, 2, 3, 4, 5, 6, 7, 8],
                   'A': [9, 12, 15, 14, 19, 23, 25, 29],
                   'B': [5, 7, 7, 9, 12, 9, 9, 14],
                   'C': [5, 4, 7, 13, 15, 15, 18, 31]})

#create stacked bar chart
df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar', stacked=True)

The generated visualization clearly shows the total combined value for each period (the overall height of the bar) and indicates how much each variable (A, B, C) contributes to that total. For instance, comparing Period 1 and Period 8, one can immediately see a significant overall increase, driven heavily by variable ‘C’, providing quick insights into magnitude and contribution.

Enhancing Visual Appeal: Controlling Bar Colors

Default color palettes generated by pandas and Matplotlib are generally functional, but they may not align with corporate branding, accessibility requirements, or specific aesthetic preferences necessary for a high-impact presentation. Controlling the colors of the bars is a straightforward yet powerful way to enhance the visual appeal and clarity of the chart, allowing the analyst to use color strategically to highlight key trends or distinguish variables. This customization is achieved through the color argument within the `.plot()` function.

The color parameter accepts a list of color specifications, where the order of colors in the list corresponds directly to the order of the variable columns specified in the DataFrame selection. For our example, since we selected columns [‘A’, ‘B’, ‘C’] after ‘period’, the first color provided in the list will apply to column ‘A’, the second to column ‘B’, and so on. This mapping is consistent whether the chart is grouped or stacked. Color specifications can be provided using standard HTML color names (‘red’, ‘gold’), hexadecimal codes (e.g., ‘#FF5733’), or Matplotlib color abbreviations.

By customizing the palette, we move beyond the default settings and introduce intentional design choices. In the following demonstration, we apply ‘red’, ‘pink’, and ‘gold’ to our three variables, resulting in a distinct visual style that immediately differentiates the metrics. This level of granular control is vital for maintaining visual consistency across a suite of analytical reports and ensuring that the visual representation supports the data narrative effectively.

df[['period', 'A', 'B', 'C']].plot(x='period', kind='bar', stacked=True,
                                   color=['red', 'pink', 'gold'])

The resulting chart demonstrates how a simple change in the color scheme can drastically alter the perception of the data, making certain components stand out more prominently, while still preserving the structural integrity of the stacked visualization.

Best Practices for Data Preparation Before Plotting

While the pandas plotting function is powerful, the quality of the resulting visualization is directly dependent on the quality and structure of the input data. Adhering to certain best practices during data preparation ensures that the plots are accurate, meaningful, and generated without unexpected errors. The foundational principle is ensuring the data is clean and adheres to a “tidy” structure suitable for wide-format plotting, where each row represents an observation and each column represents a distinct variable.

A primary consideration is handling missing values (NaNs). If the columns selected for plotting contain missing values, pandas typically treats these as zero or skips them, which can lead to misleading bar heights, especially in stacked charts where the total sum will be inaccurately represented. Analysts should preemptively decide how to handle NaNs: either impute them using methods like mean or median, or strategically drop rows containing NaNs if the data loss is minimal. For categorical data used on the x-axis, ensuring consistency in spelling and capitalization prevents the creation of unintended separate categories, which would fragment the bar groups.

Furthermore, data types must be correctly assigned. The column designated as the x-axis variable (`x=…`) should ideally be categorical or discrete (like integers representing periods), although pandas can handle time-series indices effectively. The columns designated as y-axis variables must be numerical (floats or integers). Attempting to plot non-numeric columns as bar heights will result in a `TypeError`. Prior to plotting, a quick check using `df.dtypes` is highly recommended to confirm that all metric columns are numerical and ready for aggregation or comparison. Proper data hygiene is the bedrock of reliable visualization.

Conclusion: Summarizing Key Techniques

Visualizing multiple data series simultaneously within a single bar chart is a core skill in utilizing the pandas DataFrame for exploratory data analysis and reporting. We have demonstrated that the process relies on two fundamental steps: first, meticulously selecting the required columns using pandas indexing, ensuring the x-axis variable and all desired y-axis variables are included; and second, applying the `.plot(kind=’bar’)` function, explicitly defining the grouping variable using the `x` parameter.

The flexibility of this approach extends beyond simple grouping. By introducing the stacked=True parameter, analysts can swiftly transition to a stacked representation, which shifts the focus from comparing individual magnitudes to evaluating proportional contributions to a total sum. This versatility allows the same core code structure to address different analytical questions depending on the visualization goal. Whether comparing performance metrics across groups or analyzing the composition of a total budget, pandas provides the concise syntax necessary for efficient visualization.

Ultimately, mastering the visualization techniques covered here—basic multi-column plotting, switching to stacked formats, and applying custom color palettes—allows data professionals to transform raw DataFrame structures into clear, impactful visual insights. By leveraging the integration between pandas and Matplotlib, users gain both ease of use and the power of deep customization, ensuring that their data visualization efforts are both accurate and aesthetically compelling. These techniques form the foundation for more complex data storytelling in Python.
