How to Create a Pandas Bar Chart to Visualize the Top 10 Values

The following basic syntax demonstrates how to efficiently filter and create a bar chart that includes only the top 10 most frequently occurring values in a specific column:

import pandas as pd
import matplotlib.pyplot as plt

# Calculate value counts and isolate the top 10 occurrences in 'my_column'
top_10 = (df['my_column'].value_counts()).iloc[:10]

# Generate the bar chart to visualize these top 10 values
top_10.plot(kind='bar')

This implementation ensures that the data used for plotting is already aggregated and truncated. It is critical to understand that the .iloc[:10] method (or simple slicing [:10]) is selecting the rows based on their position, and because value_counts() sorts the results by count in descending order, this slicing operation reliably captures the highest frequencies.

Practical Example: Generating the Sample Data

To move from theory to practical application, we will now construct a realistic sample dataset. We create a DataFrame simulating basketball statistics for 500 players, containing two key columns: team (categorical, representing the team identifier) and points (numerical). This moderately large sample size is used to ensure sufficient variation in team occurrences, making the subsequent frequency analysis a genuine exercise in data summarization. We leverage the capabilities of the Pandas library alongside NumPy for numerical generation and standard Python libraries for handling categorical data generation.

Best practices in data science dictate setting random seeds for reproducibility, especially when sharing code examples. By setting the seeds for both the Python random module and the NumPy random number generator (np.random.seed(1)), we guarantee that if the code is executed by anyone else, the generated dataset will be identical, ensuring consistent results in the bar chart visualization. We generate 500 random team assignments, drawing from the 26 uppercase letters, and 500 random point totals using a uniform distribution between 0 and 20.

The following comprehensive code block details the setup and creation of our simulated dataset. After generation, we use the .head() method to print the first five rows of the DataFrame, providing immediate confirmation that the data structure is correct and that both the categorical team column and the numerical points column have been successfully populated with synthetic data.

import pandas as pd
import numpy as np
from string import ascii_uppercase
import random
from random import choice

# make this example reproducible by setting seeds
random.seed(1)
np.random.seed(1)

# Create DataFrame with 500 records
df = pd.DataFrame({'team': [choice(ascii_uppercase) for _ in range(500)],
                   'points': np.random.uniform(0, 20, 500)})

# view first five rows of DataFrame to confirm data integrity
print(df.head())

  team     points
0    E   8.340440
1    S  14.406490
2    Z   0.002287
3    Y   6.046651
4    C   2.935118

This dataset is now perfectly structured for the intended frequency analysis. Our subsequent step will be to analyze the team column to determine which teams are represented most often, quantifying the distribution across the 26 possible team identifiers generated from ascii_uppercase.

Executing the Basic Top 10 Bar Chart Plot

With our sample data contained within the Pandas DataFrame df, we can proceed directly to implementing the three-step visualization syntax. The entire focus remains on the team column, as we are interested in the frequency of categorical values. This initial plotting stage prioritizes getting the visualization working quickly and accurately before moving to advanced styling.

We begin by isolating the 'team' column and immediately chaining the value_counts() method. As established, this method calculates the occurrences of each unique team and returns them sorted descendingly. We then apply the slicing operator [:10] to truncate this result, retaining only the top 10 most frequent team identifiers and their counts. Finally, the .plot(kind='bar') function is called directly on this filtered Series.

This process yields a basic visualization where the categorical index (team names) forms the X-axis and the numerical counts (frequency) form the Y-axis. The use of the Pandas wrapper is efficient, handling all necessary plotting mechanics internally. For display purposes in environments like dedicated scripts, we must ensure we import and potentially call plt.show() from Matplotlib’s pyplot, although in interactive environments like Jupyter, the plot is often rendered automatically upon executing the .plot() command.

import matplotlib.pyplot as plt

# Calculate value counts and isolate the top 10 teams by occurrence
top_10_teams = (df['team'].value_counts())[:10]

# Generate the bar chart of the top 10 teams
top_10_teams.plot(kind='bar')

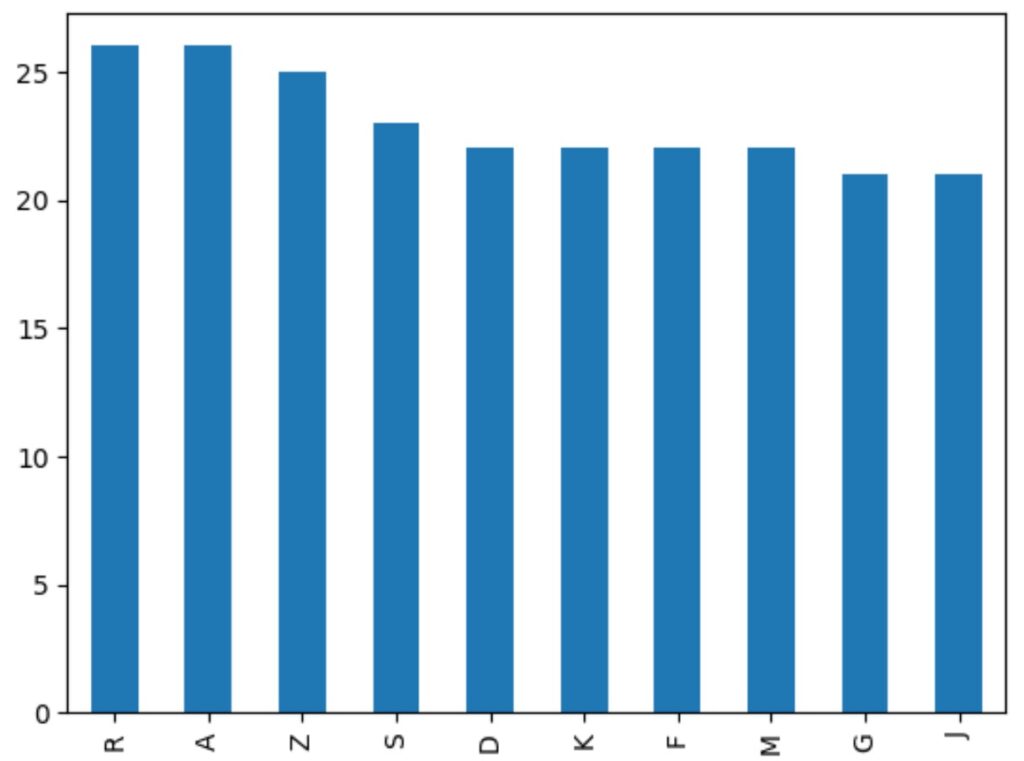

The resulting plot provides the initial, unstyled visualization:

As demonstrated by the output, the plot successfully contains only the names of the top 10 most frequently occurring teams. The X-axis correctly maps the team names (the index of the calculated Series), and the Y-axis accurately represents the frequency or count of those teams in the original dataset. This confirms that the filtering and plotting logic is sound and correctly applied.

Customizing the Visualization for Enhanced Clarity

While the initial plot is functionally correct, it often lacks the visual sophistication needed for professional reports. Customization is essential to enhance aesthetics, readability, and the overall impact of the Data Visualization. Since Pandas plotting leverages Matplotlib’s pyplot, we can pass specific styling arguments directly through the .plot() method, allowing for fine-grained control over the visual elements.

We will implement two crucial aesthetic enhancements: adding borders to the bars and adjusting label rotation. The edgecolor argument, when set to a color like 'black', draws a distinct boundary around each individual bar, significantly improving contrast and making the comparison between adjacent bars clearer. Furthermore, by setting rot=0 (rotation to zero degrees) within the .plot() command, we ensure the categorical labels on the X-axis are displayed horizontally, which is easier to read, especially since our team identifiers are short single letters.

Crucially, we also explicitly define the axis labels using plt.xlabel() and plt.ylabel(). Labeling is a fundamental requirement for any successful bar chart, as it removes ambiguity regarding what is being measured. The X-axis now clearly shows ‘Team’, and the Y-axis shows ‘Frequency’. These small additions transform the output into a publication-ready figure.

import matplotlib.pyplot as plt

# find teams with top 10 occurrences (reusing the calculation)
top_10_teams = (df['team'].value_counts())[:10]

# create bar chart of top 10 teams with customizations
top_10_teams.plot(kind='bar', edgecolor='black', rot=0)

# add descriptive axis labels
plt.xlabel('Team')
plt.ylabel('Frequency')

The execution of this refined code produces the final, aesthetically improved visualization:

The resulting image confirms that the edgecolor argument successfully added a black border around each bar, improving visual separation, and the rot argument flattened the x-axis labels, making them significantly easier to read. These customizations ensure the data is presented professionally and clearly communicates the frequency distribution of the top 10 categories.

Advanced Visualization Considerations and Conclusion

The core methodology demonstrated—using value_counts() followed by slicing and .plot(kind='bar')—is versatile and extends beyond just visualizing the top 10. Analysts can easily adapt this technique to visualize the top N values by simply adjusting the slicing index (e.g., [:5] for the top 5). Conversely, if the analytical goal were to identify and visualize the least frequent occurrences, one would simply modify the sorting criteria of the underlying Series, possibly by resorting the output of value_counts() in ascending order before slicing.

Furthermore, leveraging the full power of Matplotlib’s pyplot allows for intricate adjustments not covered here. Users can implement conditional coloring based on frequency thresholds, change the plot type to a horizontal bar chart using kind='barh' for long categorical labels, or add titles (plt.title()) and legends to provide further context. For instance, to enhance data accessibility, annotations (bar height values) can be added directly above each bar, a feature easily implemented using Matplotlib functions acting on the plotted axis object.

In conclusion, Pandas provides an elegant and concise pipeline for performing frequency analysis and visualizing the results. By mastering the combination of value_counts() for aggregation and the integrated plotting functionality for rendering, data professionals gain a powerful tool. This method allows for the rapid generation of meaningful, customized bar charts that immediately reveal the most critical categorical segments within a dataset, driving informed decision-making through focused Data Visualization strategies.
