How to Create a Bar Plot from a Pandas Crosstab?

---

You can use the following methods to create a bar plot to visualize the counts in a pandas crosstab:

Method 1: Create Grouped Bar Plot

import matplotlib.pyplot as plt

my_crosstab.plot(kind='bar')

Method 2: Create Stacked Bar Plot

import matplotlib.pyplot as plt

my_crosstab.plot(kind='bar', stacked=True)

The following examples show how to use each of these methods in practice with the following pandas crosstab:

import pandas as pd

#create DataFrame
df = pd.DataFrame({'team': ['A', 'A', 'A', 'B', 'B', 'B', 'B', 'C', 'C', 'C', 'C'],
                   'position':['G', 'G', 'F', 'G', 'F', 'F', 'F', 'G', 'G', 'F', 'F'],
                   'points': [22, 25, 24, 39, 34, 20, 18, 17, 20, 19, 22]})

#create crosstab to display count of players by team and position
my_crosstab = pd.crosstab(df.team, df.position)

#view crosstab
print(my_crosstab)

position  F  G
team
A         1  2
B         3  1
C         2  2

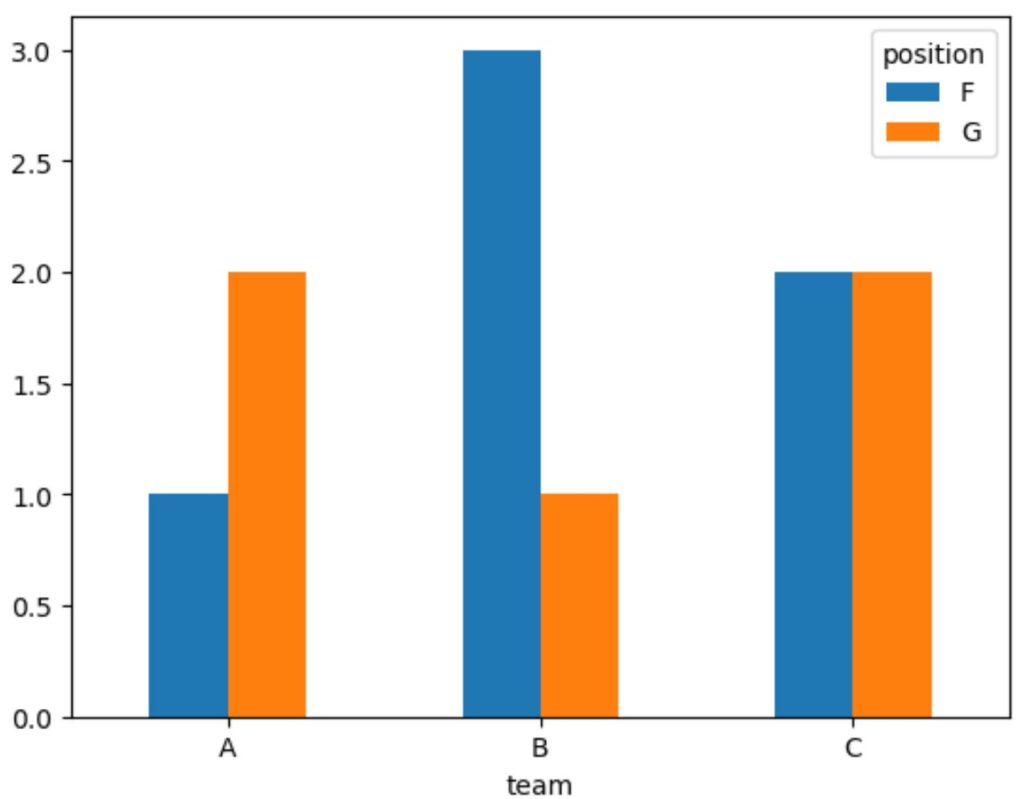

Example 1: Create Grouped Bar Plot from Crosstab

We can use the following syntax to create a grouped bar plot from the crosstab:

import matplotlib.pyplot as plt

#create grouped bar plot
my_crosstab.plot(kind='bar', rot=0)

Note: The argument rot=0 rotates that x-axis labels 90 degrees to make them easier to read.

The x-axis displays the team names while the grouped bars display the frequency count of each position.

For example, we can see:

• There is 1 player on team A with a position of F.
• There are 2 players on team A with a position of G.

And so on.

Example 2: Create Stacked Bar Plot from Crosstab

import matplotlib.pyplot as plt

#create stacked bar plot
my_crosstab.plot(kind='bar', stacked=True, rot=0)

Note: The argument stacked=True allowed us to create a stacked bar plot instead of a grouped bar plot.

The x-axis displays the team names while the stacked bars display the frequency count of each position.

For example, we can see:

• There is 1 player on team A with a position of F.
• There are 2 players on team A with a position of G.
• There are 3 total players on team A.

And so on.

This type of plot is particularly useful when we want to visualize the total count of elements for each unique value on the x-axis.

Note: You can find the complete documentation for the pandas crosstab() function .
