How to Easily Create a Labeled Bubble Chart in Excel

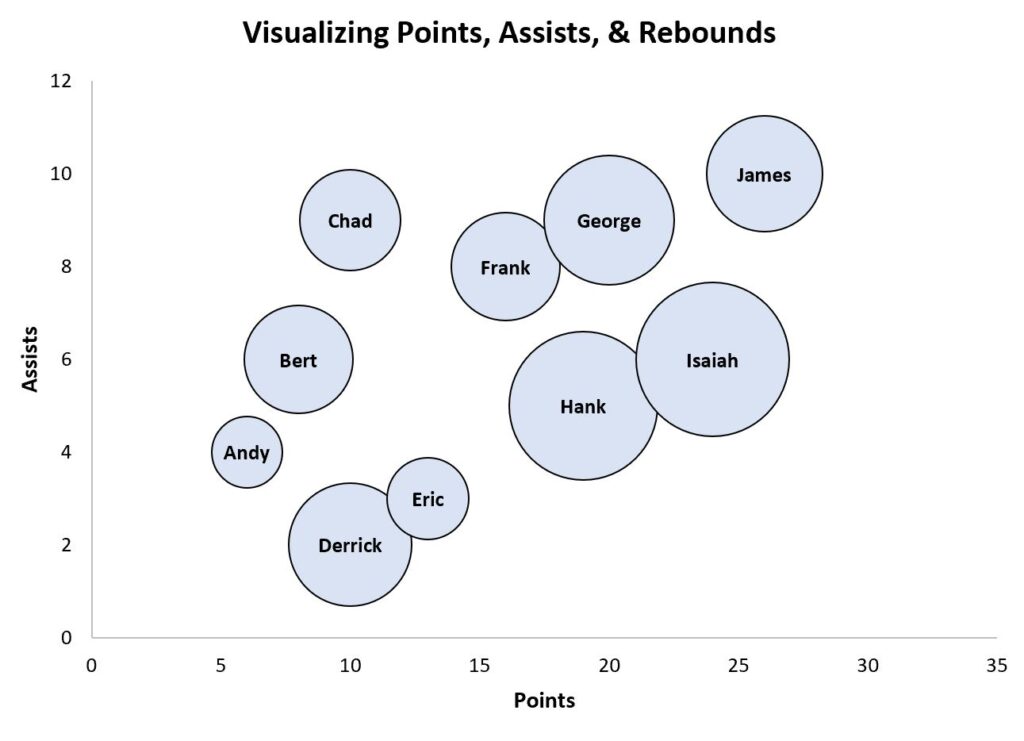

This comprehensive tutorial will guide you through the precise steps required to construct a fully labeled and professional bubble chart using Microsoft Excel, culminating in a visual representation similar to the example shown below:

Data Requirements and Preparation in Excel

The foundation of any successful bubble chart lies in properly structured data. Unlike a standard scatter plot which requires only two quantitative variables (X and Y), the bubble chart necessitates a minimum of three numerical columns, plus an optional fourth column for identifying categories or labels. For this demonstration, we will analyze performance metrics for ten distinct basketball players. It is essential that the data is organized in adjacent columns, ensuring the label column is separate from the three quantitative axes.

Specifically, the input data for a bubble chart in Excel must contain columns dedicated to the X-axis values, the Y-axis values, and the Z-axis (size) values, respectively. The order in which these columns appear is critical for Excel’s automatic chart generation capabilities. We will structure our dataset as follows, where Column A holds the labels (Player Name), Column B holds the X-values (Points), Column C holds the Y-values (Assists), and Column D holds the Size/Z-values (Rebounds).

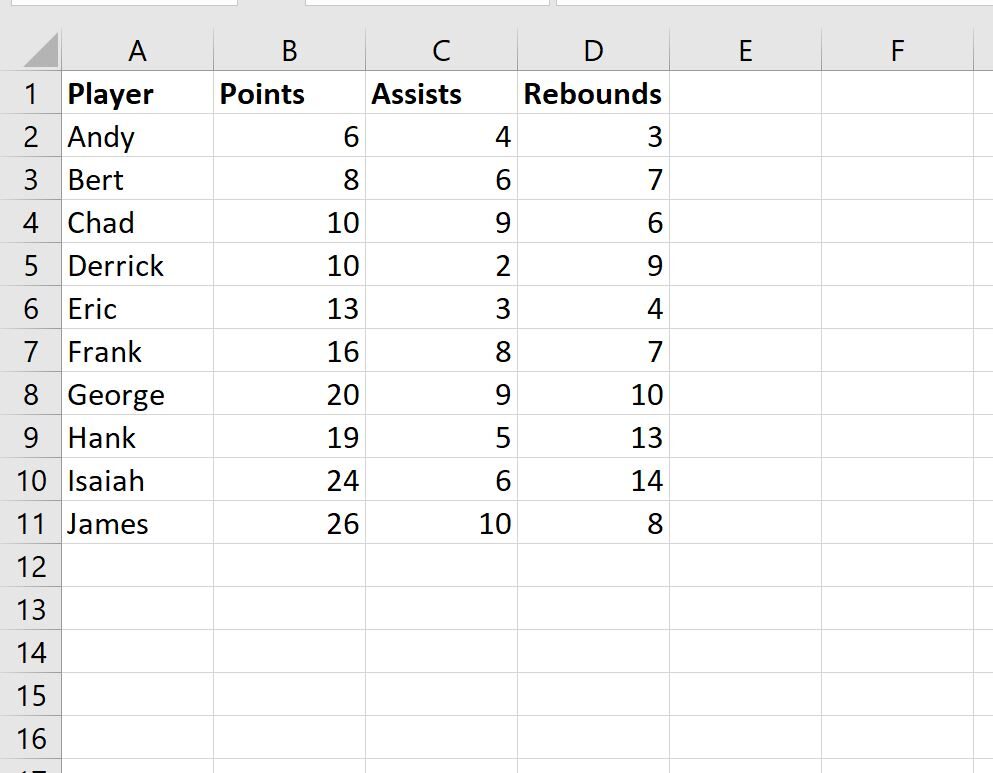

Begin by entering the sample data into your Excel sheet as illustrated below. This arrangement ensures that the required quantitative variables are contained within the contiguous range B2:D11, ready for charting:

Initiating the Bubble Chart Creation in Excel

To commence the chart generation process, you must first precisely select the range that encapsulates your three numerical variables. Using the data entered in the previous step, highlight the cells spanning the range B2:D11. It is crucial to select only the quantitative data columns—Points (X), Assists (Y), and Rebounds (Size)—and exclude the Player Names (Labels) at this stage. Once the range is highlighted, navigate to the Insert tab located on the Excel ribbon interface.

Within the Charts group on the Insert ribbon, locate and click the option to insert a Scatter or Bubble Chart. A dropdown menu will present various chart subtypes; select the standard Bubble Chart option. This action instructs Excel to immediately render the initial visualization based on the selected three-column dataset, mapping the first selected column to X, the second to Y, and the third to the bubble size.

Upon execution, Excel will automatically produce the preliminary bubble chart visualization. The resulting output maps the variables according to the standard convention for this chart type: the X-axis (horizontal axis) represents the Points scored, the Y-axis (vertical axis) represents the Assists achieved, and the area of each circle accurately signifies the magnitude of Rebounds accumulated by the player.

Analyzing the Ambiguity of the Initial Visualization Output

While the generated chart accurately displays the quantitative relationships—highlighting, for instance, high-volume rebounders located toward the upper-right corner—it suffers from a critical deficiency: anonymity. Without specific identifiers, the visualization remains abstract. It is currently impossible for the viewer to definitively know which performance bubble corresponds to which individual player in the dataset. This lack of contextual information severely limits the chart’s utility for targeted analysis or communication.

To maximize the effectiveness of this data visualization technique, we must bridge this gap by introducing descriptive labels. These labels, derived from the Player Name column, are essential for transforming an otherwise complex graph into an actionable and easily interpretable tool. The next steps will focus exclusively on integrating these contextual identifiers seamlessly into the chart structure.

The Critical Step: Incorporating Contextual Data Labels

The process of attaching external labels—such as player names—to the bubbles requires navigating Excel’s specialized chart element tools. Start by activating the chart by clicking anywhere within its boundaries. Once active, a set of icons will appear on the top right edge of the chart area. Click the green plus sign (+), which is the shortcut for Chart Elements. This menu controls all structural components of the visualization, including titles, axes, and, most importantly for this task, the Data Labels.

Hover over or click the Data Labels option. Do not simply check the box, as this will only display default numerical values (like Y-values or bubble size). Instead, click the small arrow adjacent to the checkbox to reveal the extended dropdown menu. From these options, select More Options. This action will open the comprehensive Format Data Labels task pane on the right side of your screen, providing granular control over the label content and appearance.

Specifying Label Sources via Cell Values

Within the Format Data Labels task pane, ensure you are viewing the Label Options section (represented by the bar chart icon). Here, you will find several checkboxes governing what content is displayed inside the labels. To pull the player names directly from the spreadsheet, you must select the option labeled Value From Cells. Checking this box overrides the standard numerical display options and prompts a secondary dialogue box titled Data Label Range.

In the Data Label Range window, specify the exact range containing the categorical identifiers—in this case, the Player Names located in A2:A11. This selection tells Excel precisely which cell values should be used as the descriptive text for each corresponding bubble. After confirming this range and clicking OK, the player names will momentarily appear alongside the default numerical values already present in the labels.

Refining Label Content and Positioning for Clarity

Once the player names have been imported using the Value From Cells option, we need to clean up the label display. Because the primary goal of this particular chart is to identify the players, the automatically generated numerical values often introduce unnecessary clutter, obscuring the primary label. Return to the Format Data Labels panel. Look at the active checkboxes under Label Options.

To achieve a clean, player-name-only label set, ensure that the checkbox next to Y Value is unchecked, along with any other extraneous numerical values (e.g., X Value or Series Name) that may have been automatically selected. The only box that should remain checked, besides Value From Cells, is typically Show Leader Lines if you anticipate potential label overlap.

Immediately below the content options, adjust the Label Position. For bubble charts, placing the label centrally within the bubble often provides the best association between the identifier and the data point. Select the Center option for the Label Position. This refinement significantly enhances readability, guaranteeing that each player’s name is clearly associated with their corresponding performance metrics.

After these formatting adjustments are applied, the chart will dynamically update, presenting a clear, labeled visualization where ambiguity is eliminated:

Advanced Customization and Final Polish

While the chart now successfully displays meaningful labels, the final step involves applying stylistic and structural enhancements to maximize its professional appearance and explanatory power. This stage focuses on fine-tuning various chart elements to ensure the visualization stands alone as a complete analytical summary. Use the Format pane and the green + Chart Elements menu to access these options.

Key customization tasks include:

• Chart Title: Add a descriptive title (e.g., “Player Performance Analysis: Points, Assists, and Rebounds”) to immediately inform the audience of the chart’s purpose.
• Axis Labels: Explicitly label the X-axis (“Points Scored”) and the Y-axis (“Assists per Game”) to eliminate any ambiguity regarding the variables being compared.
• Gridlines and Legend: Consider removing unnecessary Gridlines, especially if they clutter the view, to focus attention on the data points. Adjust the Legend placement or size, or remove it entirely if a single data series is being displayed.
• Font and Color Adjustment: Modify the font size and style of the labels, axis text, and titles to ensure optimal legibility, potentially increasing the label size for better visibility within the centered bubble.

By meticulously adjusting these components, you transform a functional graph into a refined piece of data visualization. The resulting chart is exceptionally easy to interpret, allowing stakeholders to immediately identify high-performing or outlier players based on their combined metrics.

Conclusion: Maximizing the Value of Labeled Bubble Charts

Mastering the creation of a labeled bubble chart in Excel provides a significant advantage in analytical reporting. This type of visualization effectively consolidates four distinct pieces of information—three quantitative variables and one categorical identifier—into a single, highly digestible graphical format. The structured approach outlined above guarantees accurate data mapping and, through the integration of cell-based labels, ensures that every data point contributes meaningful, identifiable context to the analysis.

Whether analyzing market share, demographic trends, or, as demonstrated here, athletic performance, the labeled bubble chart is a definitive technique for communicating complex relationships with precision and clarity. Always prioritize label visibility and accurate axis representation to ensure the integrity of the data narrative.
