How to Easily Add a Quadratic Trendline to Your Excel Chart

Understanding the Quadratic Relationship in Data

When the relationship between two variables exhibits a curve that can be described by a second-degree polynomial, known formally as a quadratic function (y = ax² + bx + c), using a quadratic trendline is the appropriate analytical step. This type of fitting curve is often necessary when modeling phenomena where the rate of change is not constant, such as projectile motion, costs scaling with volume, or certain growth curves where optimal points are reached and reversed.

A standard linear trendline assumes a constant slope, which clearly fails to capture the inflection points or reversals characteristic of quadratic data. By selecting a quadratic (or Polynomial Order 2) trendline in Excel, you are instructing the software to perform a second-order polynomial regression, minimizing the sum of squared residuals to find the best-fit curve. This results in a much more accurate visual representation and provides a mathematical model for prediction within the observed range.

The primary goal of visualizing this quadratic relationship is to determine how closely the observed data points align with the theoretical parabolic curve defined by the calculated equation. High alignment suggests that the quadratic model is a powerful descriptor of the underlying mechanism driving the relationship between the variables X and Y. The following image illustrates the visual effectiveness of applying this specific type of trendline to curvilinear data, showcasing the fit achieved after implementation.

This detailed tutorial proceeds through the necessary steps within Excel, ensuring that even users new to complex data visualization can successfully implement this analytical technique. We begin by structuring the dataset required for visualization.

Step 1: Structuring and Inputting the Data

Before any visualization or analysis can take place, a properly structured dataset is mandatory. In Excel, this typically means organizing the independent variable (X) in the first column and the corresponding dependent variable (Y) in the adjacent second column. While Excel is flexible, maintaining this standard format simplifies the chart creation process significantly, particularly when generating scatterplots.

For this specific example, we will simulate a dataset where the relationship is clearly quadratic. This practice ensures that the resulting trendline will demonstrate the desired parabolic shape. Data preparation involves entering the raw values into consecutive rows, ideally beginning with headers in row 1 for clarity, such as “Independent Variable (X)” in Column A and “Dependent Variable (Y)” in Column B. This labeling is crucial for later interpretation of chart axes.

The data utilized here spans 16 observations, designed specifically to showcase a clear curvature. It is critical to ensure that all numeric values are correctly formatted and that no textual data is included in the range intended for charting, as this will lead to errors during the chart creation process. Focus on accuracy during this initial data entry phase. The dataset below exemplifies the structure necessary for a successful quadratic fit.

The displayed data range, specifically cells A2:B17, contains the coordinates that will form the basis of our visualization. Once this data is correctly input, we can proceed to the next crucial step: creating the visual representation necessary to apply the trend analysis.

Step 2: Generating the Initial Scatterplot

The scatterplot is the required chart type for trendline analysis in Excel because it plots individual data points according to their X and Y coordinates, unlike bar charts or line charts which may imply categorical data or chronological sequencing. Selecting the correct chart type is paramount for accurately displaying the bivariate relationship we intend to model using the quadratic fit.

To create the chart, first, meticulously highlight the entire data range, which in this demonstration corresponds to cells A2:B17. Note that typically, you should exclude the header row when selecting data for scatterplots if your version of Excel includes headers in the selection, although modern versions are generally intelligent enough to handle this distinction. For maximum control, stick to selecting only the numeric data points.

With the data selected, navigate to the main ribbon interface located at the top of the Excel window and click the Insert tab. Within the Charts group (usually located centrally), look for the option labeled Insert Scatter (X, Y) or Bubble Chart. It is essential to choose the standard Scatter option, often represented by simple dots, to ensure that X values are treated numerically and plotted correctly against Y values.

Upon selection, Excel will immediately render the chart on your worksheet. The visual distribution of the data points should already hint at the parabolic nature of the relationship, confirming the necessity of a quadratic trendline rather than a linear one. The resulting visual output, before any trend analysis is applied, should clearly map the distribution of the variables:

Once the scatterplot is displayed, the environment is ready for the addition and configuration of the advanced regression line.

Step 3: Accessing the Trendline Configuration Menu

With the scatterplot active, the process of adding a trendline is initiated through the Chart Elements interface, a user-friendly mechanism in Excel to manage chart components efficiently. This method provides direct access to advanced trend options necessary for a quadratic fit, bypassing the limitations of the quick-add options.

First, ensure the scatterplot is selected. Then, locate and click the green plus sign (+) icon, commonly referred to as the Chart Elements button, situated near the top-right corner of the chart boundary. Clicking this button reveals a menu of customizable chart features, including Axes, Chart Title, Data Labels, and crucially, Trendline.

Hover your cursor over the Trendline option within this menu. Do not click the checkbox immediately, as this will often apply a default linear trendline. Instead, look for the small arrow pointing to the right, adjacent to the Trendline text. Clicking this arrow expands the submenu, presenting basic options (Linear, Exponential, etc.) and the vital More Options… selection.

Selecting More Options… is necessary because the standard quadratic function is classified under the Polynomial regression type, which requires specific configuration not available in the quick menu. This action opens the comprehensive Format Trendline pane on the right side of the Excel interface, allowing granular control over the curve fitting parameters.

This specialized pane is where we will define the mathematical nature of the desired trendline, moving beyond simple linear projections to implement the required second-order polynomial model.

Step 4: Defining the Quadratic Polynomial Order

Once the Format Trendline pane is open, you will see several Trendline Options displayed. These options determine the mathematical model Excel uses to calculate the best-fit line. To achieve a quadratic fit, we must select the Polynomial option. Polynomial regression allows for fitting data to a curve where the relationship can be described by an nth-degree polynomial equation.

A quadratic function is mathematically defined as a second-degree polynomial. Therefore, after clicking the Polynomial radio button, you must adjust the adjacent Order input box. The default setting might be 2, but it is crucial to verify this setting manually. Set the Order value explicitly to 2. Setting the order to 3 would result in a cubic trendline, 4 a quartic, and so on. A value of 1 would revert to a simple linear trendline.

As soon as the Order is set to 2, Excel instantaneously calculates the parameters (a, b, and c) for the equation y = ax² + bx + c, and the resulting parabolic curve is overlaid directly onto your scatterplot. This provides immediate visual feedback on how well the quadratic model fits your observed data points.

The trendline will now reflect the best-fit quadratic curve derived from the method of least squares. You will immediately notice the difference between this curvilinear line and any previous default linear trendline, confirming that the proper model has been applied.

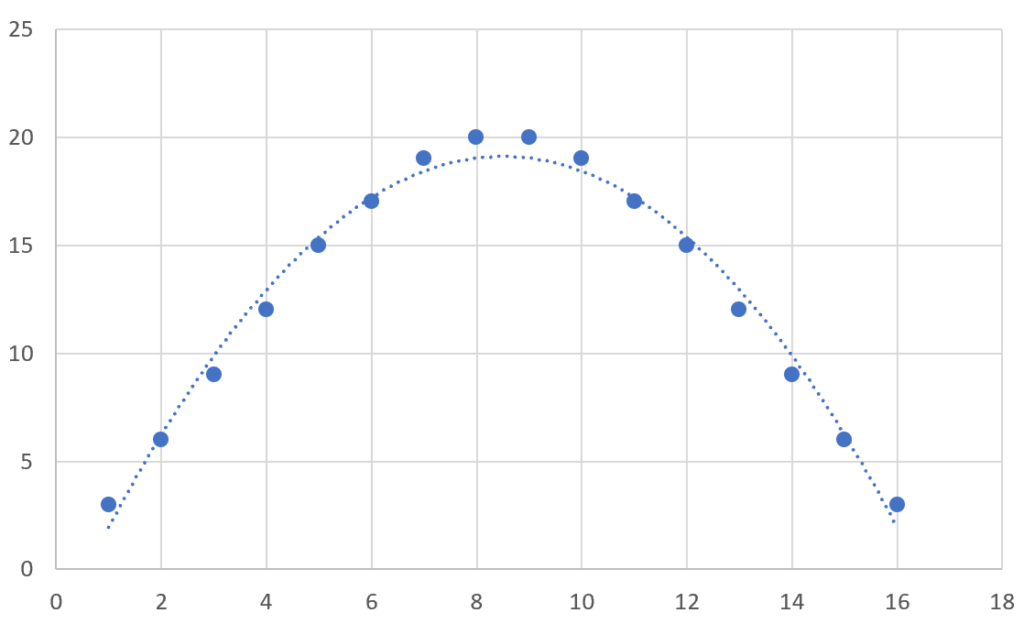

Step 5: Visualizing the Final Quadratic Trendline

Upon successful configuration in the previous step, the chart dynamically updates, displaying the new, highly accurate trendline. This curve visually represents the second-degree polynomial regression, confirming that the data points generally follow a parabolic trajectory. The visual confirmation is paramount for ensuring that the chosen model adequately captures the complexity inherent in the dataset.

The resulting visual output demonstrates a substantial improvement in fit compared to a linear model, providing a strong foundation for analytical insights. The curve passes directly through the center of the dense point cloud, minimizing the distance to the data points across the entire range, which is the definition of a least-squares fit.

While the line is now added, the analysis is incomplete without understanding the mathematical description and the goodness of fit. We must utilize the remaining options in the Format Trendline pane to display key statistical measures that validate the model’s accuracy, thus making the visualization truly useful for analytical purposes.

Step 6: Displaying the Equation and R-Squared Value

A critical component of quantitative analysis is providing the actual equation that defines the trendline and assessing the R-Squared value, which measures the proportion of the variance in the dependent variable that is predictable from the independent variable. For a high-quality presentation and robust analysis, these elements must be visible on the chart.

Within the same Format Trendline pane (under Trendline Options), scroll down until you find two essential checkboxes:

• Display Equation on chart: Activating this feature forces Excel to calculate and place the derived quadratic equation (y = ax² + bx + c) directly onto the plotting area. This equation is essential for performing future predictions or calculations outside of Excel.
• Display R-squared value on chart: The R² value (Coefficient of Determination) quantifies how well the quadratic model fits the data. An R² value closer to 1.0 indicates a near-perfect fit, suggesting that the model explains a very high percentage of the variability observed in the data.

By selecting both checkboxes, you transform the visualization from a simple descriptive curve into a powerful analytical tool. The equation allows for mathematical interpolation and extrapolation (though extrapolation should be handled cautiously), while the R² value provides the statistical justification for using the quadratic model. Reviewing these values helps confirm that the trendline is statistically meaningful and not just visually appealing.

Step 7: Customizing Line Appearance and Analytical Summary

While the mathematical aspects are now complete, enhancing the visual clarity of the trendline is crucial for presentation purposes. Excel allows extensive customization of the line itself, ensuring it stands out against the data points and background.

In the Format Trendline pane, switch from the Trendline Options tab (represented by a histogram icon) to the Fill & Line tab (represented by a paint bucket icon). Here, you can modify several aesthetic properties:

• Color: Change the color to a high-contrast hue (e.g., bright red or blue) that distinguishes it clearly from the data markers.
• Width: Increase the line width (e.g., 2.5 or 3 pt) to make the curve more prominent and visible, especially when the chart is viewed from a distance.
• Dash Type: While a solid line is often preferred for a best-fit regression curve, you may opt for a dashed or dotted line to differentiate it further, particularly if multiple trendlines (e.g., linear and quadratic) are plotted simultaneously for comparison.

Implementing a quadratic trendline is a streamlined process in Excel, requiring careful attention only to the selection of the polynomial order. The successful visualization hinges on understanding that this method is fundamentally regression analysis performed graphically. This powerful tool allows analysts to move beyond simplistic linear assumptions and accurately capture complex, curvilinear relationships, thereby enhancing the predictive power and explanatory depth of their data visualizations. The resulting parabolic curve is a robust mathematical model suitable for formal reporting and strategic decision-making based on the analyzed data.

To recap the primary mechanical steps for generating the highest quality quadratic visualization:

1. Data Preparation: Structure X and Y variables in adjacent columns (e.g., A2:B17).
2. Chart Creation: Select data and use the Insert tab to generate a standard Scatterplot.
3. Access Options: Click the chart, select the + (Chart Elements) icon, and choose Trendline -> More Options….
4. Configuration: In the Format Trendline pane, select Polynomial and set the Order precisely to 2 to enforce the quadratic fit.
5. Validation: Check the boxes to Display Equation on chart and Display R-squared value on chart to provide statistical context.
