How to Easily Rotate Axis Labels in ggplot2 for Clearer Visualizations

You can use the following syntax to rotate axis labels in a ggplot2 plot. Pay close attention to the parameters controlling the rotation and alignment:

p + theme(axis.text.x = element_text(angle = 45, vjust = 1, hjust=1))

The angle controls the rotational tilt of the text, while vjust (vertical justification) and hjust (horizontal justification) control the precise alignment and positioning of the text relative to the tick mark. Values for vjust and hjust typically range from 0 (low/left alignment) to 1 (high/right alignment), with 0.5 representing centering. Selecting the correct combination ensures the label visually originates from the tick mark.

The following step-by-step example demonstrates how to implement this critical syntax in a practical data visualization scenario using the R programming language.

Step 1: Preparing the Data Frame in R

Before any visualization can occur, we must establish a suitable dataset. For illustrative purposes, we will create a simple data frame that contains categorical labels that are intentionally long, thereby necessitating rotation for clear display. This data frame tracks the scores of several fictional sports teams.

Creating a structured data object, like an R data frame, is the foundational step in any ggplot2 project. Notice the length of the team names; these lengthy strings are precisely why rotation is required on the X-axis.

#create data frame
df = data.frame(team=c('The Amazing Amazon Anteaters',
                       'The Rowdy Racing Raccoons',
                       'The Crazy Camping Cobras'),
                points=c(14, 22, 11))

#view data frame
df

                          team points
1 The Amazing Amazon Anteaters     14
2    The Rowdy Racing Raccoons     22
3     The Crazy Camping Cobras     11

This simple data frame, df, contains two columns: team (our categorical variable) and points (our quantitative variable). Our goal is to plot team on the X-axis and points on the Y-axis, which will immediately highlight the label overlap problem in the default plot settings.

Step 2: Generating the Initial Visualization

Once the data is prepared, we load the ggplot2 library and generate the initial bar plot. We specify the data source (df) and the aesthetic mappings (aes), linking the team variable to the X-axis and points to the Y-axis. We then use geom_bar, setting stat="identity" because the heights of the bars are already calculated in our points column.

Observe the resulting image below. Without any modifications to the theme, the long team names clash severely, rendering the plot virtually uninterpretable due to label overlap. This visually confirms the absolute necessity of applying rotation to the X-axis labels.

library(ggplot2)

#create bar plot
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity")

Step 3: Rotating X-Axis Labels to 90-Degree Vertical Orientation

The most straightforward solution to label overlap is often a 90-degree rotation, which makes the text completely vertical. This approach maximizes the use of vertical space, minimizing the footprint of the labels along the horizontal axis. While 90-degree rotation solves the overlap issue efficiently, it can occasionally make reading slightly more challenging for the user, as the head must be tilted sideways to follow the labels.

To implement this, we append the theme() layer to our existing plot, specifying axis.text.x and setting angle=90. It is crucial to adjust the justification parameters, vjust and hjust, when rotating by 90 degrees. Setting vjust=0.5 centers the text vertically around the tick mark, and setting hjust=1 aligns the text flush against the axis line, ensuring the label properly originates from the tick mark.

library(ggplot2)

#create bar plot with axis labels rotated 90 degrees
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity") +
  theme(axis.text.x = element_text(angle=90, vjust=.5, hjust=1))

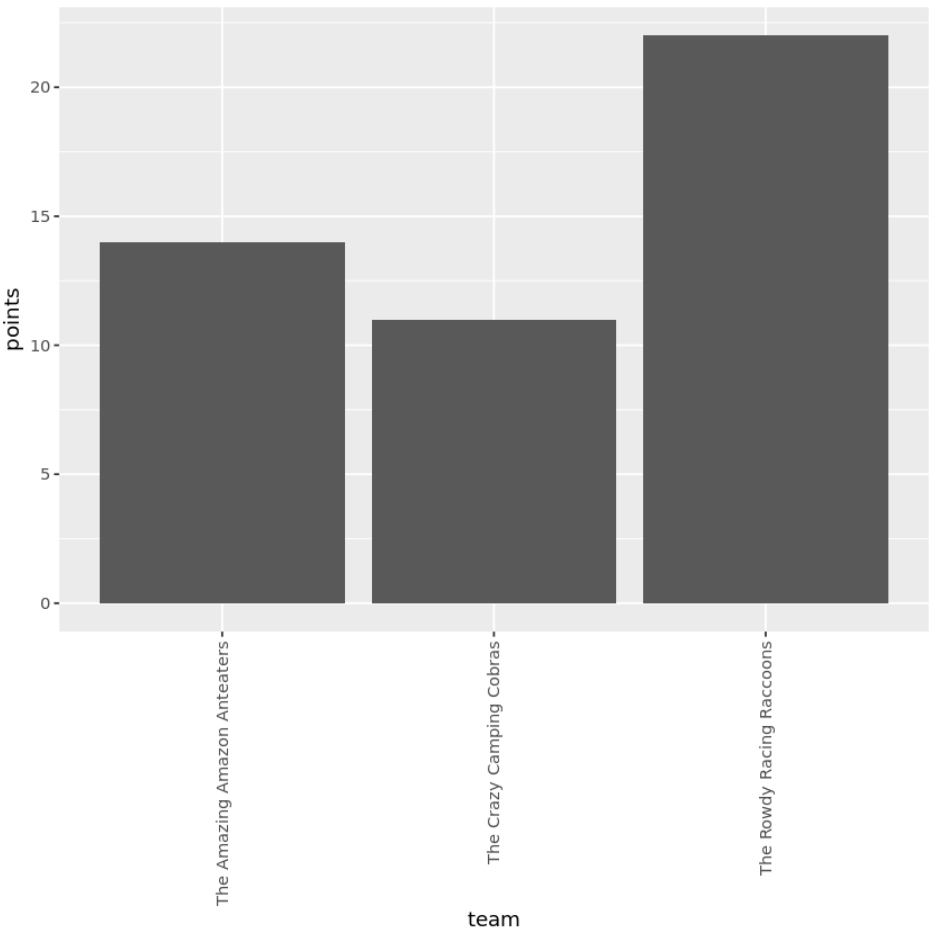

As demonstrated in the resulting graph, all category labels are now clearly visible and distinct, eliminating the overlap issue entirely. This 90-degree rotation is often the preferred default for visualizations with extremely long category names or when space constraints are severe.

Step 4: Optimizing Readability with 45-Degree Rotation

While 90-degree rotation is functional, a 45-degree angle often offers a superior balance between space efficiency and human readability. Text rotated at 45 degrees is generally easier for the human eye to process than fully vertical text, making it a common best practice in visualization design, provided there is enough space to prevent overlap.

When rotating by 45 degrees, the justification parameters must be fine-tuned differently compared to a 90-degree angle. For a 45-degree rotation, setting vjust=1 aligns the bottom of the text with the tick mark, and hjust=1 ensures the text baseline ends precisely at the tick mark position, creating a clean visual connection between the label and its corresponding bar or data point.

library(ggplot2)

#create bar plot with axis labels rotated 90 degrees
ggplot(data=df, aes(x=team, y=points)) +
  geom_bar(stat="identity") +
  theme(axis.text.x = element_text(angle=45, vjust=1, hjust=1))

The 45-degree rotation successfully resolves the overlap while maintaining superior readability. This is often the ideal solution, providing a visually appealing and technically sound presentation of categorical labels.

Advanced Justification Control: The Role of hjust and vjust

Understanding the interplay of the angle, vjust, and hjust parameters is essential for producing high-quality plots. These parameters define how the text is anchored relative to its position (the tick mark). Values for both vjust and hjust range from 0 to 1, where 0 represents one extreme (e.g., bottom or left) and 1 represents the opposite extreme (e.g., top or right).

• angle: The degrees of rotation (e.g., 0, 45, 90).
• vjust (Vertical Justification): Controls the vertical position. For horizontal text (angle=0), vjust=0 aligns the bottom of the text with the axis line, and vjust=1 aligns the top of the text with the axis line. For rotated text, this relationship shifts based on the angle.
• hjust (Horizontal Justification): Controls the horizontal position. For horizontal text, hjust=0 aligns the left side of the text to the tick mark, and hjust=1 aligns the right side of the text to the tick mark.

Depending on the angle you rotate the labels, you must strategically adjust the vjust and hjust values to ensure that the label text visually appears to originate exactly where the tick mark is located, preventing the label from floating too far from the plot elements. For instance, when using a 45-degree angle, setting hjust=1 and vjust=1 typically ensures that the bottom-right corner of the rotated text is precisely anchored to the tick mark, offering the cleanest visual connection.

Summary of Best Practices for Axis Label Rotation

Effective visualization requires making deliberate choices regarding label orientation. While ggplot2 provides the technical tools, determining the best angle depends on the specific context of the data and the overall aesthetic goal.

When selecting the optimal approach, consider the following guidelines:

1. Prioritize 45-Degrees: For moderate label lengths, 45 degrees usually offers the best compromise between conserving space and maintaining human readability. It is visually less jarring than vertical text.
2. Use 90-Degrees for Extreme Lengths: If category names are excessively long and 45-degree rotation still results in overlap, or if the plotting area is very narrow, switch to 90-degree (vertical) rotation.
3. Always Adjust Justification: Never rotate text without adjusting vjust and hjust. Improper justification results in detached labels that confuse the viewer. For 90-degree rotations, hjust=1 and vjust=0.5 are often ideal. For 45-degree rotations, hjust=1 and vjust=1 often provide the best anchor point.
4. Consider Alternative Solutions: If rotation significantly reduces the size of the plotting area, consider moving the category variable to the Y-axis (creating a horizontal bar chart) or condensing the label names if feasible.

By applying these techniques, you ensure that your ggplot2 visualizations remain informative, professional, and entirely accessible, regardless of the complexity of the underlying categorical data.
