How to Create a Residual Plot in Excel for Regression Analysis

Understanding the Fundamental Role of Residual Plots in Statistical Analysis

In the realm of statistical modeling, the residual plot serves as a critical diagnostic tool for researchers and data analysts. This specialized visualization displays the fitted values of a model against the calculated residuals, providing a clear window into the performance of a linear regression model. By examining the distribution of these residuals, analysts can determine if the assumptions of regression—such as linearity and homoscedasticity—are being met or if the model requires further refinement to accurately represent the underlying data trends.

A residual is defined as the difference between the observed value of the dependent variable and the value predicted by the regression equation. When these differences are plotted against the independent variable, the resulting graph should ideally show a random dispersion of points around the horizontal axis. This randomness indicates that the model has captured all the systematic information within the dataset, leaving only white noise. If, however, a discernible pattern emerges, it suggests that the chosen model may not be the most appropriate fit for the data.

Utilizing Microsoft Excel for this task is highly effective due to its robust calculation engine and flexible charting capabilities. While many advanced statistical software packages automate this process, creating a residual plot manually in Excel allows the user to gain a deeper understanding of the mathematical transformations occurring behind the scenes. This tutorial provides a comprehensive, step-by-step guide to constructing and interpreting a residual plot for a simple linear regression model, ensuring that your data analysis is both rigorous and reliable.

The Conceptual Framework of Simple Linear Regression

Before diving into the technical execution within a spreadsheet, it is essential to understand why we measure residuals. In a simple linear regression, we attempt to model the relationship between two variables by fitting a linear equation to the observed data. One variable is considered an explanatory variable (the independent variable), and the other is considered a response variable (the dependent variable). The goal is to find the “line of best fit” that minimizes the sum of the squares of the vertical deviations between each data point and the line.

The least squares method is the standard approach used by Microsoft Excel to calculate this line. However, a high coefficient of determination (R-squared) does not always mean the model is perfect. A model might appear to fit the data well on a standard scatter plot, yet the residual plot could reveal systematic errors. For instance, if the residuals form a “U” shape or a “funnel” shape, it indicates that the relationship might be non-linear or that the variance is not constant, a condition known as heteroscedasticity.

By mastering the creation of residual plots, you empower yourself to identify outliers and influential observations that might be skewing your results. These plots act as a quality control mechanism, ensuring that the conclusions drawn from your statistical tests are valid and not just artifacts of a poorly specified model. In the following sections, we will walk through the practical application of these concepts using a sample dataset in Excel.

Step 1: Initial Data Organization within Microsoft Excel

The first step in any successful data analysis project is the meticulous organization of your raw information. To begin creating your residual plot, you must enter your data values into the first two columns of a Microsoft Excel worksheet. Traditionally, the predictor or independent variable is placed in the first column (Column A), while the response or dependent variable is placed in the second column (Column B). This standard layout facilitates the use of Excel’s built-in charting and calculation functions.

For example, you might enter your predictor values in the range A2:A13 and your response values in B2:B13. It is vital to ensure that each row represents a single observation and that there are no missing values in your range, as this can lead to errors in the regression calculation. Clear labeling of headers in the first row is also recommended to maintain clarity throughout the complex steps that follow. Accuracy at this stage is paramount, as the integrity of the entire residual analysis depends on the quality of the input data.

Once the data is entered, take a moment to review the values for any obvious data entry errors. A simple typo in a single cell can significantly alter the slope of your regression line and, consequently, the pattern of your residuals. In professional environments, verifying the data integrity is often the most time-consuming yet rewarding part of the process, preventing faulty conclusions later in the analysis pipeline.

Step 2: Visualizing Relationships with Initial Scatter Plots

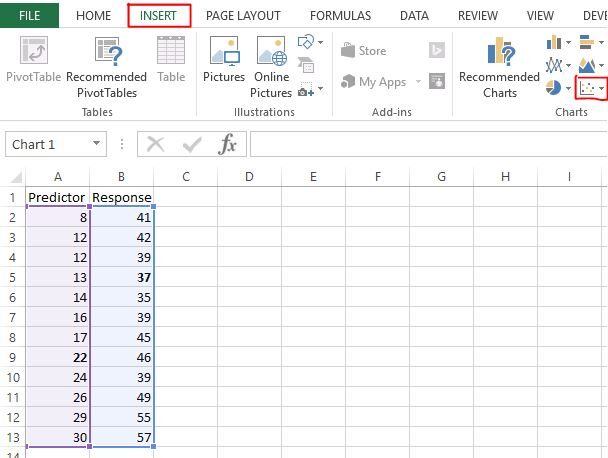

With your data correctly formatted, the next objective is to generate a scatter plot. This initial visualization provides a bird’s-eye view of the correlation between your variables and allows you to visually inspect the data for linear trends. To do this, highlight the range containing your values (e.g., A2:B13). Navigate to the INSERT tab on the Excel ribbon, locate the Charts group, and select the Scatter chart icon. Choosing the first option, which displays only the markers without connecting lines, is the best practice for regression analysis.

The resulting chart will appear on your worksheet, plotting the independent variable along the horizontal x-axis and the dependent variable along the vertical y-axis. At this stage, you are looking for a general direction in the data points. If the points seem to cluster around an imaginary straight line, a linear regression is likely an appropriate model. However, if the points form a curve, you may eventually need to consider polynomial regression or data transformations.

Visual inspection of the scatter plot is the first line of defense against inappropriate modeling. It allows the analyst to see the “big picture” before diving into the granular details of residuals. While the scatter plot shows the relationship between variables, the residual plot we are building will show the *errors* in that relationship, providing a much more sensitive diagnostic of model fit.

Step 3: Extracting the Mathematical Regression Equation

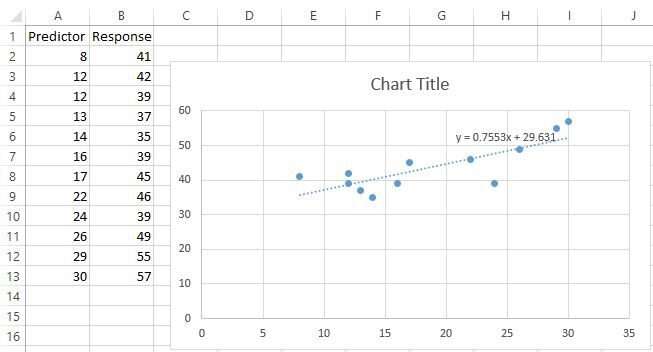

To calculate the residuals, we first need to know what the model predicts for each value of X. This requires a trendline. Click on your chart to reveal the CHART DESIGN tab. Select Add Chart Element, choose Trendline, and then select More Trendline Options. Ensure that the Linear radio button is selected, as we are performing a simple linear regression. Crucially, check the box labeled Display Equation on Chart before closing the formatting pane.

The equation that appears on your chart follows the slope-intercept form: y = mx + b. In this context, m represents the slope (the change in Y for every unit change in X), and b represents the y-intercept (the value of Y when X is zero). This equation is the mathematical heart of your model. It represents the “predicted” behavior of your data based on the least squares estimation. Understanding this formula is vital because it allows us to bridge the gap between observed reality and theoretical prediction.

Once the equation is visible, you have successfully quantified the relationship between your variables. However, the line is just an average representative of the data. Most individual points will not fall exactly on this line. The distance between each point and this line is exactly what we will measure in the following steps. This step transforms a visual trend into a functional mathematical tool that we can apply to our entire dataset in Microsoft Excel.

Step 4: Mathematically Determining Predicted Values

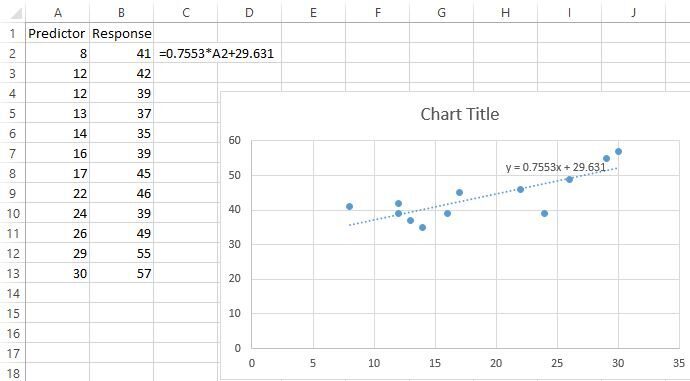

Now that we have the regression equation, we must apply it to our independent variables to find the “fitted” or predicted values. Create a new column (Column C) labeled “Predicted Values.” In the first data cell of this column (C2), you will manually enter the formula displayed on your chart. For instance, if your equation is y = 2x + 5, you would enter =2*A2+5 into cell C2. This tells Excel to take the value in A2, multiply it by the slope, and add the intercept.

After entering the formula for the first observation, you do not need to type it for every row. Microsoft Excel features a Fill Handle—a small green square at the bottom-right corner of the selected cell. Double-clicking this handle will automatically propagate the formula down the entire column, adjusting the cell references for each row. This automation is one of the primary reasons Excel is a preferred tool for data analysis, as it ensures consistency and eliminates manual calculation errors.

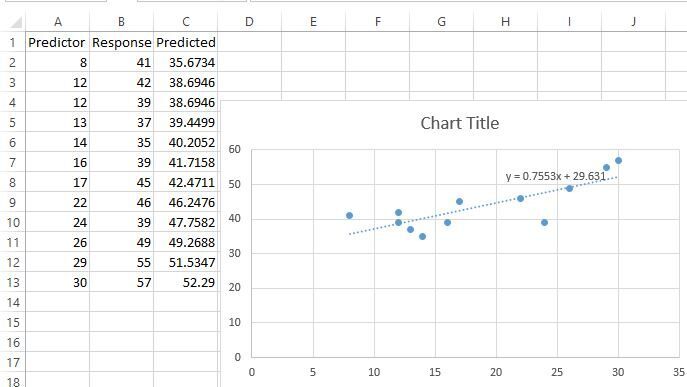

The values now appearing in Column C represent where the regression model “thinks” the data points should be located. By comparing these theoretical values to the actual observations in Column B, we can begin to quantify the accuracy of our model. If the predicted values are very close to the actual values, your model has a high degree of accuracy. The next phase of our analysis is to isolate the specific difference for each data point.

Step 5: Calculating Residuals as Deviation Metrics

The “residual” is the error term of the model. To calculate this, create Column D and label it “Residuals.” In cell D2, enter a simple subtraction formula: =B2-C2. This formula subtracts the predicted value (the model’s guess) from the actual observed value. A positive residual indicates that the actual value was higher than predicted, while a negative residual indicates it was lower. If a residual is zero, the data point falls exactly on the regression line.

Use the Fill Handle again to copy this formula down to the bottom of your dataset. You now have a column full of residuals. These numbers represent the “leftover” variation that the linear model could not explain. In professional statistical modeling, these values are scrutinized intensely. If the residuals are large, the model may be missing important variables or the relationship might be too complex for a simple linear approach.

Collectively, these residuals provide a dataset of the model’s errors. By analyzing the standard deviation and distribution of these errors, you can gain insights into the reliability of your predictions. The final step in our process is to visualize these errors so that patterns—or the lack thereof—become immediately apparent to the naked eye.

Step 6: Constructing the Final Residual Plot for Diagnostic Review

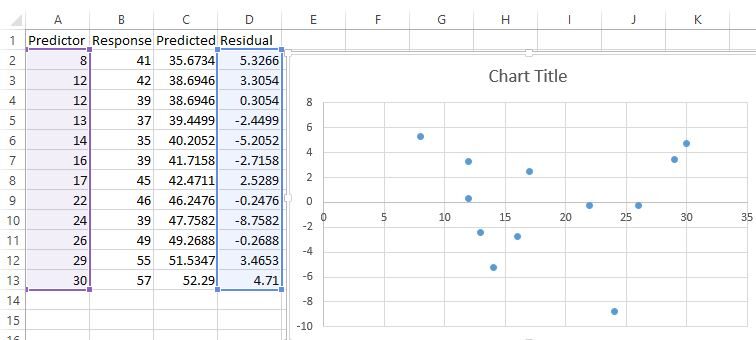

The culmination of our efforts is the creation of the actual residual plot. This involves plotting the independent variable (X) on the horizontal axis and the residuals on the vertical axis. To do this in Microsoft Excel, first highlight the predictor values in cells A2:A13. Then, hold the Ctrl key (or Command on Mac) and highlight the residual values in cells D2:D13. With both non-adjacent columns selected, go to the INSERT tab and select the Scatter chart once more.

The graph that appears is your residual plot. Unlike the first scatter plot, which showed a diagonal trend, this plot should ideally show points scattered randomly around a horizontal line at zero. The horizontal axis represents your fitted values (or your independent variable), and the vertical axis represents the size and direction of the errors. This visualization is the ultimate “litmus test” for the validity of your linear regression model.

To make the plot more professional and easier to interpret, you should take a few moments to clean up the formatting. Add clear axis titles, such as “Independent Variable” for the X-axis and “Residuals” for the Y-axis. You might also want to add a horizontal line at the zero mark to clearly distinguish between positive and negative errors. A well-formatted chart is not just about aesthetics; it ensures that your findings are communicated clearly to stakeholders or colleagues.

Interpreting Results: Identifying Patterns and Model Fit

Once your residual plot is complete, the final task is statistical interpretation. If the points are randomly dispersed around the horizontal axis, congratulations—your linear model is likely appropriate. This randomness suggests that the errors are independent and have a constant variance, fulfilling the core assumptions of the least squares method. In such cases, you can proceed with confidence in your regression results.

However, keep a keen eye out for specific patterns that signal problems:

• Curved Patterns: If the residuals follow a bow or “U” shape, your data likely has a non-linear relationship that a straight line cannot capture.
• Funnel Shapes: If the spread of residuals increases or decreases as you move along the x-axis, you have heteroscedasticity, meaning your model’s accuracy varies across different ranges of data.
• Outliers: Points that are significantly far from the zero line are outliers. These should be investigated to see if they are data entry errors or unique cases that require special attention.

In conclusion, creating a residual plot in Microsoft Excel is a fundamental skill for anyone performing serious data analysis. It moves the analyst beyond simple correlation and into the territory of model validation. By following these steps, you ensure that your statistical conclusions are backed by a rigorous check of the model’s underlying assumptions, leading to more accurate forecasts and more insightful data-driven decisions.
