Create a Residual Plot on a TI-84 Calculator
A residual plot is used to assess whether or not the in a regression analysis are normally distributed and whether or not they exhibit .
This tutorial provides a step-by-step example of how to create a residual plot for the following dataset on a TI-84 calculator:
Step 1: Enter the Data
First, we will enter the data values.

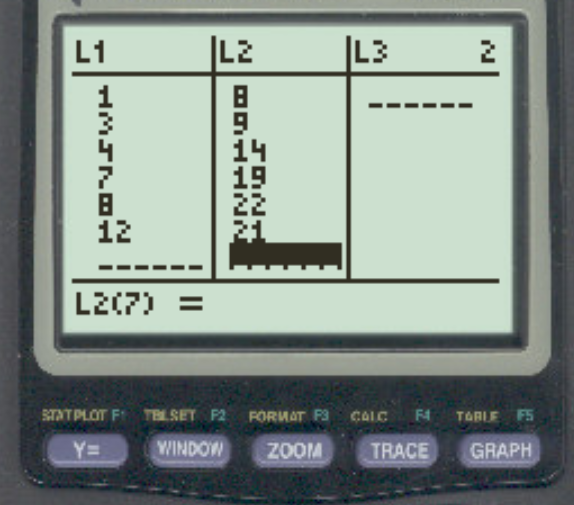

Press Stat, then press EDIT. Then enter the x-values of the dataset in column L1 and the y-values in column L2:
Step 2: Perform Linear Regression
Next, we will fit a linear regression model to the dataset.

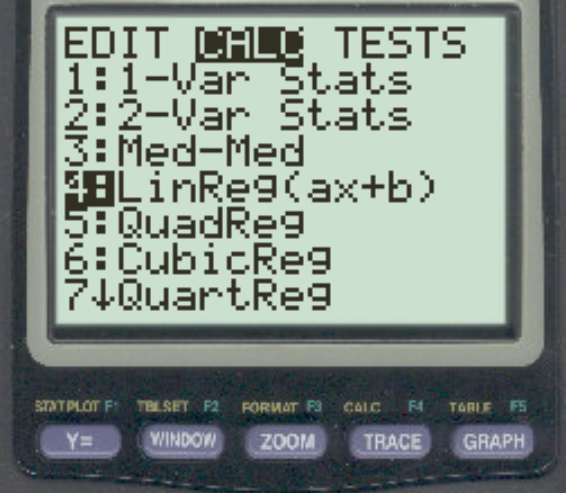

Press Stat, then scroll over to CALC. Then scroll down to LinReg(ax+b) and press ENTER.

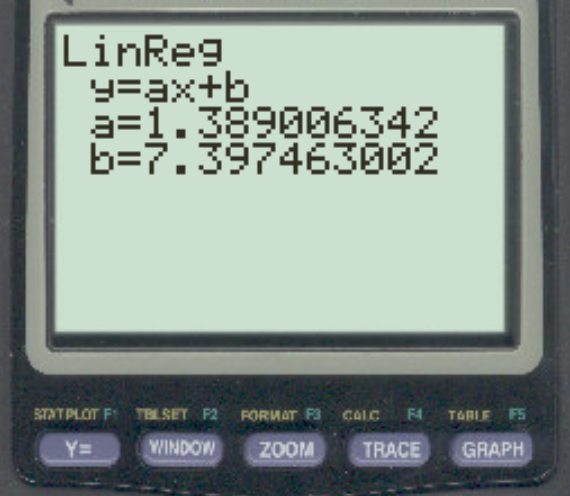

Press ENTER once again to perform linear regression:
The fitted regression model is: y = 7.397 + 1.389x
Step 3: Create the Residual Plot

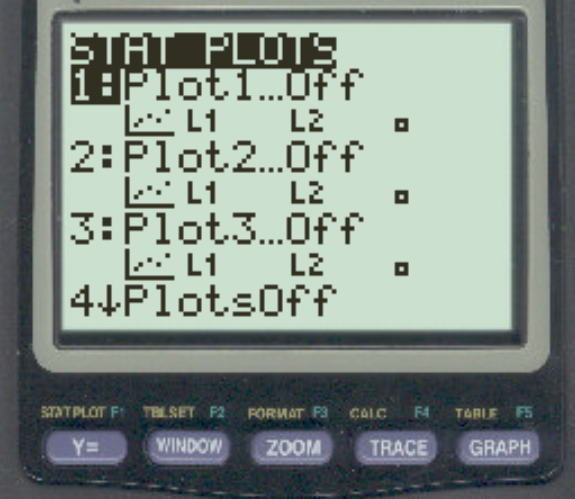

Next, press 2nd and then press Y=. In the new screen that appears, press ENTER on the first plot option.

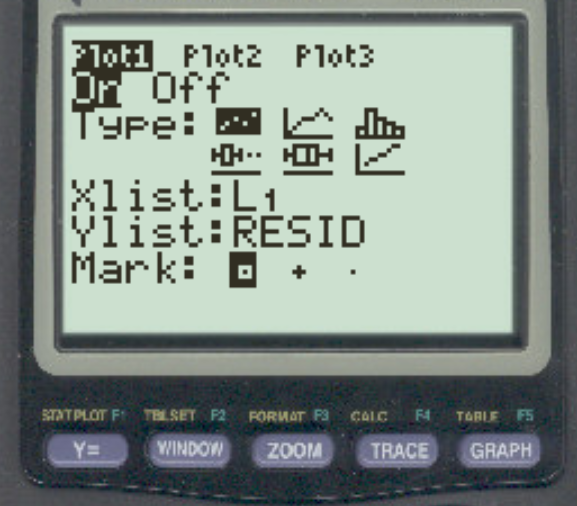

The term “RESID” will then appear next to Ylist:

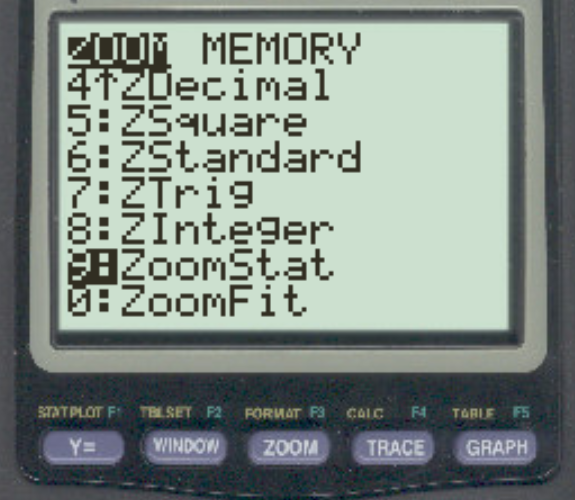

Lastly, press ZOOM and then scroll down to ZoomStat and press ENTER.

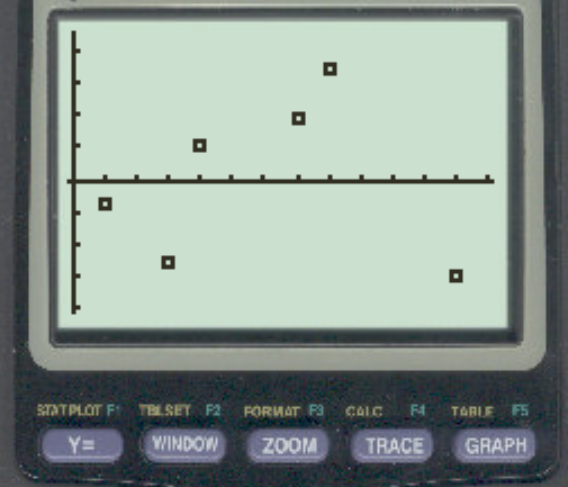

The residual plot will appear:
The x-axis displays the x values from the dataset and the y-axis displays the residuals from the regression model.

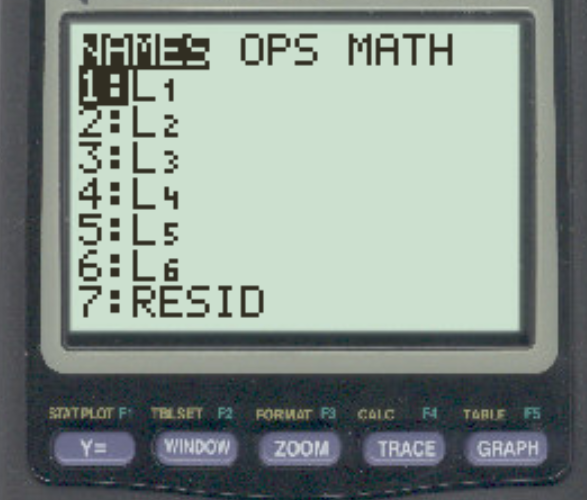

To see the actual values of the residuals, press 2nd and then press STAT. Then press “7” to choose the residuals:

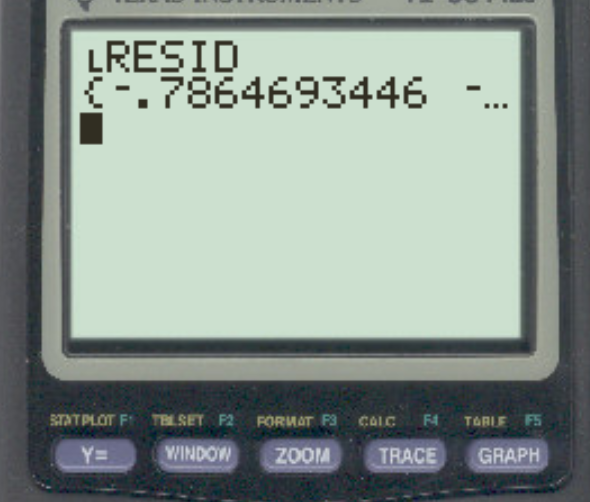

Press ENTER once more to display the residuals.
Scroll to the right to see the values for each of the residuals.
