How to Easily Check for Linear Relationships in Your Residual Plot

Understanding the Residual Plot

In the field of regression analysis, a residual plot is an essential diagnostic tool. This visualization maps the fitted values (the predicted outcomes derived from the regression model) along the horizontal x-axis and the corresponding residuals (the difference between observed and fitted values, or error terms) along the vertical y-axis.

The primary function of this plot is to visually confirm whether the assumptions underlying the chosen statistical model—typically a standard Ordinary Least Squares (OLS) model—have been met. A properly specified model will generate errors that are independent, normally distributed, and display constant variance across all levels of the predictor variables.

Two Critical Criteria for Validating Regression Assumptions

When performing a visual inspection of a residual plot, researchers focus on two major criteria to determine the plot’s acceptability, often categorized informally as “good” or “bad.” These criteria directly assess whether the error distribution conforms to the necessary statistical assumptions required for reliable inference. Meeting these criteria ensures that the resulting model coefficients are unbiased and efficient.

The first fundamental criterion concerns the overall structure and distribution of the error terms. We must ask: Do the residuals exhibit any clear, discernible pattern?

• In a statistically sound plot, the residuals should display no clear pattern whatsoever, appearing as a random cloud centered around the zero line. This confirms that the model has captured the systematic relationship in the data.
• Conversely, a non-random distribution, such as a distinct curve, wave, or a tight linear cluster, signals a profound flaw. This type of pattern is a strong indication that the specified regression model is missing crucial components or that the functional form used (e.g., linear model) is inappropriate for the data structure.

The second vital criterion relates to the stability of the error size across the range of predictions. We must evaluate: Do the residuals increase or decrease in variance in a systematic way?

• A “good” residual plot requires homoscedasticity, meaning the residuals are randomly scattered about zero, maintaining a relatively constant spread or variance regardless of the level of the fitted value. The width of the scatter cloud should remain uniform.
• A “bad” plot reveals heteroscedasticity, where the spread (or variance) of the residuals increases or decreases systematically as the fitted values change, often forming a funnel or cone shape. This violation invalidates standard error calculations and hypothesis testing.

Interpreting Trustworthiness from Residual Diagnostics

The outcome of this visual inspection directly determines the validity of the statistical inferences drawn from the regression model. If the residual plot satisfies both criteria—showing no systematic pattern and exhibiting constant variance—it is deemed “good.” This outcome confirms that the underlying assumptions are likely met, providing confidence in the model results and ensuring that it is statistically safe to interpret the magnitude and significance of the model coefficients.

Conversely, if the residual plot violates either or both criteria, it is considered “bad.” A problematic plot signals that the model is misspecified or that the standard assumptions of the OLS method are violated. In these scenarios, the results derived from the model—including p-values, standard errors, and confidence intervals—become untrustworthy and potentially misleading.

When the diagnostic fails, the immediate course of action is to revise the modeling strategy. This may involve transforming variables, adding polynomial terms, including interaction effects, or utilizing an entirely different type of regression model, such as generalized least squares or robust regression, depending on the nature of the violation observed in the plot. The following practical examples illustrate how to differentiate between adequate and inadequate residual plots.

Example 1: Interpreting an Ideal (Homoscedastic and Random) Plot

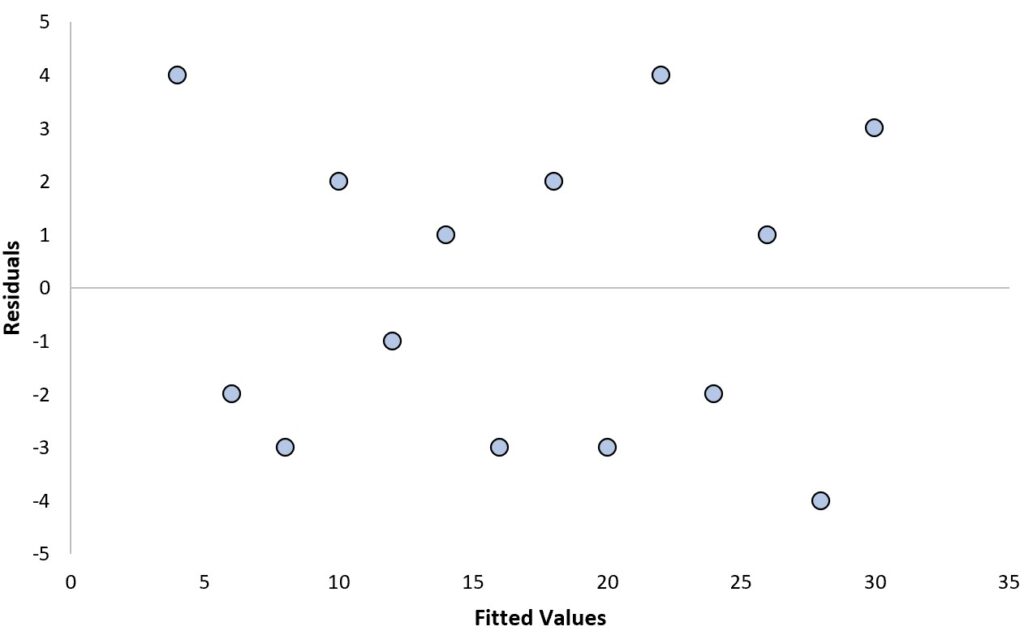

Consider the scenario where we have implemented a regression model, and the resulting diagnostic visualization is presented below. This plot serves as the benchmark for what is considered an ideal distribution of errors in standard statistical modeling, indicating high model quality and adherence to OLS assumptions.

To formally assess this plot, we rigorously apply the two validation questions previously outlined. The visual determination is crucial for confirming the validity of the model’s structural form and its error characteristics.

We first ask: Do the residuals exhibit a clear pattern? Upon inspection, the answer is clearly No. The data points are dispersed randomly around the horizontal line at zero, lacking any observable curve, wave, or trend. This confirms that the model has successfully captured the functional relationship between the predictors and the response variable, leaving only random noise in the errors.

Next, we ask: Do the residuals increase or decrease in variance in a systematic way? Again, the answer is No. The spread (or vertical distance from the zero line) of the points remains approximately constant across the entire range of fitted values. This constant spread, known as homoscedasticity, is a vital condition ensuring that the precision of our estimates is uniform throughout the data. Because both conditions are satisfied, we can confidently proceed with interpreting the model coefficients.

Example 2: Diagnosing Model Misspecification (Curvature)

Now, let us examine a scenario where the initial regression model yields a residual plot that clearly violates the assumption of linearity. The resulting visualization, shown below, demonstrates a non-random distribution of errors, which strongly suggests that the chosen functional form is inadequate.

We apply our diagnostic questions. First: Do the residuals exhibit a clear pattern? The answer is definitively Yes. The points do not scatter randomly but instead follow a distinct curved or U-shaped pattern. This curvature is the classic indication that the relationship between the predictors and the response variable is non-linear, yet a simple linear model was applied.

Second: Do the residuals increase or decrease in variance in a systematic way? Although the primary issue is the pattern, often a severe structural flaw can also induce changes in variance. In this plot, the variance levels appear different across the fitted values, potentially leading to a Yes answer here as well, reinforcing the model’s failure.

Since we have answered “Yes” to the presence of a clear pattern, this plot is categorized as “bad,” signaling that the regression coefficients should not be interpreted. The curved pattern specifically implies that a standard linear model is poorly suited to the data. To correct this misspecification, the analyst should investigate including higher-order polynomial terms—such as quadratic (squared) terms—to fit the observed curvature more effectively.

Example 3: Identifying the Violation of Homoscedasticity

This final example illustrates a different type of violation, one concerning the assumption of constant error variance. Suppose we fit a model that captures the linear trend correctly, but the resulting residual plot displays the structure shown below.

We begin the diagnostic process. First: Do the residuals exhibit a clear pattern? In this case, the answer is No. The points are randomly scattered around zero, suggesting the linear model structure is fundamentally correct. However, we proceed to the second criterion, which is often independent of the first.

Second: Do the residuals increase or decrease in variance in a systematic way? Here, the answer is a clear Yes. The scatter of the points visibly widens as the fitted values increase, creating a distinct fan or cone shape. This systematic non-constant variance is a serious issue that classifies this as a “bad” plot.

This pattern is known as heteroscedasticity, referring to the unequal variance of the residuals at different levels of the predictor variables. While heteroscedasticity does not bias the coefficient estimates, it severely biases the standard errors, making hypothesis tests (like t-tests) and confidence intervals unreliable. Consequently, the results of the regression model become statistically untrustworthy for inference.

Addressing Issues Identified in Residual Plots

Once a residual plot has been deemed “bad”—either due to structural patterns (non-linearity) or non-constant variance (heteroscedasticity)—the immediate goal shifts to remediation. Ignoring these issues compromises the integrity of all subsequent statistical interpretation.

If the plot shows a clear systematic pattern, the model requires structural adjustments. For instance, a curved pattern necessitates the introduction of non-linear components, such as logarithmic transformations of variables or the inclusion of polynomial terms. If the pattern suggests omitted variables, those variables must be identified and added to the regression model to account for the systematic error.

If the issue is primarily heteroscedasticity, several methods can be employed. These include transforming the dependent variable (e.g., using a log transformation), or utilizing robust estimation techniques like White’s standard errors or Weighted Least Squares (WLS) regression. These methods adjust the standard error calculation to account for the non-constant variance, ensuring that the statistical tests remain valid.
