The Conceptual Foundation of Lollipop Charts

Functioning as a minimalist variation of the standard bar chart, a lollipop chart is exceptionally useful for comparing the quantitative values associated with a categorical variable. Rather than employing the thick, often distracting bars found in traditional graphs, this visualization uses thin lines capped with circles. This design choice minimizes the “ink-to-data” ratio, a concept popularized by Edward Tufte, which suggests that a chart is most effective when it uses the least amount of ink possible to convey its message. By stripping away the visual weight of the bars, the lollipop chart draws the viewer’s eye directly to the data point at the end of the segment.

In addition to its functional benefits, many analysts prefer the lollipop chart for its aesthetic appeal. In a world saturated with standard Excel-style graphics, the lollipop chart stands out as a more refined and professional option. It is particularly effective in dashboards and infographics where space is at a premium and clarity is paramount. The thin lines allow for more whitespace, which can make a dense plot feel more approachable and easier to navigate for non-technical audiences. Furthermore, the ggplot2 library in R makes the transition from a bar chart to a lollipop chart nearly seamless.

In the following sections of this tutorial, we will explore the technical implementation of these charts. We will cover everything from basic construction to advanced theming and data manipulation. By the end of this guide, you will be proficient in generating high-quality visualizations that are ready for inclusion in academic papers or business reports. We will walk through the necessary steps to create the following lollipop chart, ensuring you understand the logic behind each line of code.

Example Walkthrough: Utilizing the mtcars Dataset

For the practical portion of this tutorial, we will utilize the mtcars dataset, which is a classic resource built directly into R. This dataset comprises fuel consumption and 10 aspects of automobile design and performance for 32 automobiles (1973–74 models). It is a staple in data science education because it provides a clean, well-structured environment for practicing statistical programming. By using a familiar dataset, we can focus entirely on the mechanics of the lollipop chart without being distracted by complex data cleaning tasks.

Before we begin plotting, it is always a best practice to inspect the data structure. This allows us to identify the names of the columns we wish to use and understand the data types involved. In our case, we will be focusing on the mpg (miles per gallon) variable as our quantitative measure and the car names as our categorical labels. Understanding the range and distribution of the mpg values will help us later when we decide on the appropriate axis limits and baselines for our chart.

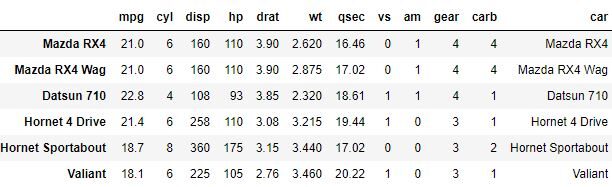

The following code snippet demonstrates how to view the first few rows of the mtcars dataset using the head() function. This is a crucial step in any data analysis workflow, as it confirms that the data has loaded correctly and provides a snapshot of the variables available for visualization. As you can see in the output, the names of the cars are currently stored as row names rather than a dedicated column, a detail we will need to address in the subsequent steps.

#view first six rows of mtcars
head(mtcars)

Constructing a Basic Lollipop Chart in R

The initial step in creating our visualization is to prepare the data frame so that ggplot2 can easily interpret the variables. Since the car models are currently stored as row names, we must transform them into an explicit column. This is a common requirement in tidy data workflows, where every variable must have its own column. Once the categorical variable is established, we can proceed to load the ggplot2 library, which is the industry standard for data visualization in the R ecosystem.

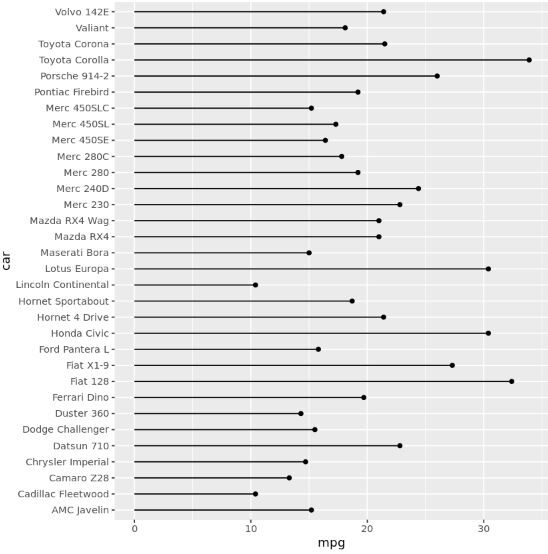

The construction of the chart itself relies on two primary geometric layers. First, we use geom_segment to draw the “stick” of the lollipop. This function requires four aesthetic mappings: the starting and ending coordinates for both the x and y axes. In this instance, we set the starting x-value to 0 and the ending x-value to the mpg value. Second, we apply geom_point to place a circle at the end of each segment. This layered approach is a perfect example of the power and flexibility inherent in the Grammar of Graphics.

By mapping the car variable to the y-axis and the mpg variable to the x-axis, we create a horizontal orientation. This is often preferred for categorical data with long labels, as it prevents the text from overlapping and makes the chart significantly easier to read. The following code block illustrates the full process of defining the data, loading the necessary package, and executing the plot commands to generate a functional, albeit basic, lollipop chart.

#create new column for car names
mtcars$car <- row.names(mtcars)

#load ggplot2 library
library(ggplot2)

#create lollipop chart
ggplot(mtcars, aes(x = mpg, y = car)) +
        geom_segment(aes(x = 0, y = car, xend = mpg, yend = car)) +
        geom_point()

Improving Readability with Labels and Customization

While a basic chart conveys the general trend of the data, adding specific labels can provide the precise numerical values that a reader might need. In ggplot2, this is achieved by adding a label aesthetic within the aes() function and then calling geom_text. To prevent the text from overlapping with the point, we use the nudge_x parameter, which shifts the label a specified distance along the horizontal axis. This subtle adjustment ensures that the visualization remains clean while offering a higher level of detail.

An alternative labeling strategy involves placing the text directly inside the point of the lollipop. This is an excellent technique for creating a very compact and modern look. To accomplish this, we must increase the size of the points so they can accommodate the numbers and change the color of the text to a high-contrast shade like white. This method is particularly effective when the range of values is small and the font size can remain legible without overwhelming the chart.

The choice between external and internal labels often depends on the intended audience and the medium of publication. External labels are generally easier to read in printed reports, whereas internal labels can look striking in digital dashboards. The following pre-formatted code blocks demonstrate both techniques, allowing you to experiment with different visual styles to see which best suits your specific data storytelling needs. Remember that consistency in labeling is key to maintaining a professional appearance throughout your data analysis project.

ggplot(mtcars, aes(x = mpg, y = car, label = mpg)) +
        geom_segment(aes(x = 0, y = car, xend = mpg, yend = car)) +
        geom_point() +
        geom_text(nudge_x = 1.5)

By enlarging the circles and adjusting the text parameters, we can achieve the following result:

ggplot(mtcars, aes(x = mpg, y = car, label = mpg)) +
        geom_segment(aes(x = 0, y = car, xend = mpg, yend = car)) +
        geom_point(size = 7) +
        geom_text(color = 'white', size = 2)

Advanced Comparative Analysis: Benchmarking Against the Mean

One of the most powerful applications of the lollipop chart is comparing individual observations to a baseline, such as the arithmetic mean. This allows the viewer to instantly identify which categories are performing above or below average. To perform this comparative analysis, we leverage the dplyr package, which is part of the Tidyverse ecosystem. We use dplyr to calculate the mean mpg and create a logical flag that categorizes each car based on its performance relative to that mean.

Furthermore, we can use dplyr to sort the data. A sorted lollipop chart is much more effective than one arranged alphabetically because it allows the reader to perceive the ranking and magnitude of differences immediately. By converting the car names into a factor with levels ordered by their mpg values, we ensure that ggplot2 renders the chart in a logical, descending or ascending sequence. This step is a critical component of data storytelling, as it highlights the “best” and “worst” performers in the dataset.

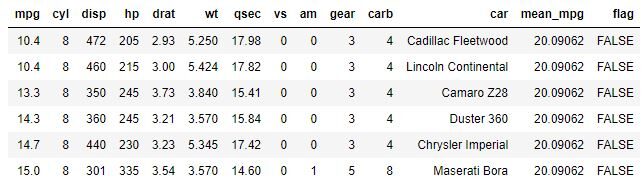

In the code below, we demonstrate how to pipe these data manipulation steps together. By creating a new data frame called mtcars_new, we preserve the original data while generating a version specifically optimized for our diverging lollipop chart. This workflow is highly reproducible and follows the best practices of modern data science, ensuring that your analysis is both transparent and easy to modify for future datasets.

#load library dplyr
library(dplyr)

#find mean value of mpg and arrange cars in order by mpg descending
mtcars_new <- mtcars %>%
                arrange(mpg) %>%
                mutate(mean_mpg = mean(mpg),
                       flag = ifelse(mpg - mean_mpg > 0, TRUE, FALSE),
                       car = factor(car, levels = .$car))

#view first six rows of mtcars_new
head(mtcars_new)

Visualizing Deviations with Custom Color Schemes

Once the data is prepared with logical flags, we can map the color aesthetic to our flag variable. This creates a diverging chart where the lollipops extend from the mean value rather than from zero. This visual shift is significant because it changes the focus from absolute values to deviations from the average. In ggplot2, we modify the geom_segment function so that the starting x-coordinate is the mean_mpg, resulting in a chart that clearly distinguishes between positive and negative performance.

While R provides default colors for discrete scales, professional data visualization often requires custom color palettes. The scale_colour_manual function allows us to specify exact colors, such as purple and blue, to represent the “Above Average” and “Below Average” categories. Choosing high-contrast, color-blind friendly palettes is an important consideration for ensuring that your charts are accessible to all readers. This level of customization is what separates a standard statistical plot from a compelling visual narrative.

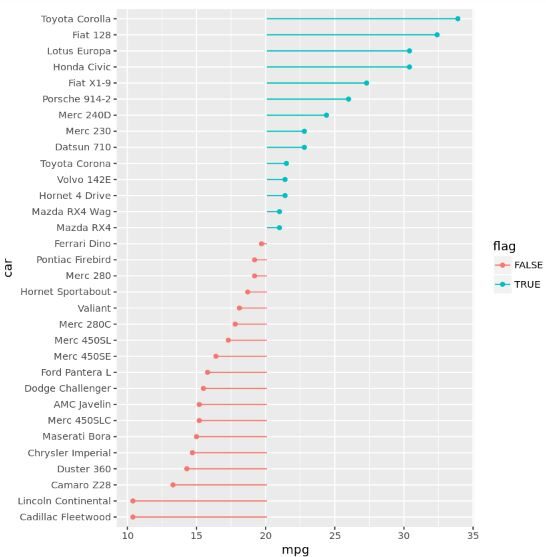

The following code provides the implementation for this diverging lollipop chart. By combining logical flagging with custom color mapping, we create a tool that is perfect for performance reviews or benchmarking studies. The simplicity of the lines combined with the clear color coding makes the data insights accessible at a glance, proving that the lollipop chart is as functional as it is beautiful.

ggplot(mtcars_new, aes(x = mpg, y = car, color = flag)) +
        geom_segment(aes(x = mean_mpg, y = car, xend = mpg, yend = car)) +
        geom_point()

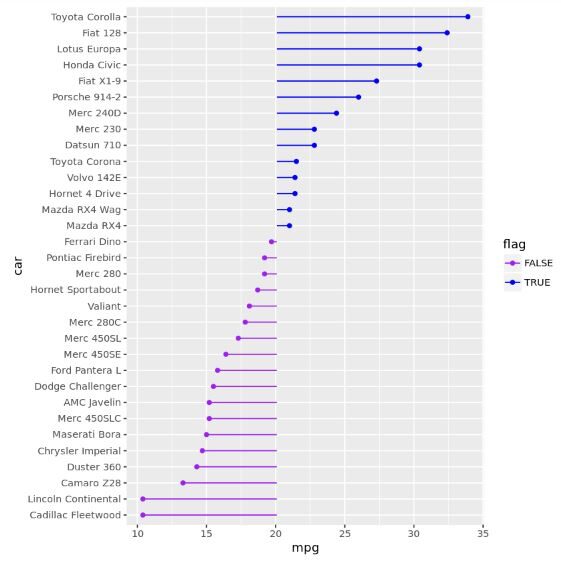

To further customize the appearance with specific colors, you can use the following approach:

ggplot(mtcars_new, aes(x = mpg, y = car, color = flag)) +
        geom_segment(aes(x = mean_mpg, y = car, xend = mpg, yend = car)) +
        geom_point() +
        scale_colour_manual(values = c("purple", "blue"))

Final Aesthetic Refinements and Professional Theming

The final step in our journey involves transforming a functional plot into a publication-quality graphic. ggplot2 offers a vast array of theming options that allow you to control every aesthetic detail, from the background grid to the font family. By applying theme_minimal(), we remove unnecessary elements that do not contribute to the data interpretation. We also use annotate to add descriptive text and arrows, which act as visual cues to guide the reader through the chart’s findings.

Detailed theming also involves adjusting the axis titles, legend position, and plot margins. In the final version of our chart, we hide the legend because the annotations and colors already provide enough context. We also select a specific typeface, such as Georgia, to give the chart a sophisticated feel. These final touches might seem minor, but they are essential for creating a data visualization that looks deliberate, authoritative, and professional in a business or academic context.

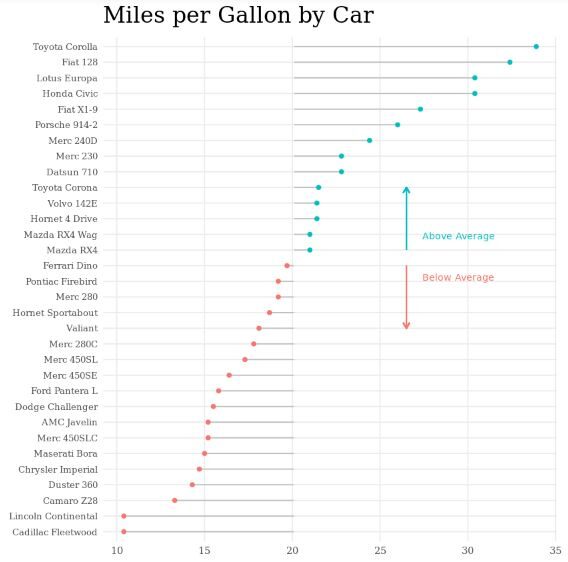

Below is the complete, high-level code required to produce the final, polished lollipop chart. This snippet integrates everything we have learned: data manipulation with dplyr, layered plotting with ggplot2, and advanced aesthetic customization. By studying this code, you can gain a deeper understanding of how to leverage R for professional-grade visual communication.

ggplot(mtcars_new, aes(x = mpg, y = car, color = flag)) +
        geom_segment(aes(x = mean_mpg, y = car, xend = mpg, yend = car), color = "grey") +
        geom_point() +
        annotate("text", x = 27, y = 20, label = "Above Average", color = "#00BFC4", size = 3, hjust = -0.1, vjust = .75) +
        annotate("text", x = 27, y = 17, label = "Below Average", color = "#F8766D", size = 3, hjust = -0.1, vjust = -.1) +
        geom_segment(aes(x = 26.5, xend = 26.5, y = 19, yend = 23),
                     arrow = arrow(length = unit(0.2,"cm")), color = "#00BFC4") +
        geom_segment(aes(x = 26.5, xend = 26.5 , y = 18, yend = 14),
                     arrow = arrow(length = unit(0.2,"cm")), color = "#F8766D") +
        labs(title = "Miles per Gallon by Car") +
        theme_minimal() +
        theme(axis.title = element_blank(),
              panel.grid.minor = element_blank(),
              legend.position = "none",
              text = element_text(family = "Georgia"),
              axis.text.y = element_text(size = 8),
              plot.title = element_text(size = 20, margin = margin(b = 10), hjust = 0),
              plot.subtitle = element_text(size = 12, color = "darkslategrey", margin = margin(b = 25, l = -25)),
              plot.caption = element_text(size = 8, margin = margin(t = 10), color = "grey70", hjust = 0))
