How to Add a Week to Your Date Hierarchy in Power BI

Understanding Date Hierarchies in Power BI

When you import data into Power BI that contains date fields, the engine automatically creates a background date table for each field. This mechanism is designed to facilitate standard time-based analysis and drill-down capabilities. By default, when you drag a date field onto the axis of a visualization, Power BI presents a hierarchical structure that includes Year, Quarter, and Month, allowing users to drill down from the highest level of aggregation to the lowest.

However, a crucial missing element in this default structure is the option for Week. The standard hierarchical display is intended to cover the most common financial and calendar reporting periods. Consequently, if you rely solely on the automatic date hierarchy, your ability to quickly segment data by 7-day periods within a visual is significantly limited, forcing you to use less intuitive methods or custom measures.

The image below illustrates this common initial configuration. Notice that when the date field is placed on the axis, the options presented are limited to the major annual components, omitting the vital weekly breakdown necessary for granular operational reporting:

By default, when you add a date field to the x-axis of a visualization in Power BI there is no Week included in the date hierarchy:

Why the Default Date Hierarchy Excludes Week

The exclusion of the week number from the default date hierarchy is rooted in technical and standardization challenges. Unlike Year, Quarter, or Month, which have globally consistent definitions, the definition of a “week” can vary significantly. Factors such as the determination of the first day of the week (Sunday vs. Monday) and, more importantly, the definition of Week 1 of the year (ISO 8601 standards vs. US standard) introduce complexity.

Due to this potential ambiguity, Power BI leaves the creation of the week dimension up to the user, ensuring that the defined week structure aligns perfectly with the organizational reporting requirements. This control is best achieved through DAX, which provides explicit functions to manage these calculations, such as the WEEKNUM function, allowing the analyst to define the standard used.

To overcome this limitation, we must bypass the automatic hierarchy generation for the week level. This is accomplished by creating a new, explicit column within our data table. This column will calculate and store the specific week number for every record, transforming an implicit date dimension into an explicit, measurable attribute that can be used directly in visualizations.

However, you can easily add a Week option by creating a new column in your table that includes the week number for the dates and then by adding this new column to the x-axis of your visualization. The following example shows how to do so using a practical dataset.

Example Scenario: Adding Week to Date Hierarchy

To demonstrate this process, we will utilize a simple dataset representing typical business operations. Suppose we have a table named my_data in Power BI. This table contains essential information regarding sales transactions, with fields for the transaction Date and the associated Sales amount. Our goal is to generate a visual that aggregates total sales specifically by the week of the year.

This is a common requirement in operational dashboards, where managers need to compare sales performance on a weekly basis, identify anomalies, and track progress against short-term goals. Without the week dimension readily available, such granular analysis becomes unnecessarily complicated.

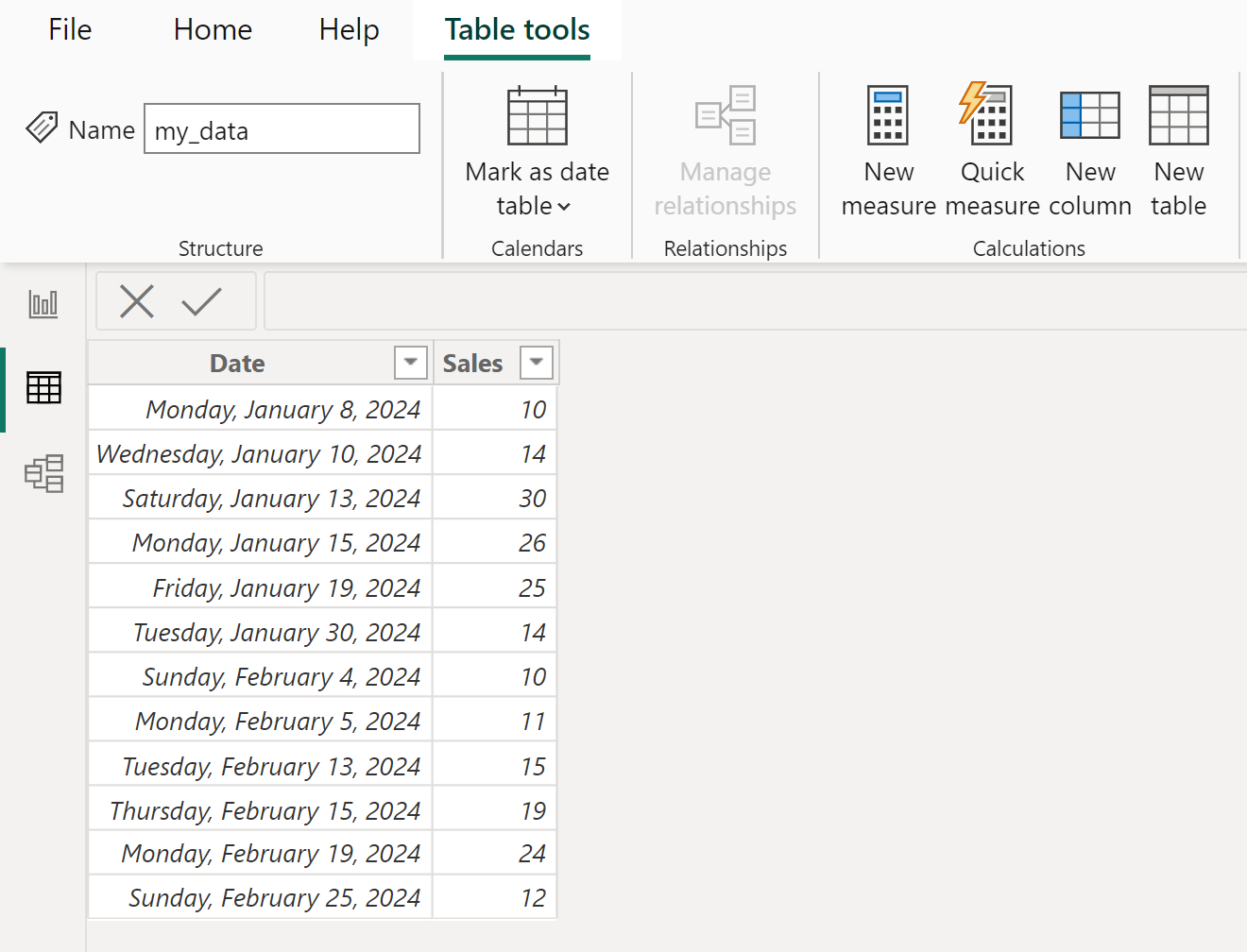

The structure of our sample data table, which serves as the foundation for this demonstration, is shown below:

If we immediately attempt to insert a column chart to visualize the total sales by week using the default hierarchy, we will encounter the limitation mentioned previously. If we drag the Date field to the X-axis and the Sales field to the Y-axis, the date hierarchy for the Date field will not include Week by default, instead showing the data aggregated by year or quarter:

Step 1: Navigating to the Table View and Creating a New Column

The first step in resolving this hierarchy deficiency is to return to the underlying data structure within the Power BI Desktop environment. This is where we will define and implement the new calculated field that holds our weekly context. You must access the Table view (the data grid icon) located on the left-hand navigation pane of Power BI Desktop.

Once in the Table view, ensure that the target table (in this case, my_data) is selected. The definition of the new column is performed via the ribbon menu. Navigate to the Table tools tab, which contains the necessary options for data modeling and calculation. Within this ribbon, locate and click the New column icon.

Clicking New column opens the formula bar, enabling the insertion of a calculated column formula written in DAX. This action allocates computational resources to process the formula row-by-row across the entire table, generating the desired week number for every single date entry.

This process is crucial because it physically embeds the week number into the data model, making it available as an independent field for visualization purposes, decoupled from the constraints of the standard automatic date hierarchy.

Then click the Table tools tab and then click the New column icon:

Step 2: Implementing the WEEKNUM DAX Function

The core of our solution lies in the utilization of the WEEKNUM DAX function. This function returns an integer representing the week number for a specified date, ranging from 1 to 54. Crucially, the function allows for an optional second argument that dictates the standard used for determining the start of the week (e.g., Sunday or Monday) and the definition of the first week of the year.

While the WEEKNUM function supports various return types for standard compliance (such as ISO 8601), for simplicity and general application in this example, we will use the basic syntax which often defaults to the US standard (Sunday as the first day). We name our new column descriptively, such as Week Number, followed by the calculation.

Type the following formula into the formula bar, replacing 'my_data'[Date] with the specific date column reference in your model:

Week Number = WEEKNUM('my_data'[Date])

The formula above calculates the week number for each date in the [Date] column of the my_data table. If your organizational standards require different week definitions (e.g., ISO standard where Monday is the first day and Week 1 contains January 4th), you would modify the formula to include the return type argument, such as WEEKNUM('my_data'[Date], 21) for ISO 8601 compliance.

Step 3: Verifying the Newly Created Week Number Column

Upon committing the DAX formula by pressing Enter, Power BI calculates the week number for every row in the my_data table. This process generates a new column named Week Number, which is immediately visible in the Table view, appended to the right side of your existing data fields. It is essential to verify that the calculation has performed as expected, particularly for dates at the beginning and end of the year.

This new column holds the numeric representation of the week, allowing Power BI to aggregate data based on this specific weekly dimension. Since this is now a distinct field (an integer), it behaves independently of the automatic date hierarchy structure, granting us the necessary flexibility for visualization.

This calculated column named Week Number now contains the week number of the year for the corresponding date in the Date column, as illustrated below:

A best practice recommendation at this stage is to ensure the newly created column is correctly categorized in the data model pane. While it holds numbers, it represents a categorical time dimension. Although Power BI often handles this implicitly, manually checking the column properties can prevent unexpected summation or aggregation errors in visuals.

Step 4: Integrating the Week Number into Visualizations

With the dedicated Week Number column successfully integrated into the data model, we can now return to the Report view and modify our column chart visualization. The key difference now is that instead of relying on the default date field hierarchy, we will explicitly use our new calculated column for the time axis.

Remove the original Date field from the X-axis of the visualization. Then, locate the newly created Week Number field in the Fields pane and drag it onto the X-axis placeholder. Ensure that the Sales field remains on the Y-axis to represent the aggregated metric.

When placing a numeric field like Week Number on an axis, Power BI may attempt to summarize it (e.g., Sum or Average). It is critical to change this setting to “Do not summarize” or use the field as a categorical axis. By treating the week number as a distinct category, the visual will accurately display separate bars for each week of the year.

Then, we can drag the new Week Number field to the X-axis of the visualization and the Sales field to the Y-axis:

Analyzing Data Using the Custom Weekly Granularity

By correctly configuring the visual with the explicit Week Number field on the X-axis, the resulting chart immediately presents the sales data aggregated at the desired weekly level. Each column in the chart now corresponds to a specific week of the year, providing a clear and concise view of weekly performance trends.

This visualization allows analysts to quickly identify periods of peak sales, troughs, and sequential weekly growth or decline. For instance, if Week 10 shows a significant spike in sales, the analyst can confidently drill down into the underlying daily data for Week 10 without needing to reconstruct complex filtering logic.

This will produce the following column chart that displays the sum of sales categorized by week number:

In this final chart, the x-axis displays the week number of the year (ranging from 1 to 54), and the y-axis displays the sum of sales for each corresponding week. This setup is ideal for dashboards focused on operational speed and weekly comparison.

Conclusion and Best Practices for Time Intelligence

The inability of the default Power BI Date Hierarchy to incorporate weekly granularity is easily overcome through the strategic use of DAX and calculated columns. By implementing the WEEKNUM function, analysts gain complete control over how weekly periods are defined and visualized, ensuring alignment with specific business reporting needs, especially concerning ISO or US standards for week calculation.

While this method effectively adds the week dimension, for advanced time intelligence requirements, such as calculating year-over-year weekly changes or rolling weekly averages, users should consider building a fully featured custom date table. A dedicated date table allows for the creation of all necessary temporal attributes (Year-Week combinations, Fiscal Periods, etc.) outside of the main fact table, leading to a cleaner and more efficient data model.

By following these steps, you have successfully transformed raw date data into actionable weekly metrics, enhancing the depth and utility of your Power BI reports for granular analysis.
