The Challenge of Default Date Hierarchies

When a standard date field is imported into Power BI and subsequently added to the X-axis (or axis equivalent) of a visualization, the application automatically constructs a default time hierarchy. This hierarchy typically provides four distinct levels for slicing and drilling down into the data: Year, Quarter, Month, and Day.

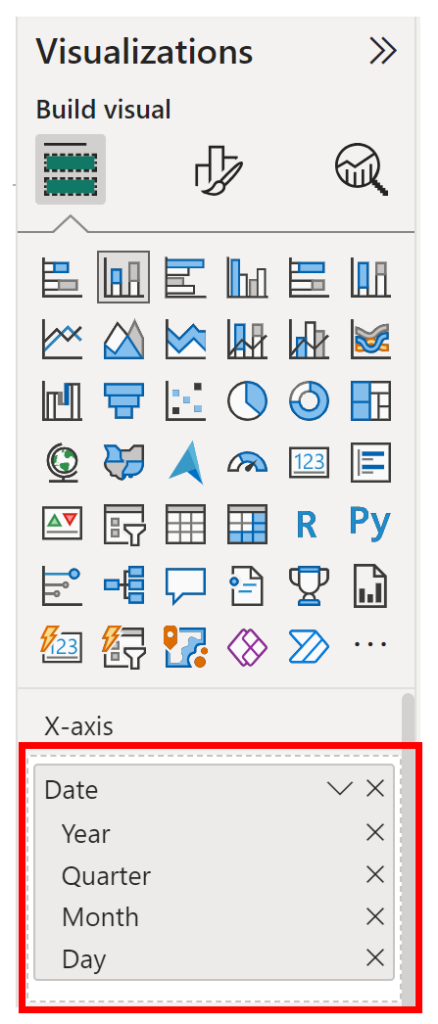

While this default structure is sufficient for high-level summaries and standard quarterly reviews, it notably lacks the ability to immediately segment the data by week. Without the week level, analysts are forced to rely on manual filtering or complex custom measures just to isolate weekly performance, which defeats the purpose of intuitive drag-and-drop reporting. The following illustration demonstrates this standard limitation when using the out-of-the-box hierarchy:

Notice how the available hierarchy elements stop at the “Day” level, making it impossible to perform native drill-down analysis into weekly trends. To overcome this systemic limitation and gain the necessary flexibility for weekly reporting, we must bypass the default hierarchy generation and inject our own custom weekly dimension into the data model. This requires creating a new, calculated column that explicitly assigns a week number to every row in the dataset based on the corresponding date.

Solution Overview: Utilizing DAX for Weekly Dimensions

The most effective and widely adopted solution involves creating a dedicated field that calculates the week number of the year for each transaction date. This field is generated using DAX, Power BI‘s powerful functional language. Once this column is computed, it can be treated as any other categorical field, allowing it to be integrated directly into the axis of a visualization, thus achieving the desired weekly grouping without relying on the restricted default date hierarchy.

For instance, if your source table contains various sales records, each with a recorded date, the new column will append the corresponding week number (from 1 to 52 or 53) to that record. When this new column is used on a chart’s axis, Power BI automatically aggregates all related measures (like total sales) based on that specific week number. This approach provides fine-grained control and scalability for complex reporting requirements where the standard hierarchy fails.

Illustrative Example: Preparing the Data Table

For demonstration purposes, let us consider a sample table within Power BI named my_data. This table is a standard transactional ledger containing essential fields, including the Date of the transaction and the associated Sales amount. The goal is to visualize the summation of sales over the course of each week.

Initially, our table appears as follows, showcasing individual transaction records:

If we proceed directly to create a column chart using the default Date field on the X-axis, the hierarchy structure will be generated automatically, omitting the desired weekly granularity. The resulting field list on the axis confirms that only Year, Quarter, Month, and Day are available, requiring the manual implementation of the weekly dimension:

Step 1: Navigating to the Data Model View

To begin implementing the custom weekly calculation, we must shift our focus from the Report view to the underlying data model structure. This action is performed by navigating to the Table view (Data view) within Power BI Desktop. This environment allows us to manipulate the data tables and introduce new calculated columns using DAX functions.

Once in the Table view, locate the Table tools contextual tab in the ribbon menu at the top of the interface. This tab provides essential functions for data manipulation, including the ability to add new columns, measures, or tables. Click the New column icon, which prepares the Power BI engine to accept a DAX formula that will populate the new field row-by-row based on the logic provided.

This is a critical step, as calculated columns exist within the data model itself, persisting across all reports and pages, ensuring consistency whenever weekly analysis is required. This differs fundamentally from measures, which only calculate results based on the current visualization context.

Step 2: Defining the Week Number Calculation using DAX

With the new column ready, the next step involves inputting the specific DAX formula that will derive the week number. The function best suited for this purpose is WEEKNUM, a robust time intelligence function designed to return the week number of the year for a given date.

Type the following formula precisely into the formula bar that appears after clicking “New column”:

Week Number = WEEKNUM('my_data'[Date])

Let’s dissect this expression:

1. Week Number: This is the name we are assigning to the new column. It is recommended to use clear, descriptive names.
2. =: The assignment operator, signaling that the column values will be calculated by the expression that follows.
3. WEEKNUM: The DAX function that calculates the sequential week number. By default, it follows the US standard (Week 1 starts with the week containing January 1st, and Sunday is the first day of the week).
4. ‘my_data'[Date]: This is the argument passed to the function, referencing the specific Date column within the my_data table that we want to analyze.

If specific regional standards (like ISO 8601, where Monday is the start of the week and Week 1 is the first week with four or more days in the new year) are required, the WEEKNUM function supports an optional second argument (e.g., WEEKNUM(Date, 2) for ISO standard). However, the default implementation shown above is often adequate for general business reporting.

Step 3: Verifying the Calculated Column

Upon pressing Enter, Power BI processes the entire table, generating the new column named Week Number. This column now holds integer values corresponding to the week of the year for every date entry.

The resulting table view will now include this newly derived dimension, confirming that the calculation was performed correctly:

It is crucial at this stage to review a few rows to ensure the week numbering aligns with expectations, especially around the year boundaries (e.g., Week 52 transitioning to Week 1). This column is now ready to be used as a primary axis in any visualization, effectively providing the missing weekly granularity in the date hierarchy.

Step 4: Integrating the Week Number into Visualizations

Returning to the Report view, we can now use this custom dimension to create powerful weekly performance charts. Instead of dragging the original Date field to the X-axis, locate and drag the newly created Week Number field. Simultaneously, drag the quantitative measure, Sales, to the Y-axis.

By using the Week Number field directly, we bypass the automatic hierarchy generation. Power BI treats this field as a categorical or numerical axis, aggregating the Sales measure based on the distinct week numbers present in the data.

The visualization panel setup should look like this:

This configuration immediately renders the desired column chart, where each column represents the total sales achieved during that specific week of the year. This method ensures that the weekly grouping is accurate and responsive.

Interpreting the Weekly Visualization

The final result is a clean, actionable visualization displaying sales trends segmented by the week number.

The x-axis now clearly displays the sequential week number (1, 2, 3, etc.) corresponding to the week within the annual cycle. The y-axis represents the aggregated sum of sales for all transactions that occurred during that specific week. This chart allows analysts to immediately spot weekly performance spikes or dips, facilitating quick comparisons across weekly cycles.

It is important to remember that since Week Number is now treated as a numerical dimension and not part of the standard date hierarchy, it will not automatically support drilling down to months or quarters unless those fields are explicitly added to the visualization’s axis structure. For comprehensive analysis, users often create an expanded custom date table containing not just the week number, but also Year, Month Name, and Weekday name, enabling highly flexible reporting dimensions.

Summary and Next Steps in Power BI Reporting

By utilizing the WEEKNUM DAX function to generate a calculated column, we successfully implemented the necessary weekly granularity missing from the default date hierarchy in Power BI. This technique is fundamental for business intelligence practitioners who require detailed, short-term trend analysis for operational decision-making.

The key takeaway is that for robust time-based analysis beyond the standard Year/Quarter/Month structure, reliance on calculated dimensions within the data model is essential. This ensures accuracy, reproducibility, and consistency across all analytical outputs.

For those looking to further enhance their proficiency, the following tutorials explain how to perform other common and advanced tasks in Power BI, including creating fully custom date tables and mastering other crucial DAX time intelligence functions:
