How to Sort IP Addresses in Excel: A Step-by-Step Guide

Understanding the Technical Challenges of Sorting IP Addresses in Excel

Managing network data often requires the use of Microsoft Excel to organize and analyze large lists of Internet Protocol (IP) addresses. While Excel is a powerhouse for data manipulation, it frequently struggles with specialized data formats that do not conform to standard base-10 numerical logic. An IP address, specifically the IPv4 variety, is composed of four distinct segments known as octets, separated by periods. Because these segments can vary in length from one to three digits, a standard spreadsheet application typically treats the entire string as text rather than a single continuous number. This discrepancy creates significant hurdles when attempting to perform a logical sort, as the software interprets the characters from left to right based on ASCII values rather than the actual numerical value of the address.

When you attempt to sort IP addresses using the built-in sorting tools, the software applies lexicographical order. In this system, the character “1” is always prioritized before “2,” regardless of the numbers that follow it. Consequently, an address such as “192.168.1.10” might be placed before “192.168.1.2” because the “1” in “10” is seen as smaller than the “2” in the final octet. For a network administrator or a data analyst, this randomized arrangement makes it nearly impossible to identify ranges, detect duplicates, or map out network topology effectively. To resolve this, we must look beyond the basic interface and utilize a more sophisticated logical approach that normalizes the data into a format the sorting algorithm can process correctly.

The core issue lies in the lack of leading zeros within the standard dotted-decimal notation of an IP address. If every octet were consistently three digits long—for example, “192.168.001.002” instead of “192.168.1.2”—the standard sort function would work perfectly. Since manually editing thousands of entries is impractical, the most efficient solution involves creating a helper column. This temporary column uses a formula to transform the variable-length octets into a standardized, fixed-length numerical string. By doing so, we provide the Excel engine with a predictable set of data points that accurately reflect the hierarchical nature of the addresses, ensuring that your data management remains precise and professional.

The Limitations of the Default Excel Sorting Mechanism

To understand why a custom solution is necessary, it is helpful to examine the behavior of the default Sort button located within the Data tab. When Excel encounters a cell containing both numbers and periods, it defaults to a string classification. In a standard text-based sort, the program compares the first character of each string, then the second, and so on. This works well for names or serial numbers but fails spectacularly for network addresses. Because Excel does not inherently understand that the periods are delimiters separating four unique numerical values, it treats the entire address as a single sequence of characters, leading to the counterintuitive results often seen in raw exports.

Consider a scenario where you have a list containing “10.0.0.1” and “2.0.0.1.” A human recognizes that “10” is greater than “2,” but the lexicographical sorting logic sees that “1” comes before “2” and thus places the “10.x” address at the top of the list. This behavior is a common pain point in information technology workflows, especially when dealing with server logs, DHCP assignments, or firewall configurations. Without a way to force the software to recognize the numerical weight of each octet, the sorted list remains a jumbled collection of data points that lacks any functional utility for systems administration.

Furthermore, the complexity increases when dealing with subnets and varying network classes. A simple sort fails to respect the boundaries of the IP address structure, often mixing different network prefixes together. This lack of structural awareness in Excel means that even a small list of twenty addresses can become a source of error. To achieve a professional-grade result, we must implement a custom formula that effectively “flattens” the IP address into a large integer or a padded string, allowing the sorting algorithm to compare the values based on their true mathematical significance rather than their visual representation.

Step 1: Preparing Your Dataset for Custom Sorting

Before implementing the solution, it is vital to ensure your dataset is properly organized within the worksheet. Start by identifying the column that contains your IP addresses. In the example provided, the addresses are located in column A. It is best practice to ensure that there are no empty rows or hidden characters within your cells, as these can interfere with the string manipulation functions we are about to use. If your data was imported from a CSV file or a database, consider using the TRIM function to remove any accidental whitespace that might have been carried over during the data migration process.

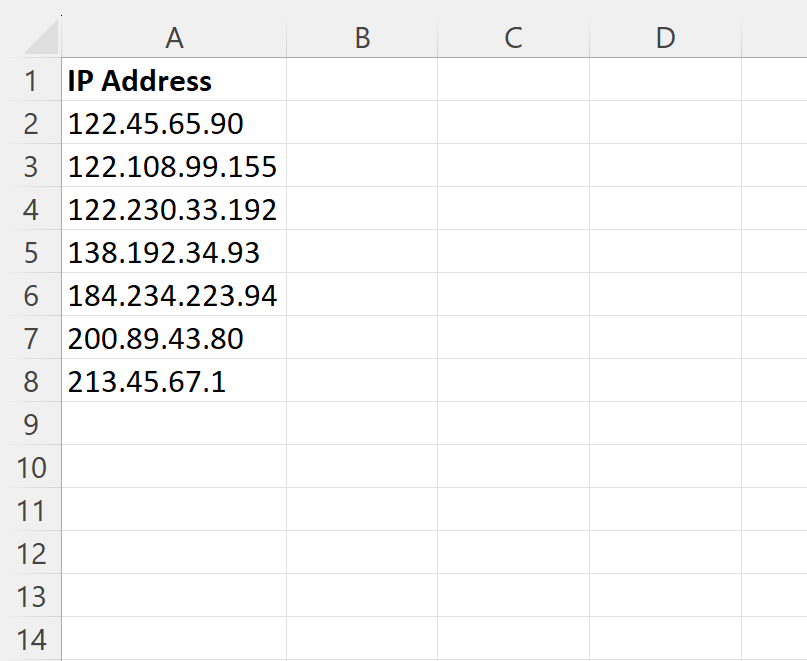

Suppose we have the following column of IP addresses in Excel:

Once your primary data is clean, you must create a helper column directly adjacent to your IP addresses. In this tutorial, we will use column B for this purpose. A helper column is a common spreadsheet technique used to perform complex data transformations without altering the original source information. This allows you to maintain the readability of your original IPv4 addresses while providing a hidden “key” that the software will use to determine the correct sort order. Labeling the top of this column as “Helper” or “Sort Key” will help you stay organized as your workbook grows in complexity.

Now suppose we highlight the cell range A1:A8 and then click the Sort button in the Sort & Filter group on the Data tab along the top ribbon and attempt to sort the IP addresses from smallest to largest:

As demonstrated in the visual aid, the IP addresses are not sorted correctly from smallest to largest. For example, the IP address 122.45.65.90 should be the first but it is not. This failure confirms that the standard application logic is insufficient for our needs and reinforces the necessity of a custom formula. By establishing this baseline, we can now move forward with the implementation of a more robust algorithm designed specifically for network address management.

Step 2: Implementing the Padded Helper Column Formula

To overcome the limitations of text-based sorting, we will utilize a formula that extracts each octet and pads it with leading zeros. This process ensures that every segment of the IP address is represented as a three-digit number. By concatenating these four three-digit segments, we create a twelve-digit number that Excel can easily compare. For instance, the address “192.168.1.1” would be transformed into “192168001001,” which is a much larger value than “10.0.0.1,” which becomes “010000000001.” This normalization is the key to successful data organization.

Instead, we must create a helper column that pads each group of numbers in the IP address with zeros by typing the following formula into cell B2:

=NUMBERVALUE(TEXT(TEXTBEFORE(A2,".",1),"000")&TEXT(TEXTBEFORE(TEXTAFTER(A2,".",1),".",1),"000")&TEXT(TEXTBEFORE(TEXTAFTER(A2,".",2),".",1),"000")&TEXT(TEXTAFTER(A2, ".",3), "000"))

This formula makes use of several modern Excel functions. The TEXTBEFORE and TEXTAFTER functions are particularly powerful, as they allow us to isolate specific parts of a string based on a delimiter—in this case, the period. By nesting these functions, we can target the first, second, third, and fourth octets individually. The TEXT function then takes each isolated number and applies the “000” format, forcing it to display with leading zeros if it is fewer than three digits. Finally, the NUMBERVALUE function converts the entire 12-digit string back into a numeric data type, which is optimal for the sorting process.

We can then click and drag this formula down to each remaining cell in column B:

As you apply the formula, you will notice that the helper column fills with long numerical values. These numbers may look strange to the human eye, but they represent the “true” sortable weight of each IP address. This step is a critical component of data engineering within a spreadsheet, as it bridges the gap between human-readable labels and machine-processable values. Once every row has its corresponding sort key, we are ready to execute the final sort operation.

Step 3: Executing the Multi-Column Sort Operation

With the helper column fully populated, you can now proceed to sort the entire dataset. It is important to highlight all relevant columns—in this case, columns A and B—to ensure that the IP addresses remain associated with their calculated sort keys. If you only sort the helper column, you risk decoupling the addresses from their correct rows, leading to data corruption. Always ensure that your selection includes the headers if you have them, and that the Sort dialog is configured to recognize them.

Now we can highlight the cell range A1:B8, then click the Sort button in the Sort & Filter group on the Data tab along the top ribbon:

In the new window that appears, choose Helper from the Sort by dropdown menu. You should ensure that the “Sort On” option is set to “Cell Values” and the “Order” is set to “Smallest to Largest.” This tells Excel to ignore the visual text in column A and instead focus on the mathematical values we generated in column B. This approach is a hallmark of advanced data analysis, allowing you to control the user experience while maintaining technical accuracy.

After clicking “OK,” Excel will reorder the rows based on the 12-digit values in your helper column. Because these values are properly padded, the sorting algorithm will now correctly place “2.x.x.x” before “10.x.x.x” and “122.x.x.x” in its proper chronological position. This method is incredibly reliable for IPv4 management and can handle thousands of rows without significant latency or performance issues, making it a standard tool for IT professionals working in network operations centers.

Step 4: Final Verification and Workspace Cleanup

The final step in any data manipulation task is to verify the results. Look closely at your sorted list to ensure the IP addresses follow a logical, ascending order. You should see that the segments are compared correctly from left to right, with the first octet taking precedence, followed by the second, third, and fourth. If the order looks correct, you have successfully bypassed Excel’s default limitations using logical functions and string manipulation.

Once you click OK, the IP addresses will be sorted from smallest to largest in the correct order:

We can see that the IP address 122.45.65.90 is now first, correctly reflecting its numerical standing relative to the other addresses in the dataset. This visual confirmation is essential for maintaining data integrity and ensuring that subsequent tasks—such as IP scanning or audit reporting—are based on accurate, well-organized information.

Note: Feel free to delete the Helper column once you’ve sorted the rows now that you no longer need that column. Because the sort physically reorders the rows in the worksheet, the formula-based column is a temporary scaffolding that can be removed to keep your user interface clean and focused on the essential data. This final cleanup ensures that your report or documentation is ready for presentation to stakeholders or for further data visualization.

Advanced Considerations for Network Data in Excel

While the helper column method is highly effective for IPv4, users dealing with IPv6 or more complex CIDR notation may require even more advanced techniques, such as Power Query or VBA (Visual Basic for Applications) scripts. Power Query is particularly useful for repeatable ETL (Extract, Transform, Load) processes, allowing you to automate the padding logic every time you refresh your data source. This is ideal for dynamic reports that pull from live log files or network monitoring tools.

Additionally, it is important to remember that the TEXTBEFORE and TEXTAFTER functions used in our formula are available in Microsoft 365 and Excel 2021. If you are using an older version of the software, you may need to use a combination of FIND, MID, and LEN functions to achieve the same result. Regardless of the specific functions used, the underlying principle remains the same: normalization is the prerequisite for accurate data sorting. By mastering these formulaic approaches, you enhance your ability to manage complex data types within any spreadsheet environment.
