How to Plot Multiple Lines in Matplotlib

When conducting advanced data visualization, it is frequently necessary to compare trends across multiple variables simultaneously. The Matplotlib library, the foundational plotting tool in Python, offers a straightforward and powerful mechanism for displaying multiple line plots within a single chart. This method is essential for analyzing correlations, divergences, and comparative performance over a common dimension, such as time.

The fundamental principle involves sequential calls to the plt.plot() function. Each call adds a new line representing a specific data series to the current figure. Once all necessary lines have been defined, the plt.show() command renders the composite visualization. Utilizing this syntax allows developers to overlay complex data sets, thereby maximizing the informative value of a single graphic:

import matplotlib.pyplot as plt

plt.plot(df['column1'])
plt.plot(df['column2'])
plt.plot(df['column3'])

...
plt.show()

This comprehensive guide details the necessary steps for implementing effective multi-line plotting, covering basic visualization, advanced customization techniques, and proper annotation methods. For instructional purposes, we will utilize a synthetic data set created using the Pandas and NumPy libraries. This example models typical business metrics—Leads, Prospects, and Sales—tracked over a period of 100 observations.

The following code block demonstrates the creation of the synthetic DataFrame that will serve as the source data for all subsequent visualization examples. Note the use of np.random.seed(0) to ensure that the generated data is reproducible across different environments, a crucial step for transparent data analysis and documentation:

import numpy as np
import pandas as pd

#make this example reproducible
np.random.seed(0)

#create dataset
period = np.arange(1, 101, 1)
leads = np.random.uniform(1, 50, 100)
prospects = np.random.uniform(40, 80, 100)
sales = 60 + 2*period + np.random.normal(loc=0, scale=.5*period, size=100)
df = pd.DataFrame({'period': period,
                   'leads': leads,
                   'prospects': prospects,
                   'sales': sales})

#view first 10 rows
df.head(10)


        period	    leads	prospects	    sales
0	1	27.891862	67.112661	62.563318
1	2	36.044279	50.800319	62.920068
2	3	30.535405	69.407761	64.278797
3	4	27.699276	78.487542	67.124360
4	5	21.759085	49.950126	68.754919
5	6	32.648812	63.046293	77.788596
6	7	22.441773	63.681677	77.322973
7	8	44.696877	62.890076	76.350205
8	9	48.219475	48.923265	72.485540
9	10	19.788634	78.109960	84.221815

Plotting Multiple Lines in Matplotlib

The most straightforward implementation for plotting multiple data series involves calling the plt.plot() function repeatedly, once for each column intended for visualization. By default, Matplotlib uses the DataFrame index (in this case, 0 to 99) as the implicit x-axis. When working with sequential or time-series data, this automatic mapping often provides a sufficient initial view of the data trends.

In the scenario below, we plot the ‘leads’, ‘prospects’, and ‘sales’ columns. It is important to note that without explicit customization, Matplotlib automatically selects a distinct color for each line to aid in basic visual differentiation. However, as the number of lines increases, reliance solely on default colors can lead to confusion, underscoring the necessity of more deliberate styling, which we will address in the subsequent section.

import matplotlib.pyplot as plt

#plot individual lines
plt.plot(df['leads'])
plt.plot(df['prospects'])
plt.plot(df['sales'])

#display plot
plt.show()

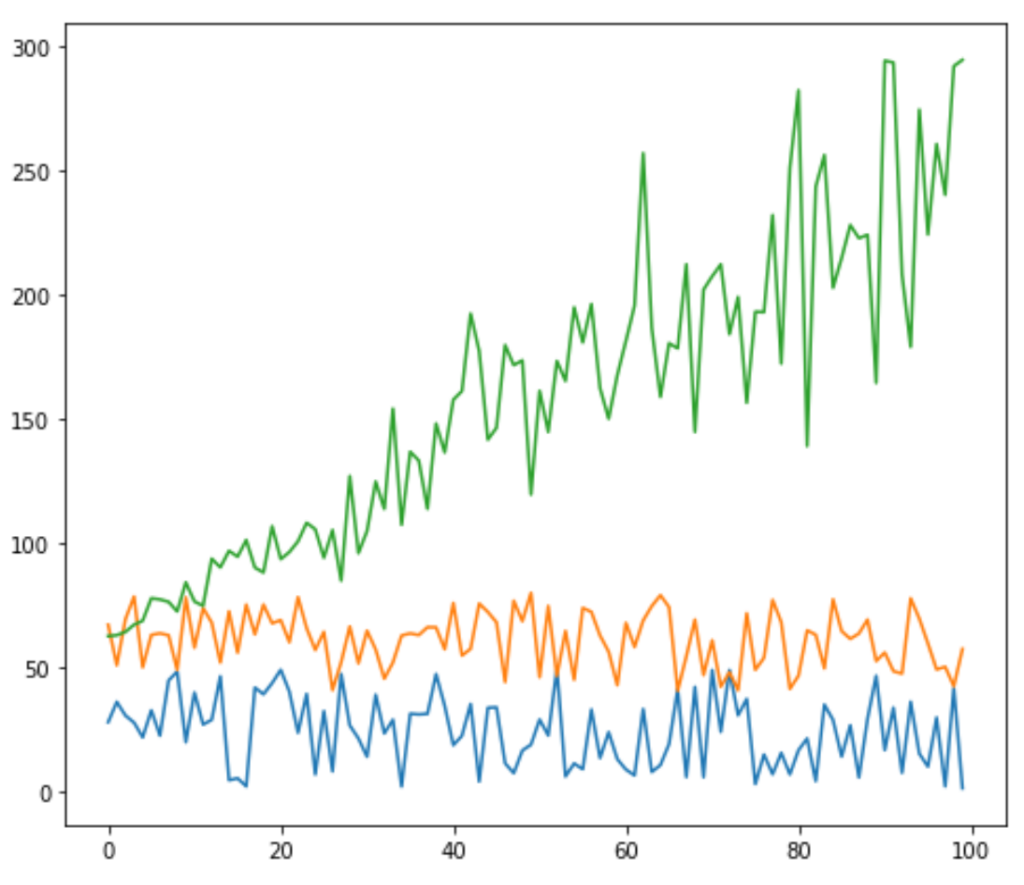

The resulting visualization provides an initial overview, showing the relative movement of the three key business metrics. The overlapping nature of the lines immediately highlights the need for clear visual separation to ensure accurate interpretation of each metric’s trajectory.

Customize Line Appearance in Matplotlib

For charts featuring multiple lines, visual distinction is paramount to prevent misinterpretation. Matplotlib (2) offers extensive options within the plt.plot() function to customize the color, width, and style of each line individually. By explicitly defining these parameters, you gain control over the aesthetic qualities of your line plot (2), significantly improving clarity and professional presentation.

The primary parameters for customization include color, which accepts standard color names (e.g., ‘green’, ‘purple’) or hexadecimal codes; linewidth, which controls the thickness of the line using numerical values; and linestyle, which dictates the pattern (e.g., ‘solid’, ‘dashed’, ‘dotted’). Strategic use of these attributes ensures that even when lines intersect frequently, they remain easily identifiable to the viewer.

In the revised code below, we apply unique styling to each metric: ‘leads’ are colored ‘green’, ‘prospects’ are thicker and ‘steelblue’, and ‘sales’ are represented by a ‘dashed’ ‘purple’ line. This demonstration illustrates how subtle changes in visualization parameters can dramatically enhance the interpretability of complex data overlays:

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], color='green')
plt.plot(df['prospects'], color='steelblue', linewidth=4)
plt.plot(df['sales'], color='purple', linestyle='dashed')

#display plot
plt.show()

The resulting plot is already significantly clearer than the default version. The customized lines provide immediate visual cues that allow the observer to track each metric’s path independently, even without further annotation.

Integrating a Descriptive Legend in Matplotlib

While customized line styles enhance visual clarity, a chart with multiple lines remains incomplete and ambiguous without a corresponding legend. The legend acts as a critical reference key, mapping the visual characteristics (color, line style) of each line back to the specific data series it represents. In Matplotlib (3), this is achieved through two simple steps: defining the label argument within each plt.plot() call, and subsequently invoking the plt.legend() function.

The label parameter is where you assign the descriptive name for the line (e.g., ‘Leads’, ‘Sales’). When plt.legend() is called without arguments, it automatically collects all labels defined in the preceding plt.plot() calls and displays them in a key. The library intelligently samples the current line style and color for each label, ensuring the legend accurately reflects the plot elements.

Below, we modify the previous customization example by incorporating the label parameter for ‘leads’, ‘prospects’, and ‘sales’, and then adding plt.legend() before displaying the figure. This step transforms the plot from a stylized graph into a fully self-explanatory analytical tool:

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], label='Leads', color='green')
plt.plot(df['prospects'], label='Prospects', color='steelblue', linewidth=4)
plt.plot(df['sales'], label='Sales', color='purple', linestyle='dashed')

#add legend
plt.legend()

#display plot
plt.show()

The resulting image now includes a box in the corner, containing the samples of the green solid line (‘Leads’), the thick blue line (‘Prospects’), and the dashed purple line (‘Sales’). This crucial addition removes all ambiguity regarding which data series corresponds to which visual element on the graph.

Adding Axis Labels and Titles in Matplotlib

A well-formed chart requires context, which is primarily provided by descriptive axis labels and an informative title. These components are essential for communicating the scope, units, and overall purpose of the line plot (3) to the audience. Matplotlib (4) provides dedicated functions to manage these textual elements, ensuring the visualization is fully compliant with standards for effective data visualization (2).

To label the vertical axis, the plt.ylabel() function is used, while plt.xlabel() is used for the horizontal axis. Furthermore, the plt.title() function sets the overarching title for the entire figure. It is good practice to include the fontsize parameter within these functions to ensure readability, especially when preparing plots for formal reports or presentations.

In this final comprehensive example, we combine all previous customization steps—line styling, legend inclusion—and add meaningful labels for the X-axis (Period), Y-axis (Sales), and a title (Company Metrics). This completes the transformation of raw data into a polished, publication-ready graphic, providing immediate insight into the relationship between the observed variables:

#plot individual lines with custom colors, styles, and widths
plt.plot(df['leads'], label='Leads', color='green')
plt.plot(df['prospects'], label='Prospects', color='steelblue', linewidth=4)
plt.plot(df['sales'], label='Sales', color='purple', linestyle='dashed')

#add legend
plt.legend()

#add axis labels and a title
plt.ylabel('Sales', fontsize=14)
plt.xlabel('Period', fontsize=14)
plt.title('Company Metrics', fontsize=16)

#display plot
plt.show()

The output clearly displays the trends of Leads, Prospects, and Sales over the defined period, making it easy to see, for instance, the consistent upward trend in Sales. The complete set of labels and the title ensures the context is immediately understood by any viewer, regardless of their familiarity with the underlying data or the DataFrame structure.

Advanced Customization: Markers and Gridlines

Beyond simple line customization, advanced Matplotlib (5) users often employ markers and gridlines to further enhance the readability and precision of their multi-line charts. Markers are discrete symbols (such as circles, squares, or triangles) placed at each data point along the line. They are especially useful when visualizing sparse data or when ensuring that specific observation points are clearly identified.

The marker parameter within plt.plot() allows specification of these shapes (e.g., marker='o' for circles, marker='s' for squares). Additionally, the plt.grid() function, when called, adds horizontal and vertical reference lines to the plot background. Gridlines significantly aid in accurately judging the magnitude and alignment of different data series, which is crucial when comparing several overlapping line plots (4).

By incorporating gridlines and subtle markers, the analyst adds another layer of precision. For instance, using plt.grid(True) helps viewers quickly estimate values on the Y-axis without relying solely on the tick marks. When dealing with high-frequency data or very volatile lines, however, caution must be exercised, as overly aggressive use of markers or grids can lead to visual clutter, defeating the purpose of clean data visualization (3).

Best Practices for Multi-Line Data Visualization

Creating effective multi-line plots requires adherence to specific design principles to maximize clarity. First, always limit the number of lines plotted on a single axis to five or fewer. Plotting too many variables results in an indistinguishable “spaghetti chart” where all trends become obscured. If more than five series must be compared, consider using small multiples (separate, related plots) or interactive tools.

Second, ensure that the chosen color palette is distinct and accessible, particularly for viewers with color vision deficiencies. Avoid using red and green simultaneously to denote positive and negative trends, relying instead on high-contrast colors and varying line styles or markers. Use descriptive labels and titles consistently—a DataFrame (2) column name is rarely sufficient as a chart label.

Finally, always confirm that the scales of the plotted variables are appropriate. If one variable (e.g., Sales, scaled in thousands) vastly overshadows another (e.g., Leads, scaled in tens), the smaller variable’s trend will be flattened near the x-axis. In such cases, consider using a secondary Y-axis (ax.twinx()) or normalizing the data before plotting to ensure fair visual comparison of proportional changes.

Summary of Key Matplotlib Functions for Multi-Line Plots

Mastering multi-line plotting in Python (2) involves coordinating several core Matplotlib functions. Understanding the role of each function allows for precise control over the visual outcome, ensuring that the final graphic accurately and compellingly represents the underlying data relationships. The combination of these functions provides the toolkit necessary for advanced graphical composition.

Here is a summary list of the essential functions used in constructing sophisticated multi-line charts:

• plt.plot(): The primary function for drawing lines, where parameters like color, linewidth, linestyle, and label are defined for each series.
• plt.legend(): Automatically generates the legend based on the label arguments provided in the plot calls, essential for identifying different series.
• plt.xlabel() and plt.ylabel(): Provide descriptive context for the horizontal and vertical axes, respectively.
• plt.title(): Sets the overall heading for the figure, summarizing the content of the visualization.
• plt.show(): Renders the figure and displays the final plot to the user.

By effectively employing these tools, analysts can produce high-quality, professional visualizations that clearly communicate complex relationships within DataFrame (3) structures, making multi-line visualization a staple technique in computational analysis.

You can find more Matplotlib tutorials covering advanced features such as subplots and specialized chart types for further exploration of data visualization (4) techniques.
