How to Add Straight Lines to ggplot2 Plots Using geom_abline()

The Power of Geoms in ggplot2

The ggplot2 package operates on the principle of the grammar of graphics, where plots are constructed layer by layer. Straight lines are crucial additions, often serving as benchmarks, prediction boundaries, or aids for visual interpretation. While geom_abline() is the most generic tool for adding sloped lines, ggplot2 provides three other specialized geom functions that make adding horizontal, vertical, and regression lines straightforward and intuitive.

Understanding these different geometric functions allows for highly targeted data exploration and presentation. Utilizing the correct geom ensures that the underlying data structure and intent of the line are clearly communicated. We will explore four of the most common methods available within the ggplot2 ecosystem for drawing these essential straight lines:

• Method 1: Use geom_abline() to add a line defined by a specific slope and intercept.
• Method 2: Use geom_vline() to establish a fixed vertical reference line.
• Method 3: Use geom_hline() to establish a fixed horizontal reference line.
• Method 4: Use geom_smooth() to overlay a fitted statistical model, such as a linear regression line.

Below, we provide a quick reference showing the syntax required for each of these foundational straight-line geoms:

Overview of Core Functions for Adding Straight Lines

Method 1: Use geom_abline() to Add Line with Slope and Intercept

The geom_abline() function accepts the parameters slope and intercept, corresponding to the equation of a line $y = mx + b$. This is ideal when the theoretical relationship between variables is known or hypothesized.

ggplot(df, aes(x, y)) +
  geom_point() +
  geom_abline(slope=3, intercept=15)

Method 2: Use geom_vline() to Add Vertical Line

To highlight a critical X-axis value, such as a mean, median, or cut-off point, geom_vline() is utilized. It requires only the xintercept argument to define its position.

ggplot(df, aes(x=xvar, y=yvar)) +
    geom_point() +
    geom_vline(xintercept=5)

Method 3: Use geom_hline() to Add Horizontal Line

Similarly, geom_hline() adds a horizontal reference line, often used to denote specific thresholds, expected values, or confidence limits. It takes the yintercept argument.

ggplot(df, aes(x=xvar, y=yvar)) +
    geom_point() +
    geom_hline(yintercept=25)

Method 4: Use geom_smooth() to Add Regression Line

When the goal is to visualize the overall trend within the data, geom_smooth() is the preferred function. By setting the method argument to 'lm' (linear model), a straight line representing the least squares regression fit is automatically calculated and plotted.

ggplot(df, aes(x=xvar, y=yvar)) +
    geom_point() +
    geom_smooth(method='lm')

Preparing the Demonstration Data in R

To illustrate the practical application of these four geometric functions, we will utilize a simple data frame created in the R environment. This data frame, named df, contains two variables, x and y, suitable for a standard scatterplot visualization. The specific arrangement of these points will allow us to clearly see the impact of adding different types of straight lines to the plot.

The creation and structure of our sample data frame are shown in the code block below. This foundational step ensures repeatability and clarity in the subsequent visualization examples. Notice that the data set includes seven observations, demonstrating a moderately positive, non-perfectly linear trend, which is typical for real-world analytical scenarios.

#create data frame
df <- data.frame(x=c(1, 2, 3, 3, 5, 7, 9),
                 y=c(8, 14, 18, 25, 29, 33, 25))

#view data frame
df

  x  y
1 1  8
2 2 14
3 3 18
4 3 25
5 5 29
6 7 33
7 9 25

Having prepared the data frame, we can now proceed to apply the different straight-line geoms to the base scatterplot, observing how each function modifies the visual interpretation of the data.

Example 1: geom_abline() – Custom Lines Using Slope and Intercept

The geom_abline() function is unparalleled when a theoretical relationship needs to be plotted against empirical data. This is particularly common in statistical modeling where a null hypothesis or expected theoretical boundary must be visually represented. In this specific example, we define a line using a slope of 3 and an intercept of 15. This explicit definition ensures that the line represents exactly the formula $y = 3x + 15$, regardless of the underlying data distribution.

To use this function effectively, the parameters must be specified within the geom_abline() call, independent of the aesthetic mappings defined in the main ggplot() function. This approach treats the line as a constant annotation layer rather than a data-driven element.

library(ggplot2)

#create scatterplot and add straight line with specific slope and intercept
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_abline(slope=3, intercept=15)

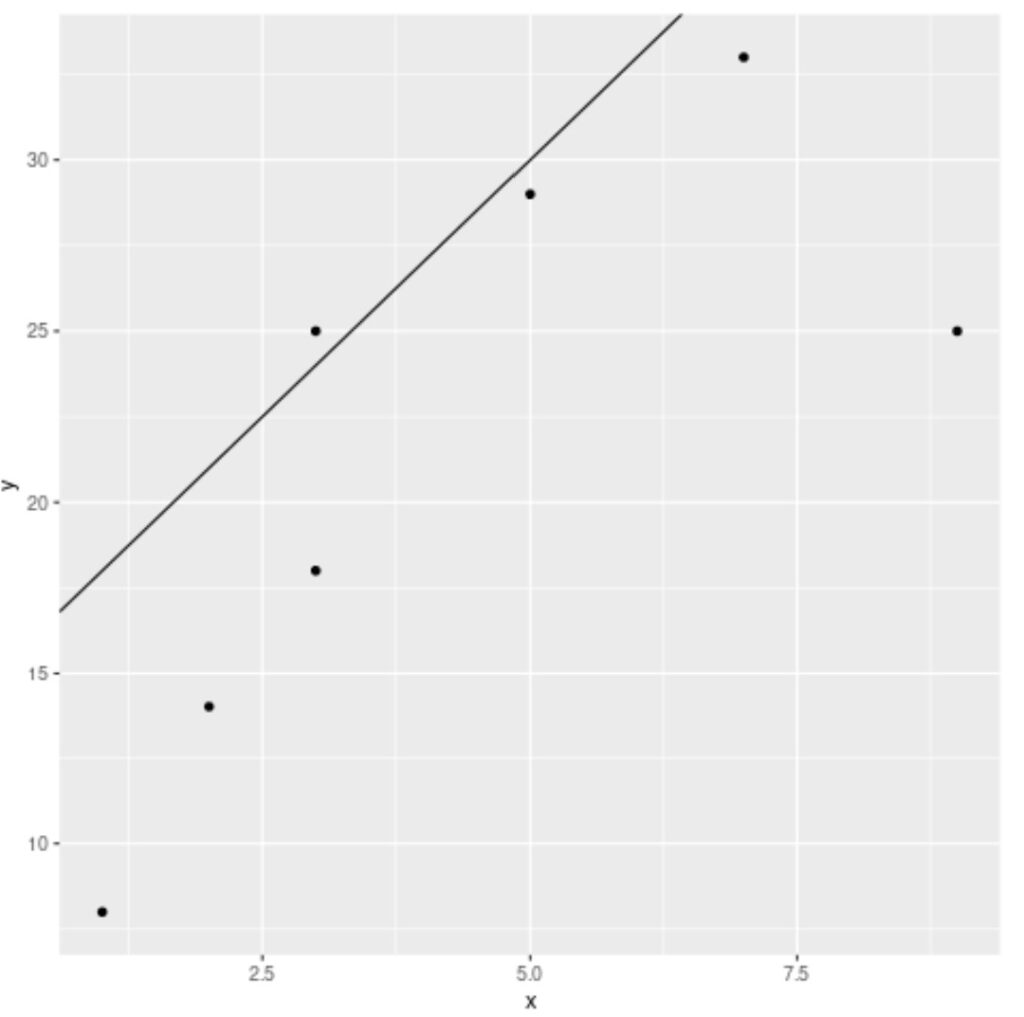

The resulting visualization clearly contrasts the theoretical line with the actual data points, allowing for immediate assessment of how closely the observed data aligns with the expected linear relationship.

Example 2: geom_vline() – Marking Key Vertical Locations

Vertical lines are frequently used in data visualization to segment regions, mark critical boundaries, or indicate specific events along the x-axis. For instance, in time-series data, a vertical line might denote a policy change or a major market event. In a distribution plot, it might highlight the mean or median. The geom_vline() function simplifies this process by requiring only a single parameter: xintercept. This value determines where the line will be drawn on the horizontal axis.

In this example, we aim to draw a vertical reference line at $x=5$. This might represent a threshold or a point of interest relevant to the experimental design or data collection process. It is important to remember that xintercept must be a specific numerical value corresponding to the scale of the x-axis.

library(ggplot2)

#create scatterplot and add vertical line at x=5
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_vline(xintercept=5)

The generated plot now includes a vertical marker, making it easy to see which data points fall on either side of the $x=5$ boundary.

Example 3: geom_hline() – Establishing Baseline Horizontal References

Similar to its vertical counterpart, geom_hline() is indispensable for adding constant horizontal reference lines. These lines typically represent target goals, statistical means (such as the overall mean of the dependent variable), or performance benchmarks. By drawing a line across the entire plot at a fixed y-value, viewers can quickly assess the spread and deviation of data points relative to this key metric.

For this demonstration, we use geom_hline() to add a line at $y=25$. This value could represent, for example, the median value of the entire dataset or a pre-defined success metric. Defining the horizontal position requires setting the yintercept argument.

library(ggplot2)

#create scatterplot and add horizontal line at y=25
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_hline(yintercept=25)

The resulting visual display facilitates the comparison of individual data points against the chosen $y=25$ threshold, clearly showing which observations fall above or below this important reference point.

Example 4: geom_smooth() – Adding a Linear Regression Fit

In analytical data exploration, one of the most common requirements is to visualize the underlying trend between two variables. The geom_smooth() function is specifically designed for this purpose, automatically calculating and plotting a smoothed conditional mean, which can be specified as a straight linear regression line. By setting the method argument to 'lm' (linear model), ggplot2 fits the line using the standard ordinary least squares technique.

Unlike the explicit definition required by geom_abline(), geom_smooth() is data-driven, calculating the slope and intercept based on the observed data points. This makes it an essential tool for exploratory data analysis and initial model fitting. We must also consider the confidence interval associated with the fit, which ggplot2 displays by default as a shaded region. However, for a cleaner display focusing only on the straight line, we can suppress this feature.

library(ggplot2)

#create scatterplot and add fitted regression line
ggplot(df, aes(x=x, y=y)) +
  geom_point() +
  geom_smooth(method='lm', se=FALSE)

The resulting plot shows the best-fit line traversing through the scatterplot, providing a clear visual summary of the linear relationship between $x$ and $y$.

Note: The argument se=FALSE is critical here. It instructs geom_smooth() not to display the shaded area that typically represents the standard error of the estimate (or confidence interval). Removing this shading ensures that only the straight line component of the regression is visible, aligning with the goal of adding only straight lines to the plot.

Customizing Aesthetics and Best Practices

While adding a straight line is functional, effective data visualization often requires customizing the appearance of these geometric elements. All four functions discussed (geom_abline(), geom_vline(), geom_hline(), and geom_smooth()) support aesthetic mappings that control the line’s visual properties. These properties should be defined outside the main aes() call but within the specific geom function.

Key aesthetic parameters for customizing straight lines include:

• color: Defines the line color (e.g., color='red' or color='blue'). This is essential for distinguishing reference lines from the main data points.
• size: Controls the thickness of the line.
• linetype: Determines the line style (e.g., linetype='dashed', linetype='dotted', or linetype='solid'). Dashed lines are often preferred for reference lines to avoid confusion with actual data trends.
• alpha: Controls the transparency of the line, which is useful when multiple lines overlap or when the line should recede slightly into the background.

By judiciously applying these aesthetic controls, users can create highly informative and polished graphics that effectively communicate the role of each straight line within the visualization.

Conclusion and Further Resources

Adding straight lines to ggplot2 plots is a fundamental technique for enhancing data visualization and interpretation. Whether you require a custom theoretical line using geom_abline(), critical reference markers via geom_vline() and geom_hline(), or a calculated trend line using geom_smooth(), ggplot2 offers the necessary tools for precision and flexibility. Mastering these four geoms ensures that you can overlay rich contextual information onto your scatterplots and other graphical representations.
