How to Filter for the Top 10 Values in Your Excel Pivot Table: A Step-by-Step Guide

The detailed, step-by-step example provided below illustrates the precise process required to filter for and display only the top 10 values within an operational Excel Pivot Table, ensuring clarity and accuracy in your subsequent data reporting.

Understanding the Role of Source Data Structure

Before initiating the Pivot Table creation process, it is critical to ensure that the source data is structured appropriately. For maximum efficiency and flexibility, the data should be organized in a tabular format, where the first row contains descriptive headers (field names), and each subsequent row represents a unique record or transaction. This clean structure allows the Pivot Table mechanism to correctly identify and aggregate the numerical data based on the categorical fields, which is essential for successful filtering operations like the Top 10 analysis.

The current analysis focuses on store performance metrics, specifically looking at sales and returns. To effectively implement the Top 10 filter, we require at least two key components in the data set: a category field (Store identifier) and a corresponding quantitative field (Sales or Returns). The relationship between these fields dictates how the aggregation and subsequent filtering will occur in the Pivot Table. If the source data is poorly formatted—for instance, including merged cells or empty header rows—the Pivot Table may fail to generate or provide inaccurate aggregation totals, rendering the Top 10 analysis unreliable.

Step 1: Preparing and Inputting the Source Data

The initial phase requires the precise input of the data that will form the foundation of our analytical tool. For this specific demonstration, we will utilize hypothetical sales data collected across fifteen distinct retail stores. It is imperative that the data is entered accurately into the worksheet, typically beginning in cell A1, with clear column headers defining the metrics. This structure ensures that Excel correctly interprets the range when constructing the Pivot Table.

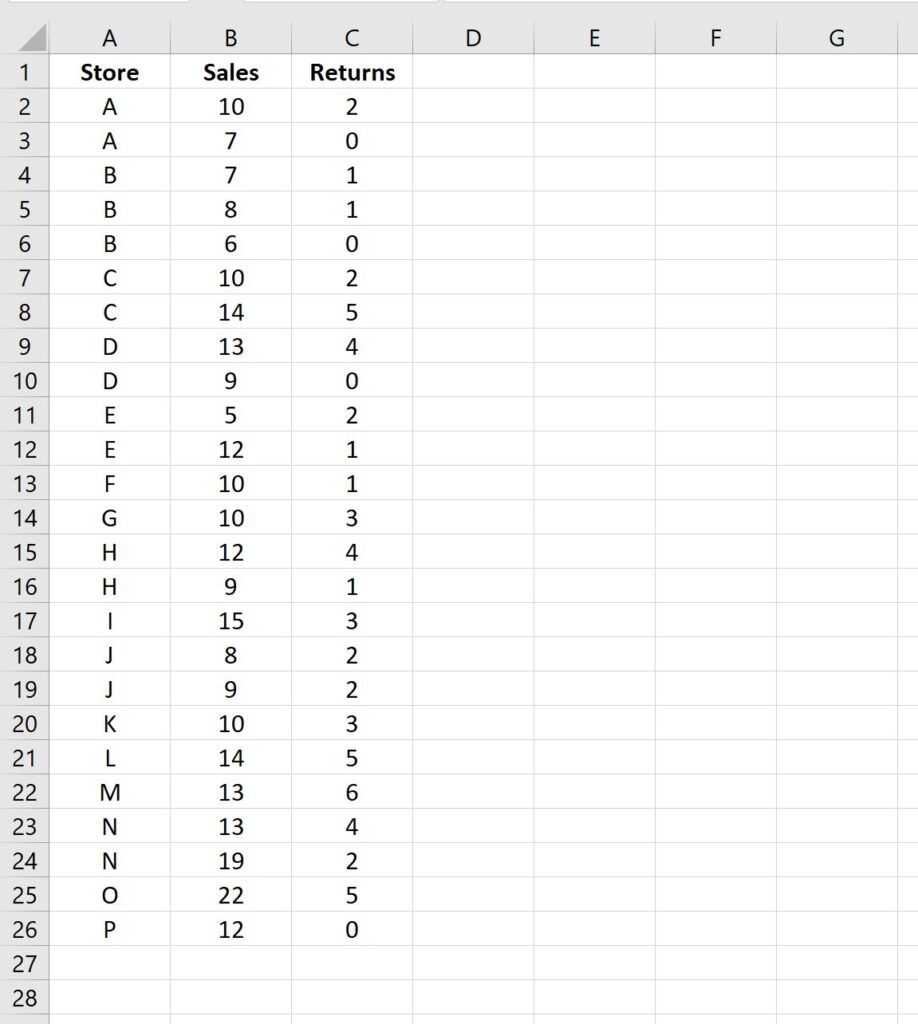

The sample data set includes three primary columns: the Store identifier, the total Sales value, and the corresponding Returns value. Note the sequential listing of the stores and their associated metrics, which provides the raw figures we intend to summarize and analyze using the filter feature. This detailed, row-by-row structure is the backbone of dynamic Pivot Table functionality.

Step 2: Generating the Initial Pivot Table Structure

Once the source data is prepared, the next crucial step is generating the Pivot Table itself. Navigate to the top ribbon interface of Excel and select the Insert tab. Within the group of tools presented, locate and click the PivotTable icon. This action initiates the PivotTable creation wizard, which guides the user through selecting the data range and placement of the new table.

A new dialog box titled “Create PivotTable” will prompt for key parameters. For our example, the data range spanning from A1 to C26 must be specified, encompassing all headers and sales records. Critically, we must also determine where the resulting Pivot Table will reside. For convenience and direct comparison with the source data, we choose to place the new table in cell E1 of the existing worksheet. This placement choice keeps the analysis localized and easily viewable alongside the original input data.

Defining Fields: Rows, Columns, and Values

Upon confirming the Pivot Table creation parameters by clicking OK, the specialized PivotTable Fields panel will materialize on the right-hand side of the screen. This panel is the central control hub for designing the table layout. Effective arrangement of fields is crucial for the intended analysis, especially when preparing for filtering based on aggregated metrics.

We must allocate the fields into the four distinct areas: Filters, Columns, Rows, and Values. To structure the table for a store-level performance review, we drag the Store field into the Rows box; this action lists each unique store as a distinct row header. Subsequently, the quantitative metrics that require summation—namely the Sales and Returns fields—must be dragged into the Values box. These fields are automatically aggregated (summed) by default, providing the numerical basis for our Top 10 filtration.

Once the fields are correctly positioned, the Pivot Table automatically populates the designated area of the worksheet, displaying the total sum of sales and returns corresponding to each individual store. This initial, unfiltered view represents the complete dataset summary, which serves as the starting point before applying our targeted performance filters.

Step 3: Applying the Advanced Top 10 Filter

The core objective of this process is to isolate the top performers. To achieve this, we need to apply a specialized value filter to the row labels, which in this case are the store names. This filter is inherently dynamic and will adjust automatically if the underlying source data changes. To begin the filtering process targeting the 10 stores with the highest values in the Sum of Sales column, locate any of the store names within the Pivot Table (the row labels) and execute a right-click action.

In the context-sensitive dropdown menu that appears following the right-click, navigate to the Filter option. Hovering over this option reveals several filtering methods; select Top 10 from the expanded submenu. This action opens the dedicated “Top 10 Filter” dialog box, which allows for precise definition of the criteria used to select the top items. This particular method of applying the filter via the right-click menu ensures that the filter is applied directly to the dimensional field (Store) based on the aggregated Value Field (Sum of Sales).

Customizing the Top N Filter Parameters

Within the Top 10 Filter window, three critical settings must be configured to execute the filter successfully. First, ensure that the selection dictates filtering for the Top items (as opposed to the Bottom). Second, verify that the number of items is set to 10—though this can be modified to any desired number, N. Finally, and most importantly, confirm the metric being used for ranking: “Items by” should be set to Sum of Sales. This specifies that the ranking must be based on the calculated total sales value, thereby correctly identifying the stores with the highest revenue performance.

Once these parameters are confirmed, click OK to apply the filter. The Pivot Table immediately recalculates and refreshes its display. The resulting view will be drastically condensed, showcasing only the ten entries that satisfied the highest sales criteria. This transformation from a full data summary to a highly focused performance report highlights the efficiency of Excel’s built-in analytical tools.

Following the application of the filter, the Pivot Table is automatically truncated to exclusively display the 10 stores that achieved the highest aggregated values for the Sum of Sales column. It is important to remember that this filter is dynamic; should any new data be added to the source range or existing data be modified (requiring a Pivot Table refresh), the top 10 list will update accordingly to reflect the current performance ranking. This ensures that the analytical output remains relevant and accurate.

Note: The filtering mechanism is highly versatile. By altering the number ’10’ in the filter dialogue box, you can easily customize the analysis to display the top 5, top 20, or any specified N number of items. Similarly, changing the selection from ‘Top’ to ‘Bottom’ allows for the identification of the lowest performing entities based on the chosen value metric, facilitating comprehensive performance reviews.

Step 4: Enhancing Readability by Sorting the Results (Optional)

A crucial observation after applying the Top 10 filter is that while the Pivot Table correctly identifies the 10 highest-value stores, it does not inherently display them in descending (or ascending) numerical order. The stores may still appear in the order defined by the original data input or alphabetical store name order, which compromises the immediate readability and comparative utility of the resulting table. To maximize the impact of the analysis, an additional sorting step is highly recommended.

To properly sort the filtered data, focus on the quantitative column used for the ranking—in this case, the Sum of Sales column. Right-click on any numerical value within this column. This action brings up a context menu containing sorting options. Hover over Sort, and then select the option Sort Largest to Smallest. This command instructs Excel to rearrange the entire Pivot Table layout based on the values in the selected column, ensuring that the highest sales figures appear at the top.

The final adjustment results in a perfectly ordered Pivot Table. The stores are now arranged seamlessly from largest to smallest based on their corresponding sales figures, providing an unambiguous and highly readable view of the top performers. This final step completes the process, offering immediate insight into the highest contributing entities within the data set.

Conclusion: Leveraging Filtered Pivot Tables for Insight

The meticulous application of the Top 10 filter and subsequent sorting transforms raw sales data into a focused, high-value analytical report. By efficiently isolating key performers, organizations can allocate resources more effectively, identify successful business strategies, and focus on supporting the highest-yield operations. This process is not limited to sales metrics; it can be applied to expense tracking, inventory management, or any quantifiable dimension where identifying the extremes (top or bottom N) is critical for strategic decision-making.

Furthermore, understanding how to adjust the N value and switch between Top and Bottom criteria provides analysts with unparalleled flexibility. Whether reporting on the busiest locations, the most frequent defect categories, or the ten largest expenses, the Pivot Table filter remains an indispensable tool for extracting actionable intelligence from voluminous data sets. Consistent practice with these filtering techniques ensures mastery over advanced data reporting within the Excel environment.
