How to Group Pivot Table Values by Uneven Intervals: A Step-by-Step Guide

Analyzing large datasets often requires summarizing information across specific categories. While the standard grouping functions in an application like Excel are powerful, they typically rely on fixed, uniform intervals (e.g., grouping ages by every 10 years). However, real-world analytical needs often demand grouping values into ranges that are not uniform or symmetrical.

The challenge of grouping values in a Pivot Table by uneven intervals cannot be solved through the native grouping dialogue alone. Instead, it necessitates a preparation step: employing a Helper Column within the source data. This technique allows you to specify custom, asymmetrical boundaries, such as specific date ranges or variable size bins for numerical data, granting ultimate flexibility in how your data is summarized and visualized.

By defining these custom groups manually in the source table, the resulting Pivot Table can then easily categorize and aggregate the required metrics based on the predefined, uneven bins. This approach is superior to attempting to force manual selection within the PivotTable Field List because it ensures consistency and scalability across potentially millions of rows of data.

The following detailed, step-by-step example demonstrates the professional method for achieving uneven interval grouping in an Excel Pivot Table, utilizing logical functions to create the required categories.

Understanding the Need for Custom Grouping

Standard Pivot Table grouping works exceptionally well when dealing with time-based fields (such as years, quarters, or months) or when grouping numerical values into fixed, equal-sized bins. For instance, if you have sales data ranging from 100 to 500, the Pivot Table can easily group them automatically into bins of size 50 (100-149, 150-199, etc.).

However, many analytical scenarios require groupings that reflect qualitative thresholds or business rules rather than mathematical symmetry. For example, a business might classify small stores (100-124 sq. ft.), medium stores (125-149 sq. ft.), and large stores (150-199 sq. ft.), with all remaining stores falling into an ‘Extra Large’ category (200+ sq. ft.). The intervals here are 25, 25, 50, and then infinite, respectively, which the standard grouping mechanism cannot accommodate.

To successfully implement these uneven intervals, we must preprocess the raw numerical field (e.g., store square footage) into a categorical text field (the custom groups). This new categorical field is then used as the primary row label in the Pivot Table, effectively bypassing the numerical grouping limitations entirely. This technique guarantees that the resulting aggregated metrics accurately reflect the specific, business-defined groupings.

Step 1: Preparing and Entering the Source Data

The initial step involves ensuring the source data is properly structured in a tabular format, with distinct columns for the metric we wish to measure (Sales) and the variable we wish to group (Sq. Feet). This foundation is crucial for the subsequent Pivot Table creation process.

For this demonstration, we will analyze performance across 15 different retail stores, focusing on how their sales figures relate to their physical size (square footage). This setup allows us to rigorously test our uneven grouping approach.

First, let’s enter the following data about 15 different stores into our Excel spreadsheet, typically starting in cell A1:

It is imperative that the source data remains dynamic. Any changes to the Square Footage or Sales columns must automatically be reflected in the resulting groups and the final Pivot Table summary. This is why the use of a calculated field via a Helper Column is far superior to manually assigning groups.

Step 2: Defining the Uneven Intervals and Creating the Helper Column

Our primary objective is to categorize the raw square footage values into specific, predetermined intervals that are not of equal length. This is where the power of logical formulas comes into play to assign each store to its appropriate bin.

Suppose we’d like to create a Pivot Table that displays the sum of sales categorized by the following, non-uniform intervals of store square footage:

• 100-124 sq. feet (Interval length: 25)
• 125-149 sq. feet (Interval length: 25)
• 150-199 sq. feet (Interval length: 50)
• 200+ sq. feet (Interval length: Open/Infinite)

Notice that each interval does not possess the same length, confirming the necessity of a custom solution. To create a Pivot Table where we group by intervals of different lengths, we must first establish a Helper Column that systematically classifies each store’s square footage into one of these defined intervals.

This Helper Column, which we might name “Sq. Feet Group,” will contain text strings (“100-124,” “125-149,” etc.) that the Pivot Table can easily use as categorical labels.

Step 3: Implementing the Nested IF Formula

To accurately categorize the square footage into the required bins, we rely on the IF function, specifically a nested structure. Nested IF statements execute a series of sequential logical checks. The order of these checks is critical; we must check for the smallest boundaries first and proceed upward, allowing each subsequent check to operate only on the remaining uncategorized data.

We can use the following comprehensive formula, entered into cell C2, to achieve this classification. The formula references the Square Footage value in cell B2:

=IF(B2<125, "100-124", IF(B2<150, "125-149", IF(B2<200, "150-199","200+")))

This formula operates based on strict upper limits:

1. The first check, IF(B2<125, "100-124", ...), captures all values up to 124 (assuming the minimum value is 100 based on the initial dataset).
2. If the value is 125 or greater, the formula moves to the second nested IF function. Here, IF(B2<150, "125-149", ...) captures values between 125 and 149.
3. If the value is 150 or greater, the third check IF(B2<200, "150-199", ...) handles values up to 199.
4. Finally, if none of the preceding conditions are met (meaning the value is 200 or greater), the formula assigns the default category, "200+".

After entering the formula in C2, it must be copied down through all rows of your data set to classify every store. The following screenshot illustrates the practical result of applying this formula across the data range:

Step 4: Executing the Pivot Table Creation

Once the Helper Column containing the text-based group labels is successfully generated, we can proceed to create the analytical Pivot Table. This step leverages the preparatory work by treating the custom groupings as standard categorical fields.

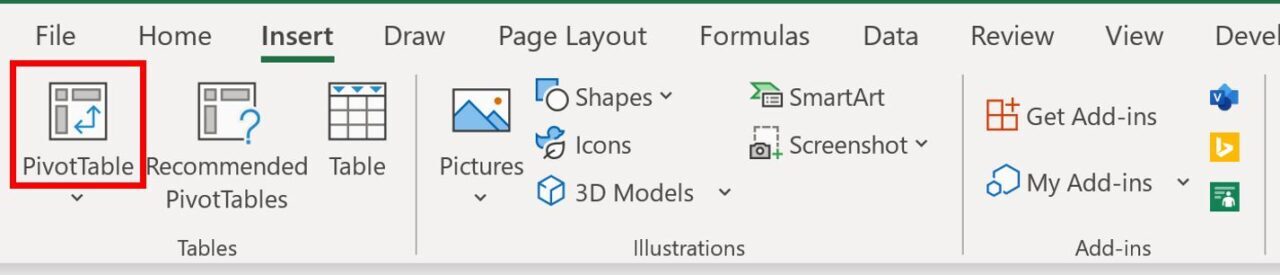

To initiate the Pivot Table creation process in Excel, navigate to the Insert tab located along the top ribbon interface. Within the leftmost section of this ribbon, locate and click the PivotTable icon. Ensure that your cursor is positioned within the range of your source data (Columns A, B, and C) before clicking the icon to automatically select the range.

A dialogue box will appear, prompting you to confirm the data range and select where you want the Pivot Table to be placed (typically a New Worksheet). Verify that the entire range, including the newly created “Sq. Feet Group” column, is selected. If using a Named Table structure, this selection process is often automatic and more robust.

Once you click OK, a new blank Pivot Table will be generated, and the PivotTable Fields panel will appear on the right side of the screen, displaying all available column headers from your source data, including the custom grouping column.

Step 5: Configuring the Pivot Table Fields

The final crucial configuration step involves assigning the fields to the appropriate areas within the Pivot Table layout—Rows, Columns, Values, and Filters. Since we have already performed the grouping calculation, the process is straightforward.

Drag the Sq. Feet Group field (our Helper Column) to the Rows box. This action tells the Pivot Table to use our predefined, uneven intervals as the primary summary categories. The unique text strings defined by the nested IF function will populate the first column of the resulting table.

Next, drag the Sales field to the Values box. By default, Excel will aggregate numerical data using the Sum function, which is precisely what is required to calculate the total sales within each custom square footage bin. If a different metric is needed, such as average or count, the aggregation type can be changed by clicking on the field in the Values box and selecting “Value Field Settings.”

Upon completing these assignments, the Pivot Table will automatically populate, summarizing the sales based on the custom, uneven groupings defined in Step 3.

Step 6: Analyzing the Grouped Results

The resulting Pivot Table elegantly presents the aggregated sales figures corresponding exactly to the uneven intervals we established. The key advantage here is the accuracy and repeatability of the grouping, ensuring that complex business rules are applied consistently across the entire dataset.

The pivot table will automatically be populated with the following summary values, providing immediate insight into performance across different store sizes:

Here is the formal interpretation of the summarized values within the resulting table:

• The sum of the sales for stores categorized as having square footage between 100 and 124 (the smallest category) is 51. This metric aggregates sales from all individual stores that satisfied the B2<125 condition.
• The sum of the sales for stores with square footage between 125 and 149 is 82. These stores represent the next size tier, validating the precise segmentation offered by the nested logical structure.
• The remaining row totals, 80 for the 150-199 sq. ft. category and 51 for the 200+ sq. ft. category, complete the full sales distribution across the defined business segments.

This methodology successfully overcomes the inherent limitations of standard numerical grouping in Excel, proving that complex, non-uniform interval analysis is both achievable and highly efficient when employing logical Helper Columns.

Summary of Advantages and Best Practices

Using a Helper Column for uneven grouping offers several analytical advantages. First, it ensures that the boundaries used for analysis are explicitly clear and modifiable directly within the source sheet, making the analysis transparent and auditable. Should the business decide to change the definition of a “medium” store (e.g., from 149 sq. ft. to 160 sq. ft.), only the nested IF function needs a single edit, and the entire Pivot Table updates automatically upon refresh.

For datasets requiring more than seven or eight nested conditions, the use of the IF function can become cumbersome and difficult to debug. In such advanced scenarios, experts often recommend alternative Excel functions like VLOOKUP or XLOOKUP combined with a separate mapping table. This external table explicitly lists the lower bound of each interval and the corresponding group name, providing a cleaner, more scalable solution for managing numerous uneven intervals.

Ultimately, mastering this technique provides analysts with the capability to transform continuous numerical data into meaningful, customized categorical bins that align perfectly with complex business metrics or research requirements, vastly extending the utility of the standard Pivot Table feature.
