How to Easily Customize Axis Scales in R Plots Using ggplot2

The Importance of Customizing Axis Scales in R

Effective charting often requires moving beyond the default settings R provides. When R automatically determines the axis limits, it calculates the minimum and maximum values based solely on the range of the provided data. While convenient for quick inspection, this default behavior can sometimes truncate relevant context, exaggerate small differences, or fail to align multiple related plots consistently. Therefore, learning how to manually control the minimum and maximum boundaries of your plot axes is critical for generating publication-quality figures, ensuring the visual representation is accurate and contextually appropriate for the intended audience.

Customizing axis scales ensures that the resulting visualization clearly and fairly represents the underlying data distribution. For instance, if you are comparing a current dataset to a historical benchmark, setting a consistent starting point (e.g., zero) on the Y-axis prevents visual distortion, even if the current data range starts significantly higher. Furthermore, adjusting the axis limits allows for the inclusion of anticipated future values or theoretical maxima, providing a broader context for the observed data points. This level of control is paramount for sophisticated data visualization projects, especially when dealing with time series or comparative analyses where visual consistency is key.

Understanding Scaling Methods: Base R vs. ggplot2

In the R ecosystem, there are two primary methods for generating visualizations, each with its own approach to axis management. The first is the traditional Base R graphics system, which uses procedural functions applied directly to the plot command, typically plot(). The second and often more popular method is using the ggplot2 package, which is built on the grammar of graphics philosophy. Understanding which environment you are using dictates which specific functions you must employ for scaling.

The Base R approach is quick and straightforward but often less flexible for complex adjustments. It relies primarily on graphic parameters passed directly into the plotting function, such such as xlim and ylim. These arguments define the physical range of the axes during the plot creation process. In contrast, ggplot2 uses a layered structure, requiring dedicated scale functions (e.g., scale_x_continuous()) to modify axes. While ggplot2 does accept xlim() and ylim() wrappers, using the scale functions is generally considered the more robust and recommended approach, as it maintains the integrity of the underlying data and provides greater control over transformation and labeling.

Example 1: Changing Axis Scales in Base R using xlim() and ylim()

When working within the standard Base R environment, the simplest way to control the visible range of the X and Y axes is by utilizing the xlim() and ylim() arguments within the primary plot() function. These arguments expect a vector of two numerical values: the desired minimum and maximum limits for the respective axis. If these arguments are omitted, R automatically calculates the range needed to encompass all data points. However, when specified, R strictly enforces these boundaries, effectively defining the plotting window.

The syntax is highly intuitive: xlim=c(min_value, max_value) and ylim=c(min_value, max_value). It is crucial to remember that these limits define the plotting window. Any data points that fall outside the specified range will be excluded from the visualization, although they remain unchanged in the underlying dataset. This behavior makes xlim() and ylim() powerful tools for focusing on specific subsets of data distribution without filtering the data frame itself, providing a visual zoom mechanism.

The following code shows how to define sample data and then generate two plots: one using R’s default settings, where the axes automatically scale to the data range, and a second where we enforce a much wider custom range (0 to 30 for the X-axis and 0 to 150 for the Y-axis). Observing the resulting plots demonstrates the dramatic impact manual scaling has on the visual representation of the data clustering.

#define data
df <- data.frame(x=c(1, 3, 3, 4, 6, 8, 12, 13, 15, 18, 21, 22),
                 y=c(13, 15, 9, 17, 22, 25, 29, 35, 39, 44, 45, 40))

#create plot with default axis scales
plot(df$x, df$y, pch=19, main='Default Axes')

#create plot with custom axis scales
plot(df$x, df$y, pch=19, xlim=c(0,30), ylim=c(0,150), main='Custom Axes')

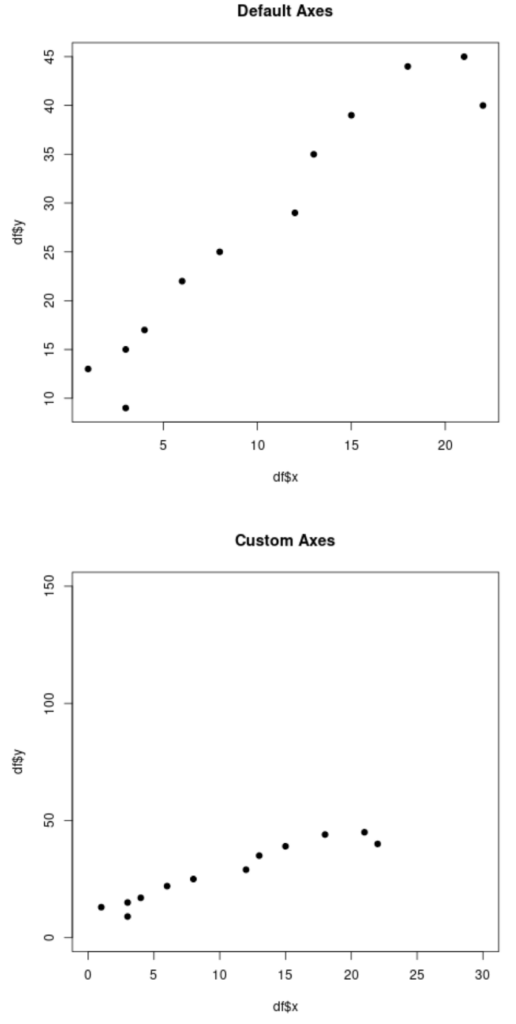

As evident in the resulting figures, the custom axis settings dramatically compress the visible range of the data points, providing a different perspective than the default view. This technique is often employed when attempting to compare this dataset against another that naturally spans a larger range, ensuring both visualizations use the same visual coordinate system for consistency and interpretability.

Transforming Axes in Base R: Utilizing the log Argument

Beyond simply setting numerical limits, analysts frequently need to apply mathematical transformations to an axis, most commonly using a log scale. Log scales are exceptionally useful when dealing with data that spans several orders of magnitude, such as population growth, financial indices, or scientific measurements. Using a logarithmic transformation allows for better visualization of relative changes and prevents small values from being entirely obscured when very large values are also present within the same plot.

In Base R, implementing a logarithmic transformation is achieved through the log argument within the plot() function. This argument accepts a string specifying which axis should be transformed: 'x' for the X-axis, 'y' for the Y-axis, or 'xy' for both axes simultaneously. By default, Base R uses base 10 for the logarithmic transformation. This is a quick and effective method for visually compressing data that follows exponential growth patterns.

The following demonstration illustrates how to transform the Y-axis to a log scale. Notice that the actual data points (the y values) remain in their original numerical scale in the data frame, but their placement on the plot is governed by the logarithmic transformation of the Y-axis. This transformation often results in visually clearer linear patterns for data that is exponentially distributed.

#define data
df <- data.frame(x=c(1, 3, 3, 4, 6, 8, 12, 13, 15, 18, 21, 22),
                 y=c(13, 15, 9, 17, 22, 25, 29, 35, 39, 44, 45, 40))

#create plot with log y-axis
plot(df$x, df$y, log='y', pch=19)

When applying the logarithmic argument, R automatically adjusts the tick marks and labels to reflect the new scale, often displaying them in scientific notation or marking the powers of ten, depending on the range. This visual cue is essential for correctly interpreting the magnitude differences shown on the plot, especially since equal visual distances now represent equal ratios rather than equal absolute differences.

Example 2: Changing Axis Scales in ggplot2

Switching our focus to the highly versatile ggplot2 package, we find that while the underlying goal of axis adjustment remains the same, the methodology is integrated into the “grammar of graphics.” For setting simple, fixed limits, ggplot2 also provides wrappers for the xlim() and ylim() functions. These wrappers are easy to use and allow for quick definition of the plot boundaries, much like in Base R. However, a significant difference in ggplot2 is that these functions operate by setting the limits of the coordinate system, which has the essential consequence of dropping any data points that fall outside these specified boundaries before they are drawn on the plot.

To implement fixed axis scales in ggplot2, you simply add the xlim() and ylim() layers to your primary plot structure. This method is often sufficient for basic boundary control when you need to crop the visualization to a specific area. For example, if we wish to replicate the custom scaling achieved in the Base R example, we add the desired limits directly after defining the geometric object (geom_point() in the case of a scatterplot). This approach ensures that the visualization is tightly focused on the area of interest.

The following code block demonstrates how to define our dataset and then construct a standard ggplot2 scatterplot, applying the custom ranges of 0 to 30 for the X-axis and 0 to 150 for the Y-axis using the limit functions. This result is visually comparable to the custom-scaled Base R plot, showcasing the cross-package compatibility for basic scaling tasks, while adhering to the layered syntax required by the grammar of graphics.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 3, 3, 4, 6, 8, 12, 13, 15, 18, 21, 22),
                 y=c(13, 15, 9, 17, 22, 25, 29, 35, 39, 44, 45, 40))

#create scatterplot with custom axes
ggplot(data=df, aes(x=x, y=y)) +
  geom_point() +
  xlim(0, 30) +
  ylim(0, 150)

It is important to understand the nuance: using xlim() or ylim() in ggplot2 is distinct from using the specialized scale functions for setting boundaries. While limits functions define the visual frame by cropping the data, the scale functions (like scale_x_continuous()) offer much greater control over the appearance, formatting, and transformation of the tick marks and labels themselves, which is the preferred method for advanced customization.

Advanced ggplot2 Scaling: Using Dedicated Scale Functions for Transformations

The true power of axis customization in ggplot2 comes from the family of scale_*_continuous() functions. These functions allow for granular control over every aspect of a continuous axis, including range definition, transformation, label formatting, and break placement. Specifically, scale_x_continuous() is used for the X-axis, and scale_y_continuous() is used for the Y-axis. When setting limits, using the limits argument within these functions (e.g., scale_y_continuous(limits = c(0, 150))) is generally preferred over ylim(), as it interacts more naturally with other scaling components like coordinate transformations.

One of the most frequently utilized parameters within these scale functions is the trans argument, which enables smooth and powerful mathematical transformations. Unlike Base R, where the log argument only applies a base 10 transformation, ggplot2 accepts descriptive strings for various transformation types, such as 'log10', 'sqrt' (square root), or 'reverse'. This unified approach makes applying complex transformations systematic and highly readable, adhering strictly to the standard ggplot2 layered structure.

To transform an axis to a log scale, we specify trans='log10' within the appropriate scale function. This is the recommended way to handle non-linear scaling in modern R workflows, as it correctly transforms the underlying data, the axis lines, and the labels simultaneously, ensuring consistency and clarity in the final plot. This method is superior to manipulating the underlying data or using coordinate system transformations (like coord_trans()) for purely scaling purposes.

We can transform either the X or Y axis to a logarithmic base 10 scale using the following specific function calls:

• scale_x_continuous(trans='log10')
• scale_y_continuous(trans='log10')

The example below demonstrates transforming the Y-axis using scale_y_continuous(trans='log10'), achieving the same visual effect as the Base R log transformation but using the more explicit and customizable ggplot2 scaling mechanism.

library(ggplot2)

#define data
df <- data.frame(x=c(1, 3, 3, 4, 6, 8, 12, 13, 15, 18, 21, 22),
                 y=c(13, 15, 9, 17, 22, 25, 29, 35, 39, 44, 45, 40))

#create scatterplot with log y-axis
ggplot(data=df, aes(x=x, y=y)) +
  geom_point() +
  scale_y_continuous(trans='log10')

This method ensures maximum compatibility with other layers and provides the cleanest visual output for non-linear axis scales in modern R workflows. The axis labels will automatically adjust to show the tick marks appropriate for a logarithmic progression, maintaining clarity even when dealing with highly skewed data distributions.

Conclusion: Choosing the Right Scaling Method for Your Plot

Mastering the customization of axis scales is essential for effective visualization in R. Whether you opt for the simplicity of Base R’s xlim() and ylim() arguments or the structural depth of ggplot2‘s scale functions, the ability to control the visual boundaries and apply mathematical transformations is key to conveying accurate insights. For basic plots and quick analysis, Base R provides fast, efficient control. However, for complex projects, publication-quality graphics, and nuanced transformations, the ggplot2 framework offers superior flexibility and consistency through its dedicated scale functions.

Always consider the nature of your data and the message you intend to convey when setting scales. If your data has extremely high variance or is positively skewed, logarithmic scaling might be necessary to reveal underlying patterns obscured in a linear view. If you are aiming for comparability across multiple graphs, strict adherence to predefined custom limits is non-negotiable. By applying these techniques thoughtfully, you ensure that your R plots serve as powerful, unambiguous tools for data communication.
