How to Add a Trendline to a Seaborn Scatterplot

Fundamentals of Adding Reference Lines

To integrate static reference lines into your visualization, we utilize three core functions from the Matplotlib pyplot interface, which works seamlessly after a Seaborn plot has been initialized. These methods allow you to pinpoint exact coordinates or values to draw boundaries, central tendencies, or critical thresholds directly onto your scatter visualization.

Understanding these three functions is crucial for any data scientist seeking precise control over their visual outputs. Each function serves a distinct purpose for drawing different types of straight lines:

• plt.axhline(): Used for adding a straight line parallel to the X-axis (horizontal).
• plt.axvline(): Used for adding a straight line parallel to the Y-axis (vertical).
• plt.plot(): Used for drawing a custom straight line segment between two specified points (x1, y1) and (x2, y2).

Method 1: Adding a Horizontal Reference Line (plt.axhline)

The plt.axhline() function is essential for creating horizontal reference lines, typically representing a mean, median, or a critical performance threshold that the plotted data points should be compared against. This is immensely useful in quality control or setting service level agreements (SLAs).

The primary parameter for this function is y, which specifies the Y-coordinate at which the line should be drawn across the entire width of the plot. You can further customize the appearance using parameters like color, linestyle (e.g., ‘dashed’, ‘dotted’), and linewidth, ensuring the reference line is distinct from the plotted data points.

The basic implementation is straightforward:

#add horizontal line at y=15
plt.axhline(y=15)

Method 2: Adding a Vertical Reference Line (plt.axvline)

Conversely, plt.axvline() is used when you need a vertical reference line, which runs parallel to the Y-axis. This is particularly effective for delineating phases in time-series data, marking an intervention point, or indicating a specific categorical boundary along the X-axis.

The function accepts the x parameter, defining the X-coordinate where the vertical line will be positioned. Similar to its horizontal counterpart, axvline() supports extensive styling options, allowing for precise control over the visual hierarchy and emphasis of the reference marker on your Seaborn chart.

#add vertical line at x=4
plt.axvline(x=4)

Method 3: Adding a Custom Straight Line (plt.plot)

For scenarios requiring a line that is neither strictly horizontal nor vertical—perhaps representing a diagonal trend or a specific linear function boundary—the generic Matplotlib plt.plot() function is utilized. When plotting a line on a scatterplot, plt.plot() requires two lists or arrays: one defining the start and end X-coordinates, and the other defining the corresponding start and end Y-coordinates.

This method is powerful for plotting predefined relationships, such as the line y=x, or manually defining a performance envelope. The list structure ensures the plotting function connects the initial coordinate pair (X[0], Y[0]) to the final coordinate pair (X[1], Y[1]).

#add straight line that extends from (x,y) coordinates (2,0) to (6, 25)
plt.plot([2, 6], [0, 25])

The following detailed examples illustrate how to seamlessly integrate these Matplotlib functions within a standard Seaborn scatterplot workflow, demonstrating the practical application of each reference line type.

Example 1: Demonstrating a Horizontal Threshold Line

In this initial example, we establish a sample dataset using Pandas and visualize it using Seaborn’s scatterplot() function. The objective is to visually determine how many data points fall above or below a critical performance level, set arbitrarily at y=15. A horizontal line at this value immediately offers a visual benchmark for evaluation.

The process begins by importing the necessary libraries, creating a sample DataFrame, and generating the baseline scatterplot. The critical step is invoking plt.axhline(y=15) immediately after the scatterplot creation. By default, this line will be a solid, black line, but developers frequently adjust the color and linestyle (e.g., setting color='red' and linestyle='--') to make the threshold stand out clearly against the data points.

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

#create DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8],
                   'y': [18, 22, 19, 14, 14, 11, 20, 28]})

#create scatterplot
sns.scatterplot(x=df.x, y=df.y)

#add horizontal line to scatterplot
plt.axhline(y=15)

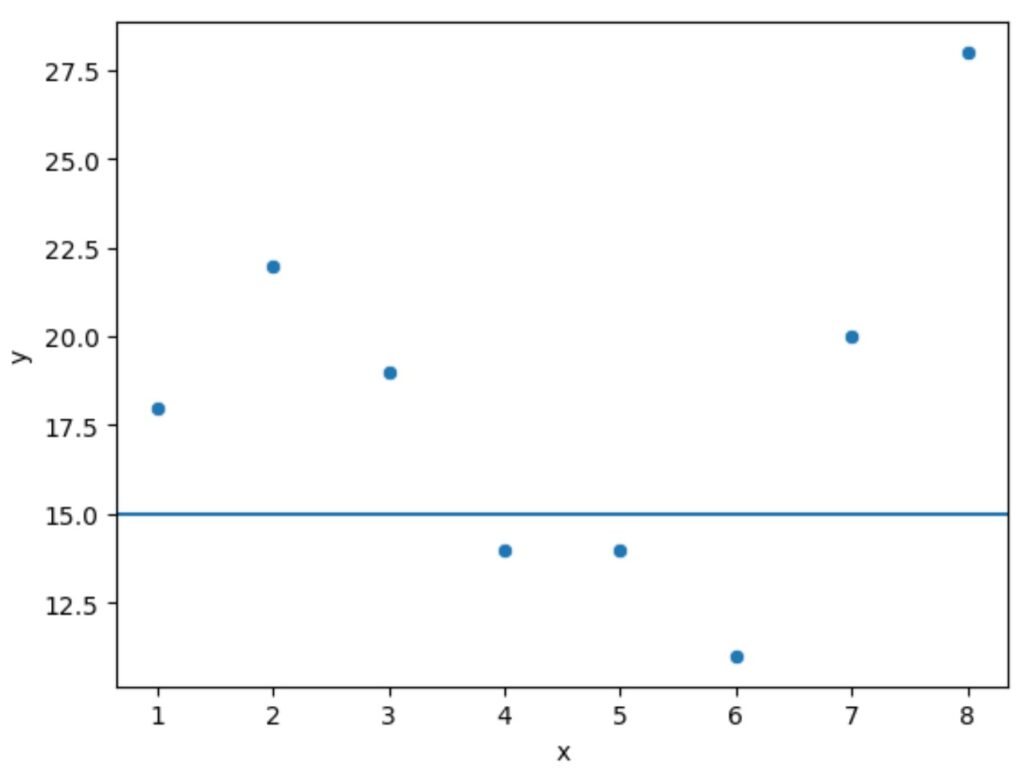

The resulting visualization clearly partitions the data points, enabling immediate assessment of which X-values correspond to Y-values above or below the designated threshold of 15. This method is far superior to simply noting the value on the Y-axis scale, as the line provides a constant visual anchor across the plot.

Example 2: Implementing a Vertical Divisor Line

In this second scenario, the goal is to introduce a vertical reference line. Vertical lines are often used in visualizations where the X-axis represents an ordered categorical variable, time, or a continuous input. Placing a line at x=4 acts as a natural separator, perhaps marking a shift in experimental conditions or a point where a new policy was implemented.

The code structure remains identical to the previous example up until the plotting stage. We substitute axhline with axvline, passing the desired X-coordinate. It is crucial that the specified X-value falls within the range of the data used in the DataFrame; otherwise, the line may appear outside the visible plotting area.

Using plt.axvline(x=4) effectively creates two distinct zones on the scatterplot: observations where X is less than 4, and observations where X is greater than 4. This is highly valuable when analyzing differential impacts or comparing subgroups within the data distribution.

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

#create DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8],
                   'y': [18, 22, 19, 14, 14, 11, 20, 28]})

#create scatterplot
sns.scatterplot(x=df.x, y=df.y)

#add vertical line to scatterplot
plt.axvline(x=4)

Using vertical reference lines helps guide the viewer’s focus toward data segmentation and provides immediate visual context regarding the distribution of points relative to a specific X-coordinate marker. This is particularly effective when working with data organized sequentially.

Example 3: Plotting a Custom Linear Relationship

The final example demonstrates the power of plt.plot() to embed a specific linear function onto the Seaborn scatterplot. Unlike the rigid axis-aligned lines in the previous examples, this method requires defining both the starting and ending coordinates for the line segment.

The command plt.plot([2, 6], [0, 25]) instructs Matplotlib to connect the point (X=2, Y=0) to the point (X=6, Y=25). This is highly useful for visualizing hypotheses, theoretical models, or lines of expected return, allowing for a direct comparison between the actual observed data points and the hypothesized trend.

The ability to overlay custom lines provides a deeper layer of analytical insight, especially when evaluating data against a predetermined benchmark that is not simply a flat mean or threshold. For instance, this custom line could represent a desired cost-to-benefit ratio or a theoretical growth trajectory.

import seaborn as sns
import matplotlib.pyplot as plt
import pandas as pd

#create DataFrame
df = pd.DataFrame({'x': [1, 2, 3, 4, 5, 6, 7, 8],
                   'y': [18, 22, 19, 14, 14, 11, 20, 28]})

#create scatterplot
sns.scatterplot(x=df.x, y=df.y)

#add custom line to scatterplot
plt.plot([2, 6], [0, 25])

Advanced Styling and Customization

While the examples above focus purely on position, professional data analysis visualizations require carefully chosen aesthetics to convey meaning effectively. Both axhline(), axvline(), and plot() accept numerous parameters for customization, including:

• color: Defines the line color (e.g., color='red' or using hex codes).
• linestyle or ls: Determines the line pattern (e.g., '--' for dashed, ':' for dotted, '-.' for dash-dot).
• linewidth or lw: Controls the thickness of the line (e.g., linewidth=2.5).
• alpha: Sets the transparency level (ranging from 0.0 to 1.0), useful for non-intrusive reference lines.
• label: Assigns a label to the line, allowing it to be included in the plot legend if plt.legend() is called.

For instance, adding a dashed red horizontal line at y=15 would be achieved by calling plt.axhline(y=15, color='red', linestyle='--', linewidth=2). Mastery of these parameters ensures that reference lines enhance rather than clutter your visualizations, making complex patterns easier to discern.

Conclusion and Further Reading

Integrating static reference lines into Seaborn scatterplots using the foundational functions provided by Matplotlib (axhline, axvline, and plot) is a core skill for effective data visualization. Whether identifying specific thresholds, demarcating experimental boundaries, or plotting theoretical relationships, these techniques provide the necessary precision and control.

For those interested in exploring automatic trend lines, such as those derived from linear regression, the official Seaborn documentation offers comprehensive guides on the regplot() and lmplot() functions, which handle the statistical calculation and plotting simultaneously. The complete documentation for Seaborn’s core functions, including scatterplot(), provides further details on plot initialization and styling options necessary for advanced visual design.
