How to Easily Add Text to Subplots in Matplotlib

import matplotlib.pyplot as plt

#define subplot layout
fig, ax = plt.subplots(2, 1, figsize=(7,4))

#add text at specific locations in subplots
ax[0].text(1.5, 20, 'Here is some text in the first subplot')
ax[1].text(2, 10, 'Here is some text in the second subplot')

This specific example uses ax[0].text(1.5, 20, ...) to place the text “Here is some text in the first subplot” at the (X, Y) coordinates (1.5, 20) within the top plot. Correspondingly, the text for the second plot is positioned at (2, 10) via the ax[1].text(2, 10, ...) call. It is vital to remember that these coordinates are interpreted relative to the data space of the respective subplot, meaning the X and Y values must fall within the range defined by the data plotted in that axis, or within the explicitly set limits of the axis.

Understanding the `ax.text()` Method Parameters

While the basic usage of ax.text() is simple, the method offers extensive customization through keyword arguments, allowing complete control over the text’s appearance and positioning. The three mandatory arguments are the X-coordinate, the Y-coordinate, and the text string itself. However, optional parameters allow developers to manipulate font size, color, rotation, alignment, and even add bounding boxes or mathematical notations. Understanding these parameters is key to creating polished and effective annotations that integrate seamlessly with the visualization.

A crucial optional parameter is ha (horizontal alignment) and va (vertical alignment). These parameters define how the specified (X, Y) coordinates relate to the text itself. For instance, setting ha='center' centers the text horizontally on the given X-coordinate, while ha='left' positions the left edge of the text block at X. Similarly, va controls vertical positioning, with options like ‘top’, ‘bottom’, and ‘center’. Precise control over alignment is especially useful when placing labels directly next to data points or drawing arrows using the related `annotate()` function.

Other important parameters include fontsize, which can be specified numerically (e.g., 12) or symbolically (e.g., ‘large’), and color or c, which accepts common color names or hex codes. For annotating technical charts, the bbox parameter is often employed to create a rectangular bounding box around the text, improving visibility against a busy background. By mastering these numerous parameters, you move beyond simple text placement and gain the ability to stylize annotations to match the overall aesthetic and communicative goals of the entire Matplotlib figure.

Practical Implementation: Setting up the Subplots

To demonstrate the application of the text() function, we first need a robust Matplotlib structure containing multiple axes. The standard practice involves using plt.subplots(), which simultaneously creates the main container figure (fig) and the collection of axes objects (ax). For our demonstration, we will define a simple vertical layout of two subplots (2 rows, 1 column), which is a common setup for comparing two related time series or distributions. The code below initiates this structure and populates the subplots with basic line plots, preparing the canvas for our targeted annotations.

Note the inclusion of fig.tight_layout(). This function is invaluable for subplot management, as it automatically adjusts subplot parameters to give a tight layout, preventing titles, labels, or annotations from overlapping or being clipped. Furthermore, we define simple arrays for X and Y data and use the ax[i].plot() method to draw the initial visualizations onto our separated axes. This entire block serves as the prerequisite setup before we introduce the textual elements.

The following example shows how to create two distinct subplots in Matplotlib, arranged in a layout with two rows and one column, ready for annotation:

import matplotlib.pyplot as plt

#define subplot layout
fig, ax = plt.subplots(2, 1, figsize=(7,4))
fig.tight_layout()

#define data
x = [1, 2, 3]
y = [7, 13, 24]

#create subplots
ax[0].plot(x, y, color='red')
ax[1].plot(x, y, color='blue')

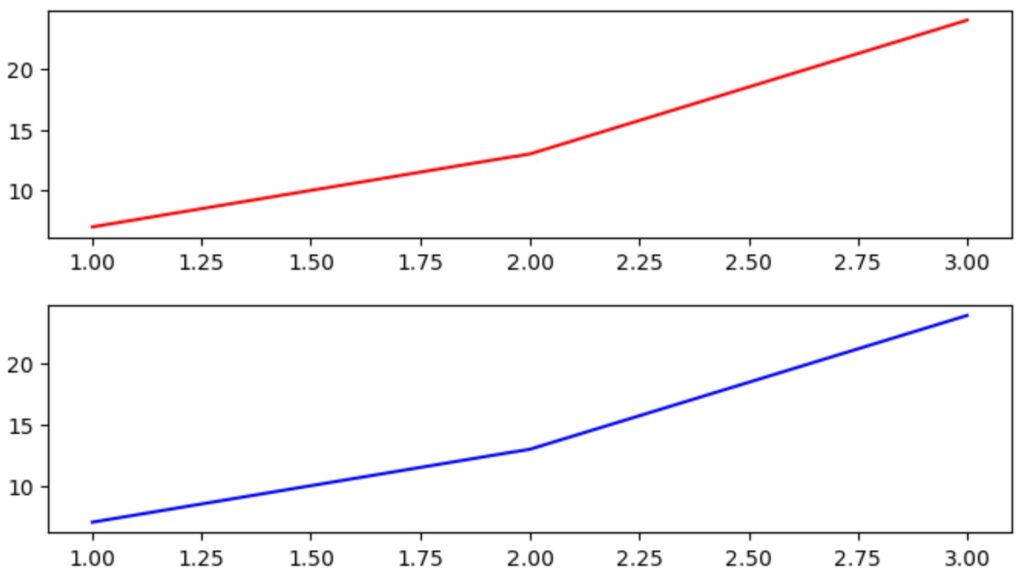

Upon execution, this code block generates a figure containing two separate line charts stacked vertically. The top chart (ax[0]) is rendered in red, and the bottom chart (ax[1]) is rendered in blue. At this stage, the plots are visually clear but lack specific contextual labels that might be necessary to interpret key features or differences between the two visualizations. This sets the stage perfectly for the next step: applying targeted textual annotations.

Detailed Example: Annotating Multiple Subplots

Now that the subplots are prepared and populated with data, we integrate the text placement logic. As established, we must use the index of the ax array to access the target plot. We will place a descriptive label on each subplot to demonstrate the independent nature of these annotations. For the top plot (ax[0]), we choose coordinates that place the text high and towards the center of the available data space. For the bottom plot (ax[1]), we select coordinates appropriate to its data range.

Crucially, observe how the X and Y coordinate values (e.g., 1.5 and 20) are meaningful only within the context of the data limits of their respective axes. Since both plots share the same underlying data (X range 1 to 3, Y range 7 to 24), the choice of coordinates must respect these boundaries to ensure visibility. We use coordinates slightly outside the initial data point locations to prevent overlapping with the plotted lines, maximizing clarity.

We can use the following full syntax, combining the setup and the annotation steps, to accurately add text to specific locations on each subplot:

import matplotlib.pyplot as plt

#define subplot layout
fig, ax = plt.subplots(2, 1, figsize=(7,4))
fig.tight_layout()

#define data
x = [1, 2, 3]
y = [7, 13, 24]

#create subplots
ax[0].plot(x, y, color='red')
ax[1].plot(x, y, color='blue')

#add text at specific locations in subplots
ax[0].text(1.5, 20, 'Here is some text in the first subplot')
ax[1].text(2, 10, 'Here is some text in the second subplot')

As evidenced by the resulting image, the text annotations have been successfully added to each subplot at the (X, Y) coordinates that we specified. It is critical to note that we used ax[0] to reference the first subplot and ax[1] to reference the second subplot, demonstrating the precise control required when handling collections of axes. We then employed the text() function to specify the (X, Y) coordinates along with the specific text string to use in each respective subplot environment.

Customizing Text Appearance and Positioning

While simply placing text is functional, sophisticated data visualization demands aesthetically pleasing and highly readable annotations. Matplotlib allows for extensive customization of the text properties. Parameters such as fontweight (e.g., ‘bold’), fontstyle (e.g., ‘italic’), and rotation (specified in degrees) are commonly used to draw attention to the annotation or orient it optimally within the plot space. For instance, if you have a dense horizontal plot, rotating the text 90 degrees might prevent overlap with other plot elements or tick labels.

Furthermore, controlling the background appearance is often necessary. By using the bbox parameter, we can define a boundary box around the text. This parameter takes a dictionary of properties, such as facecolor (the background color of the box), alpha (transparency level), and edgecolor. Applying a semi-transparent white box behind a dark text string, for example, ensures that the text remains legible even if it overlaps with a plotted line or a shaded region of the graph. This attention to detail elevates the overall quality and accessibility of the visualization.

For example, to make the text in ax[0] stand out with a yellow background and bold font, you might modify the call as follows: ax[0].text(1.5, 20, 'Important Annotation', fontsize=14, fontweight='bold', color='black', bbox={'facecolor': 'yellow', 'alpha': 0.7}). Utilizing these keyword arguments allows developers to create truly custom annotations that not only provide information but also adhere to strict corporate branding or publication style guides. The flexibility of the text() function makes it a powerful tool for adding layers of descriptive context to complex figures composed of multiple subplots.

Alternative Methods for Annotating

While ax.text() is excellent for placing static text labels, Matplotlib offers another powerful function for annotation: ax.annotate(). The primary difference is that ax.annotate() is specifically designed for drawing connections between two points: the location of the text label and the location of the point being highlighted (the annotation target). This makes it indispensable for tasks requiring arrows or graphical pointers to specific data points within a subplot.

The ax.annotate() function requires two coordinate sets: xy (the point being annotated, usually a data point) and xytext (the location where the text label should start). It also takes an optional arrowprops dictionary, which allows extensive customization of the arrow properties, including its shape, color, width, and style. For instance, if you wanted to draw attention to a peak value in the red plot (ax[0]), you would use annotate() to draw an arrow from the label back to that precise peak coordinate.

Although ax.text() and ax.annotate() can sometimes be used interchangeably, best practice dictates using text() for general labels and descriptive blocks (like panel descriptions or overall subplot titles) and using annotate() when a directional pointer (arrow) is required to link the text to a specific element within the plot data. Both methods honor the subplot structure, requiring the use of the specific axes object (e.g., ax[0]) to ensure the annotation is correctly scoped.

Conclusion and Best Practices

Adding textual annotations to subplots in Matplotlib is achieved through precise targeting of the individual axes objects returned by plt.subplots(). By accessing the correct index (e.g., ax[0] or ax[1]) and using the ax.text() method, developers maintain granular control over where labels are placed. This ability to isolate annotations is crucial for maintaining the clarity and structure of visualizations containing multiple distinct panels.

To ensure the highest quality results, always adhere to these key best practices:

• Coordinate Awareness: Always confirm whether you should be using Data Coordinates (for labeling data points) or Normalized Axes Coordinates (using transform=ax.transAxes for fixed position labels relative to the subplot frame).
• Utilize tight_layout(): Employ fig.tight_layout() early in your code to automatically handle spacing, drastically reducing the chances of annotation overlap with axes labels or titles.
• Readability First: Use customization parameters like bbox, color, and fontsize to ensure annotations are highly visible and do not conflict visually with the data being plotted. Avoid placing text directly over critical data unless necessary, and if so, use a semi-transparent background box.

Mastering the syntax for annotating complex figures is a fundamental step toward creating insightful and publication-ready data visualizations using the power and flexibility of the pyplot module. The principles discussed here—targeted axes access, coordinate system selection, and stylistic customization—are transferable to many other advanced Matplotlib tasks, serving as a solid foundation for further exploration.
