How to Easily Add a Title to Your Seaborn Heatmap

The Integrated Approach: Utilizing Matplotlib for Titling

Although the primary function for generating the visualization is `seaborn.heatmap()`, the mechanism for setting properties like the title belongs to the Matplotlib library, specifically the `pyplot` module, typically imported as `plt`. To add a title, you generally do not need to explicitly capture the Axes object returned by `sns.heatmap()` unless you are working with multiple subplots. For a standard, single heatmap visualization, calling `plt.title()` immediately after invoking the Seaborn function is the most straightforward and effective method.

The `plt.title()` function automatically targets the currently active axes object in the Matplotlib figure, which is created implicitly when Seaborn draws the heatmap. This simplicity makes the process highly efficient. The function accepts the desired title string as its first positional argument. It is critical to ensure that both the Seaborn and Matplotlib libraries are correctly imported before attempting execution, as shown in the foundational structure below. This foundational code structure represents the minimal requirements needed to display a titled heatmap.

The following syntax demonstrates the basic required imports and the sequential calls necessary to render a heatmap accompanied by a custom title:

import matplotlib.pyplot as plt
import seaborn as sns

# Create heatmap (assuming 'df' is loaded)
sns.heatmap(df)

# Add the desired title to the current Axes object
plt.title('This is my title')

This concise block of code encapsulates the essential logic: initialize the plotting environment, generate the visual component using Seaborn, and then immediately define the title text using Matplotlib’s functionality. The rest of this tutorial will expand on this framework by applying it to a concrete dataset and demonstrating further customization options available through the `plt.title()` function.

Setting Up the Data: Preparing a Pandas DataFrame

To illustrate the titling process practically, we will first create a sample dataset. For heatmaps, the data must typically be in a matrix format, where columns and indices represent different categorical variables, and the cell values represent the metric of interest (e.g., correlations, counts, or scores). We will use a Pandas DataFrame detailing points scored by basketball players over five consecutive years. This raw, long-format data needs transformation before it is suitable for a heatmap, which expects a wide format.

We begin by defining the initial DataFrame using the `pandas.DataFrame()` constructor, specifying the ‘year’, ‘player’, and ‘points’ columns. After the initial creation, the crucial step is pivoting the data. The `pivot()` method in Pandas allows us to reshape the data, making ‘player’ the new index, ‘year’ the new column headers, and ‘points’ the values that will populate the heatmap cells. This reshaping converts the data into the necessary structure for Seaborn visualization, facilitating a clear comparison of player performance across time.

The following code snippet demonstrates the creation and transformation of the sample data, resulting in the matrix structure required for the heatmap generation. Pay close attention to the output of the final `print(df)` command, which confirms the successful pivoting operation.

import pandas as pd

# Create the initial DataFrame with long format data
df = pd.DataFrame({'year': [1, 2, 3, 4, 5, 1, 2, 3, 4, 5, 1, 2, 3, 4, 5],
                   'player': ['A', 'A', 'A', 'A', 'A', 'B', 'B',
                              'B', 'B', 'B', 'C', 'C', 'C', 'C', 'C'],
                   'points': [8, 12, 14, 14, 15, 10, 15, 19, 29, 13,
                              10, 14, 22, 24, 25]})

# Pivot the DataFrame to wide format: index='player', columns='year', values='points'
df = df.pivot('player', 'year', 'points')

# View the resulting matrix structure
print(df)

year     1   2   3   4   5
player
A        8  12  14  14  15
B       10  15  19  29  13
C       10  14  22  24  25

This resulting pivoted DataFrame, named df, is now ready to be passed into the `sns.heatmap()` function. The values within the matrix will determine the color intensity displayed in the resulting visualization, facilitating immediate insights into player performance trends over the years.

Generating the Default Heatmap (Without a Title)

Before demonstrating how to add a title, it is useful to visualize the default output generated by Seaborn when the title command is omitted. When the heatmap() function is executed without subsequent Matplotlib commands, the resulting graphic successfully visualizes the data matrix but lacks any contextual labeling beyond the axis labels inherited from the Pandas DataFrame. This absence underscores the necessity of manually adding a title for professional reporting or clear presentation.

In the code below, we invoke `sns.heatmap(df)` and include the optional argument linewidth=.3 solely to visually separate the cells slightly, improving readability. This step confirms that the data is being correctly rendered into a color-coded matrix, where darker colors indicate higher point totals, but the top boundary of the figure remains empty, awaiting textual explanation.

import seaborn as sns

# Create heatmap without explicit title call
sns.heatmap(df, linewidth=.3)

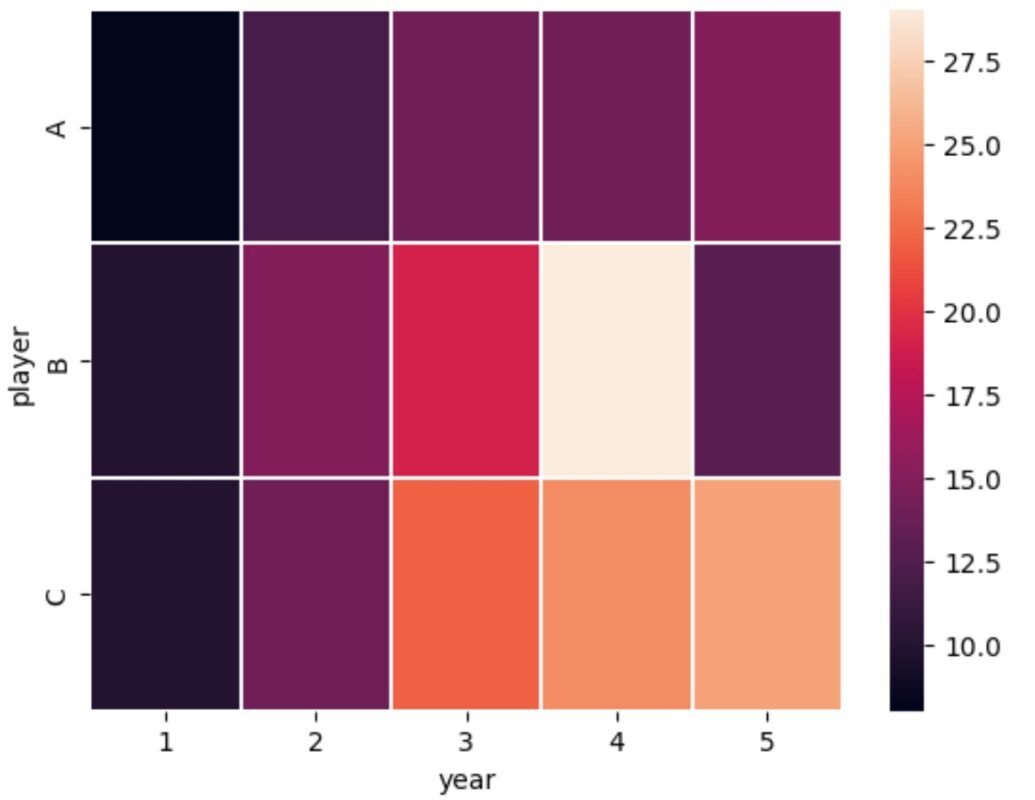

As expected, running this code generates the heatmap visualization without a descriptive title placed above the axes. This serves as the baseline for our next step, where we integrate the Matplotlib titling mechanism.

Applying the Title Using Matplotlib’s `plt.title()` Function

Now that we have established the base visualization, integrating the title is straightforward. By importing `matplotlib.pyplot` and calling its title() function immediately after the Seaborn visualization command, we assign a header to the entire plot area. This function handles the positioning and rendering of the title text, ensuring it is centered above the primary plotting area by default.

It is crucial to understand that even though Matplotlib provides the function, the title is applied to the figure object that Seaborn created. The text passed to `plt.title()` should be concise yet highly descriptive, summarizing the central theme of the data visualization. In our example, a title like “Points Scored by Players Each Year” clearly communicates the content being analyzed in the heatmap.

import matplotlib.pyplot as plt
import seaborn as sns

# Create heatmap
sns.heatmap(df, linewidth=.3)

# Add title to heatmap using plt.title()
plt.title('Points Scored by Players Each Year')

Executing the revised code block results in the fully labeled data visualization. This demonstrates the fundamental and most common method for titling graphics when using Seaborn for generation and relying on Matplotlib for aesthetic control. The resulting image confirms the title’s successful placement.

Advanced Title Customization Parameters

The true power of using Matplotlib for titling lies in the extensive customization options available through keyword arguments within the `plt.title()` function. These parameters allow developers and data analysts to control the visual presentation of the title text, ensuring brand consistency or improving readability. Modifying the title’s appearance moves beyond mere functionality into the realm of effective data visualization design.

Three particularly useful arguments provide control over positioning, color, and size. The loc parameter governs the horizontal alignment of the text, accepting values such as ‘center’ (default), ‘left’, or ‘right’. This is essential when the visualization layout requires the title to occupy a specific corner. The color parameter accepts valid color names (e.g., ‘red’, ‘blue’) or hexadecimal color codes, allowing the title text to stand out or match a theme. Finally, the size parameter takes an integer or string (like ‘x-large’) to define the font size, which is critical for ensuring the title is legible, especially in presentation contexts.

By leveraging these parameters, the title can be transformed from a simple label into an integrated component of the overall graphic design. Below is a list of the most common and powerful arguments used for styling the title in Matplotlib:

• loc: Specifies the alignment of the title text on the horizontal axis. Options include ‘left’, ‘center’, and ‘right’.

• color: Sets the font color for the title text, accepting standard color names or specific hex codes.

• size: Determines the font size, controlling the visual prominence of the title relative to other plot elements.

Understanding these arguments ensures complete control over the textual presentation of your heatmap, contributing significantly to professional-grade output.

Implementing Custom Title Styles in Seaborn

To demonstrate the impact of these customization parameters, let’s modify the title of our player points heatmap. We will implement three specific stylistic changes: shifting the title alignment to the left, changing the font color to red for emphasis, and increasing the font size to 14 points for better visibility. This highly customized approach is often necessary when integrating graphics into dashboards or reports where specific design standards must be met.

We achieve this by passing the keyword arguments—loc, color, and size—directly into the `plt.title()` function call. It is important to remember that these arguments are appended after the main title string. The Seaborn heatmap creation remains identical, as the customization is exclusively handled by the Matplotlib layer.

import matplotlib.pyplot as plt
import seaborn as sns

# Create heatmap
sns.heatmap(df, linewidth=.3)

# Add customized title to heatmap using loc, color, and size parameters
plt.title('Points Scored by Players Each Year', loc='left', color='red', size=14)

The execution of this code block generates a visually distinct output. The title is no longer centered but anchored to the left, providing an alternative layout for the data visualization. The chosen red color and increased font size emphasize the title, ensuring it captures the viewer’s attention immediately. This illustrates the flexibility afforded by the Matplotlib integration when refining the aesthetic qualities of Seaborn plots.

Summary and Further Visualization Techniques

Effectively titling a heatmap in Python relies on understanding the symbiotic relationship between the Seaborn and Matplotlib libraries. While Seaborn efficiently handles the complex statistical mapping and aesthetic defaults of the visualization, Matplotlib provides the granular control necessary for textual elements like titles, labels, and annotations. By consistently using the `plt.title()` function after the `sns.heatmap()` call, you can ensure every visualization is contextually clear and professionally presented.

Remember that titles are just one component of high-quality data visualization. Further refinement often involves adjusting axis labels, adding annotations directly onto the heatmap cells (e.g., using the annot=True parameter in Seaborn), and carefully selecting appropriate color palettes using the cmap argument. Mastering these techniques transforms raw data into compelling narrative tools.

For those seeking to expand their knowledge of data plotting and manipulation, exploring other key operations in Seaborn is highly recommended. These tutorials often cover topics such as customizing color bars, managing large datasets, and integrating heatmaps within multi-panel figures.
