How to Add a New Line in VBA Message Boxes for Improved Readability

Understanding Line Break Constants in VBA

To successfully implement multi-line text within a standard MsgBox, it is essential to understand why specific constants are required. Unlike standard text editing, where pressing the Enter key suffices, programming environments require explicit instructions to represent non-printing control characters.

In the context of Microsoft operating systems, a true line break, which moves the cursor to the beginning of the next line, is defined by two characters: the constant vbCr (Carriage Return, ASCII 13) and vbLf (Line Feed, ASCII 10). The combination of these two is crucial for ensuring compatibility and proper rendering across various Microsoft environments.

Fortunately, VBA provides two highly convenient constants that automatically represent this required pair of characters, simplifying the developer’s task: vbCrLf and vbNewLine. While vbCrLf explicitly denotes the Carriage Return/Line Feed pairing, vbNewLine is often preferred as it is platform-independent, though in the context of desktop Windows applications like Excel or Access, they yield identical results.

The Primary Methods: Utilizing vbNewLine

The vbNewLine constant is the most common and robust way to introduce a line break within any string variable or literal displayed by the MsgBox function. It acts as an inline command instructing the runtime environment to advance the display position to the next line. We will focus on two fundamental approaches for its utilization.

Method 1: Add One New Line to Message Box

The simplest application of the line break constant involves concatenating two distinct string segments with a single instance of vbNewLine. This technique is ideal for splitting a long sentence into two manageable lines, or for presenting key information followed immediately by a call to action.

Sub MsgBoxAddLine()
MsgBox "This is the first line " & vbNewLine & "This is the second"
End Sub

Note that the spaces around the constant (e.g., before the closing quote of the first line) are crucial for aesthetic spacing in the final output.

Method 2: Add Multiple New Lines to Message Box

Developers often require more than a simple line break; they may need visual spacing, such as an empty line, to separate paragraphs or distinct blocks of information within the same dialogue box. This requires the concatenation of the vbNewLine constant multiple times.

By including two instances of the constant in sequence, you effectively create a double line break, resulting in an empty line between your two strings. This approach significantly enhances the visual hierarchy and readability of complex messages.

Sub MsgBoxAddLine()
MsgBox "This is the first line " & vbNewLine & vbNewLine & "This is the second"
End Sub

The flexibility of this technique allows you to insert three, four, or even more line breaks, providing precise control over the vertical spacing within the message box area.

Understanding Automatic Word Wrapping vs. Manual Line Breaks

Before diving into the manual insertion of line breaks, it is crucial to understand the default behavior of the MsgBox function. If a text string exceeds the maximum horizontal width allowed by the dialogue box, the operating system will automatically wrap the text to the next line. However, this automatic wrapping is dependent on the window size and font settings, and does not guarantee a break at a specific point, which is often necessary for formatting.

Example 1: Baseline Comparison (No Manual Line Breaks)

We begin by demonstrating a scenario where no line break constants are used. This allows us to observe the default automatic wrapping behavior when a single, very long string is passed to the MsgBox function. The code below contains a lengthy statement that VBA must handle entirely on its own.

Sub MsgBoxAddLine()
MsgBox "This is the first line and I wish I could add a second line because this sentence is getting really long"
End Sub

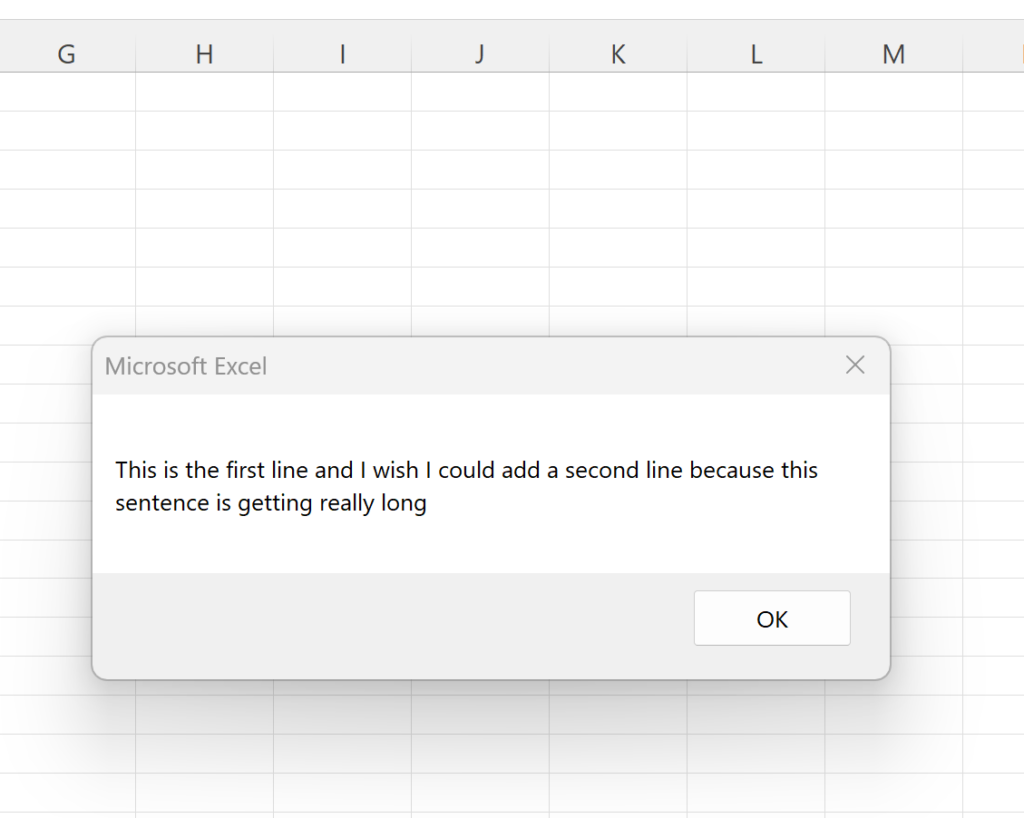

When this macro is executed, the resulting dialogue box attempts to find the most appropriate breaking point based on the physical limits of the box, often wrapping mid-phrase or mid-clause. The output clearly illustrates automatic text wrapping:

Observe how the sentence automatically wraps to the next line once it reaches the internal width constraint of the message box. While functional, this lacks the professional formatting achieved through manual control.

Example 2: Achieving Precise Formatting with a Single Line Break

To gain control over where the text breaks, ensuring that the separation occurs exactly where intended, we integrate the vbCrLf constant. This is vital when structuring lists, instructions, or separating a title from its body text.

In this example, we intentionally break the message after the phrase “This is the first line,” forcing the second phrase to start at the far left edge of the line below it.

Sub MsgBoxAddLine()
MsgBox "This is the first line " & vbNewLine & "This is the second"
End Sub

Upon execution, the resulting message box demonstrates the successful manual line break, creating a clean, two-line structure:

By employing the vbNewLine constant, we successfully override the default automatic wrapping mechanism. This ensures that the structure of the message is dictated by the code, not by the rendering constraints of the dialogue box.

Example 3: Controlling Vertical Spacing with Multiple Line Breaks

For messages that contain multiple distinct pieces of information—such as a header, a status update, and a footer—introducing visual separation is critical for readability. We achieve this by concatenating the vbNewLine constant two or more times consecutively.

When two vbNewLine constants are placed side-by-side, the first constant moves the cursor to the next line, and the second constant moves it one line further down, resulting in a blank line serving as a visual separator.

The following syntax demonstrates the insertion of two line breaks after the initial string:

Sub MsgBoxAddLine()
MsgBox "This is the first line " & vbNewLine & vbNewLine & "This is the second"
End Sub

Executing this code produces a message box where the visual separation is clearly visible, mimicking paragraph breaks in standard word processing software:

This method effectively created one complete empty line, providing necessary white space and dramatically enhancing the visual distinction between the “first line” and “second line” components of the message.

Alternative Constants and Their Specific Uses

While vbNewLine and vbCrLf are universally suitable for Windows dialogue boxes, VBA provides other related constants that are useful when dealing with specific file formats or non-standard environments:

• vbCrLf: The standard Windows line break (Carriage Return + Line Feed). Recommended for maximum compatibility across Microsoft Office applications.
• vbCr: Represents only the Carriage Return character (ASCII 13). Historically used on Mac OS for line endings. Using this alone in a Windows MsgBox will generally result in a corrupted line break or unexpected behavior.
• vbLf: Represents only the Line Feed character (ASCII 10). Primarily used on Unix/Linux systems for line endings. Similar to vbCr, using this alone in a standard Windows dialogue box is not recommended for reliable formatting.
• vbNewLine: The preferred, platform-independent constant. It automatically resolves to vbCrLf on Windows systems, ensuring the correct line break implementation.

For almost all interactive user prompts using MsgBox within a Windows Office environment, vbNewLine provides the simplest and safest approach.

Best Practices and Troubleshooting

When implementing line breaks, developers should adhere to certain best practices to ensure code clarity and robust execution:

1. Use Concatenation: Always use the ampersand (&) operator to correctly join the string parts and the line break constant. Treating the constant as part of the string (e.g., putting it inside quotation marks) will cause the characters to be displayed literally, rather than interpreted as a control command.
2. Prioritize vbNewLine: Unless you are writing code that explicitly targets file streams requiring Unix (vbLf) or Mac (vbCr) formatting, stick with vbNewLine or vbCrLf for guaranteed results in user interface elements.
3. Check Spacing: Ensure that you include a trailing space on the text segment that precedes the line break constant if you want the second line to start immediately after a word (e.g., "Line 1 " & vbNewLine & "Line 2"). Failing to do so will cause the last word of the first line to abut the line break, which can look awkward if the string ends with punctuation.

Summary of Line Break Implementation

The ability to control text presentation within a MsgBox is fundamental to creating user-friendly scripts and applications. By mastering the application of the vbNewLine constant, developers can transform basic alerts into highly structured, multi-line interfaces that convey complex information efficiently.

Whether you require a single line split for clarity or multiple line breaks to create visual paragraph separation, the technique remains consistent: concatenate the constant between your desired text segments. This ensures that regardless of the length of the string, the message box renders the information exactly as intended by the developer.
