Introduction: Customizing Barplot Labels in R

The ability to manipulate the appearance and labels of a generated plot is a fundamental requirement when working with data visualization in R. When generating a barplot, the visual impact is heavily reliant on ensuring that the corresponding categorical identifiers along the X-axis are meaningful and correctly aligned with the plotted heights. Default labels, often simple numerical indices, rarely suffice for professional reporting.

We will explore the two primary, highly efficient methods available within the base R graphics package for controlling these critical X-axis labels. These methods provide distinct approaches depending on whether the desired labels already exist within the source data structure or if they need to be defined manually as custom inputs. Mastering these techniques is essential for creating high-quality, publication-ready graphics.

The following detailed guide provides comprehensive steps and practical code examples demonstrating both techniques for customizing the labels that appear beneath each bar in your R generated visualizations:

Core Functions for Barplot Generation in R

The standard R function used for creating a vertical bar chart is barplot(). This function requires a numerical input for the heights of the bars (typically derived from a frequency table or a column of aggregated values) and offers several key arguments for controlling aesthetics and labels.

While arguments like main (for the title) and ylab (for the Y-axis title) are frequently used, our focus here lies on the arguments responsible for the individual labels along the horizontal axis. These arguments override the default indexing behavior of the function, allowing us to link descriptive text directly to each corresponding bar segment.

We will focus on two specific arguments that allow for precise control over the X-axis tick labels:

• names: Used specifically when the labels are derived directly from a column or named element within the input data structure.
• names.arg: Used when supplying a custom character vector containing the desired labels, irrespective of the structure of the input height data.

Setting up the Sample Data Frame

To illustrate both methods effectively, we first require a representative data frame in R. This structure will contain two crucial elements: a column representing the categorical identifiers (which we will use as labels) and a column representing the numerical values (which will determine the height of the bars in the barplot).

The following code snippet creates a sample data structure named df, detailing team names and their associated scores, which serves as the foundation for all subsequent examples:

#create data frame
df<- data.frame(team=c('Mavs', 'Nets', 'Kings', 'Hawks', 'Heat'),
                points=c(22, 24, 10, 31, 15))

#view data frame
df

   team points
1  Mavs     22
2  Nets     24
3 Kings     10
4 Hawks     31
5  Heat     15

This data frame, df, clearly establishes that we have five observations, where the team column holds the categorical labels (Mavs, Nets, etc.) and the points column holds the numerical values we intend to visualize using bar heights. The subsequent examples will demonstrate how to map the team column values onto the X-axis.

Method 1: Utilizing Column Values as X-Axis Labels

The most straightforward approach, when the desired labels are already present in a column of your source data frame, is to use the names argument within the barplot() function call. This method is highly recommended for clarity and reproducibility, as the labels are dynamically sourced directly from your working dataset, minimizing potential errors from manual input.

When implementing this method, the height argument specifies the numerical column (e.g., df$points), and the names argument specifies the character column containing the corresponding categorical labels (e.g., df$team). It is critical that both vectors are of the same length and align correctly by index.

This technique ensures that the generated visual representation is inherently linked to the descriptive text stored in your data structure, adhering to best practices for data visualization where the plot reflects the underlying data attributes directly.

Practical Implementation of Method 1

We apply Method 1 using the df data frame established previously. The goal is to plot the points column, using the values from the team column as the categorical labels along the horizontal axis.

Observe the code below, which uses the dollar sign notation (df$column_name) to extract the specific vector needed for each argument:

#create barplot and use values from 'team' column as x-axis labels
barplot(height=df$points, names=df$team)

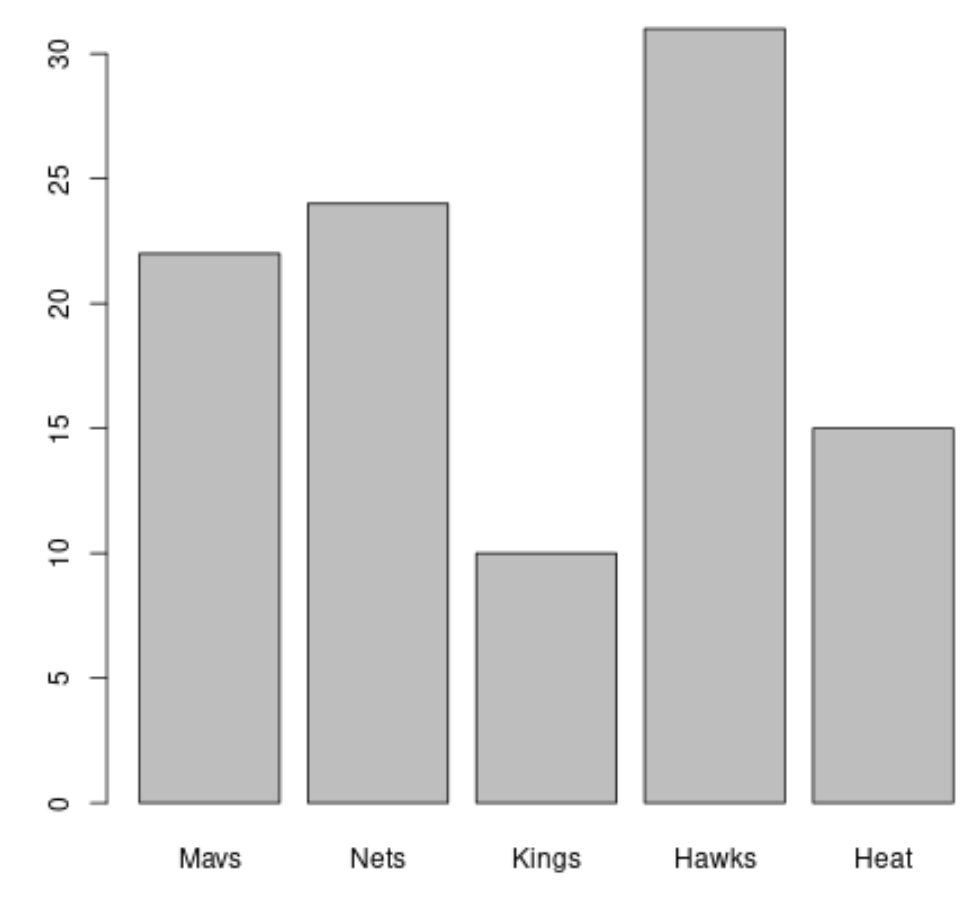

The resulting plot clearly demonstrates the utility of the names argument. Instead of seeing numerical indices (1, 2, 3, 4, 5) below the bars, we see the relevant team names (Mavs, Nets, Kings, Hawks, Heat). These descriptive labels significantly improve the legibility and context of the visualization.

Notice specifically that the X-axis labels are now accurately linked to the values derived from the team column within the original data frame, making the interpretation of the bar heights immediate and intuitive.

Method 2: Specifying Custom Vector Labels (names.arg)

In scenarios where the desired X-axis labels are not readily available in a column of the source data or require simplification or manual modification (e.g., substituting long names with acronyms), the names.arg argument provides the necessary flexibility. This argument accepts a character vector defined explicitly by the user.

It is absolutely essential that the custom vector supplied to names.arg contains the exact same number of elements as there are bars defined by the height argument. A mismatch in length will result in an error or unexpected truncation of the labels, compromising the integrity of the plot.

This method offers maximum control over the visual presentation, allowing for concise and tailored labeling even if the underlying source data lacks those specific labels.

Practical Implementation of Method 2

Using the same df$points data for bar heights, we now utilize the names.arg argument to provide five custom, single-letter labels: ‘A’, ‘B’, ‘C’, ‘D’, and ‘E’. This demonstrates how one can simplify or abstract categorical labels for a different presentation purpose.

The code below illustrates the syntax required for passing a custom vector using the c() function directly into the argument:

#create barplot with custom x-axis labels
barplot(height=df$points, names.arg=c('A', 'B', 'C', 'D', 'E'))

Upon execution, the resulting barplot displays the correct heights based on the points data, but the horizontal axis now shows the custom sequence of characters provided via names.arg.

As confirmed by the visual output, the X-axis labels correspond precisely to the values defined within the custom character vector c('A', 'B', 'C', 'D', 'E'). This confirms the successful use of names.arg for specifying entirely customized barplot labels in R.

Summary of Labeling Techniques

Choosing between names and names.arg depends entirely on the source of the labels. For data integrity and automation, using names=df$column is generally preferred when labels are already available in your data frame. For manual overrides, simplification, or when labels are derived externally, names.arg=c(...) offers crucial flexibility.

By mastering both of these arguments within the barplot() function in R, users can ensure their data visualizations are not only accurate in terms of bar height but also highly descriptive and easy to interpret, significantly improving the quality of analytical reporting.

Always double-check that the number of labels provided exactly matches the number of bars being plotted to maintain the integrity of the visual representation.
