The DAX Solution: Replacing Traditional ‘SUM IF’ Logic

In the DAX language used by Power BI, there is no single function explicitly named SUM IF. Instead, conditional aggregation is achieved by combining the power of the aggregation function (like SUM) with a context modification function, typically CALCULATE, which is the engine of context transition in DAX. This combination allows us to define precisely which subset of the data the aggregation should operate on. This architectural choice gives DAX immense flexibility far beyond simple conditional sums.

When creating a conditional sum as a new calculated column—which is necessary when you need the resulting sum to appear alongside every row of your table—you must explicitly define the grouping criteria. The primary challenge here is ensuring that the calculation performed for the current row looks across the entire table but only sums values related to the characteristics of that current row. For instance, if the current row belongs to ‘Team A’, the formula must sum points for all rows belonging to ‘Team A’.

The following syntax demonstrates the standard and most effective way to write a grouped conditional sum within a calculated column in Power BI, leveraging the powerful interaction between CALCULATE, SUM, and FILTER, alongside the crucial context-handling function EARLIER.

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = EARLIER ( 'my_data'[Team] ) )
)

This specific formula creates a new column named Sum Points. Crucially, this column contains the aggregated sum of values found in the [Points] column, calculated specifically for each unique value present in the [Team] column within the table named my_data. This resulting column provides row-level context for team totals, often used for ratio calculations or normalization.

Deconstructing the Core Formula: CALCULATE, SUM, and FILTER

To truly master this technique, one must understand the role of each component within the DAX expression. The expression is fundamentally composed of three primary functions working in concert to achieve the desired conditional aggregation: SUM, CALCULATE (used 2/5 times), and FILTER.

First, SUM('my_data'[Points]) is the expression we want to evaluate. It is a simple aggregation that, if used alone, would calculate the total points for the entire dataset. When this expression is placed inside CALCULATE, it is no longer evaluated over the default filter context of the report; instead, it is evaluated under the modified context provided by the second argument of CALCULATE. This is the heart of DAX context modification.

Second, CALCULATE is responsible for transitioning the current row context into a filter context. This transition is essential when creating calculated columns, as calculated columns naturally operate under a row context (i.e., they calculate for the current row). By wrapping the aggregation (SUM) in CALCULATE, we temporarily override the standard filter behavior, allowing us to define a new, specific filter environment for the aggregation to run within.

Third, the FILTER function defines the specific criteria. It takes two arguments: the table to iterate over ('my_data') and the boolean expression defining the condition ('my_data'[Team] = EARLIER('my_data'[Team])). The FILTER function evaluates the condition row-by-row across the specified table and returns a table containing only those rows that meet the criteria. This resulting filtered table is then passed to CALCULATE as the new filter context for the SUM operation.

Understanding Row Context vs. Filter Context: The Role of EARLIER

The most confusing yet crucial element in achieving a grouped sum within a calculated column is the interaction of context types, specifically the use of the EARLIER function. This function is required because the formula operates within two distinct contexts simultaneously: the Row Context for the outer calculated column definition, and the Filter Context created by the FILTER function’s internal iteration.

The Row Context is established when Power BI iterates through the table to calculate the value for each row of the new column. When calculating the value for Row 5, for example, the row context holds the values specific to Row 5 (e.g., Team = ‘Mavs’). The FILTER function, however, establishes its own internal iteration context to determine which rows pass the defined criteria. If we simply wrote 'my_data'[Team] = 'my_data'[Team], the condition would always be true within the internal iteration.

The EARLIER function resolves this conflict by referencing a value from an outer row context that existed before the current internal iteration started. In our example, when FILTER starts iterating, EARLIER(‘my_data'[Team]) retrieves the Team value from the original row context (e.g., ‘Mavs’, assuming we are calculating the column for a row where Team is Mavs). The formula then reads: “For the ‘my_data’ table, only keep rows where the [Team] column value equals the [Team] value of the original row where this calculation started.” This is precisely how we achieve the conditional grouping needed for the SUM IF functionality.

It is important to note that while CALCULATE is flexible enough to handle complex filtering, using FILTER with EARLIER is typically reserved for calculated columns where row context access is mandatory for grouping. For measures defined in the model, a simpler CALCULATE approach often suffices, as measures inherently respect the external filter context applied by the report visuals (e.g., if a pivot table is filtered by ‘Mavs’, the measure automatically sums only ‘Mavs’ points).

Practical Implementation: Setting up the Dataset and Calculated Column

To illustrate this conditional aggregation technique, we will use a straightforward dataset representing basketball player statistics. This example highlights how to move from raw, row-level data to summary statistics appended back onto the original table structure.

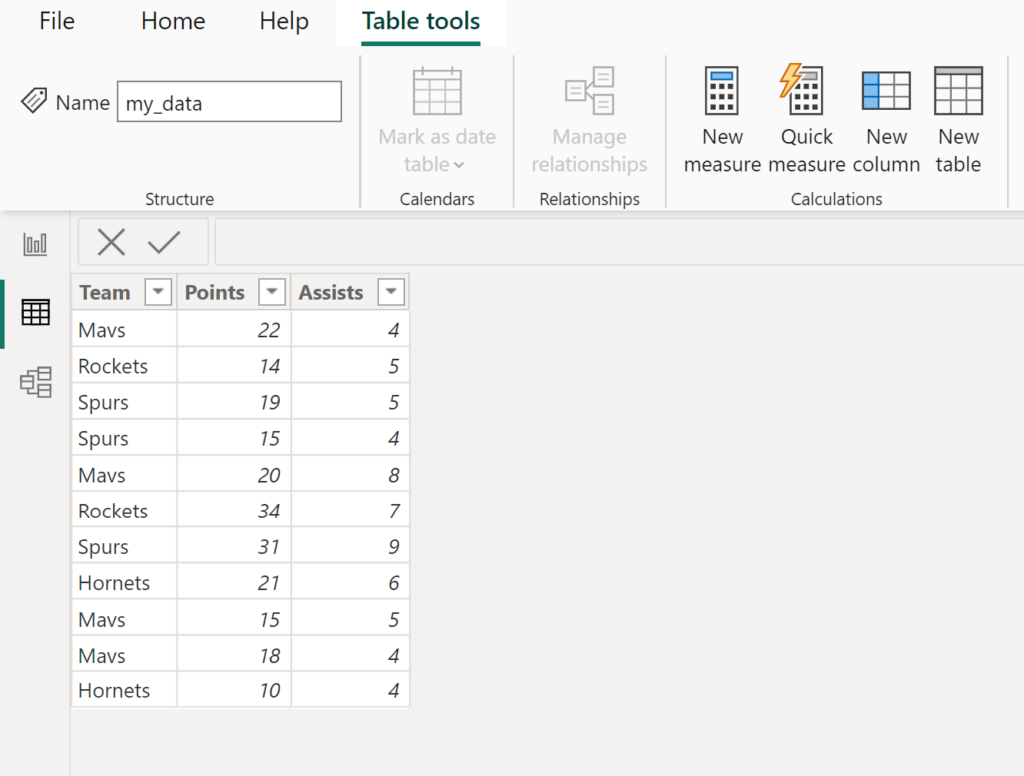

Suppose our foundational data model in Power BI (used 2/5 times) contains a table named my_data, detailing players, their teams, and the points they scored in a game. This is the structure we begin with:

Our objective is clearly defined: we need to generate a new column that automatically calculates and displays the total points scored by all players on the same team as the current row, effectively fulfilling the requirement of a grouped SUM IF based on the team criteria. Since we need this calculation attached to every row, defining it as a Calculated Column is the appropriate approach.

The steps to implement this are procedural and require interacting with the modeling tools within the Power BI Desktop interface. We must first select the target table and then initiate the creation of a new column, which opens the DAX formula bar for definition.

Step-by-Step Example: Calculating Team Totals

The process begins by engaging the data modeling tools. Navigate to the Table tools tab within the Power BI menu ribbon. This tab contains the options necessary for modifying the structure of your data tables, including the addition of new calculated fields.

Click the New column icon, which is prominently featured under the Table tools tab. This action will open the DAX formula editor bar, allowing you to define the logic for your new calculated field.

In the formula bar, type or paste the exact DAX (used 2/5 times) formula that utilizes context manipulation to sum points conditionally. Ensure the syntax is precise, particularly regarding table and column references ('my_data', [Points], [Team]).

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    FILTER ( 'my_data', 'my_data'[Team] = EARLIER ( 'my_data'[Team] ) )
)

Once the formula is entered and confirmed, Power BI (used 3/5 times) will execute the calculation across every row of the my_data table. A new column named Sum Points will immediately appear, populated with the conditional sums, demonstrating the successful implementation of the SUM IF logic using DAX.

Analyzing the Results and Advanced Considerations

Upon successful execution, the resulting table clearly shows the grouped totals appended to the source data. This output confirms that the complex interaction between CALCULATE, FILTER, and EARLIER correctly identified and summed points based on the shared team attribute.

By reviewing the generated Sum Points column, we can quickly verify the accuracy of the conditional aggregation:

• The sum of points value for players on the Mavs team is 75 (25 + 50).
• The sum of points value for players on the Rockets team is 48 (12 + 36).
• The sum of points value for players on the Spurs team is 65 (30 + 35).
• The sum of points value for players on the Hornets team is 31 (18 + 13).

While this method effectively solves the requirement for a grouped sum as a calculated column, it is crucial to consider the performance implications. Calculated columns consume memory and are computed during data refresh. For large datasets, creating many complex calculated columns can severely impact performance and refresh times.

Alternative Approach: Using Measures for Dynamic Aggregation

In many scenarios, particularly when the conditional sum is needed for visualization (e.g., in a chart or a matrix), it is generally recommended to define the logic as a Measure rather than a calculated column. Measures are calculated dynamically at query time and respond instantly to filtering applied by report visuals, providing superior performance and flexibility.

If the goal was to create a dynamic measure for total points by team, a simpler DAX expression could often be used, especially if the team filter is applied externally by the visual or slicer. However, if the requirement is to calculate the sum based on an internal condition within the visual’s existing context, the CALCULATE function remains indispensable (used 3/5 times), often paired with FILTER or simplified filter arguments.

For instance, to sum points only for the ‘Mavs’ team as a measure, the syntax would be: Mavs Points = CALCULATE(SUM('my_data'[Points]), 'my_data'[Team] = "Mavs"). This measure respects the current filter context but adds an internal override to specifically focus on the ‘Mavs’. Understanding the full documentation for the SUM function and other aggregation functions in Power BI (used 4/5 times) is key to building these sophisticated models.

Conclusion: Mastering Context Manipulation in DAX

The ability to perform conditional aggregation, or SUM IF logic, is a cornerstone of advanced analysis in Power BI. Achieving this functionality requires moving beyond simple spreadsheet concepts and embracing the powerful context manipulation tools provided by DAX (used 3/5 times). By understanding the distinct roles of CALCULATE, FILTER, and the necessity of EARLIER when defining calculated columns, analysts can define precise, context-aware calculations that transform raw data into actionable intelligence.

We have successfully demonstrated how to calculate team totals alongside row data, using one of the most common applications of context transition. Analysts should always weigh the pros and cons of using calculated columns (persistence and row context) versus measures (dynamic calculation and performance) when implementing these conditional aggregations in their data models. Further exploration into DAX topics like context transition and iteration will solidify the foundation for building highly effective Power BI solutions.
