Understanding Conditional Summation in DAX

Conditional summation in Power BI is typically achieved through the definition of a custom measure using DAX. Unlike implicitly filtered sums that rely on slicers or visual interactions, these custom measures contain their own internal filtering logic, ensuring the calculation always returns the correct value regardless of external report filters.

The core principle involves the CALCULATE function, which is arguably the most powerful function in the entire DAX library. CALCULATE takes an expression (in this case, the simple SUM of a column) and then evaluates it under a new or modified filter context defined by the subsequent arguments. This capability is essential for defining nuanced business logic.

You can use the following syntax methods in DAX to calculate a sum with a filter in Power BI. We will explore scenarios involving both single and multiple filter conditions, demonstrating how to precisely control the data being aggregated.

Method 1: Calculating Sum with a Single Filter Condition

When your requirement involves aggregating data based on a single, straightforward condition—such as finding the total sales for a specific product category—you can utilize the simplest form of the CALCULATE function. This method is highly efficient for targeted aggregation tasks where the filtering criteria are fixed.

The standard pattern requires defining the aggregation expression first, followed immediately by the filter expression that restricts the rows considered for the calculation. This filter acts as a temporary override to the existing context for the duration of the calculation. The resulting measure then holds the conditional sum.

Here is the formula structure used to implement a sum with a single filter, focusing on the team “Mavs” in our example data set:

Sum Points =
CALCULATE ( SUM ( 'my_data'[Points] ), 'my_data'[Team] = "Mavs" )

This formula successfully creates a new measure named Sum Points. This measure calculates the sum of values found in the Points column, but it exclusively considers rows in the my_data table where the value in the Team column is precisely equal to “Mavs.” Rows not meeting this condition are temporarily excluded from the summation.

Method 2: Calculating Sum with Multiple Filter Conditions (Logical AND)

Often, analytical requirements demand aggregation based on more complex criteria involving two or more conditions that must simultaneously be true. When multiple filter arguments are passed to the CALCULATE function, they are implicitly treated as a logical AND condition. That is, a row must satisfy all specified filter conditions to be included in the final aggregation.

This is extremely useful for drilling down into specific, narrow segments of your data, such as counting points scored by a specific team AND only for players who achieved a minimum number of assists. It provides unparalleled precision in defining calculated metrics.

The following structure illustrates how to implement this using two distinct filter arguments within CALCULATE:

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "Mavs",
    'my_data'[Assists] > 4
)

This robust formula defines the measure Sum Points. It calculates the aggregate sum of the Points column only for those rows where the Team column equals “Mavs” and where the value in the Assists column is strictly greater than 4. If either condition is not met for a given row, that row is excluded from the final sum.

Setting Up the Data Model for Examples

To illustrate these concepts practically, we will use a sample data table named my_data loaded into Power BI. This table contains performance information relating to various basketball players and their respective teams. Understanding the structure of this source data is crucial before defining the conditional sums.

The table contains key columns such as the player’s name, their team, total points scored, and total assists recorded. Our goal is to derive specific totals from the Points column based on filters applied to the Team and Assists columns.

The following visual representation displays the structure of the my_data table we will be referencing throughout these examples:

Example 1: Procedural Guide for a Single Filter

Our first goal is to define a new analytical metric that calculates the total points scored exclusively by players belonging to the “Mavs” team. This requires implementing Method 1 by creating a new calculated measure.

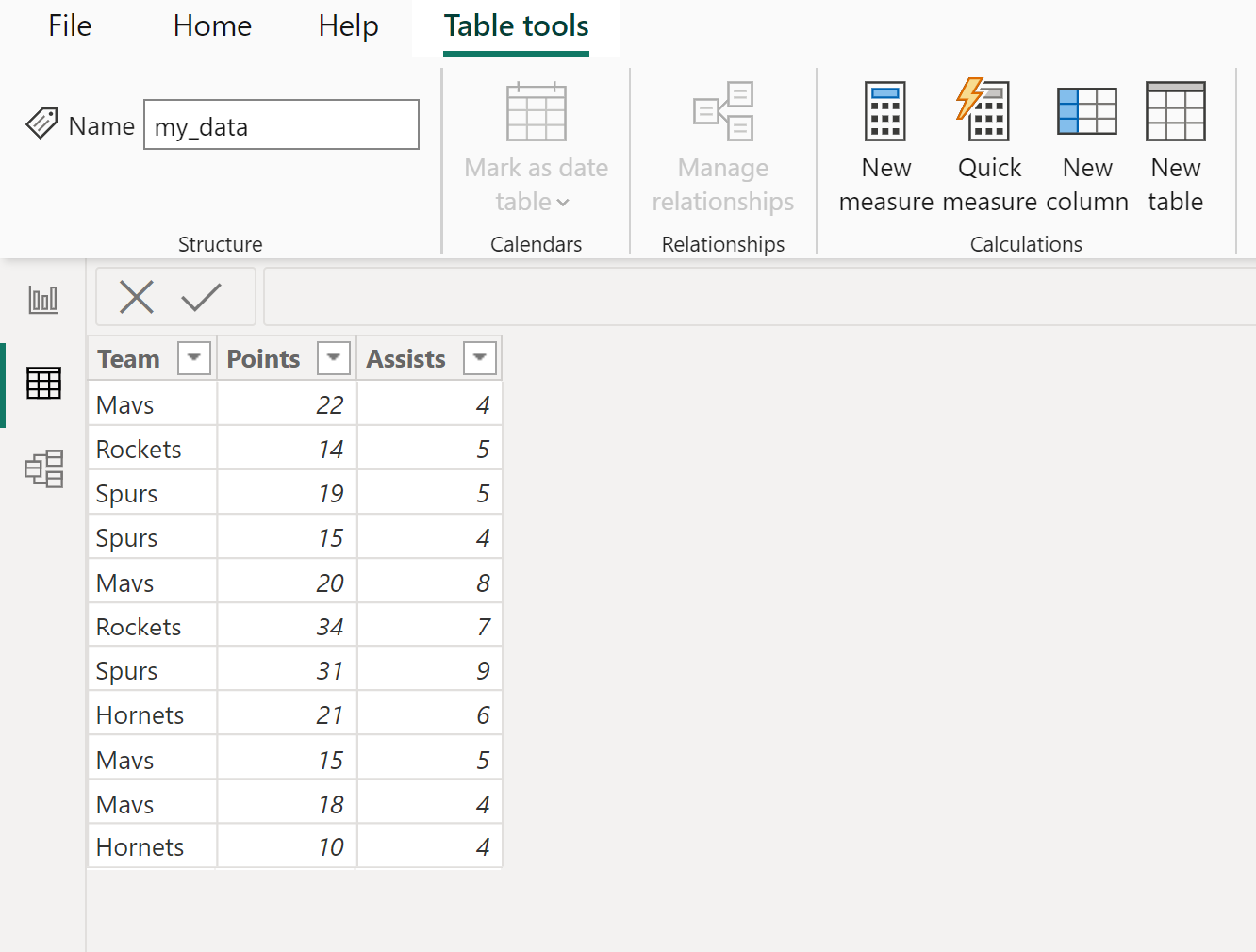

Follow these procedural steps within the Power BI Desktop interface:

1. Navigate to the Table tools tab in the ribbon menu.
2. Click the New measure icon. This action opens the formula bar, allowing you to define the DAX expression for the new metric.

Next, input the formula that utilizes the CALCULATE and SUM functions, applying the filter criterion that specifies 'my_data'[Team] = "Mavs":

Sum Points =
CALCULATE ( SUM ( 'my_data'[Points] ), 'my_data'[Team] = "Mavs" )

Upon committing the formula, a new measure called Sum Points is successfully created. It will reside within the data model and contains the calculated aggregate of points scored only by the players identified as being on the Mavs team. We can observe the measure appearing in the Fields pane, ready for use in visualizations.

To display this conditional sum, we can use a Card visual in the Report View. By dragging the newly created Sum Points measure onto the canvas and placing it into the Card’s field well, the result of the calculation is rendered. The Card visual is ideal for displaying single aggregate values clearly.

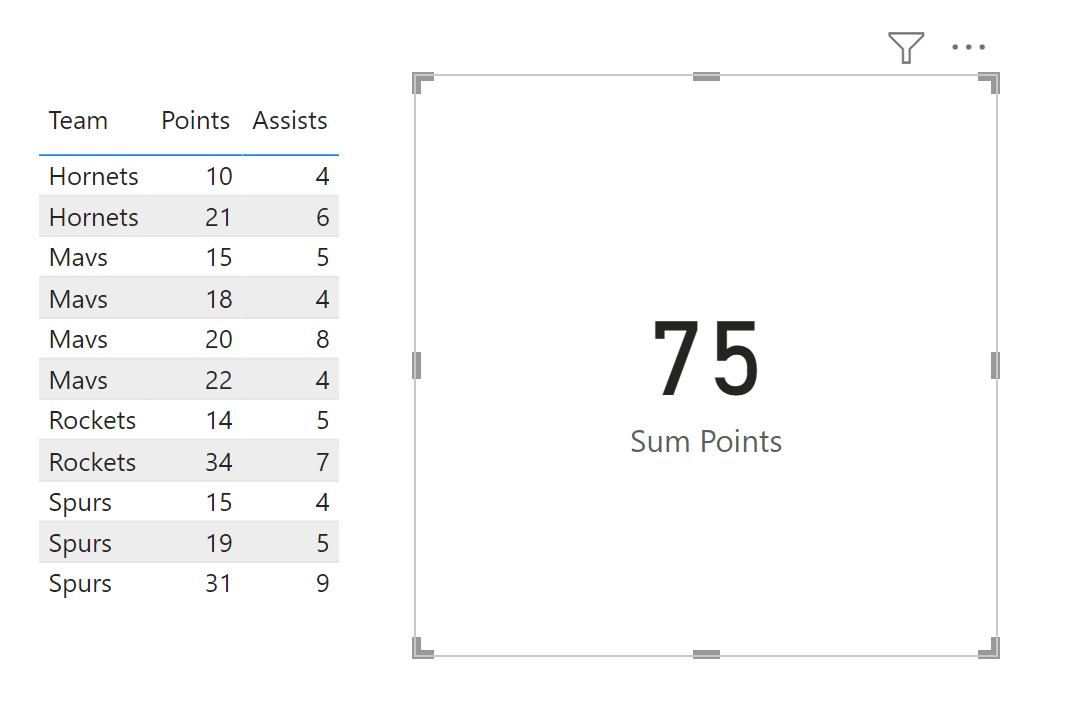

The resulting visual confirmation demonstrates the effectiveness of the DAX expression, showing the filtered total:

As confirmed by the output, the players associated with the Mavs team scored a cumulative total of 75 points. This value is derived only from the rows that satisfied the single filter condition defined within the CALCULATE function.

Example 2: Procedural Guide for Multiple Filters

Our second scenario increases complexity by requiring two distinct conditions to be met simultaneously: we want the total points scored only by players on the “Mavs” team AND who also recorded more than 4 assists. This demands the use of Method 2, leveraging multiple filter arguments within CALCULATE.

The implementation steps are nearly identical to the single-filter example, beginning with the creation of a new measure:

1. Click the Table tools tab.
2. Select the New measure icon to open the DAX formula bar.

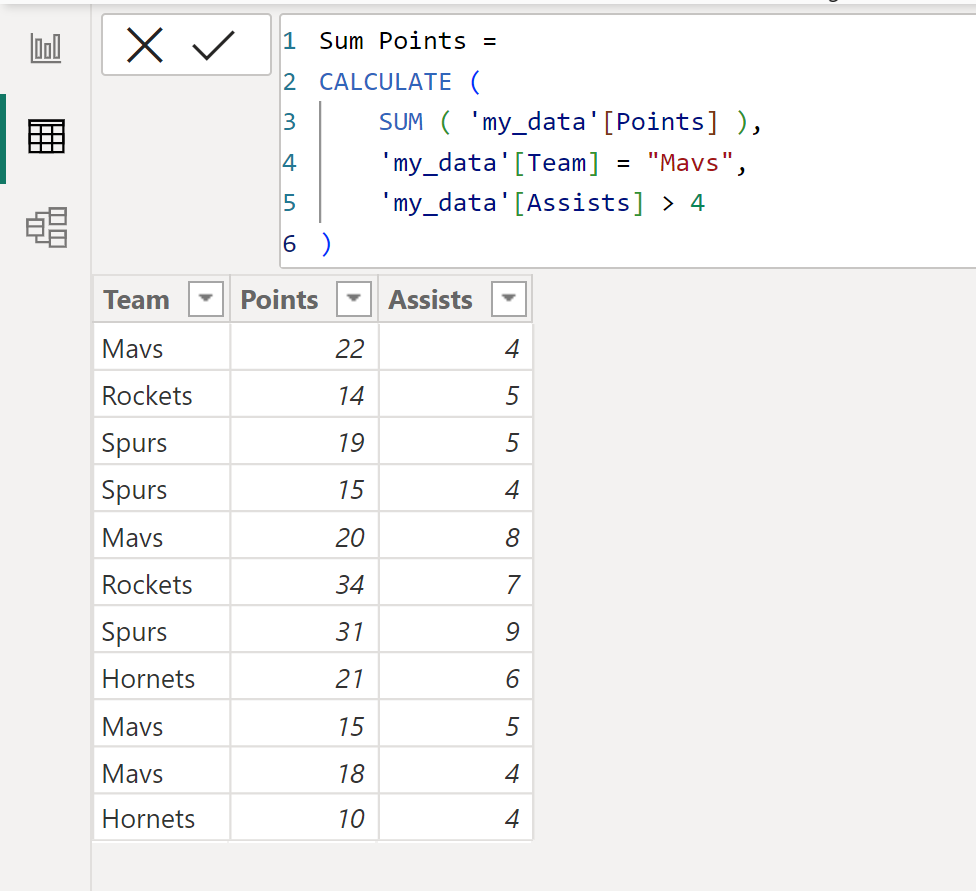

Now, enter the expanded DAX formula. Note the inclusion of the second condition, 'my_data'[Assists] > 4, separated by a comma. DAX interprets these multiple filters as an implicit AND operator:

Sum Points =
CALCULATE (
    SUM ( 'my_data'[Points] ),
    'my_data'[Team] = "Mavs",
    'my_data'[Assists] > 4
)

After defining and committing the formula, the Sum Points measure is updated or created to reflect the new, narrower criteria. It now contains the sum of points only for the players who satisfy both the team requirement and the minimum assist threshold. The data model panel confirms the new measure’s presence.

Visualizing and Interpreting the Multi-Filtered Result

To visualize this highly specific result, transition to the Report View in Power BI. Under the Visualizations tab, select the Card icon. Once the visual is on the canvas, drag the Sum Points measure (which now contains the multi-filtered logic) into the Fields well of the Card visualization. This action triggers the evaluation of the DAX expression under the defined context.

The Card visual will then display the final aggregate value derived from the conditional summation. Since the filter is much stricter in this example, we expect the resulting total to be lower than the total calculated in Example 1, as fewer rows meet the criteria.

The resulting output clearly shows that the players on the Mavs team who registered more than 4 assists scored a combined total of only 35 points. This detailed calculation demonstrates the power of using the CALCULATE function to define and enforce complex analytical rules directly within a Power BI measure.

Further Advanced Applications of Filter Context

While we focused on simple equality and inequality filters, the principles demonstrated here extend to much more complex scenarios. The filter arguments within CALCULATE can include advanced DAX functions like FILTER, ALL, or ALLEXCEPT, allowing for dynamic modifications to the filter context, time intelligence calculations, and comparisons against total values. Mastering the core concept of filtering within the SUM expression is the foundational step toward building sophisticated business logic in Power BI.
