The DAX SUM Function: Core Syntax

The foundation of aggregation in Power BI relies on the DAX language. When you need to create a persistent calculation, known as a measure, that determines the sum of values within a column, you utilize the SUM function. This function requires referencing the specific table and column containing the numerical data you wish to aggregate.

The standard syntax for creating a new summation measure follows this structural pattern:

Sum Points = SUM('my_data'[Points])

This specific code snippet illustrates the creation of a new, calculated field named Sum Points. This measure is defined by instructing Power BI to calculate the total sum of all numerical values found exclusively within the Points column of the table designated as my_data. This capability allows analysts to create custom, reusable calculations that dynamically update with any changes to the underlying dataset.

Step-by-Step Example: Calculating Total Points

To solidify the understanding of implementing the SUM function, we will walk through a practical, real-world scenario within the Power BI interface. This example demonstrates how to accurately calculate the total sum of values in a specific column using the New Measure feature.

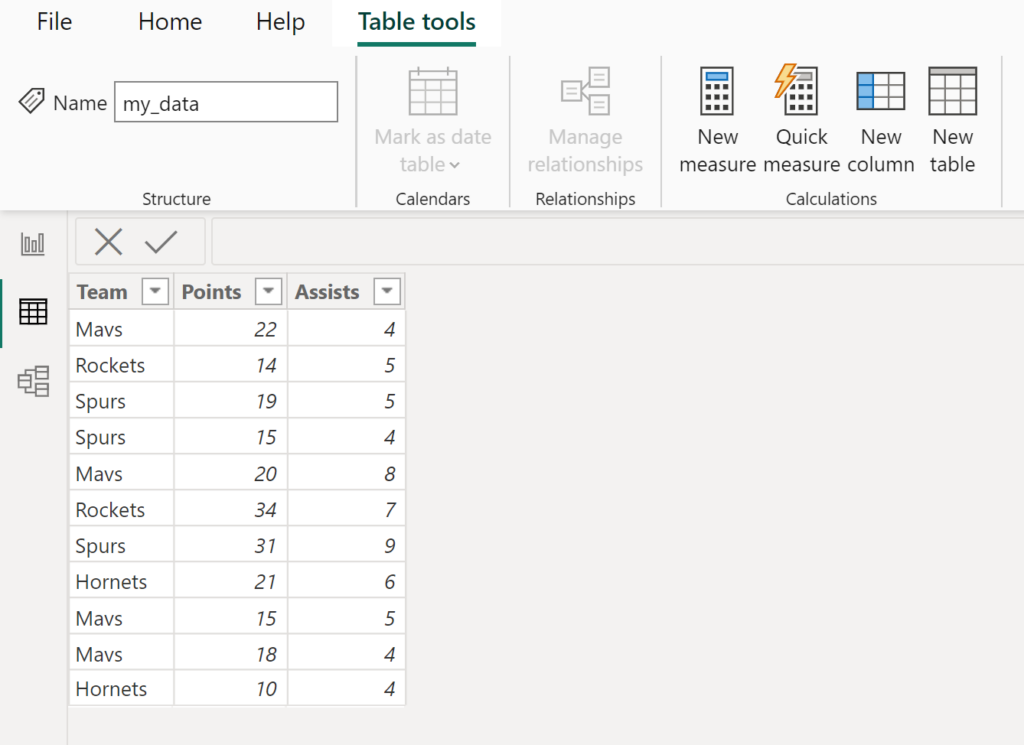

For this demonstration, assume we have imported a table into Power BI, named my_data, which contains essential metrics regarding points scored by basketball players across different teams. The table provides a clear visual representation of the data structure we will be working with:

Our objective is straightforward: we intend to calculate the aggregate sum of all values presented in the Points column, thereby determining the total points scored across the entire visible data sample.

Creating the New Measure

To begin the calculation process, you must utilize Power BI’s measure creation tools. A measure is essential because it holds the calculation formula that aggregates data across the entire table or filters applied to it.

1. Navigate to the Table tools tab located on the top ribbon of the Power BI Desktop application.

2. Within this tab, locate and click the New measure icon. This action opens the formula bar, prompting you to define your custom calculation.

In the newly activated formula bar, input the required DAX formula that defines the summation operation. Ensure the formula precisely references the table and column names as they appear in your data model:

Sum Points = SUM('my_data'[Points])

Upon confirming the entry (usually by pressing Enter or clicking the checkmark), Power BI processes the formula. This results in the creation of a new measure named Sum Points. This measure now contains the total aggregate sum of all values found within the Points column of the my_data table. You will observe this new measure appearing in your Fields pane, distinguished by a calculator icon, signifying its status as a calculated field.

Visualizing the Sum using a Card

While the measure has been successfully calculated in the background, the next logical step is to visualize this aggregate value for reporting purposes. The Card visualization type is ideally suited for displaying a single, important numerical value like a total sum.

To display the calculated sum:

1. Switch to the Report View in Power BI Desktop, which is the canvas for creating visualizations.

2. In the Visualizations pane, select the Card icon. This adds an empty Card visual to your report canvas.

3. From the Fields pane, drag the newly created Sum Points measure and drop it onto the Fields well of the Card visualization.

Following these steps, the Card visualization will immediately render the final aggregated value derived from the Sum Points measure. This provides a clear, highly visible display of the total numerical accumulation from the underlying data.

As clearly illustrated by the resulting Card visualization, the sum of all values within the Points column across the entire dataset is determined to be 219. This confirms the successful implementation and execution of the SUM function within Power BI.
