In the expansive field of statistical modeling, researchers frequently encounter datasets where the relationship between a dependent variable and an independent variable does not follow a straight line. While linear regression is the standard approach for quantifying proportional changes, it often fails to capture the complexity of real-world phenomena. When the data exhibits a “U-shaped” or inverted “U-shaped” trend, it indicates that the rate of change is not constant, necessitating a more sophisticated approach. This is where quadratic regression becomes an essential tool for data analysts and social scientists.

Quadratic regression is a specialized form of polynomial regression that models the relationship between variables using a second-degree equation. Unlike a standard linear model, which follows the formula y = mx + b, a quadratic model incorporates a squared term, taking the form y = ax² + bx + c. This mathematical structure allows the regression line to curve, providing a much more accurate fit for curvilinear data. By utilizing this method, researchers can identify optimal points—such as the peak of a performance curve or the minimum of a cost function—that a linear model would simply overlook.

To execute this analysis effectively, many professionals rely on SPSS (Statistical Package for the Social Sciences), a comprehensive software suite designed for complex data analysis. SPSS provides a robust environment for managing quantitative data, offering built-in functions to transform variables and run sophisticated regression models. This tutorial will guide you through the systematic process of performing a quadratic regression within SPSS, ensuring that your findings are both statistically valid and practically meaningful.

The Theoretical Foundation of Quadratic Modeling

Before diving into the software mechanics, it is crucial to understand when and why a quadratic regression is appropriate. In many biological, economic, and psychological studies, variables interact in a way that reaches a point of diminishing returns. For instance, in organizational psychology, the relationship between stress and performance is often quadratic; a moderate amount of stress improves focus, but excessive stress leads to a sharp decline in productivity. Modeling such a relationship with a straight line would lead to a poor R-squared value and potentially misleading conclusions.

The quadratic model essentially treats the squared version of the independent variable as a separate predictor. By doing so, the model can account for the “bend” in the data. If the coefficient of the squared term is positive, the curve will be convex (opening upwards); if it is negative, the curve will be concave (opening downwards). This flexibility makes it one of the most common non-linear models used in academic research and business analytics. However, analysts must be cautious of multicollinearity, as a variable and its square are often highly correlated, which can sometimes distort the statistical significance of individual predictors.

Applying this method in SPSS requires a structured workflow: data visualization, variable transformation, model execution, and careful interpretation. In the following example, we will examine a hypothetical study regarding labor and well-being. We aim to determine how the number of hours worked per week influences an individual’s self-reported happiness. Because work-life balance is a delicate equilibrium, we suspect that the relationship is not linear but follows a curve where both too little and too much work could potentially decrease happiness levels.

Illustrative Example: Hours Worked vs. Happiness

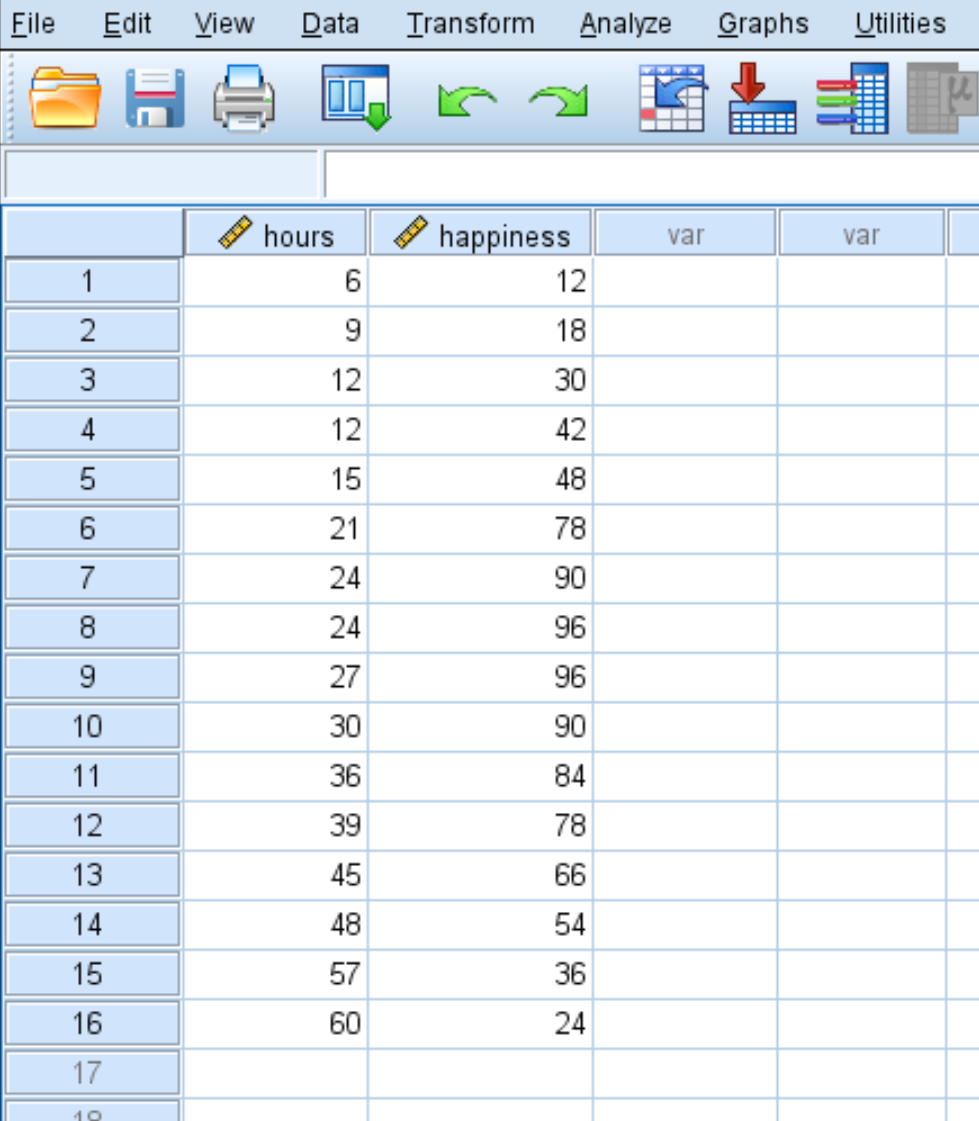

Consider a scenario where a researcher collects data from 16 participants to evaluate their subjective well-being. Each participant reports the average number of hours they work per week and rates their overall happiness on a Likert scale or a continuous 0-100 scale. The goal is to determine if there is an “ideal” number of working hours that maximizes happiness. Below is the initial dataset as it appears in the SPSS Data View window, showing the two primary variables: hours and happiness.

Upon initial inspection of the raw data, it may be difficult to discern the exact nature of the relationship. Some participants working 20 hours are relatively happy, while those working 40 hours seem to reach a peak, and those working 60 hours show a significant decline. This pattern suggests that a linear model would be insufficient. In statistical software, the first step should always involve exploratory data analysis to confirm these visual intuitions before calculating regression coefficients.

The following sections will detail the five essential steps required to perform a quadratic regression in SPSS. This includes generating a scatterplot, computing the squared term, running the linear regression procedure with the added polynomial component, and interpreting the complex output tables generated by the software.

Step 1: Visualizing the Curvilinear Relationship

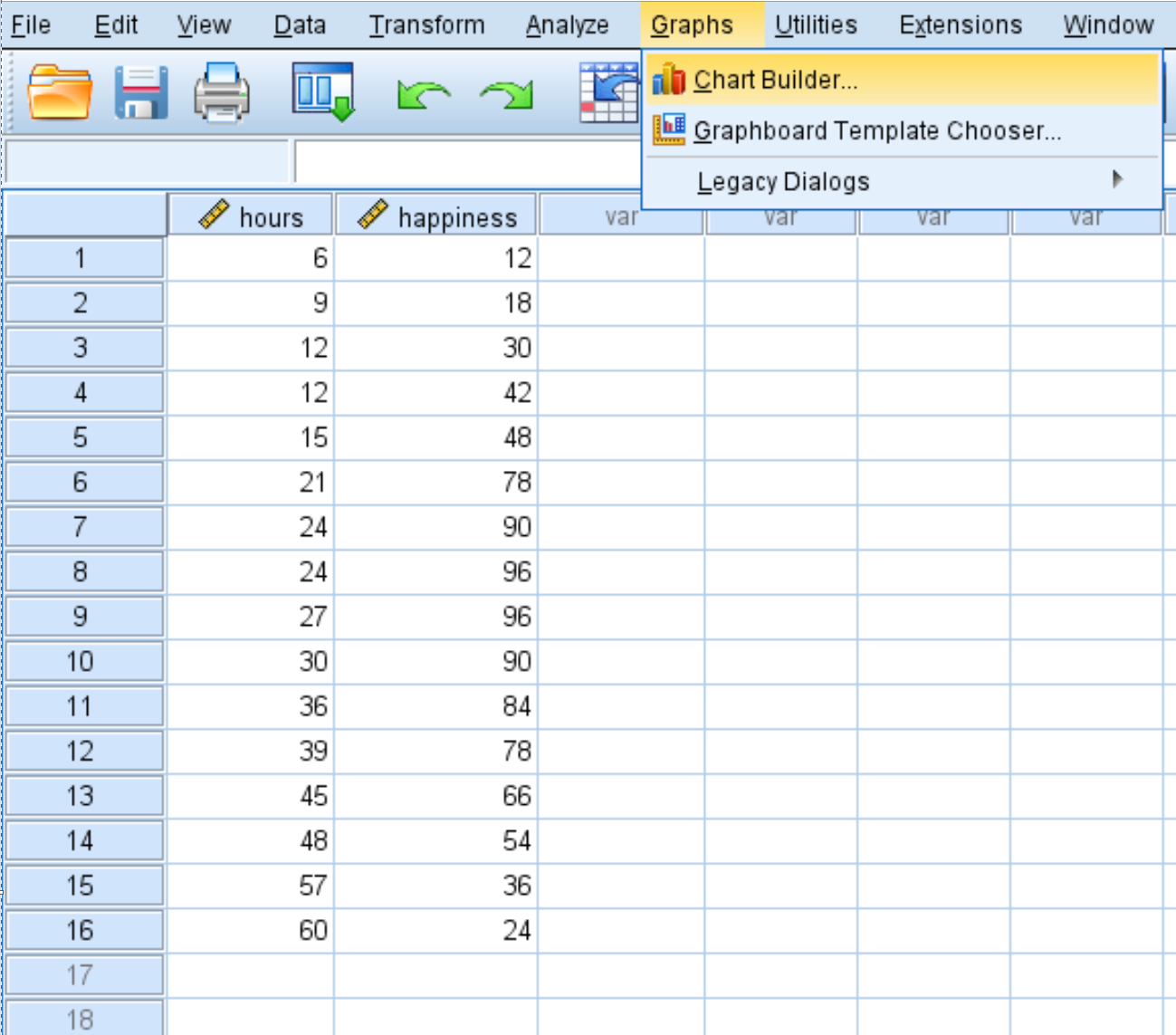

The most effective way to justify using a quadratic model is through data visualization. A scatterplot allows you to see the distribution of data points and identify whether a straight line or a curve provides a better visual fit. In SPSS, you can access visualization tools by navigating to the Graphs menu and selecting the Chart Builder option. This interface is highly intuitive, allowing for drag-and-drop customization of your figures.

Once the Chart Builder dialog box appears, you should select Scatter/Dot from the list of available chart types. Drag the Simple Scatter icon into the main canvas. To define the axes, place the independent variable (hours) on the X-axis and the dependent variable (happiness) on the Y-axis. This setup is fundamental for identifying bivariate relationships. After clicking OK, SPSS will generate the graph in the Output Viewer.

The resulting scatterplot is a critical diagnostic tool. If the points appear to rise and then fall (or vice-versa), you have clear evidence of a quadratic relationship. As shown in the image below, the data points for our happiness study follow a distinct parabolic path. The happiness level increases as work hours move from 0 toward 35, but begins to drop sharply as hours exceed 45. This visual confirmation ensures that moving forward with a quadratic regression is the correct methodological choice.

Step 2: Creating the Squared Predictor Variable

To perform a quadratic regression in a standard linear regression module, you must first create a new variable that represents the square of your independent variable. This process is known as data transformation. In SPSS, this is achieved through the Compute Variable function, which allows you to apply mathematical formulas to existing columns in your dataset.

Navigate to the Transform menu and click on Compute Variable. In the dialog box, you will need to specify a Target Variable name, such as “hours2” or “hours_squared”. In the Numeric Expression box, you define the calculation by selecting the original “hours” variable and multiplying it by itself (hours * hours). This new variable will serve as the quadratic component in our regression analysis, allowing the model to account for the curvature observed in the scatterplot.

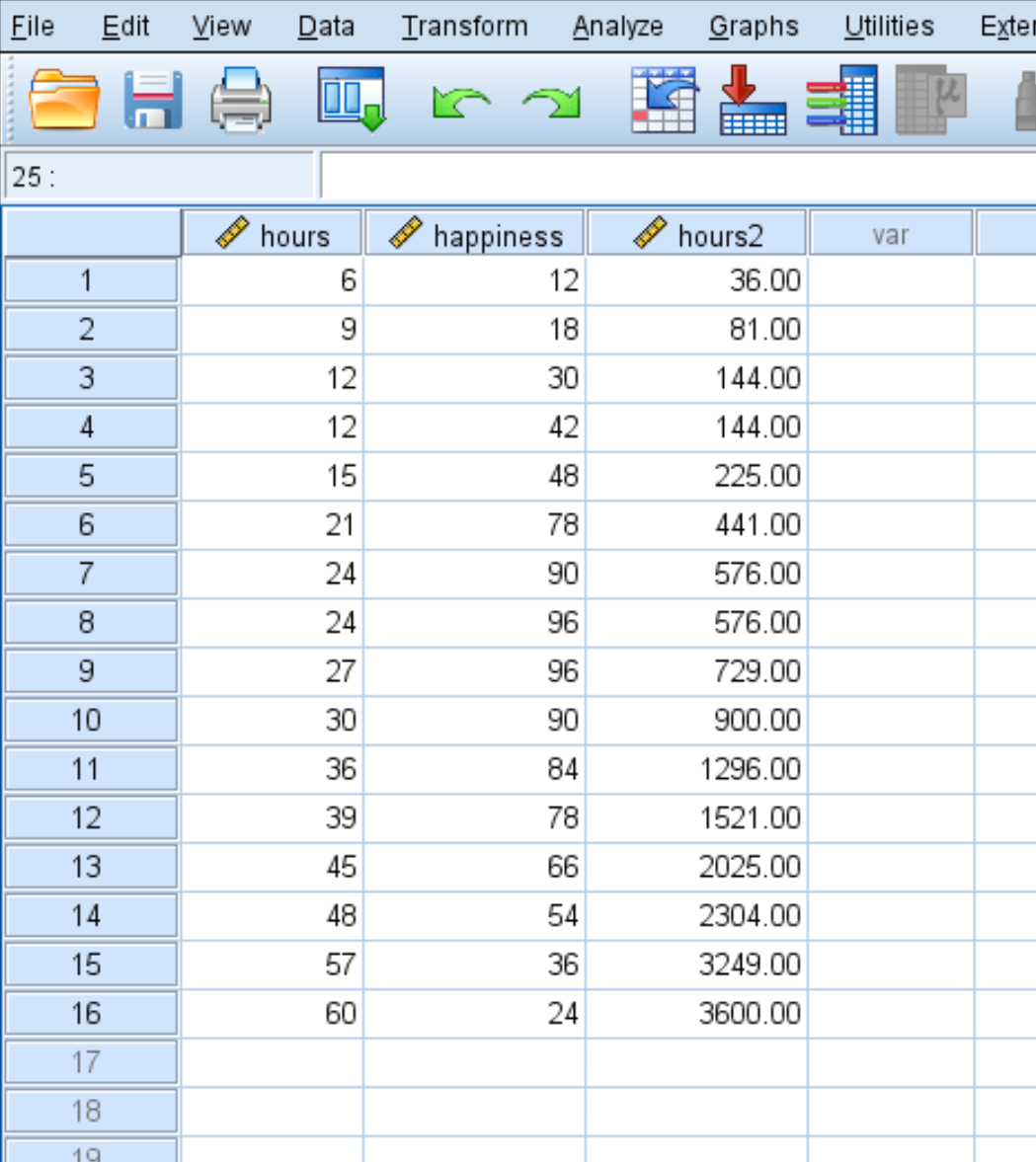

After clicking OK, SPSS will process the command and a new column will appear in your Data Editor. It is essential to verify that the values in this new column are indeed the squares of the original variable to avoid calculation errors. This step is a prerequisite for most statistical software packages when the user is not using a dedicated “curve fit” module. By having both the linear term (hours) and the quadratic term (hours2) in the dataset, you are ready to build a multiple regression model.

Step 3: Executing the Regression Analysis

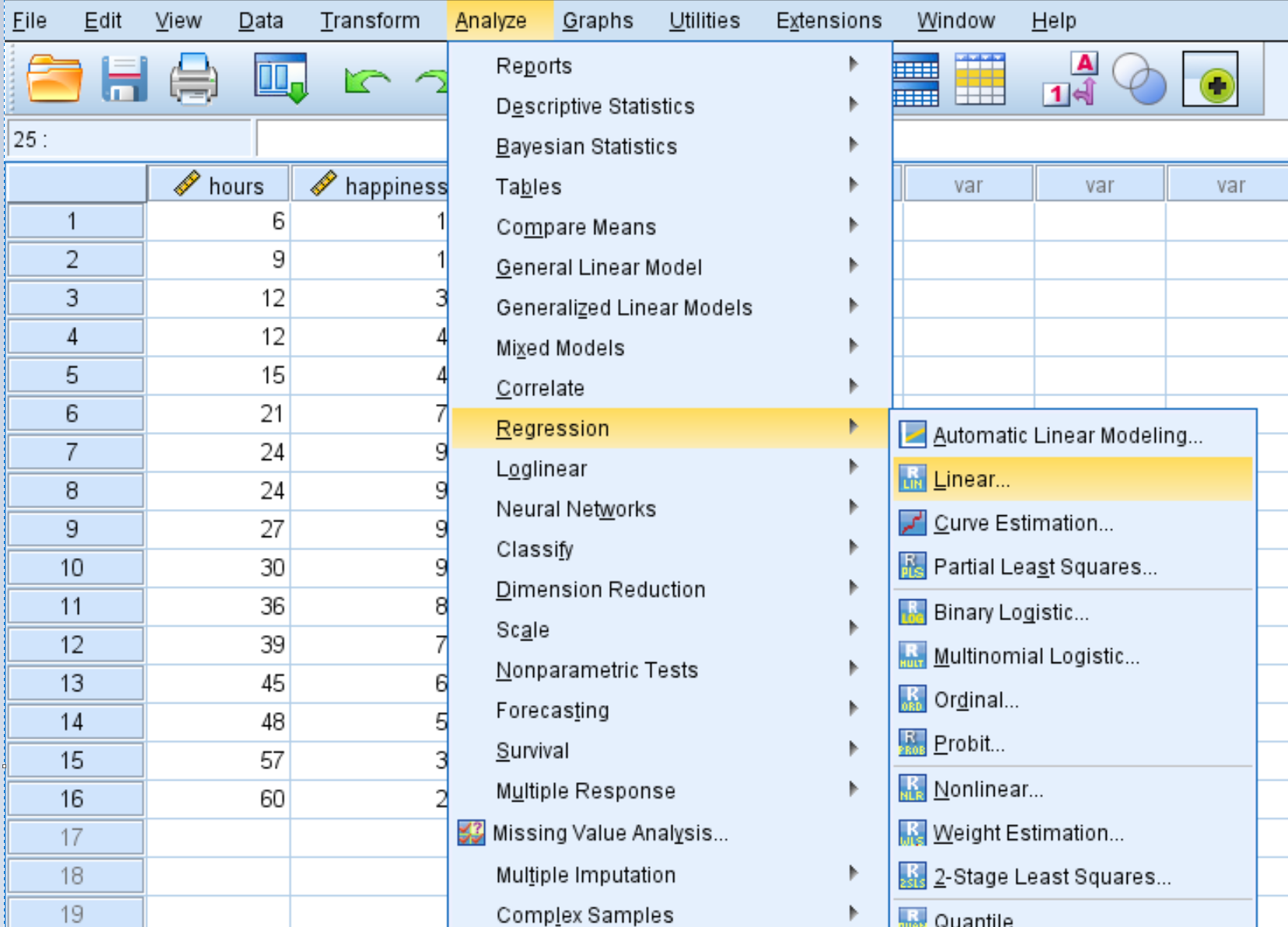

With the variables prepared, you can now proceed to the core statistical analysis. Even though we are modeling a curve, we use the Linear Regression procedure because the model is “linear in the parameters”—meaning the coefficients themselves are additive. To start, go to the Analyze menu, select Regression, and then choose Linear. This window is the primary hub for specifying predictive models in SPSS.

In the Linear Regression dialog box, you must assign the variables to their respective roles. Drag the “happiness” variable into the Dependent box. Next, drag both “hours” and the newly created “hours2” into the Independent(s) box. It is vital to include both terms; the linear term handles the general slope, while the squared term handles the acceleration or deceleration of that slope. This combination is what creates the parabolic effect in the resulting equation.

Before clicking OK, you may want to explore the Statistics button to request additional diagnostics, such as collinearity diagnostics or Durbin-Watson tests, to ensure the assumptions of regression are met. Once you are satisfied with the settings, execute the command. SPSS will then populate the Output Viewer with several tables, including the Model Summary, ANOVA table, and the Coefficients table, each providing unique insights into the data.

Step 4: Interpreting the Model Summary and Goodness of Fit

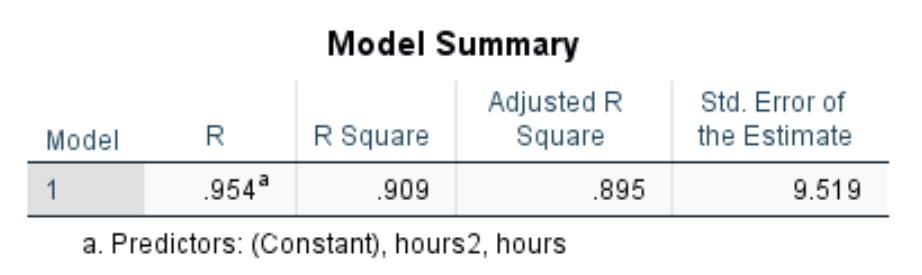

The first table to examine in the SPSS output is the Model Summary. This table provides an overview of how well the quadratic model explains the variation in the dependent variable. The most critical value here is the R-squared (R²), which represents the proportion of variance in happiness that is predictable from the hours worked. A higher R² indicates a model that fits the data points closely.

In our example, the R-squared value is 0.909, which is exceptionally high. This suggests that 90.9% of the fluctuations in reported happiness can be explained by the combination of working hours and working hours squared. Additionally, the Standard Error of the Estimate is 9.519. This metric tells us the average distance that the observed happiness scores deviate from the regression line. A smaller standard error indicates more precise predictions.

When comparing a quadratic regression to a simple linear one, you will often notice a significant increase in the R-squared value. This improvement justifies the added complexity of the model. However, researchers should also look at the Adjusted R-squared, especially when adding multiple predictors, as it penalizes the model for adding variables that do not contribute significantly to its predictive power.

Step 5: Analyzing the ANOVA Table and Statistical Significance

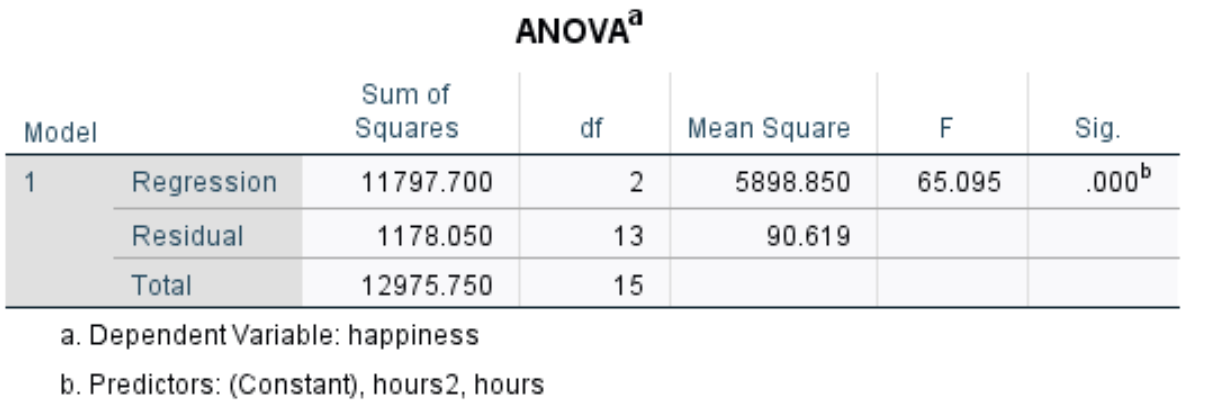

After confirming the goodness of fit, the next step is to determine if the relationship is statistically significant. The ANOVA (Analysis of Variance) table tests the null hypothesis that the model has no predictive value. It provides an F-statistic and a corresponding p-value, which in SPSS is labeled as “Sig.”

In this specific analysis, the p-value is reported as 0.000 (which actually means p < 0.001). Since this value is well below the standard alpha level of 0.05, we reject the null hypothesis. This indicates that the regression model as a whole—including both the linear and quadratic terms—is a statistically significant predictor of happiness. The F-statistic of 65.095 further reinforces that the observed relationship is unlikely to have occurred by chance.

The ANOVA table is essential because it validates the entire model before you begin looking at individual predictors. If the p-value here were non-significant, any individual coefficients found later would be considered unreliable. In formal research, reporting the F-ratio and the degrees of freedom is standard practice to allow readers to assess the statistical power of your study.

Step 6: Deriving the Regression Equation from Coefficients

The final table, Coefficients, provides the specific values needed to construct the mathematical equation for your model. The Unstandardized B column contains the weights for the intercept (Constant), the linear term (hours), and the quadratic term (hours2). These coefficients allow us to calculate the predicted happiness level for any given number of working hours.

Based on the SPSS output, our regression equation is as follows: Estimated Happiness = -30.253 + 7.173(hours) – 0.107(hours²). The negative coefficient for the squared term (-0.107) confirms that the curve is concave, meaning happiness increases to a certain point and then declines. We can use this equation for predictive modeling. For instance, if an individual works 30 hours, the model predicts a happiness score of 88.65. If they increase their labor to 60 hours, the predicted happiness drops significantly to 14.97.

It is also important to check the “Sig.” column for each individual coefficient. In our case, both “hours” and “hours2” have p-values below 0.05, meaning both the linear trend and the curvature are statistically significant components of the model. This detailed level of data interpretation allows researchers to not only say that a relationship exists but to describe its exact shape and inflection point.

Reporting Quadratic Regression Results Formally

The final stage of any statistical analysis is documenting the findings in a clear and professional manner. When reporting quadratic regression results in a thesis or a peer-reviewed journal, you must include the sample size, the F-test results, the R-squared value, and the final equation. This ensures transparency and allows other researchers to replicate or verify your work.

A formal summary might read: “A quadratic regression analysis was conducted to examine the relationship between weekly work hours and happiness levels among a sample of 16 participants. The results indicated that the quadratic model was a significant fit for the data, F(2, 13) = 65.095, p < .001, accounting for 90.9% of the variance in happiness. Both the linear term (β = 7.173, p < .001) and the quadratic term (β = -0.107, p < .001) were significant predictors. The parabolic nature of the relationship suggests that happiness peaks at a moderate level of work and declines with excessive hours.”

By following these structured steps in SPSS, you can transform raw data into a sophisticated statistical model. Whether you are working in social sciences, market research, or public health, mastering quadratic regression enables you to uncover deeper insights into the non-linear dynamics that define our world. Remember to always validate your statistical assumptions and use data visualization to guide your analytical strategy.
