How to Perform Quadratic Regression on a TI-84 Calculator Easily

Understanding the Fundamentals of Quadratic Regression

In the realm of statistical modeling, quadratic regression serves as a sophisticated analytical tool designed to identify the mathematical relationship between a dependent variable and an independent variable when that relationship is non-linear. Unlike simple linear regression, which assumes a constant rate of change represented by a straight line, quadratic regression accounts for data that follows a parabola. This method is particularly effective when the data points demonstrate a “U” or an inverted “U” shape, indicating that the response variable increases or decreases to a certain point before reversing its trajectory.

The mathematical foundation of this method relies on the quadratic function, which is generally expressed as y = ax² + bx + c. In this equation, y represents the predicted value, x is the explanatory variable, and a, b, and c are regression coefficients that define the shape and position of the curve. The coefficient a is especially critical, as it determines the direction of the opening of the parabola and the degree of its curvature. If a is positive, the curve opens upward; if negative, it opens downward.

Performing these calculations manually can be incredibly labor-intensive, involving complex matrix algebra and least squares estimations. However, the TI-84 calculator provides a streamlined, user-friendly interface to execute these operations with high precision. By leveraging the built-in computational algorithms of the TI-84, researchers and students can quickly transform raw data into a functional predictive model, allowing for deeper insights into the underlying patterns of the dataset.

Distinguishing Between Linear and Quadratic Relationships

Before initiating the technical steps on a calculator, it is vital to understand when to apply quadratic regression over other forms of regression analysis. In many real-world scenarios, variables do not interact in a strictly linear fashion. For instance, the relationship between a person’s age and their physical strength, or the relationship between a car’s speed and its fuel efficiency, often follows a curvilinear path. Recognizing these patterns is the first step toward accurate data analysis.

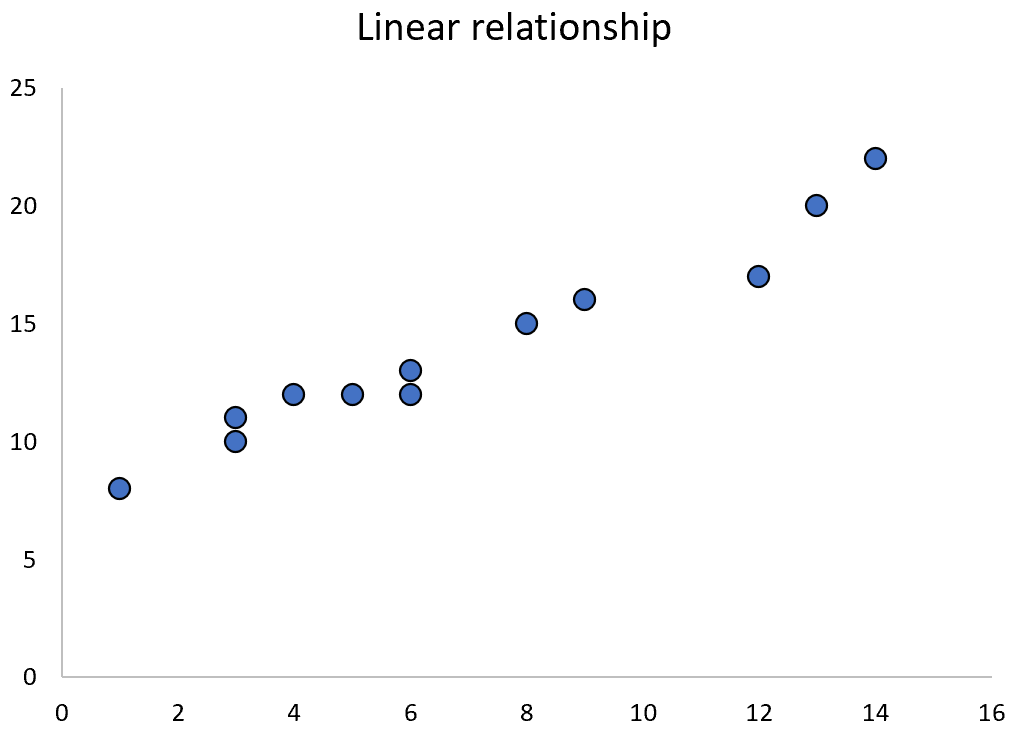

When two variables have a linear relationship, we can often use linear regression to quantify their relationship. This model assumes that for every unit increase in the independent variable, there is a consistent, fixed change in the dependent variable. Visually, this is represented by a line of best fit that passes through the center of the data clusters. However, applying a linear model to quadratic data would result in significant residual errors and an inaccurate representation of the trend.

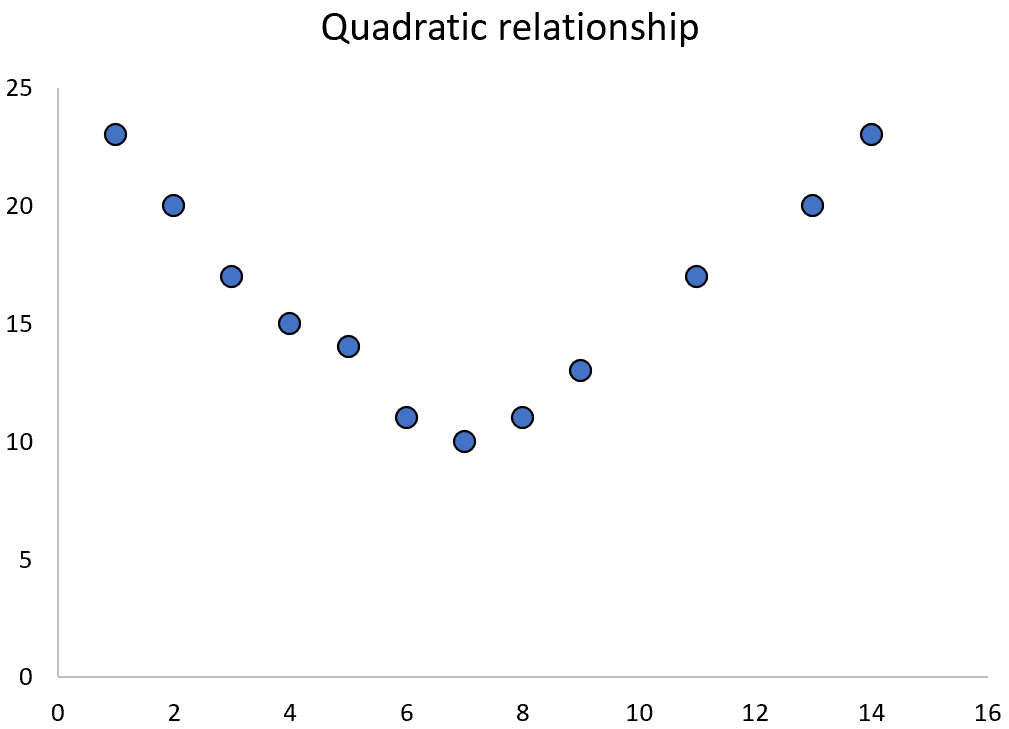

However, when two variables have a quadratic relationship, we can instead use quadratic regression to quantify their relationship. This approach is superior for datasets where the rate of change is not constant. By fitting a polynomial of the second degree, the model can capture the “peak” or “valley” of the data, providing a much higher degree of accuracy in both description and forecasting. This tutorial explains how to perform quadratic regression on a TI-84 Calculator, ensuring you can navigate these complex statistical tasks with ease.

Practical Application: A Study on Hours Worked and Happiness

To illustrate the power of this statistical method, let us consider a practical example involving social science research. Suppose we are interested in understanding the relationship between the number of hours an individual works per week and their self-reported happiness levels. Intuitively, one might assume that working too few hours leads to financial stress, while working too many hours leads to burnout. This suggests a non-linear relationship where happiness peaks at a moderate amount of work.

In this hypothetical study, we have collected data on the number of hours worked per week and the reported happiness level (on a scale of 0-100) for 11 different people. The independent variable (x) is the hours worked, and the dependent variable (y) is the happiness score. To determine the most effective mathematical model, we will use the computational capabilities of the TI-84 to find the curve of best fit.

By following the subsequent steps, you will learn how to input this data, visualize it through a scatterplot, and calculate the regression equation. This process is essential for anyone engaged in quantitative research or advanced mathematics, as it provides a structured methodology for interpreting complex behavioral data through the lens of quadratic modeling.

Step 1: Data Entry and Exploratory Visualization

Before we can use quadratic regression, we need to make sure that the relationship between the explanatory variable (hours) and response variable (happiness) is actually quadratic. This preliminary phase is known as exploratory data analysis. Visualization allows the researcher to detect outliers, observe the general shape of the data, and confirm that a second-degree polynomial is the appropriate choice for the model.

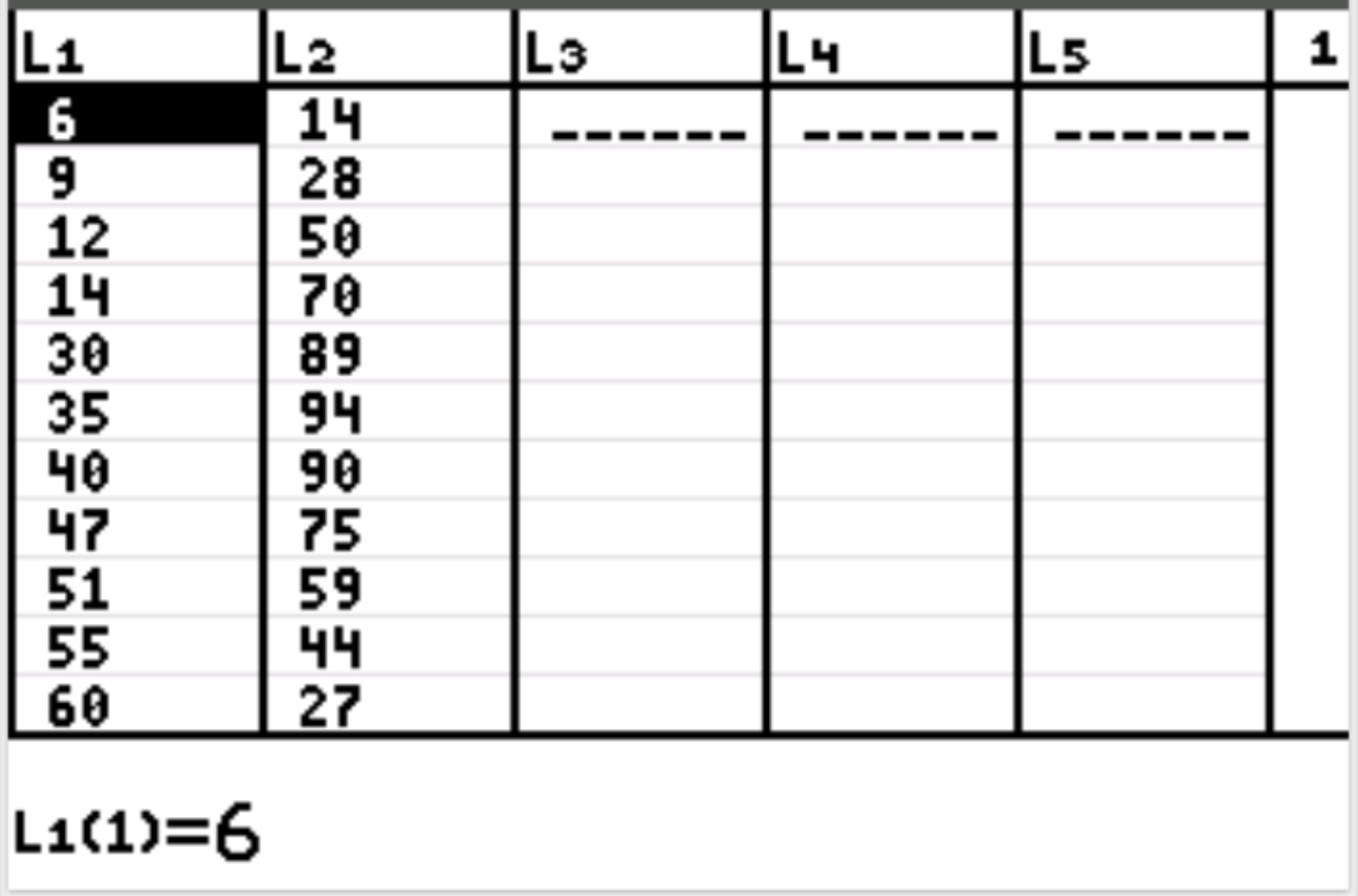

First, we will input the data values for both the explanatory and the response variable into the calculator’s list memory. Press the [Stat] button and then select the EDIT option. This will open the spreadsheet interface of the TI-84. Enter the following values for the explanatory variable (hours worked) in column L1 and the values for the response variable (happiness) in column L2. Ensure that each pair of data points corresponds correctly across the rows to maintain data integrity.

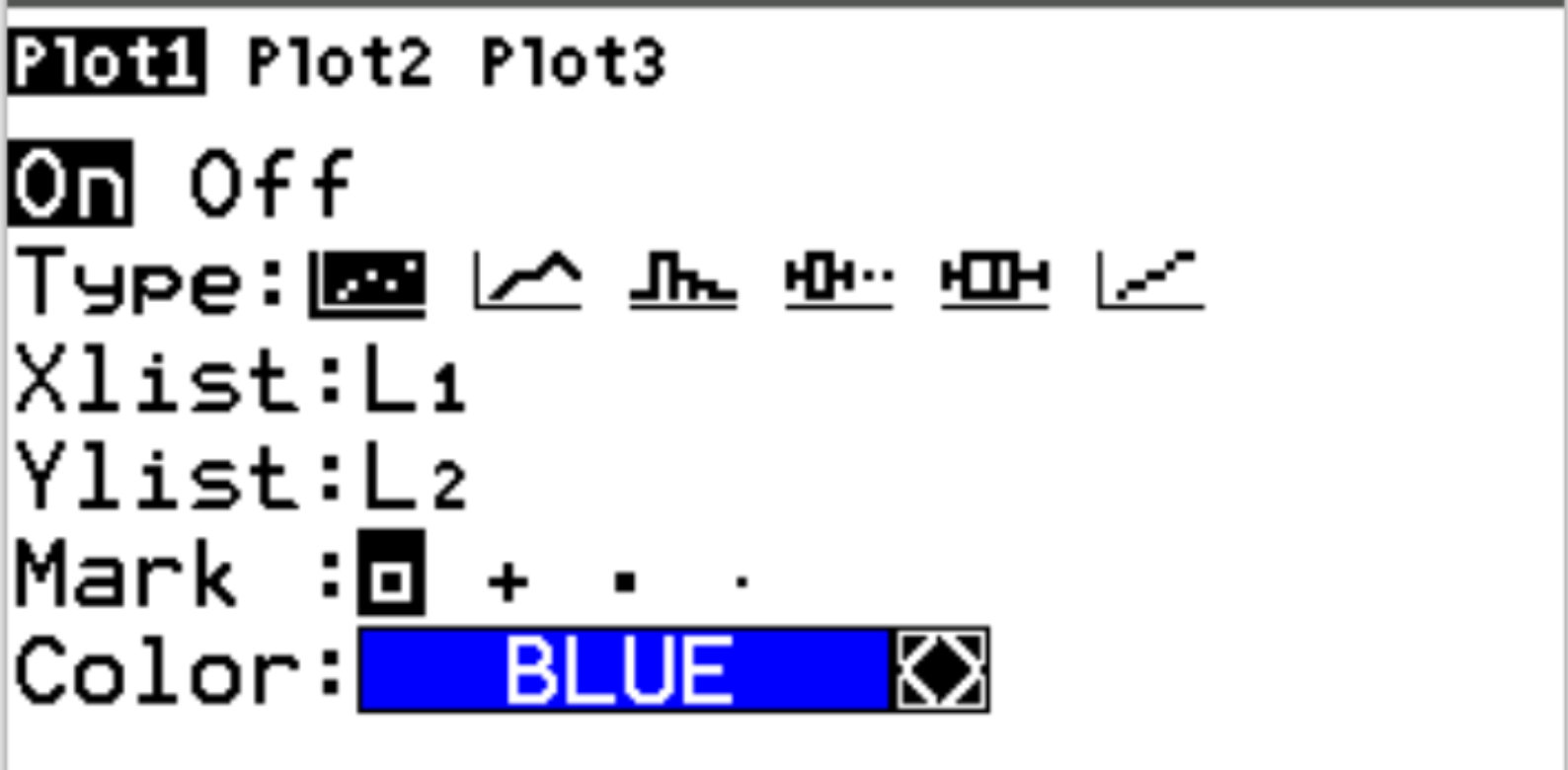

Next, we must configure the calculator to display these points. Press [2nd] and then press [y=] to access the Stat Plot menu. Highlight Plot1 and press [Enter]. Within this menu, ensure the plot is toggled to “On” and that the Type is set to the first icon, which represents a scatterplot. Confirm that L1 and L2 are selected for Xlist and Ylist, respectively. This step connects the raw data lists to the graphing engine.

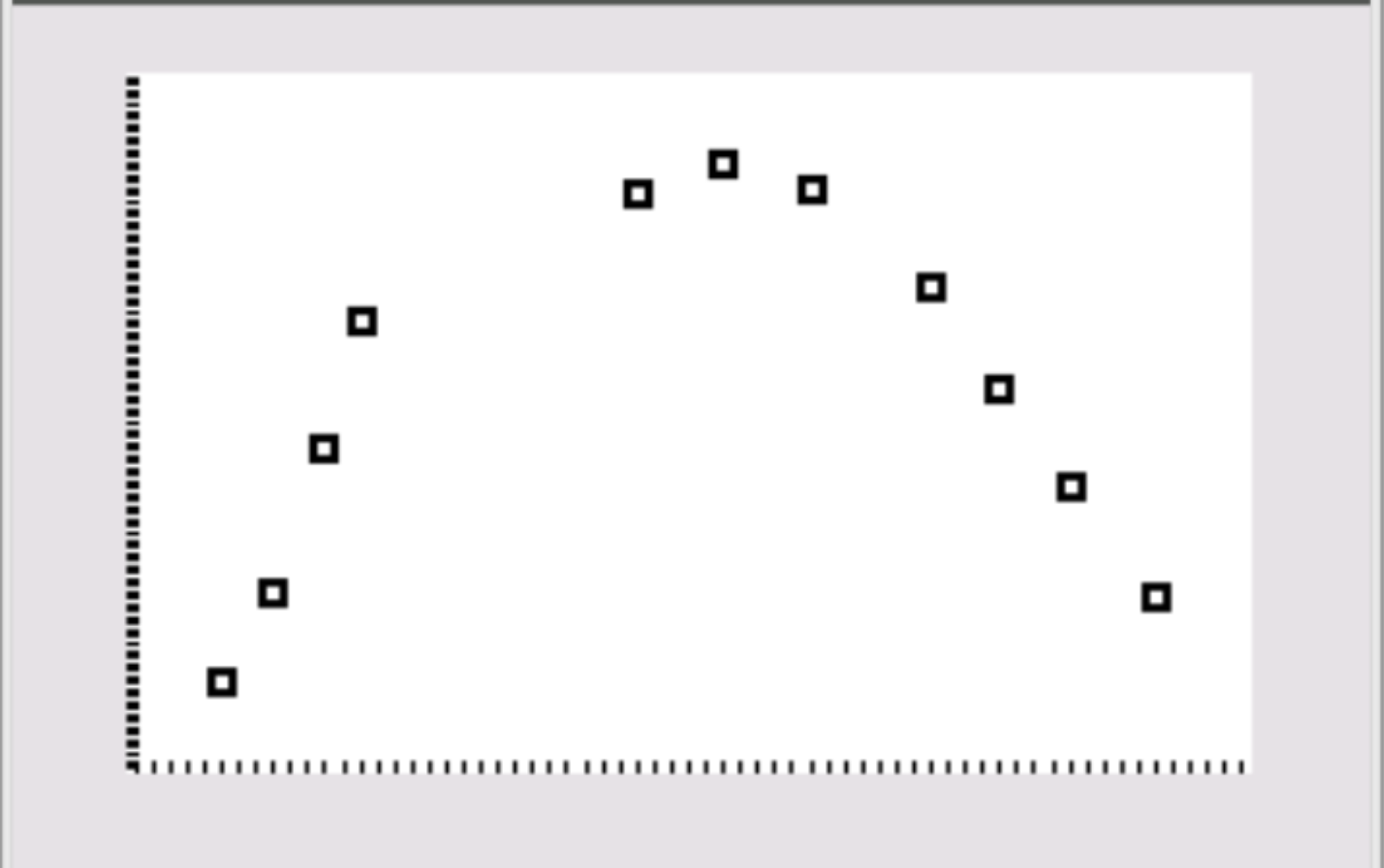

To view the graph, the viewing window must be adjusted to fit the range of the data. Instead of manual adjustment, press [Zoom] and then select 9:ZoomStat. This feature automatically optimizes the axes based on the values in your lists. This will automatically produce the following scatterplot, providing a clear visual representation of the distribution of the data points.

This upside-down “U” shape in the scatterplot indicates that there is a quadratic relationship between hours worked and happiness, which means we should use quadratic regression to quantify this relationship. The presence of a clear vertex (peak) confirms that a linear model would be insufficient and that a parabolic function is the most accurate way to represent the trend.

Step 2: Executing the Quadratic Regression Algorithm

Once the quadratic nature of the data is confirmed through visualization, the next phase is to compute the specific coefficients of the regression equation. This process involves the calculator performing a series of matrix transformations to minimize the sum of the squares of the vertical deviations between each data point and the resulting curve. This is known as the least squares method for polynomial regression.

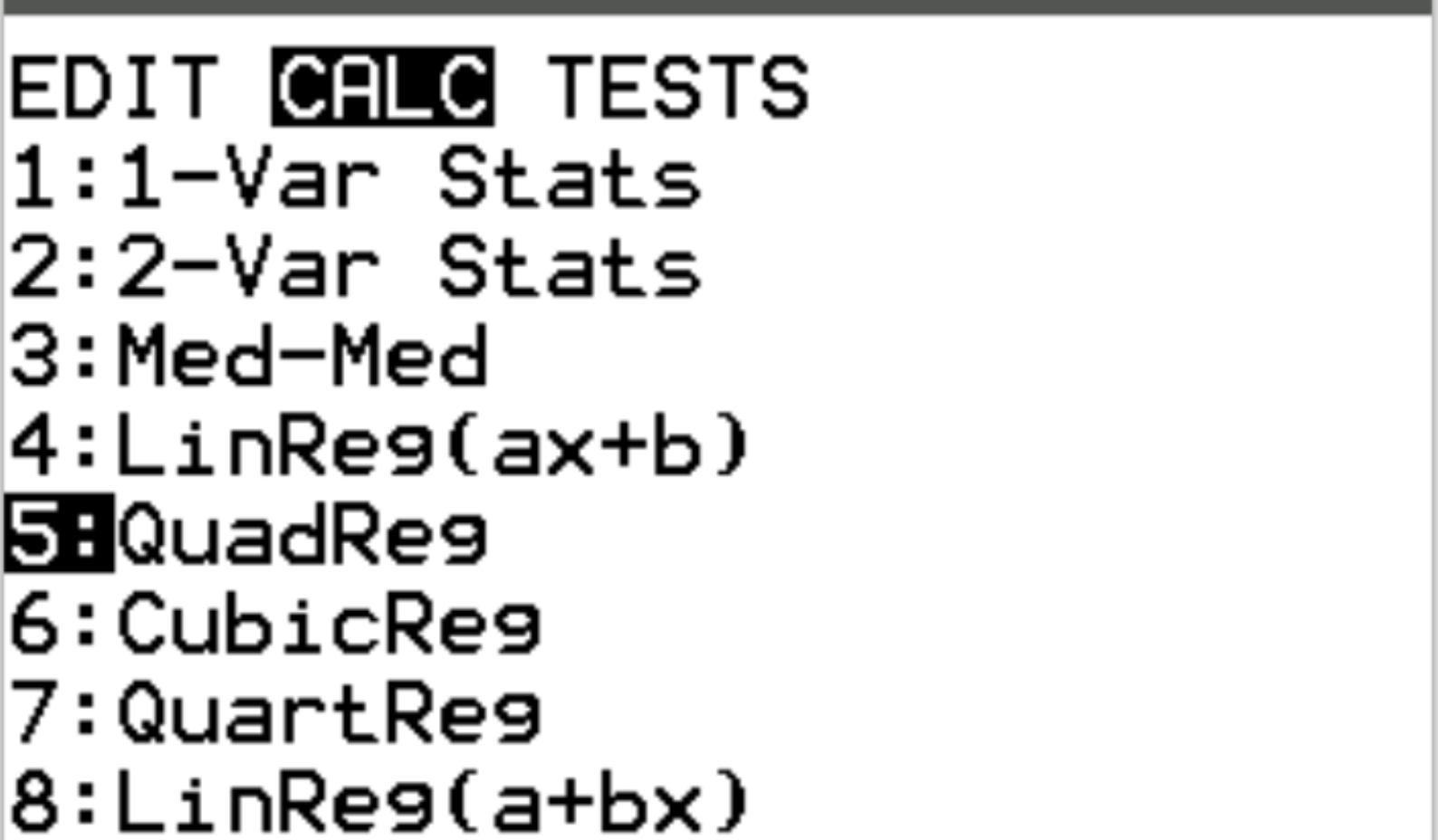

Next, we will perform quadratic regression by navigating back to the statistical menus. Press [Stat] and then scroll over to the CALC tab at the top of the screen. This menu contains various regression models. Scroll down to 5: QuadReg and press [Enter]. This command instructs the TI-84 to calculate the best-fitting parabolic equation for the provided data pairs.

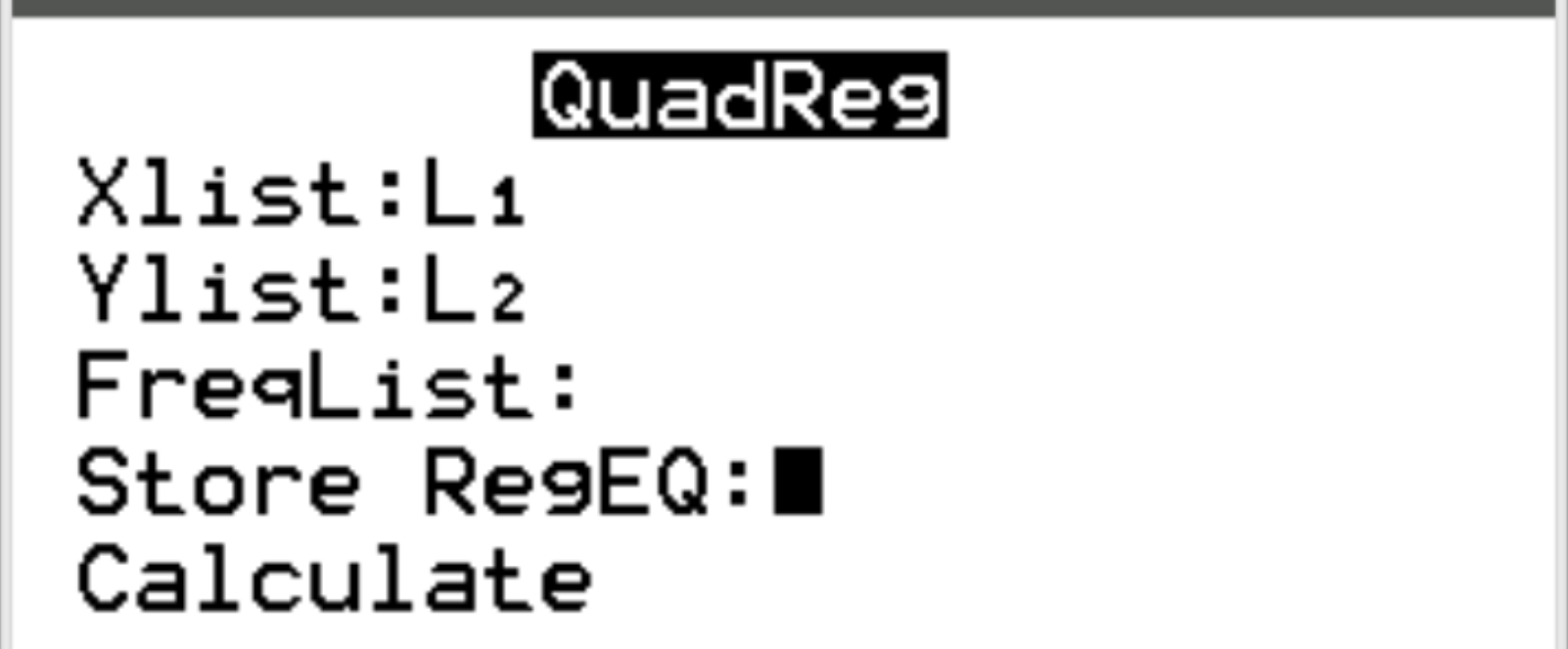

On the setup screen, for Xlist and Ylist, make sure L1 and L2 are selected, as these are the columns we used to input our data. Leave FreqList blank unless you have a third list representing the frequency of each observation. If you wish to store the resulting equation directly into your graph menu, you can navigate to Store RegEQ and select Y1. Finally, scroll down to Calculate and press [Enter].

The following output will automatically appear on your screen, providing the values for a, b, and c. These numerical values are the parameters that define the specific curve that minimizes the distance to all data points simultaneously. This output is the core of your statistical analysis and will be used to construct the final predictive equation.

Step 3: Interpreting the Regression Output and Coefficients

Interpreting the results of the QuadReg command requires an understanding of how the coefficients translate into a real-world context. From the results displayed on the TI-84, we can see that the estimated regression equation is as follows: happiness = -0.1012(hours)² + 6.7444(hours) – 18.2536. Each part of this mathematical model tells a story about the relationship between labor and emotional well-being.

The negative value of the a coefficient (-0.1012) confirms our visual observation that the parabola opens downward, indicating a maximum point of happiness. The b coefficient (6.7444) and the c constant (-18.2536) further define the slope at the y-intercept and the vertical shift of the curve. Together, these values allow us to use the equation to find the predicted happiness of an individual, given any specific number of hours they work per week.

For example, an individual that works 60 hours per week is predicted to have a happiness level of 22.09. This is calculated by substituting 60 for “hours” in our equation: happiness = -0.1012(60)² + 6.7444(60) – 18.2536 = 22.09. This low score suggests that excessive work hours may correlate with a significant decline in reported happiness, likely due to fatigue or lack of leisure time.

Conversely, an individual that works 30 hours per week is predicted to have a happiness level of 92.99: happiness = -0.1012(30)² + 6.7444(30) – 18.2536 = 92.99. This much higher score suggests that a 30-hour work week is closer to the optimal balance for this particular group of subjects. Such predictive modeling is invaluable for organizational psychology and policy-making.

Evaluating Model Accuracy and R-Squared

Beyond simply generating an equation, a robust statistical analysis must also determine how well the model actually fits the observed data. This is achieved through the coefficient of determination, commonly known as r-squared (r²). This metric provides a percentage that represents the goodness-of-fit of the regression curve. In the context of the TI-84, if r² is not visible in your output, you may need to turn on the Diagnostic mode via the Catalog menu.

We can see that the r-squared for the regression model is r² = 0.9602. This value is exceptionally high, as it ranges from 0 to 1. An r² of 0.9602 means that 96.02% of the variance in the response variable (happiness) can be explained by the explanatory variables (hours and hours²). In social sciences, an r² of this magnitude indicates an extremely strong correlation and suggests that the model is highly reliable for making predictions within the range of the studied data.

The remaining 3.98% of the variation is attributed to residual error or other factors not included in the model, such as individual personality traits, income, or health. Understanding the coefficient of determination is crucial because it tells the researcher whether the quadratic model is a meaningful representation of reality or if the observed pattern is merely a result of random noise.

By utilizing the TI-84 for quadratic regression, complex data can be distilled into actionable insights. Whether you are analyzing economic trends, biological growth patterns, or psychological data, the ability to accurately fit a quadratic curve allows for a deeper level of quantitative reasoning. This tool transforms raw numbers into a clear narrative, enabling more informed decisions based on empirical evidence.
