How to Display Dates and Times on Your Excel Chart’s X-Axis

Understanding the Importance of Temporal Data in Excel

In the contemporary landscape of data analytics, the ability to effectively communicate temporal trends is indispensable. Microsoft Excel remains a cornerstone for professionals seeking to transform raw metadata into actionable insights. When dealing with time series data, the X-axis serves as the chronological backbone of your visual representation. Ensuring that both the date and the specific time are clearly visible allows for a granular analysis of fluctuations, which is critical for business intelligence and scientific reporting alike.

To display the date and time on the X-axis of a chart in Excel, one must navigate beyond basic default settings. The process involves a specific sequence of actions: first, you must select the chart and right-click on the horizontal axis. From there, the Format Axis window provides the necessary user interface to refine how temporal markers are rendered. By selecting the Date axis type under the Axis Options tab, users can define precise Minimum and Maximum bounds for their data, ensuring that the visual span perfectly encapsulates the intended period.

This guide provides a comprehensive walkthrough for users who need to maintain high levels of precision in their data visualization. Whether you are tracking stock market volatility by the minute or monitoring sensor data in a laboratory setting, mastering the spreadsheet formatting tools is essential. The following steps will detail the journey from a simple list of values to a professional-grade chart that displays date and time with absolute clarity.

Step 1: Meticulous Data Entry and Formatting

The foundation of any successful infographic or chart is the integrity of the underlying dataset. In Excel, dates and times are stored as serial numbers, where each whole number represents a day and fractions of that number represent time. To begin, you must ensure that your data is entered in a format that Excel recognizes as a timestamp. This typically involves a column where each cell contains both the calendar date and the specific clock time, separated by a space. Proper data cleansing at this stage prevents errors during the chart generation phase.

Consider a scenario where you are documenting sales figures or temperature readings. The first column, which will become our Abscissa, should contain these dual-purpose timestamps. It is highly recommended to use a consistent format such as ISO 8601 or the standard regional format provided by your operating system. If the data is imported from a CSV file, ensure that Excel has not misinterpreted these values as mere text strings, as this will prevent the Date axis functionality from working correctly.

Once the data is entered, you should verify that the cells are formatted as “Date” or “Custom” with a code such as “mm/dd/yyyy hh:mm”. This ensures that when Excel generates the plot, it acknowledges the mathematical relationship between the different time points. A well-organized table, as shown in the following example, is the first step toward a professional result. The clarity of your input directly correlates to the accuracy of your output.

Step 2: Selecting the Appropriate Chart Type for Time Series

Choosing the correct chart type is a critical decision in the visual analytics process. While a standard line chart might seem like the obvious choice, a Scatter Plot with straight lines and markers is often superior for time-based data. This is because a scatter plot treats the X-axis as a continuous scale of values, whereas a line chart may treat dates as discrete categories, potentially distorting the intervals between observations if they are not evenly spaced.

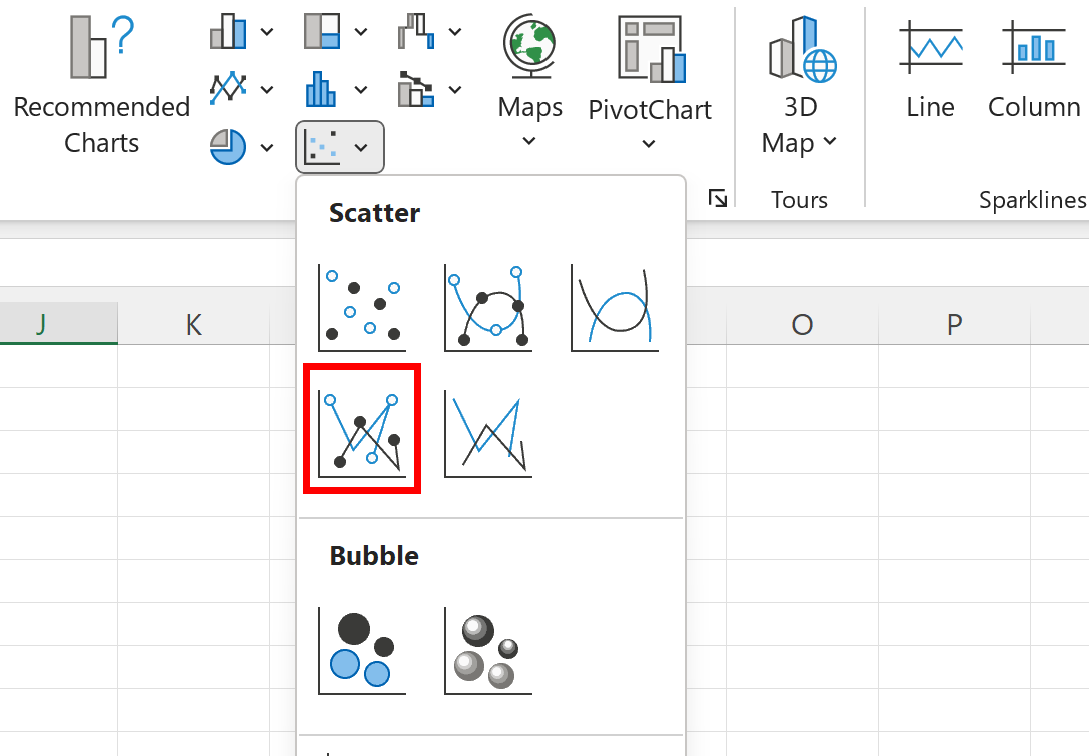

To implement this, highlight your dataset, specifically the range from A2 to B9 in our example. Navigate to the Ribbon at the top of the Excel interface and select the Insert tab. Within the Charts group, locate the icon for Scatter (X, Y). From the dropdown menu, select Scatter with Straight Lines and Markers. This specific selection ensures that the relationship between time and value is preserved linearly while providing visual indicators for each specific data point.

By utilizing this chart style, you allow Excel to calculate the exact placement of each point on a coordinate system. This is particularly useful when data points are collected at irregular intervals. The scatter plot will visually demonstrate the “gaps” in time, providing a more honest and accurate representation of the events being tracked. This level of detail is vital for quantitative research and high-stakes reporting.

Step 3: Generating and Reviewing the Initial Chart

After selecting the Scatter with Straight Lines and Markers option, Excel will automatically generate the chart on your current worksheet. At first glance, you may notice that the X-axis appears cluttered or that the labels are not formatted exactly as you envisioned. This is a normal part of the iterative design process. Excel attempts to make its best guess based on the data range, but manual intervention is usually required to achieve professional standards.

The default behavior of Microsoft Office applications is to prioritize horizontal label placement. In a chart where the timestamps are long (containing both month, day, year, hour, and minute), this horizontal orientation often leads to overlapping text. This overlap makes the chart unreadable and diminishes the value of the information design. It is essential to review the initial output to identify these legibility issues before proceeding to the formatting stage.

Observe the chart carefully. Are the dates appearing as serial numbers or as formatted strings? If they appear as numbers like 45000.5, it indicates that the axis has not yet been instructed to display the data as dates. If the labels are overlapping, as seen in many default configurations, we will address this in the subsequent steps. The goal is to move from a cluttered, computer-generated visual to a refined, user-friendly graphic.

Step 4: Accessing Advanced Axis Formatting Options

To refine the X-axis, you must access the Format Axis task pane. This is the central hub for all modifications related to scale, tick marks, and label positioning. To open this pane, you can either double-click on any of the values currently displayed on the horizontal axis or right-click the axis and select Format Axis from the context menu. This action will trigger a sidebar to appear on the right side of your Excel window.

Within this pane, ensure you are in the Axis Options section, represented by a small bar chart icon. Here, you will see settings for Bounds, Units, and Axis Type. If Excel has not automatically recognized your data as dates, you can manually toggle the Date axis radio button. This tells the software to treat the values as a chronological sequence, which is fundamental for accurate linear representation of time.

Additionally, you can adjust the Minimum and Maximum bounds to eliminate unnecessary white space at the beginning or end of your chart. Because Excel treats dates as numbers, you can enter a date directly into these fields, and Excel will convert it to the corresponding serial value. This level of control allows you to “zoom in” on specific periods of interest, which is a powerful technique in exploratory data analysis.

Step 5: Optimizing Label Orientation for Readability

Once the axis is correctly identifying the timestamps, the next hurdle is typography and layout. As previously noted, horizontal labels for date and time are often too wide for the space available. To rectify this, we can rotate the labels, a common practice in graphic design to maximize space efficiency. This allows for a higher density of information without sacrificing clarity.

In the Format Axis pane, navigate to the Size & Properties tab, which is symbolized by a square with directional arrows. Locate the Alignment section and find the Custom angle box. By entering a value such as -45 degrees, the labels will slant downward, creating more room for each individual timestamp. This simple adjustment often makes the difference between a cluttered chart and a professional one.

After applying the 45-degree rotation, you will notice that the X-axis labels are much easier to distinguish. The eye can follow the slanted text easily, and the points on the chart align perfectly with their corresponding times. This adjustment is particularly helpful when presenting your work on high-definition screens or in printed reports where space is at a premium.

Step 6: Refining Visual Elements and Aesthetics

With the technical aspects of the X-axis resolved, you can now focus on the overall aesthetics of the chart. A well-designed visual should follow the principles of minimalism, removing any “non-data ink” that does not contribute to the understanding of the information. This includes removing distracting gridlines or unnecessary legends if only one data series is present.

Start by adding a descriptive chart title that clearly states what the data represents. Then, add axis titles for both the vertical and horizontal axes to provide context. You can also customize the color scheme to align with your corporate branding or to highlight specific trends. Excel provides a variety of style templates, but manual customization often yields the most professional results.

Consider the use of markers. While markers are helpful for identifying specific data points, they can become cluttered if your dataset is very large. In such cases, you might choose to keep the straight lines but remove the markers for a cleaner look. The goal is to create a data visualization that is not only accurate but also visually engaging and easy to interpret at a single glance.

Step 7: Advanced Troubleshooting for Date-Time Scaling

Occasionally, users may encounter issues where the X-axis does not behave as expected even after following the standard steps. One common problem is the spreadsheet program defaulting to a “Text axis” instead of a “Date axis.” This occurs if Excel detects any non-numeric characters in your date column. To fix this, double-check that there are no leading spaces or hidden apostrophes in your source cells.

Another advanced technique involves adjusting the Major and Minor units in the Axis Options. These units determine the frequency of the tick marks and labels. For instance, if you want a label every 6 hours, you can set the Major unit to 0.25 (since 6 hours is one-fourth of a day). This level of mathematical precision is what makes Excel such a robust tool for statistical graphics.

Finally, always ensure that your chart is large enough to accommodate the detailed time information. If the chart is too small, Excel may automatically hide some labels to prevent overlap, regardless of your rotation settings. By following these comprehensive steps, you can master the art of displaying date and time on an Excel chart, providing your audience with clear, professional, and highly accurate data insights.
