In order to create side-by-side plots in ggplot2, one can use the “facet_grid()” function which allows for multiple plots to be displayed simultaneously. This function divides the data into different groups and plots them in a grid format to easily compare and contrast the different groups. This can be done by specifying the variables or factors to be used for grouping within the function. Additionally, the “facet_wrap()” function can also be used to create a similar layout but with the plots arranged in a wrap format instead of a grid. These functions are useful for visualizing and analyzing multiple variables or factors within a dataset in a single graph.
Create Side-by-Side Plots in ggplot2
Often you may want to create two plots side-by-side using the ggplot2 package in R. Fortunately this is easy to do with the help of the patchwork package.
#install ggplot2 and patchwork packages install.packages('ggplot2') install.packages('patchwork') #load the packages library(ggplot2) library(patchwork)
This tutorial shows several examples of how to use these packages to create side-by-side plots.
Example 1: Two Side-by-Side Plots
The following code shows how to create two side-by-side plots using the R built-in iris dataset:
#create box plot plot1 <- ggplot(iris, aes(x = Species, y = Sepal.Length)) + geom_boxplot() #create density plot plot2 <- ggplot(iris, aes(x = Sepal.Length, fill = Species)) + geom_density(alpha = 0.8) #display plots side by side plot1 + plot2
Example 2: Three Side-by-Side Plots
The following code shows how to create three side-by-side plots using the R built-in iris dataset:
#create box plot plot1 <- ggplot(iris, aes(x = Species, y = Sepal.Length)) + geom_boxplot() #create density plot plot2 <- ggplot(iris, aes(x = Sepal.Length, fill = Species)) + geom_density(alpha = 0.7) #create scatterplot plot3 <- ggplot(iris, aes(x = Sepal.Length, y = Sepal.Width)) + geom_point() #display three plots side by side plot1 + plot2 + plot3

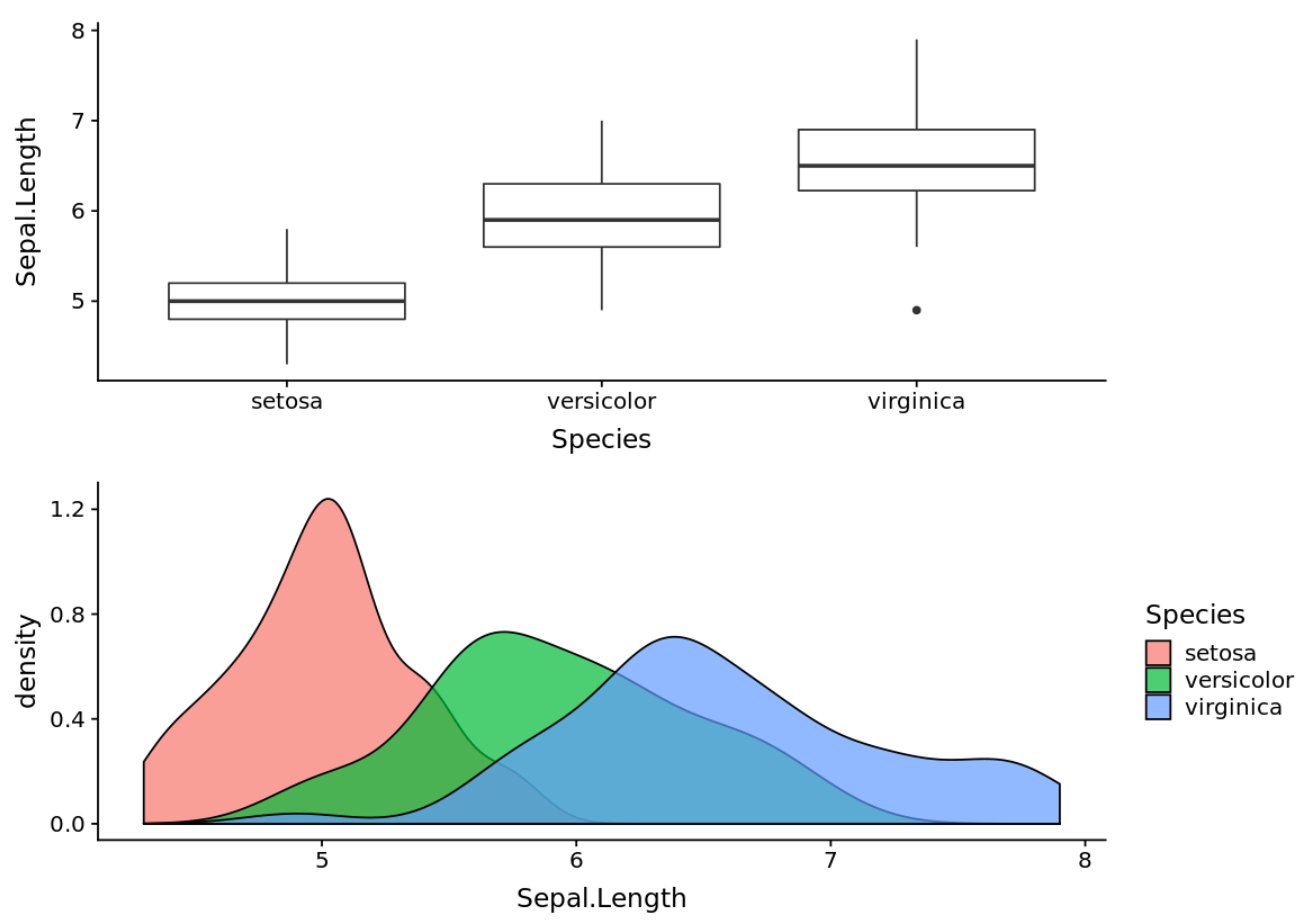

Example 3: Two Stacked Plots
The following code shows how to create two stacked plots, one on top of the other:
#create box plot plot1 <- ggplot(iris, aes(x = Species, y = Sepal.Length)) + geom_boxplot() #create density plot plot2 <- ggplot(iris, aes(x = Sepal.Length, fill = Species)) + geom_density(alpha = 0.7) #display plots stacked on top of each other plot1 / plot2
Example 4: Add Titles, Subtitles, and Captions
The following code shows how to add titles, subtitles, and captions to the plots:
#create box plot plot1 <- ggplot(iris, aes(x = Species, y = Sepal.Length)) + geom_boxplot() + ggtitle('Boxplot') #create density plot plot2 <- ggplot(iris, aes(x = Sepal.Length, fill = Species)) + geom_density(alpha = 0.7) + ggtitle('Density Plot') #display plots side by side with title, subtitle, and captions patchwork <- plot1 + plot2 patchwork + plot_annotation( title = 'This is a title', subtitle = 'This is a subtitle that describes more information about the plots', caption = 'This is a caption' )
You can find more R tutorials here.
