ggsave is a function from the ggplot2 package that allows you to quickly save an already-made ggplot2 plot as an image file, such as a PNG or JPEG. It takes in the plot name and file name as arguments and creates the image file automatically. It is a useful tool for quickly saving a plot without having to use a separate plotting application.
You can use the ggsave() function to quickly save plots created by ggplot2.
This function uses the following basic syntax:
ggsave(
filename,
plot = last_plot(),
device = NULL,
path = NULL,
scale = 1,
width = NA,
height = NA,
units = c("in", "cm", "mm", "px"),")
...
)
where:
- filename: File name to use when saving plot (e.g. “my_plot.pdf”)
- plot: The plot to save. Default is to save last plot displayed.
- device: Device to use
- path: Path to save file to
- scale: Multiplicative scaling factor
- width: width of plot in units specified
- height: height of plot in units specified
- units: Units to use when specifying size of plot

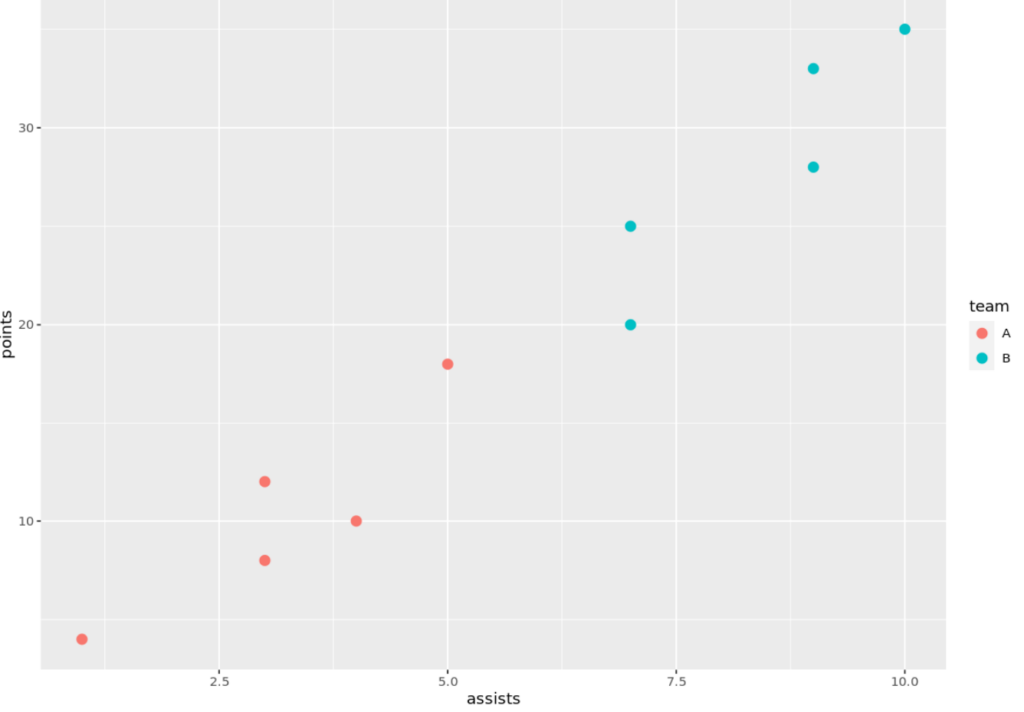

The following examples show how to use the ggsave() function in practice to save the following scatter plot created in ggplot2:
library(ggplot2)
#create data frame
df <- data.frame(team=rep(c('A', 'B'), each=5),
assists=c(1, 3, 3, 4, 5, 7, 7, 9, 9, 10),
points=c(4, 8, 12, 10, 18, 25, 20, 28, 33, 35))
#create scatter plot
ggplot(df, aes(x=assists, y=points)) +
geom_point(aes(color=team), size=3)
Example 1: Use ggsave() to Save Plot with Default Settings
We can use the following syntax with ggsave() to save this scatter plot to a PDF file called my_plot.pdf with all of the default settings:
library(ggplot2)
#save scatter plot as PDF file
ggsave('my_plot.pdf')
Since we didn’t specify a path or a size for our plot, the scatter plot will simply be saved as a PDF in the current working directory with the size of the current graphics device.
If I navigate to my current working directory, I can view the PDF file:
I can see that the plot has been saved as a PDF file with the size of the current graphics device.
Example 2: Use ggsave() to Save Plot with Custom Settings
We can use the following syntax with ggsave() to save this scatter plot to a PDF file called my_plot2.pdf with a size of 3 inches wide by 6 inches tall:
library(ggplot2)
#save scatter plot as PDF file with specific dimensions
ggsave('my_plot2.pdf', width=3, height=6, units='in')
If I navigate to my current working directory, I can view the PDF file:
I can see that the plot has been saved as a PDF file with the dimensions that I specified.
Note: In these examples we chose to save the plots from ggplot2 as PDF files, but you can also specify jpeg, png, or other file formats.
