How to Easily Overlay Density Plots in ggplot2 for Clear Data Comparison

The Power of Density Plots in Data Visualization

A density plot fundamentally represents the smoothed histogram of a variable, providing a clear visual representation of the probability distribution of continuous data. Unlike histograms, which rely on defined bin widths, density plots use kernel smoothing to create a continuous curve, offering a less jagged and often more interpretable view of the underlying data structure. When multiple such plots are layered, the comparison of different population characteristics becomes intuitive.

In analytical practice, it is incredibly common to want to visualize the density plots of several variables or groups within a dataset at once. For instance, comparing the test scores of students across different teaching methods or the response times of users based on different hardware configurations requires a direct, comparative visual tool. Fortunately, achieving this high-quality visualization is straightforward using the ggplot2 package in R, which operates based on the grammar of graphics.

The standard syntax for creating overlaid density plots requires defining the data source, mapping the variables to the x-axis (the value being measured) and the fill aesthetic (the grouping variable), and then applying the geom_density() layer. The fill aesthetic is crucial because it tells ggplot2 how to differentiate the individual distributions, typically by color coding the area under each curve. The general structure looks like this:

ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.25)

This concise command encapsulates all the necessary information to generate the visualization, assuming the data is correctly structured. The use of the aes() function defines the aesthetic mappings, setting the stage for the geometric layer (geom_density) to render the visualization.

Controlling Transparency: Utilizing the Alpha Argument

When multiple distributions overlap, visibility is paramount. The alpha argument plays a vital role in managing the opacity, or transparency, of each density plot layer. Alpha values range from 0 (fully transparent) to 1 (fully opaque). When overlaying plots, setting the alpha value below 1 is mandatory; otherwise, the plot drawn last will entirely obscure any underlying distributions, defeating the purpose of the comparison.

A typical starting value for alpha is 0.25, as seen in the syntax above. This ensures that where the distributions intersect, the color mixing allows the viewer to perceive the shape and extent of each individual curve clearly. Selecting an appropriate alpha level is often an iterative process, balancing visibility against the aesthetic preference of the visualization. Too low an alpha might make the colors too faint, while too high an alpha might obscure the overlap region.

The following detailed, step-by-step example demonstrates the entire workflow, starting from raw data creation in R and concluding with the final, customized visualization. We will ensure that every step, especially data transformation, is fully explained to guarantee reproducible and clean results.

Step 1: Generating and Inspecting Sample Data

Before plotting, we must have data that contains multiple continuous variables we wish to compare. For demonstration purposes, we will create a synthetic dataset (a data frame) containing three distinct variables, each generated using a different mean and standard deviation via the rnorm() function, simulating different underlying probability distributions.

To ensure that anyone replicating this example achieves the exact same results, we begin by setting a random seed. This practice is crucial for reproducibility in statistical programming. The three variables, var1, var2, and var3, are designed to exhibit clear differences in their distribution parameters: var1 is centered around zero with small spread, var2 is also centered around zero but has a large spread, and var3 is positively shifted with moderate spread.

The following code block executes the creation of this sample data and provides a quick inspection of the initial rows using the head() function, confirming the structure of our initial wide-format data frame.

#make this example reproducible
set.seed(1)

#create data
df <- data.frame(var1=rnorm(1000, mean=0, sd=1),
                 var2=rnorm(1000, mean=0, sd=3),
                 var3=rnorm(1000, mean=3, sd=2))

#view first six rows of data
head(df)

        var1       var2       var3
1 -0.6264538  3.4048953  1.2277008
2  0.1836433  3.3357955 -0.8445098
3 -0.8356286 -2.6123329  6.2394015
4  1.5952808  0.6321948  4.0385398
5  0.3295078  0.2081869  2.8883001
6 -0.8204684 -4.9879466  4.3928352

At this stage, the data is in wide format, meaning each variable that we want to plot separately (var1, var2, var3) occupies its own distinct column. While convenient for certain statistical analyses, this format is not optimal for layered visualizations within ggplot2, which prefers a tidy data structure.

Step 2: Reshaping Data from Wide to Long Format

The philosophy of the grammar of graphics implemented by ggplot2 dictates that variables used for aesthetic mappings—such as color or fill—must be contained within a single column that acts as the grouping factor. Since our goal is to use the variable name (var1, var2, var3) to define the fill color of the density plots, we must first convert the data from its current wide format into a long format, or tidy format.

In the long format, the data will have only two primary columns: one containing the names of the original variables (the grouping factor, typically named variable or key) and another containing all the corresponding numerical values (the measurement, typically named value). This transformation standardizes the data layout, making it compatible with the aesthetic mappings required by ggplot2.

We utilize the melt() function, typically found in the reshape or reshape2 package, to perform this operation efficiently. The melt() function takes the wide data frame (df) and automatically stacks the columns, creating the desired long structure. Note that we must load the necessary library before executing the transformation command.

library(reshape)

#convert from wide format to long format
data <- melt(df)

#view first six rows
head(data)

  variable      value
1     var1 -0.6264538
2     var1  0.1836433
3     var1 -0.8356286
4     var1  1.5952808
5     var1  0.3295078
6     var1 -0.8204684

Observe the structure of the resulting data frame: the column variable now holds the names (‘var1’, ‘var2’, ‘var3’), and the column value holds the continuous measurements. This long format is precisely what ggplot2 expects, allowing us to map x=value and fill=variable in the subsequent plotting step.

Step 3: Creating the Overlaying Density Plots (Default Alpha)

With the data successfully transformed into the long format, we are now ready to construct the visualization. This step requires loading the ggplot2 library and then chaining together the base plot setup (specifying data and aesthetics) with the geometric layer (geom_density()).

In the aesthetic mapping aes(x=value, fill=variable), we instruct ggplot2 that the measurement (value) should define the position on the x-axis, while the grouping factor (variable) should define the color and pattern of the fill area. The geom_density() function performs the statistical calculation necessary to estimate the density for each group defined by the fill aesthetic.

We apply an initial alpha value of 0.25 to introduce transparency, ensuring that the overlapping regions of the three distinct density plots are visible, allowing for clear comparison between the distributions of var1, var2, and var3. This first visualization uses a relatively subtle transparency level.

library(ggplot2)

#create overlaying density plots
ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.25)

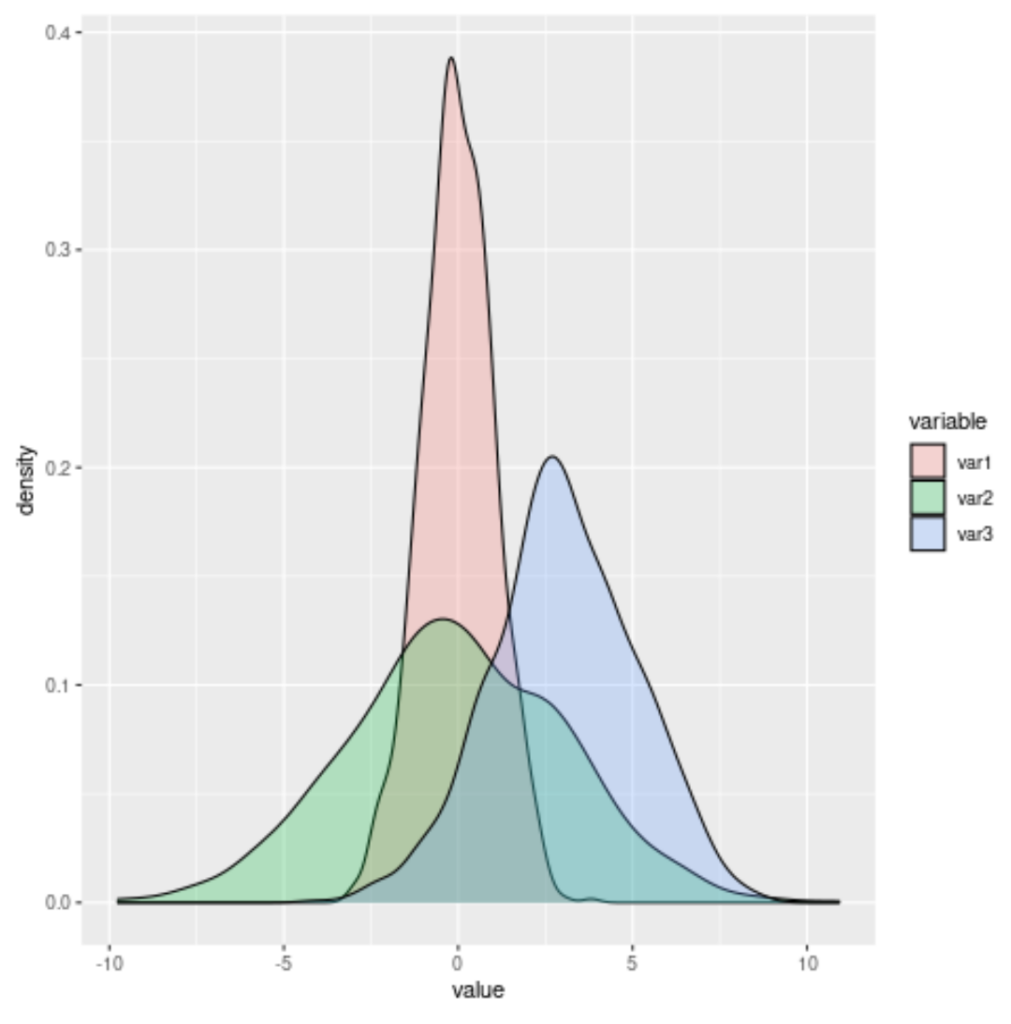

The resulting image visually confirms the differences we established when generating the random data: var1 is tightly clustered around zero, var2 is broadly spread across the plot (high variance), and var3 is noticeably shifted to the right, centered around a positive mean value. This demonstrates the immediate interpretability gained from overlaying these distributions.

Refining Visibility: Adjusting the Alpha Parameter

The choice of the alpha value critically impacts the visualization’s readability, particularly in high-density areas. While an alpha of 0.25 provides good transparency, users may sometimes prefer a less subtle filling for publication or presentation purposes, perhaps to emphasize the presence of each distribution even in low-overlap regions.

If the user decides that the plots need to be more visually prominent, the alpha value can be increased. However, it must be done cautiously. Increasing the opacity (e.g., setting alpha to 0.7) means that the colors will be much richer, but where distributions overlap heavily, the mixing of colors can become intense, potentially obscuring the underlying density estimation curves. It is essential to strike a balance between visual impact and analytical clarity.

Feel free to experiment with the alpha value within the range of 0.1 to 0.9 to find the optimal transparency level suited for your specific dataset and the number of variables being overlaid. The following example illustrates the effect of substantially increasing the alpha value to 0.7, resulting in denser, darker fill colors.

library(ggplot2)

#create overlaying density plots
ggplot(data, aes(x=value, fill=variable)) +
  geom_density(alpha=.7)

Comparing this image to the previous one reveals how much darker the overlap regions become when opacity is increased. While the individual distributions are more prominent, the complexity of the overlapping area might be slightly harder to resolve compared to the 0.25 alpha plot. Therefore, choosing the correct transparency is a key element of effective statistical visualization.

Advanced Customization and Interpretation

While the basic overlay provides immediate insight, ggplot2 allows for extensive customization to enhance clarity. Analysts often add elements such as titles, axis labels, and legends using functions like labs(). Furthermore, customizing the color palettes using scale_fill_manual() or themes using theme_minimal() can significantly improve the aesthetic quality and professionalism of the resulting graph.

For instance, one might want to add a vertical line indicating the mean or median of each distribution directly onto the plot. This can be achieved by calculating summary statistics for each variable and using geom_vline() within the plot structure. Moreover, using alternative geoms like geom_line(stat="density") can plot only the density outlines without the area fill, which is useful when dealing with a very large number of variables where filled plots would lead to excessive visual noise.

Ultimately, the goal of overlaying density plots is comparative analysis. When interpreting the final visualization, focus on three critical aspects:

1. Central Tendency: Where does the peak of each curve lie? Differences in peak location indicate differences in the mean or median of the variables.

2. Spread (Variance): How wide or narrow is the curve? A wider curve (like var2 in our example) indicates higher variance or greater spread in the data.

3. Shape and Skewness: Is the distribution symmetrical (Normal) or skewed? Skewness (a tail extending longer on one side) suggests non-normal data characteristics that might require specific statistical modeling approaches.

Mastering the technique of overlaying density plots is a fundamental skill in the R visualization toolkit, providing immediate, powerful insights into comparative statistical distributions. By ensuring proper data preparation (the wide-to-long transformation) and thoughtful parameter selection (especially the alpha value), analysts can create visualizations that are both informative and aesthetically pleasing.
