How to Create a Color-Coded Drop-Down List in Excel

Introduction to Enhanced Data Visualization in Microsoft Excel

In the modern professional environment, the ability to manage and interpret data effectively is a cornerstone of productivity. Microsoft Excel remains the industry standard for spreadsheet management, offering a robust suite of tools designed to transform raw information into actionable insights. One of the most effective ways to improve the user interface of a workbook is through the implementation of color-coded systems. By integrating a drop-down list with distinct colors, users can significantly enhance the readability and visual impact of their data sets.

Visual cues play a vital role in information visualization. When a cell changes color based on its value, the human brain processes that information faster than reading the text alone. This technique is particularly useful for project tracking, performance reviews, or inventory management, where status updates need to be identified at a glance. Throughout this guide, we will explore the precise methodology required to create these dynamic lists using a combination of Data Validation and Conditional Formatting.

Applying these features not only improves the aesthetic quality of your work but also minimizes data entry errors. By restricting the options available to a user and providing immediate visual feedback, you ensure that the data remains consistent and accurate. In the following sections, we will provide a comprehensive, step-by-step walkthrough to help you master this essential Excel skill, ensuring your reports are both functional and professional.

Step 1: Preparing Your Dataset for Analysis

Before implementing technical features, it is necessary to establish a clear structure for your data. In this tutorial, we will utilize a practical scenario involving sports analytics to demonstrate the process. Suppose you are managing a dataset containing the performance metrics of a basketball player. The primary objective is to evaluate the player based on the number of points scored in various games and assign a performance rating that is easy to identify visually.

The initial table should include basic identifiers such as the player’s name, the specific team, and the numerical data representing their points. This foundational step is crucial because it defines the context for the drop-down list. By organizing your columns logically, you create a framework where the color-coded ratings will provide the most value. Ensuring that your headers are clear and your data is clean is the first step toward professional-grade spreadsheet design.

The image below illustrates the starting point for our example, featuring a simple table with columns for “Player”, “Team”, “Points”, and a currently empty “Rating” column where our interactive elements will eventually reside.

By establishing this baseline, you are ready to move into the more advanced configuration phases. Consistency in your initial data entry ensures that the formulas and formatting rules you apply later will function seamlessly across the entire range of cells.

Step 2: Defining the Source Options for the List

To create a functional selection tool, you must first define the specific criteria that will appear as options. This is typically achieved by creating a “Source List” in a separate area of your spreadsheet. For our rating system, we will use three distinct categories: Good, OK, and Bad. These terms will serve as the labels that users can select from the menu.

It is often a best practice to place these reference values in a column that is outside the primary data area to avoid cluttering your main report. In this example, we will enter our three categories into the range F1:F3. This range acts as the master list; any changes made here will automatically propagate to your drop-down list if configured correctly. This centralized approach makes it easy to update your options in the future without having to reconfigure the validation settings for every cell.

The following image demonstrates the placement of these options within the Excel interface. Note how they are kept distinct from the primary basketball data table to maintain a clean workspace.

Once these values are in place, they are ready to be linked to your primary table. This separation of “data” and “metadata” (the options for the data) is a fundamental concept in advanced Microsoft Excel usage, facilitating easier maintenance and scalability as your project grows.

Step 3: Implementing the Data Validation Tool

With our source options defined, the next phase involves the actual creation of the interactive menu. This is achieved through the Data Validation feature. To begin, navigate to the cell where the list should appear (in this case, cell C2). Locate the Data tab on the Ribbon and select the icon for Data Validation within the Data Tools group.

Upon clicking the icon, a dialog box will appear. Under the “Settings” tab, you must change the “Allow” criteria to List. This informs Excel that the cell should only accept inputs from a predefined set of values. In the “Source” field, you will need to provide the cell reference for the labels you created in the previous step. You can simply click and drag over cells F1:F3 to populate this field.

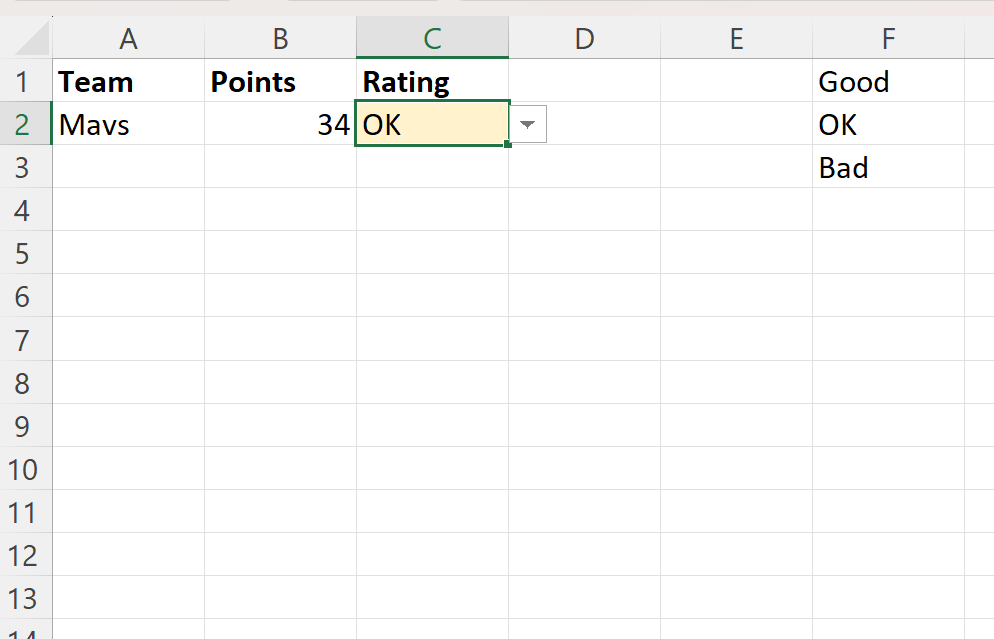

After clicking OK, the selected cell will now feature a small arrow icon on its right side. Clicking this arrow reveals the drop-down list containing your ratings. This creates a controlled environment for data entry, ensuring that no unauthorized text can be entered into the rating column, which is essential for the color rules we will apply next.

Step 4: Applying Conditional Formatting for Visual Impact

The final and most visually rewarding step is to assign colors to the specific text options. This is performed using Conditional Formatting, a powerful feature that changes a cell’s appearance based on its content. Navigate to the Home tab on the Ribbon, click the Conditional Formatting button, and select New Rule.

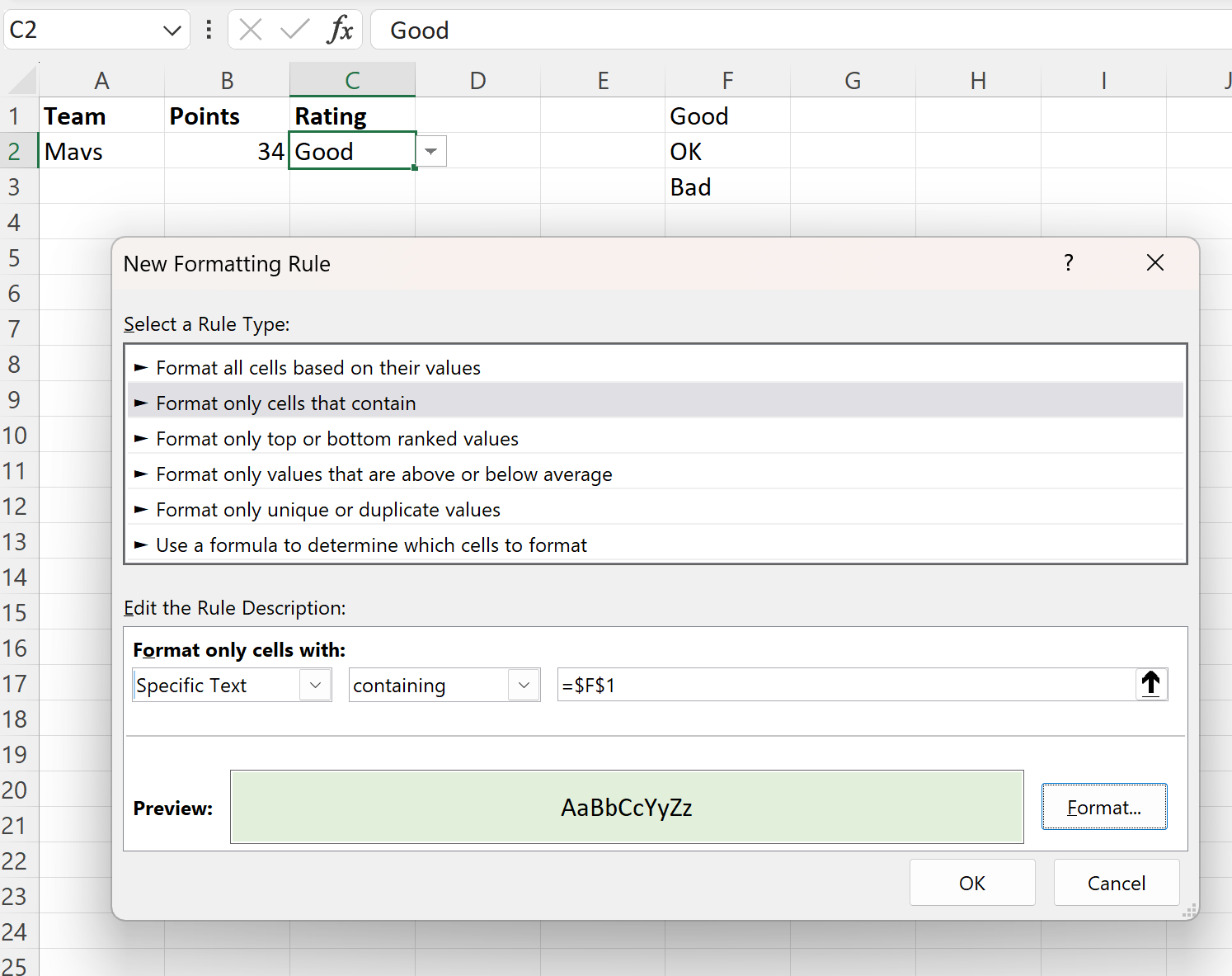

In the “New Formatting Rule” window, select the option labeled Format only cells that contain. In the rule description section, configure the settings to look for Specific Text that is equal to your first option. For instance, to format the “Good” rating, you would point the rule toward cell $F$1. Next, click the Format button to open the formatting options, where you can choose a fill color. A vibrant green is typically used to represent positive results.

Once you confirm your selection by clicking OK, the cell will automatically update its background color whenever “Good” is chosen from the menu. This provides an immediate, high-contrast visual indicator of success within your dataset. The use of color in this manner transforms a static spreadsheet into a dynamic graphical user interface that communicates status without requiring deep analysis.

Step 5: Expanding Rules for Multiple Color Indicators

To complete the color-coding system, you must repeat the formatting process for the remaining options in your drop-down list. Each individual status requires its own logic to ensure the colors trigger correctly. For the “OK” status, you will create a new rule following the same steps, but this time referencing cell $F$2 and selecting a yellow background to denote a neutral or average performance level.

Consistent color schemes are vital for information visualization. Yellow is universally recognized as a cautionary or intermediate color, making it the perfect choice for an “OK” rating. By applying these rules systematically, you build a logical flow where the data “speaks” to the viewer. This eliminates the need for manual highlighting, which is prone to human error and inconsistency.

Finally, address the “Bad” status by creating a third rule. Link this rule to cell $F$3 and choose a red fill color. Red is the standard visual cue for errors, underperformance, or items requiring immediate attention. With all three rules active, your Microsoft Excel worksheet now functions as a sophisticated dashboard, providing instant feedback based on the player’s performance metrics.

Step 6: Auditing and Managing Your Formatting Rules

As you add complexity to your spreadsheet, it is important to know how to manage and audit the rules you have created. Over time, rules can overlap or become redundant, which may slow down the performance of Microsoft Excel. You can view, edit, or delete your existing rules by navigating to the Conditional Formatting menu and selecting Manage Rules.

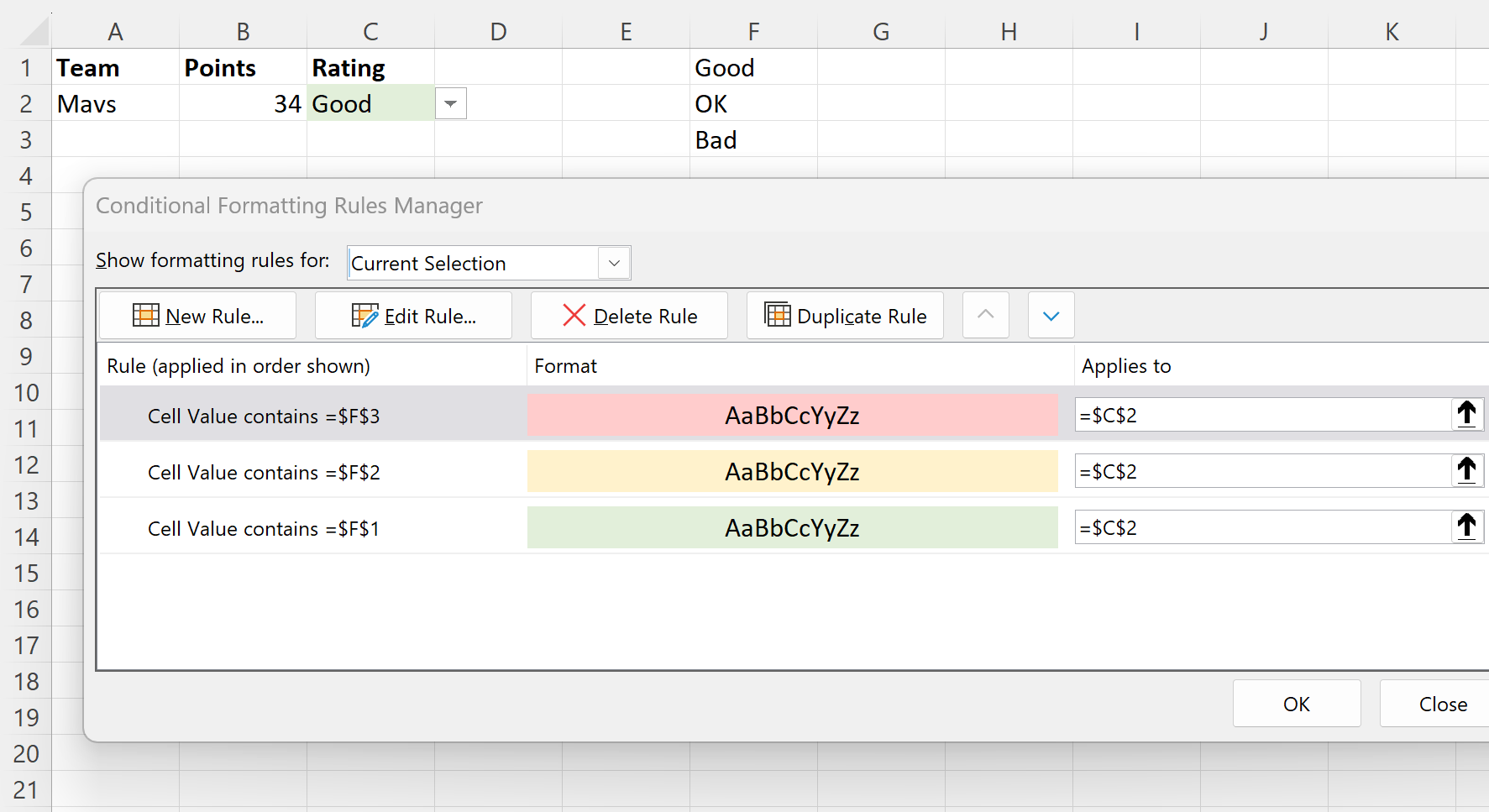

The Conditional Formatting Rules Manager provides a comprehensive overview of all logic applied to the current selection or the entire worksheet. From this dialog, you can adjust the cell reference for each rule, change the order of priority, or update the formatting styles. This management tool is essential for maintaining the integrity of your visual system, especially when sharing the document with other collaborators.

By regularly auditing your rules, you ensure that the drop-down list continues to function as intended. This level of detail is what separates basic users from Excel experts. Understanding the “behind-the-scenes” logic of Conditional Formatting allows you to troubleshoot issues quickly and adapt your sheets to meet changing business requirements.

Step 7: Conclusion and Best Practices for Excel Efficiency

Integrating color into your Microsoft Excel workflows is a transformative practice that goes beyond simple aesthetics. By following the steps outlined—creating a data structure, defining a source list, implementing Data Validation, and applying Conditional Formatting—you create a tool that is both robust and user-friendly. This methodology ensures that your data is communicated clearly and effectively to any stakeholder who views the spreadsheet.

To maximize the efficiency of your color-coded lists, consider the following best practices:

• Use accessible colors: Ensure that the colors you choose are distinct enough for all users, including those with color vision deficiencies.
• Protect your source lists: Consider hiding the columns or sheets where your source lists (like F1:F3) are located to prevent accidental deletion.
• Apply rules to ranges: Instead of formatting one cell at a time, apply your drop-down list and formatting rules to the entire column to maintain consistency across hundreds of rows.
• Document your logic: If your spreadsheet is complex, include a small legend or note explaining what each color signifies.

Mastering these features is a significant step forward in your data management journey. By combining technical accuracy with thoughtful information visualization, you empower yourself and your team to make better, faster decisions based on the data at hand. Continue exploring the vast capabilities of Excel to find new ways to streamline your professional tasks and present your findings with clarity.
