How to Add a Label to an Abline in R

Understanding Line Annotation in R

The ability to annotate plots is a critical skill for any serious data analyst working in R. Annotation ensures that visualizations are not only aesthetically pleasing but also fully communicative, guiding the viewer toward the most important statistical insights. A line added via the abline() function is typically used to indicate a specific value or relationship, such as a regression slope, a critical boundary, or an average. Without an explicit label, the audience is forced to estimate the line’s value based on the axis scale, which introduces ambiguity and reduces the plot’s overall clarity and professional polish. Therefore, integrating a descriptive label adjacent to the line is paramount for precise data storytelling.

The standard graphical functions in R, particularly those found in the base plotting system, operate on the principle of layers. A plot is first created (e.g., using plot()), and then additional graphical elements are layered on top, such as points, lines, or text. The abline() function adds a geometric line as one layer, and subsequently, the separate text() function is utilized to place the corresponding label as another, independent layer. This separation of duties between drawing the line and labeling the line provides exceptional flexibility, allowing labels to be positioned optimally without being constrained by the line parameters themselves.

The abline() Function: Adding Baselines

The abline() function serves the primary purpose of adding straight lines to an existing plot. It is highly versatile, accepting arguments to draw horizontal lines (using the h parameter), vertical lines (using the v parameter), or custom lines defined by an intercept (a) and slope (b). When adding a reference line, the analyst is setting a baseline against which the plotted data can be compared. For example, if we are analyzing test scores, we might use abline(h=70) to mark the passing threshold, making it instantly clear which data points fall above or below this critical value.

However, as powerful as the abline() function is for drawing the line itself, it does not include a native argument for text annotation. This is a design choice in the base graphics package that keeps the function focused purely on geometric line drawing. Consequently, to correctly identify the meaning of the line—such as “Mean Score” or “Threshold Limit”—we must turn to the complementary graphical function specifically designed for text placement, which requires precise knowledge of the plot’s coordinate system.

Utilizing the text() Function for Precise Labeling

The dedicated function for adding text annotations in R base graphics is text(). This function is capable of placing any string of characters at any specified location within the plot region, utilizing the existing data coordinates. The key to successfully labeling an abline() is calculating the exact coordinates (x and y) where the label should reside. Ideally, the label should be positioned very close to the line, perhaps slightly offset to prevent overlapping, but still clearly associated with the line it describes.

The process generally involves three steps: first, generating the initial plot (e.g., a scatterplot); second, using abline() to draw the reference line; and third, using text() to place the label. This layered approach ensures that the line and the label are drawn in the correct sequence, with the text appearing on top of the plot background and any existing data points. By mastering the coordination between the line position defined by abline() and the label position defined by text(), complex visualizations can be annotated with unparalleled accuracy.

Syntax and Key Parameters of text()

The fundamental syntax for employing the text() function is straightforward, relying on the mandatory specification of spatial coordinates and the desired label content. Understanding these basic components is crucial for accurate placement on any scatterplot or visualization.

The basic structure is:

text(x, y, ‘my label’)

where the arguments are defined as follows:

• x, y: These represent the precise (x, y) coordinates within the plotting area where the center or justification point of the label should be placed. Accuracy here is vital, particularly when labeling an abline(), as the x or y coordinate must align closely with the line’s position.
• ‘my label’: This is the actual text string that will be displayed on the plot. It should be informative and concise, clearly explaining the meaning of the reference line.

In the subsequent examples, we demonstrate how to apply the text() function effectively to annotate both horizontal and vertical lines added using the abline() function.

Example 1: Labeling a Horizontal Line (h)

When working with a horizontal reference line (added using abline(h=Y_value)), the challenge lies in selecting an appropriate X-coordinate for the label. The Y-coordinate must be very close to the line’s value (Y_value) itself. We typically introduce a small vertical offset to ensure the text is readable and does not overlap the line. The following demonstration illustrates how to construct a scatterplot, insert a horizontal line at y=20, and then place a label slightly above it.

# Create a simple data frame for visualization
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

# Generate the scatterplot of the data
plot(df$x, df$y, pch=19)

# Add a horizontal reference line at y=20 (e.g., a critical value)
abline(h=20)

# Add label to the horizontal line
# Note: x=2 places the label early in the plot, and y=20.5 adds a slight offset above the line.
text(x=2, y=20.5, 'This is a label')

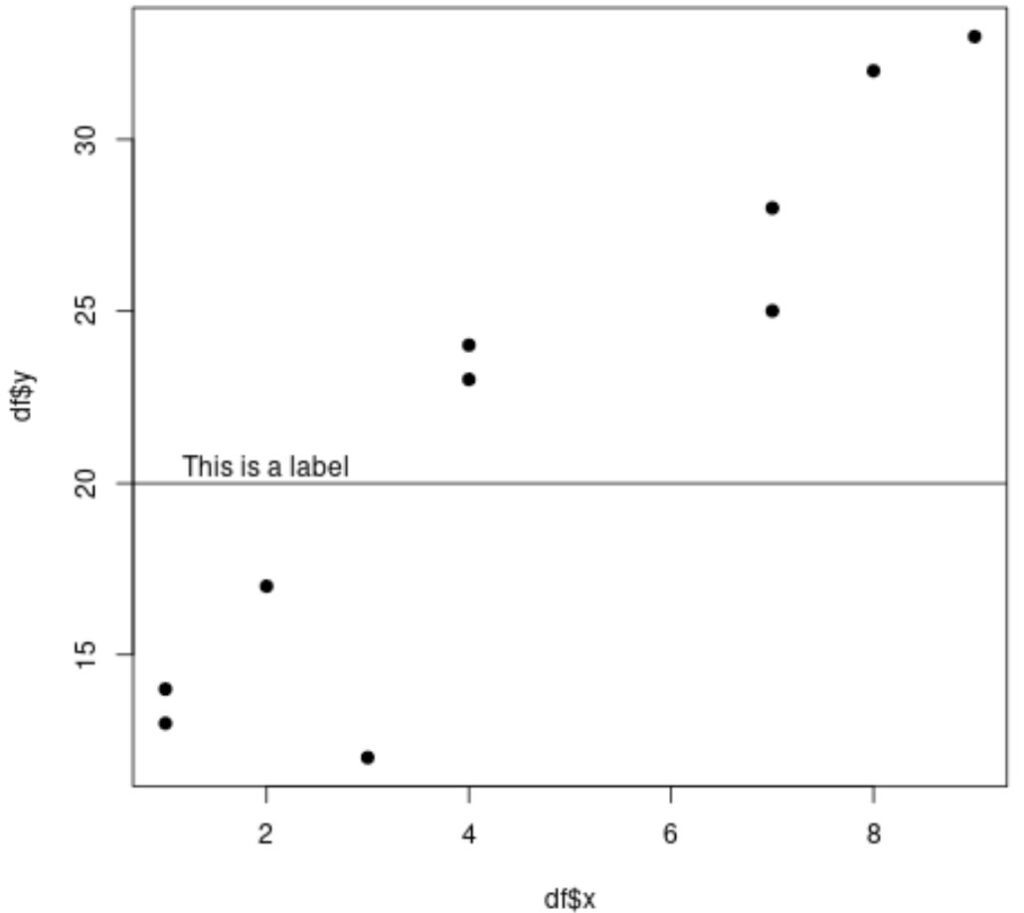

As illustrated in the resulting graphic, the label “This is a label” is successfully positioned just above the horizontal reference line at y=20. Selecting an X-coordinate (in this case, x=2) that is within the range of the data but doesn’t obscure dense clusters of points is often the best strategy. The minor vertical offset (y=20.5 instead of y=20) ensures visual separation between the text and the line itself, maintaining readability.

This technique is highly flexible. By adjusting the X-coordinate, the label can be centered, moved to the left edge, or placed near the right edge of the plot, depending on where it creates the least interference with the underlying data points. Choosing the optimal placement is a crucial step in creating effective data visualizations.

Enhancing Label Aesthetics (Color and Size)

Beyond simple placement, the text() function offers comprehensive control over the appearance of the annotation. Two of the most commonly used arguments are col for controlling the color of the text, and cex (character expansion) for managing the font size. Modifying these parameters allows the analyst to differentiate the label from other plot elements or emphasize its importance.

For instance, if the reference line represents a negative threshold, the label might be colored red to draw immediate attention. Conversely, if it is a central mean, a calmer color like blue might be selected. The cex argument accepts a numerical value where 1 is the default size; setting cex=2 doubles the font size, and cex=0.5 halves it. These aesthetic controls are essential for ensuring that the annotation fits the overall visual design and hierarchy of the graphic.

# create data frame (same as above)
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

# create scatterplot of x vs. y (same as above)
plot(df$x, df$y, pch=19)

# add horizontal line at y=20 (same as above)
abline(h=20)

# add label to horizontal line, modifying color and size
text(x=3, y=20.7, 'This is a label', col='blue', cex=2)

In this revised example, the label is now displayed in a highly visible blue color, and its font size has been significantly increased by setting cex=2. Notice the slight adjustment in the Y-coordinate to 20.7 to accommodate the larger font size, preventing potential overlap with the line itself. The strategic use of col and cex ensures that the annotation stands out effectively against the background and is scaled appropriately relative to the rest of the visual elements.

Example 2: Labeling a Vertical Line (v) and Rotation

Labeling a vertical reference line (added using abline(v=X_value)) introduces a unique challenge: the text naturally runs horizontally, which can cause it to extend across the entire height of the plot, potentially obscuring data points or other labels. The solution is to rotate the text to align vertically with the line itself. This is achieved using the srt argument within the text() function.

When labeling a vertical line, the X-coordinate must be held constant (or slightly offset) near the line’s value (X_value), while the Y-coordinate can be chosen to position the label centrally or near the top/bottom of the plot. The srt argument controls the string rotation angle in degrees. Setting srt=90 rotates the text ninety degrees counter-clockwise, making it run vertically, perfectly parallel to the vertical abline().

# create data frame (same data)
df <- data.frame(x=c(1, 1, 2, 3, 4, 4, 7, 7, 8, 9),
                 y=c(13, 14, 17, 12, 23, 24, 25, 28, 32, 33))

# create scatterplot of x vs. y
plot(df$x, df$y, pch=19)

# add vertical line at x=6 (e.g., a critical independent variable point)
abline(v=6)

# add label to vertical line, using srt=90 for rotation
text(x=5.8, y=20, srt=90, 'This is a label')

The resulting image clearly shows the label oriented vertically, positioned slightly to the left of the vertical abline() (using the coordinate x=5.8). The use of srt=90 is vital for making vertical annotations readable and aesthetically integrated into the plot. By carefully selecting the offset (x=5.8 instead of x=6), we prevent the label from being drawn directly over the line, thus ensuring that both elements remain distinct and clear to the reader.

Note: The argument srt=90 in the text() function dictates the rotation of the label string by 90 degrees. This rotation is indispensable for effectively annotating vertical boundaries or time-series markers that span the y-axis.

Best Practices for Effective Plot Annotation

When annotating reference lines on a scatterplot or any base R plot, several best practices should be followed to maximize clarity and professionalism. Firstly, the label’s position must be carefully chosen to avoid occlusion. If data points are clustered densely in one area, placing the label in a sparser region, even if it is far from the middle of the line, is preferable to maximize data visibility. This requires manually testing different (x, y) coordinates until the ideal location is found.

Secondly, synchronization between the line and text aesthetics is crucial. While the examples above use a basic black line, if the abline() color is changed (e.g., abline(h=20, col='red')), the corresponding label color should ideally match (text(..., col='red')). This visual consistency immediately links the annotation to its corresponding geometric element. Thirdly, always consider the plot’s margins and limits. Ensure the label is entirely contained within the plotting region and does not get clipped off, especially when using larger font sizes (cex > 1) or rotation (srt).
