How to Get Accurate Results with SUMPRODUCT and SUBTOTAL in Excel

Understanding the SUMPRODUCT Function

The SUMPRODUCT function is one of Excel’s most powerful tools, primarily used to multiply corresponding components in the given arrays and returns the sum of those products. It is essentially a compact method for performing multiple calculations—multiplication followed by addition—without the need for an intermediate column to store the products. This capability makes it incredibly valuable for weighted averages, conditional summing, and complex criterion counting.

Unlike standard functions, SUMPRODUCT operates based on arrays, treating its arguments as data structures rather than single cell references. When using it, you specify two or more ranges of the same dimension. For instance, if you provide ranges A1:A10 and B1:B10, it calculates (A1*B1) + (A2*B2) + … + (A10*B10). Because it is an array calculation engine, it intrinsically processes every element within those arrays, irrespective of whether those rows are currently displayed on the spreadsheet. This behavior is key to understanding the conflict with filtering operations.

Furthermore, SUMPRODUCT is also exceptional at handling logical tests. By forcing conditions to return arrays of 1s (TRUE) and 0s (FALSE), it can effectively mimic the behavior of functions like SUMIFS or COUNTIFS, often with greater flexibility when dealing with multiple, non-standard criteria. However, this inherent reliance on the entire array structure is what prevents it from automatically adapting to changes made by Excel’s native data filtering tools.

The Role and Limitations of SUBTOTAL

The SUBTOTAL function serves a very specific purpose in Excel: performing a calculation (like summing, averaging, or counting) only on the visible cells within a range. This feature is critically important for financial reporting and data summaries where the user needs accurate totals for a dynamically filtered dataset. The function takes two main arguments: a function number (which dictates the operation, such as 9 for SUM) and the range to operate on.

The distinction between the function numbers is vital. Numbers 1 through 11 include manually hidden rows in the calculation, while numbers 101 through 111 exclude them. Crucially, both sets of numbers automatically ignore rows hidden by an autofilter. When we use the function number 9 (SUM), the SUBTOTAL function reliably calculates the sum of all visible cells, making it the standard choice for filtered totals.

However, SUBTOTAL is a single-cell function; it returns one result based on an entire range. It cannot, by itself, produce an array of results corresponding to each individual row (a 1 or a 0 indicating visibility). This limitation means it cannot directly act as a filter array inside SUMPRODUCT, which requires an array of the same length as the data columns being multiplied. To overcome this, we must use auxiliary functions to force SUBTOTAL to check row visibility one cell at a time.

The Conflict: Hidden Cells vs. Array Processing

The error when combining these functions occurs because of their conflicting philosophies regarding data visibility. When you filter a dataset in Excel, certain rows are visually removed (hidden). If you try to calculate the sum of products on the visible data using a naive SUMPRODUCT formula, it ignores the filtering entirely and processes the hidden rows, leading to an inflated and incorrect total.

The challenge is thus to construct an array that acts as a visibility flag. This array must contain a 1 for every visible row and a 0 for every hidden row. This calculated array can then be multiplied by the other data arrays within the SUMPRODUCT formula, effectively nullifying the contribution of any hidden rows to the final sum. Since SUBTOTAL is the only native function that reliably detects filtering, we must find a way to make it check visibility row-by-row.

This is where the complex combination of OFFSET, ROW, and MIN functions comes into play. These functions work together to isolate a single cell, pass that single-cell range to SUBTOTAL for a visibility check, and then iterate this check across the entire data range, ultimately generating the necessary visibility array for SUMPRODUCT.

The Advanced Formula Solution

To correctly combine the power of SUBTOTAL (for filtering) with the array multiplication capabilities of SUMPRODUCT, we must employ the following structural solution:

=SUMPRODUCT(C2:C11,SUBTOTAL(9,OFFSET(D2:D11,ROW(D2:D11)-MIN(ROW(D2:D11)),0,1)))

This specific formula allows you to accurately sum the product of the values in the range C2:C11 and the range D2:D11 even after that range of cells has been filtered in some way. The complex internal component—SUBTOTAL(9,OFFSET(D2:D11, ROW(D2:D11) - MIN(ROW(D2:D11)), 0, 1))—is designed to generate an array of 1s and 0s corresponding to the visibility status of each row in the data set.

Breaking Down the Visibility Array Component

The key to this advanced technique lies in how the inner functions interact to feed the necessary information to SUBTOTAL. Since SUBTOTAL cannot natively handle an entire array reference when used within another array function, we trick it into performing a visibility check on a one-row range.

The ROW(D2:D11) function returns an array of row numbers (e.g., {2; 3; 4; …; 11}). MIN(ROW(D2:D11)) returns the starting row number, which is 2. When you subtract these, ROW(D2:D11) - MIN(ROW(D2:D11)), you get an array of relative row offsets starting from zero (e.g., {0; 1; 2; …; 9}). This array provides the necessary distance for the OFFSET function.

The OFFSET function then uses the initial range (D2:D11) as its reference and the calculated array of offsets as its row argument. Critically, because the row argument is an array, OFFSET returns multiple one-cell ranges. For each row in the original array, SUBTOTAL receives a reference to a single cell. If that cell is visible, SUBTOTAL returns the value of that cell; if it is hidden, SUBTOTAL returns 0. This effectively creates an array where visible values retain their numerical data, and hidden values are converted to zero, allowing SUMPRODUCT to perform the final multiplication correctly.

Example: How to Use SUBTOTAL with SUMPRODUCT in Excel

Let us walk through a practical example demonstrating the necessity of this advanced formula. Suppose we have the following dataset that contains information about the sales of various products at two different grocery stores, labeled Store A and Store B. Our goal is to calculate the total revenue (Sales * Price) only for the filtered store location.

We will first apply a filter to isolate the data related exclusively to Store B. This filtering operation simulates the real-world scenario where data segmentation is required before calculation.

Step-by-Step Implementation of Filtering

To proceed with filtering, highlight the cell range A1:D11, which encompasses the entire dataset including the header row. Then, navigate to the Data tab located along the top ribbon of Excel and click the Filter button. This action applies the filtering mechanism to the column headers.

Next, click the dropdown arrow that appears next to the Store column heading. In the filtering dialog box that appears, ensure that only the box next to B is checked, deselecting all other options (in this case, Store A). After selecting only B, click OK.

The spreadsheet will automatically update, and the data will be filtered to only show the rows where the Store column is equal to B, effectively hiding all rows corresponding to Store A.

Demonstrating the Incorrect Result

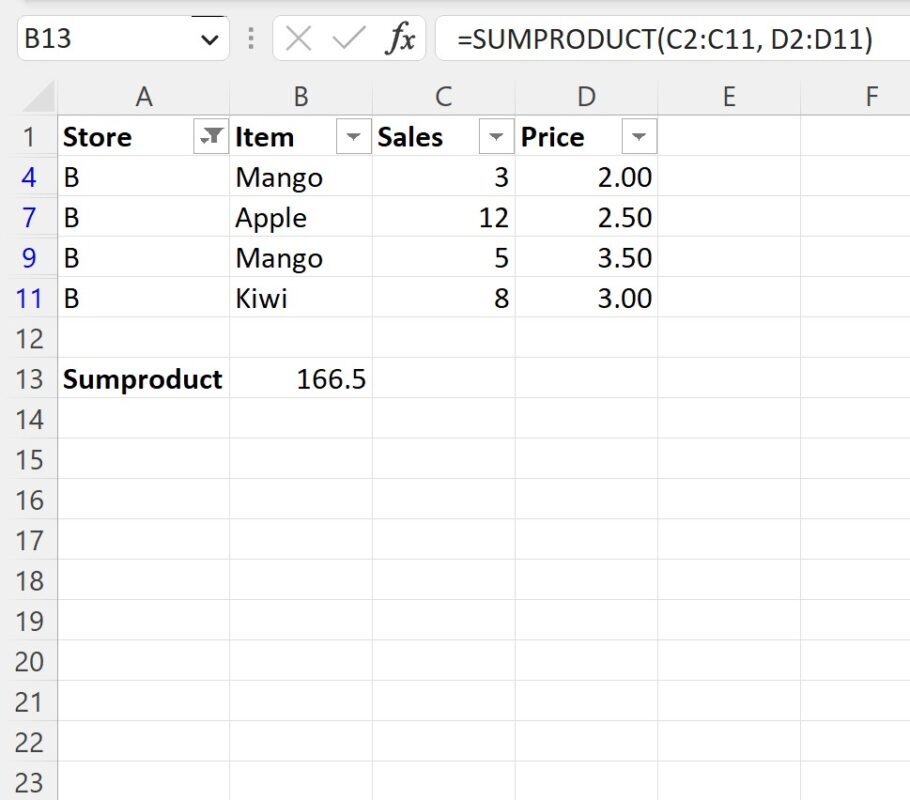

If we now attempt to use a standard SUMPRODUCT formula to calculate the revenue (Sales * Price) using the full ranges, it will incorrectly include the data from the hidden rows (Store A). For example, using the formula =SUMPRODUCT(C2:C11, D2:D11) will calculate the sum of products for the original, unfiltered dataset, not the visible, filtered data.

The result of the basic SUMPRODUCT calculation on the filtered view returns the total revenue for both stores (Store A and Store B combined):

As shown above, the standard calculation ignores the filter entirely, demonstrating why a simple application of SUMPRODUCT fails when dealing with dynamically filtered tables. The desired output should reflect only the revenue from the visible rows corresponding to Store B.

Applying the Corrected Formula

To obtain the correct revenue for only the visible data (Store B), we must implement the advanced formula incorporating the row-by-row visibility check provided by the nested SUBTOTAL and OFFSET function structure.

Instead of the basic formula, we need to use the following structure:

=SUMPRODUCT(C2:C11,SUBTOTAL(9,OFFSET(D2:D11,ROW(D2:D11)-MIN(ROW(D2:D11)),0,1)))

When this formula is executed, the second array argument effectively generates an array that contains the Price values (D2:D11) for visible rows and zeros for hidden rows. This visible-only Price array is then multiplied by the Sales array (C2:C11) within SUMPRODUCT, yielding the accurate, filtered total.

Verification and Conclusion

As demonstrated by the image above, the corrected formula successfully returns the filtered sum of 77.5. This result represents the total revenue generated exclusively by Store B, which was the objective of the calculation.

We can confirm the accuracy of this output by manually calculating the sum of the product of the values for the visible rows (Store B only). The rows visible are 3, 5, 8, and 10:

• Row 3: (3 Sales * 2.0 Price) = 6.0
• Row 5: (12 Sales * 2.5 Price) = 30.0
• Row 8: (5 Sales * 3.5 Price) = 17.5
• Row 10: (8 Sales * 3.0 Price) = 24.0

The total sum of these products is 6.0 + 30.0 + 17.5 + 24.0 = 77.5.

In conclusion, while the standard combination of SUMPRODUCT and SUBTOTAL generates errors due to the handling of hidden rows, incorporating auxiliary functions like OFFSET and ROW allows us to force a row-by-row visibility check. This robust technique ensures that accurate summary calculations, such as the sum of products, are always achieved on filtered datasets in Excel.
