What is a Multimodal Distribution?

A Multimodal distribution is a specialized type of probability distribution defined by the presence of two or more distinct peaks, known as statistical modes. These modes represent local maxima within the distribution curve, indicating where data values are most frequently concentrated. The study of multimodality is crucial in data analysis because its presence often suggests that the observed data is not homogeneous but rather composed of distinct, underlying subgroups or mechanisms. Recognizing and properly addressing multimodality is fundamental for accurate statistical inference and data interpretation.

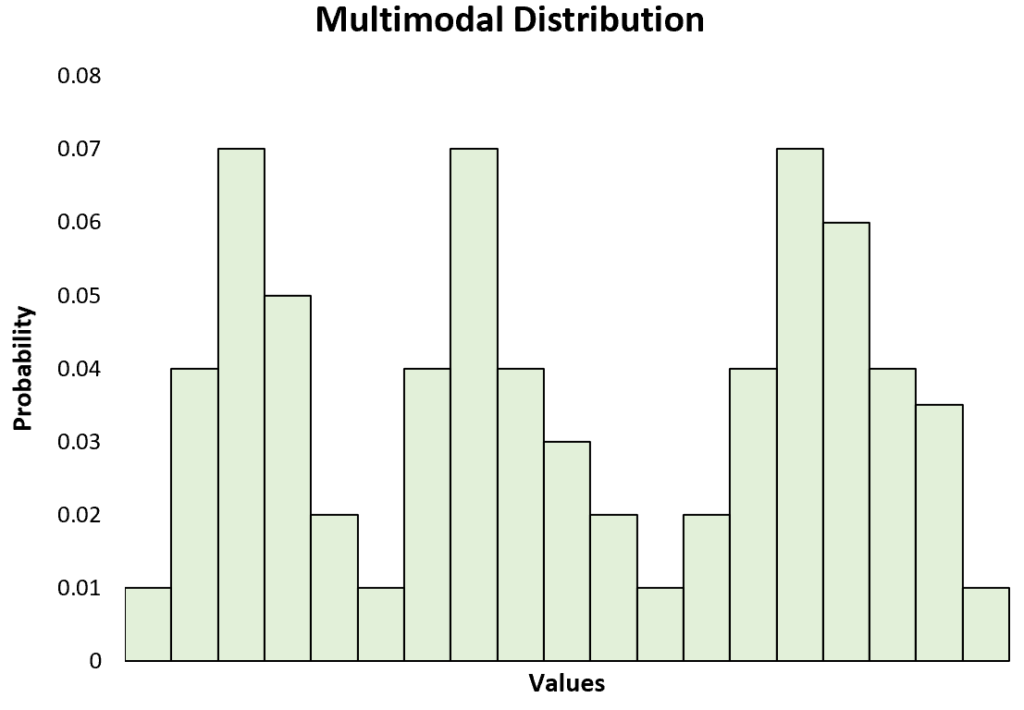

When visualizing data, the characteristic feature of multimodality becomes immediately apparent. If an analyst constructs a histogram to display the frequency density of the data set, a multimodal pattern will manifest as multiple prominent hills or peaks along the horizontal axis. Each peak corresponds to a center of density, contrasting sharply with the single peak characteristic of simpler distributions. This visual signature provides the first key indicator that the data requires a more nuanced approach than standard single-mode models.

A specific and frequently encountered subtype of the multimodal family is the Bimodal distribution. This occurs when a dataset exhibits exactly two distinct modes or peaks. While all bimodal distributions are inherently multimodal, the distinction is often made in practical analysis because bimodality is the simplest form of multimodality and often points directly to the mixture of just two populations. Analyzing a bimodal distribution often requires specific techniques tailored to dissecting these two dominant concentrations of data points, ensuring that the analytical focus is placed on the subgroups rather than the misleading aggregated statistics.

Contrasting Multimodal with Unimodal Distributions

The concept of a multimodal distribution stands in stark contrast to the vastly more common Unimodal distribution. A unimodal distribution is characterized by possessing only a single, unique mode—that is, just one primary peak where data accumulation is highest. This singularity implies a homogeneity in the underlying data generation process, suggesting that the data points are likely drawn from a single, unified population. The majority of statistical theory, particularly in introductory contexts, relies heavily on the assumption of unimodality, greatly simplifying subsequent mathematical treatments.

The classic example of a unimodal pattern is the Normal distribution (or Gaussian distribution), which features a symmetrical, bell-shaped curve with a single central peak. Although these simpler distributions are frequently used to model and explain complex statistical phenomena, real-world data frequently deviates from this idealized form. The prevalence of multimodality in observational studies confirms that many natural and human-centric processes are inherently complex, often involving the interaction or mixture of several distinct underlying mechanisms.

The inability of a standard unimodal model to adequately describe a multimodal dataset necessitates a shift in analytical strategy. Ignoring a multimodal structure and imposing a unimodal fit can lead to biased parameter estimates, inaccurate predictions, and fundamentally flawed interpretations of the data’s true characteristics, especially concerning measures of central tendency and overall variance. Therefore, the immediate visual diagnosis of distribution shape is paramount to selecting the correct statistical framework.

Examples of Multimodal Distributions

Multimodal distributions are recurrent features of empirical data collected across highly diverse fields. Understanding the context behind the multiple peaks often provides profound, actionable insights into the underlying mechanisms driving the data generation. We explore three detailed examples that illustrate how multimodality manifests in practical, real-world scenarios.

In the context of educational assessment, consider the distribution of scores from a highly differentiated exam. If a professor administers a test to a class where preparatory effort varies significantly, the resulting histogram will likely display bimodality. One cluster of scores will center around a lower mode, reflecting the performance of students who did not dedicate sufficient time to study. A second, higher mode will capture the high scores achieved by those who rigorously prepared. The gap between these modes highlights a critical divide in student engagement or ability, which is obscured if only the class average is considered.

Another compelling instance is found in biological field studies. Suppose a scientist measures the height of plants in an ecosystem that contains multiple distinct species. If three species are present—one tall, one medium, and one short—the aggregated height data will naturally exhibit a trimodal distribution. Each peak represents the characteristic mean height of one of the three different genetic populations. This multimodal visualization serves as an immediate, non-parametric indicator of the biodiversity and heterogeneity within the sampled area, guiding the researcher to separate the data by species for subsequent focused analysis.

Finally, temporal data, such as customer arrival times at a service establishment, frequently display systematic multimodality. A restaurant tracking hourly visitors will typically observe two strong peaks: one corresponding to the lunch rush and another during the dinner service period. This pattern is generated by systematic human scheduling and societal norms for meal times, rather than a mixture of distinct customer demographics. Recognizing this temporal multimodality is essential for operational optimization, dictating resource allocation, staffing levels, and inventory readiness throughout the day.

What Causes Multimodal Distributions?

Identifying the structure of multimodality is inseparable from determining its origin. The root cause dictates the subsequent analytical approach—whether to separate the data or to model the underlying cyclic mechanism. Typically, two main underlying scenarios are responsible for the emergence of multiple modes in a dataset.

1. Multiple Groups are Lumped Together: Multimodal distributions frequently occur when the data collected inadvertently combines observations from two or more distinct, homogeneous populations. Each population internally follows its own unimodal pattern, but because their central tendencies differ, their aggregation results in multiple peaks. This mixture often happens when sampling is done broadly without sufficient stratification or grouping variables. For example, combining the weights of adult male and female populations without recording gender will produce a bimodal distribution, as the mean weight for males and females typically differs significantly. The analyst’s goal in this case is to identify and statistically separate these components, effectively returning the data to its underlying unimodal structures for targeted analysis.

2. There Exists an Underlying Phenomenon or Process: Alternatively, multimodality can be the direct consequence of an intrinsic, non-random process or systematic mechanism that governs the variable. This suggests that the measured variable naturally favors clustering around specific values due to external constraints, cyclical behavior, or regulatory mechanisms. The restaurant flow example falls under this category, as the peaks are caused by the systematic rhythm of human daily life (lunch and dinner schedules). Other examples might include physical systems exhibiting phase transitions, or biological systems regulated by 24-hour circadian rhythms, all of which impose specific periods of high activity or clustering. When this cause is identified, the focus shifts from data separation to comprehensive process modeling.

Statistical Challenges Posed by Multimodal Data

The presence of multiple modes fundamentally compromises the effectiveness of classical summary statistics, which are designed primarily for unimodal symmetry. The assumption that a single value can represent the “typical” observation breaks down completely when data clusters around two or more disparate points.

The primary measure affected is the Mean (average). In a bimodal context, the calculated mean frequently falls into the trough or valley between the two peaks—a region of minimum observation frequency. As shown in the exam score distribution, the mean score of 81 was statistically irrelevant because very few students achieved that score. This makes the mean an unrepresentative and misleading descriptor of central tendency, as it fails to characterize either of the major populations present. Similarly, the Median, which is the 50th percentile, may also fail to land near a high-density area, further obscuring the true nature of the data clustering.

Beyond central tendency, measures of variability, particularly the standard deviation, also require careful interpretation. A large standard deviation in a multimodal dataset often reflects the broad physical separation between the modes, rather than high dispersion within the component subgroups. If the data were analyzed individually, the standard deviation for each separate mode would likely be much smaller. Therefore, calculating a single set of descriptive statistics for a multimodal dataset is equivalent to averaging two entirely different phenomena, resulting in a single composite metric that accurately describes neither.

How to Analyze Multimodal Distributions

Effective analysis of multimodal data requires moving beyond simple aggregate metrics and adopting strategies that specifically address the underlying causes of the multiple modes. The recommended approach relies heavily on initial diagnosis: first, determining the cause, and second, applying the appropriate decomposition or modeling technique.

If the multimodality is attributed to a mixture of populations, the best strategy is **decomposition**. This involves statistically identifying the individual component distributions—for example, using mixture models such as Gaussian Mixture Models (GMMs). These techniques utilize iterative algorithms to estimate the parameters (mean, variance, and weight) of the underlying unimodal distributions that sum up to form the observed multimodal pattern. Once the component groups are identified, the data must be analyzed separately, calculating the mean, median, and standard deviation for each specific subgroup. For example, for the exam scores, breaking the data into “low scores” and “high scores” and finding the descriptive statistics for each segment provides meaningful, non-misleading results.

If the multimodality is generated by an underlying systemic phenomenon or cyclic behavior, **process modeling** is required. Instead of separating the data, the focus shifts to modeling the system dynamics. Techniques such as time series analysis, spectral analysis, or regression models incorporating cyclical terms are employed. For the restaurant customer count, the analysis would focus on predicting the probability of a customer arrival at any given time, utilizing the known periodicity of lunch and dinner peaks, rather than attempting to force the aggregated data into a single distribution.

Advanced Modeling Approaches for Multimodal Data

While visualization and simple deconvolution suffice for basic data presentation, advanced statistical modeling often requires more robust methods specifically designed to handle complex multimodal structures, particularly in predictive contexts.

A crucial advanced technique is the application of **Mixture Models**. These models hypothesize that the observed data is generated by sampling from a number of different component distributions (e.g., k Normal distributions), each with its own specific parameters. The model then simultaneously estimates the parameters of these component distributions and the probability that any given data point belongs to a specific component. This statistical framework allows the analyst to not only identify the hidden subgroups but also to quantify the relative size and characteristics of each peak, providing a full probabilistic description of the multimodal structure.

In the domain of unsupervised machine learning, multimodal data often necessitates the use of **Clustering Algorithms** like k-means or Density-Based Spatial Clustering of Applications with Noise (DBSCAN). These algorithms are designed to automatically segment the data into distinct clusters that often correspond directly to the visible modes in the distribution. Once segmented, sophisticated predictive models (e.g., separate classification models) can be trained on each cluster independently, yielding vastly superior predictive performance compared to a single model trained on the aggregated, heterogeneous data. This acknowledgment of data heterogeneity is foundational to optimizing statistical learning processes.

The Essential Role of Data Visualization and Summary Metrics

Regardless of the complexity or cause of the multimodality, the analytical process must always start with, and frequently return to, strong data visualization. Without graphical representation—be it a histogram, a kernel density estimate plot, or a box plot stratified by potential groups—the multimodal structure can easily be overlooked, leading to erroneous application of standard statistical tests.

When presenting results derived from multimodal data, the practice of reporting a single central tendency metric, such as the mean or median, must be abandoned as it is highly misleading. Instead, the most professional and informative approach is to report the relevant descriptive statistics for each identified mode individually. This requires segmenting the data and calculating the mean, median, and standard deviation for each distinct population represented by a mode. This approach provides a clear, accurate, and actionable interpretation of the dataset’s true nature, honoring the complexity inherent in multimodal distributions and ensuring that the final insights are both transparent and representative of the underlying reality.
